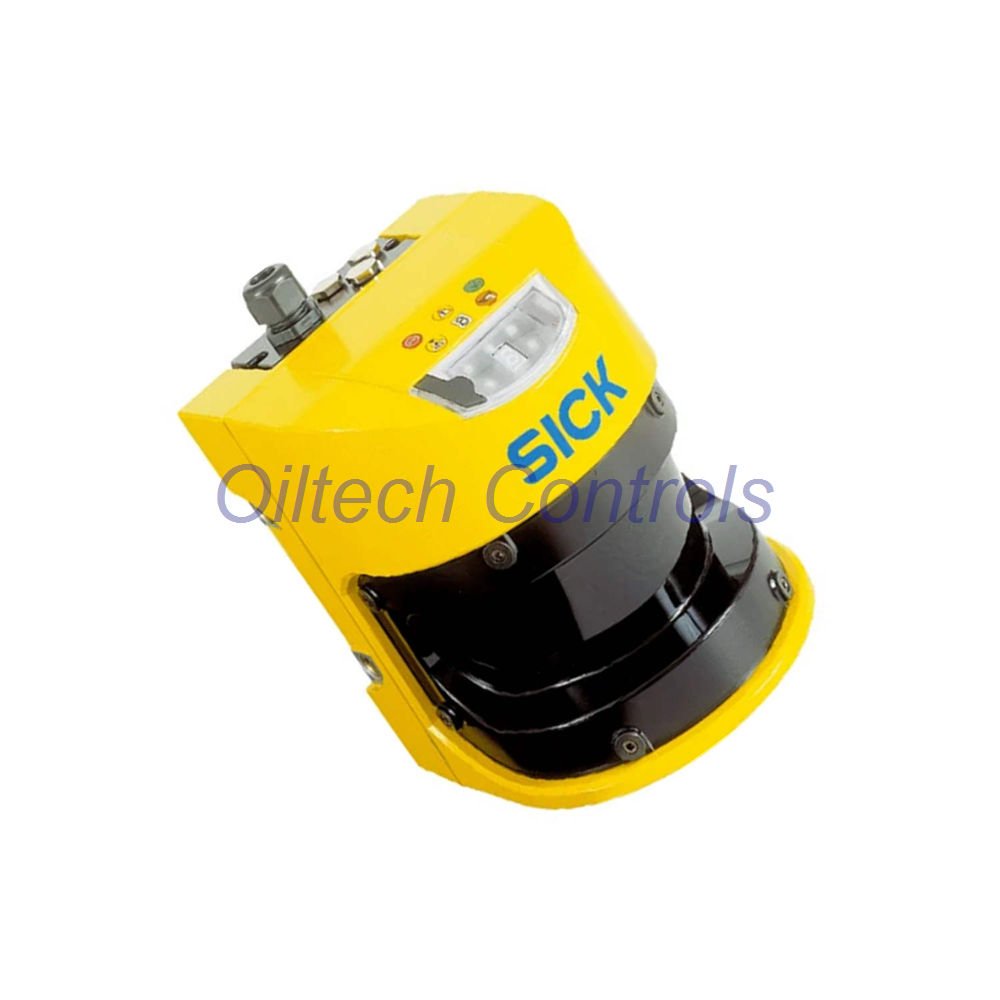

S30A-6011BA Industrial Safety Laser Scanner Overview
- Model: S30A-6011BA
- Series: S3000 Standard safety laser scanner
- Designed for industrial machine protection
- Monitors hazardous zones with laser scanning
- Provides reliable personnel safety detection
- Supports machine stop through safe OSSD outputs
- Compact body for flexible installation
- Works well in factory automation systems
Key Performance Advantages
- Protective field range up to 5.5 meters
- Wide warning detection range up to 49 meters
- Large scanning angle 190° for wide coverage
- High scanning accuracy with configurable resolution
- Fast safety response time 60 ms
- Supports simultaneous safety monitoring
- Integrated configuration memory
- Built for reliable machine safety control
Configuration Breakdown
- S30A-6011BA
- Sensor type
- S3000 Standard safety laser scanner
- Application environment
- Indoor industrial safety protection
- Protective detection capability
- Protective field: 5.5 m
- Warning field: 49 m
- Distance measurement: 49 m
- Monitoring configuration
- Number of fields: 4
- Field sets: 1
- Monitoring cases: 1
- Simultaneous monitoring supported
- Scanning characteristics
- Scanning angle: 190°
- Angular resolution: 0.25° / 0.5°
- Configurable resolution levels
- Sensor type
Detection and Measurement Specifications
- Configurable detection resolution options
- 30 mm
- 40 mm
- 50 mm
- 70 mm
- 150 mm
- Response time: 60 ms
- Protective field supplement: 100 mm
- Multiple sampling: 2 to 16 configurable
- Automatic reset delay: 2 to 60 seconds
Safety Certification and Reliability
- Safety Type: Type 3 according to IEC 61496
- Safety Integrity Level: SIL2
- Performance Level: PL d
- Category 3 safety architecture
- PFHD: 8.0 × 10⁻⁸ dangerous failure probability
- Mission time: 20 years
- Fault safe state ensures OSSD shutdown
Electrical Characteristics
- Power supply: 24 V DC
- Voltage operating range: 16.8 V to 28.8 V DC
- Power consumption without load: 0.8 A
- Maximum current with load: 2.3 A
- Protection class II electrical insulation
Outputs and Communication
- 2 safety OSSD outputs
- Output current capacity: 500 mA each
- 3 programmable diagnostic outputs
- Diagnostic output capacity: 100 mA each
- Measured data output through RS-422
- Safe device communication via EFI interface
Mechanical Design
- Housing material: aluminum die-cast
- Front screen: polycarbonate with scratch coating
- Housing color: safety yellow RAL1021
- Dimensions: 155 × 185 × 160 mm
- Weight: 3.3 kg
- Compact design for machine integration
Environmental Durability
- Protection class: IP65
- Operating temperature: −10°C to +50°C
- Storage temperature: −25°C to +50°C
- Vibration resistance compliant with IEC standards
- Shock resistance up to 100 m/s²
- Suitable for harsh industrial environments
Laser Technology
- Laser type: pulsed laser diode
- Laser wavelength: 905 nm
- Laser class: Class 1 eye-safe
- Detectable remission factor: 1.8% to above 1000%
- Stable detection of objects and reflectors
Typical Industrial Applications
- Automated production line protection
- Robotic workcell safety monitoring
- AGV navigation safety zones
- Warehouse logistics equipment protection
- Machine perimeter safety detection
Packaging Information
- 1 × SICK S30A-6011BA safety laser scanner
- Industrial protective packaging
- Product identification label
- Quality inspection verification
Warranty and Shipping
- Standard 12-month warranty
- Products tested before shipment
- Global express delivery available
- Shipping carriers: FedEx, UPS, DHL
- Secure export packaging
Professional FAQ
- What machines typically use S30A-6011BA scanners?
- Factories use them on robots, conveyors, and automated work cells.
- How large is the protection area?
- The protective field reaches up to 5.5 meters.
- Can this scanner detect small objects?
- Yes. Detection resolution can be set as low as 30 mm.
- What should engineers consider during installation?
- Check mounting height, scanning angle, and safety field layout.
- How do buyers select the correct safety scanner?
- Compare protection distance, safety level, and machine risk category.
