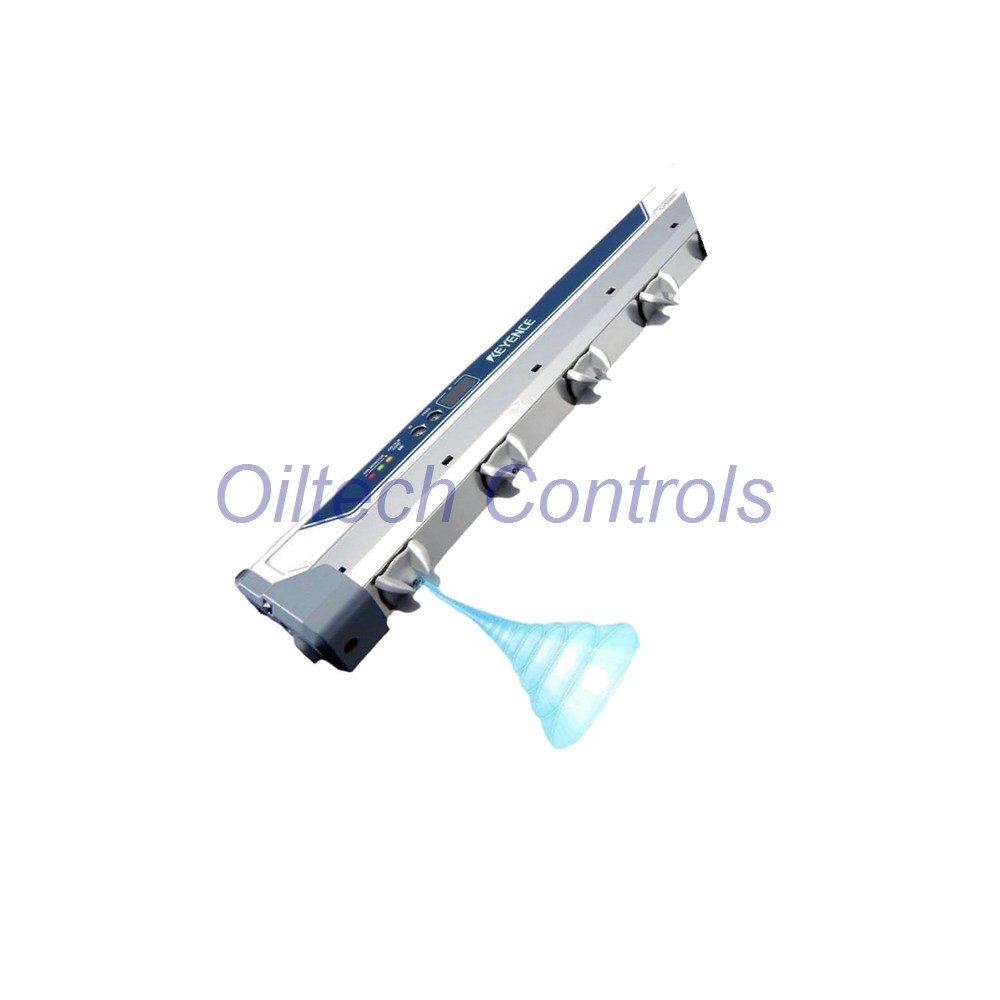

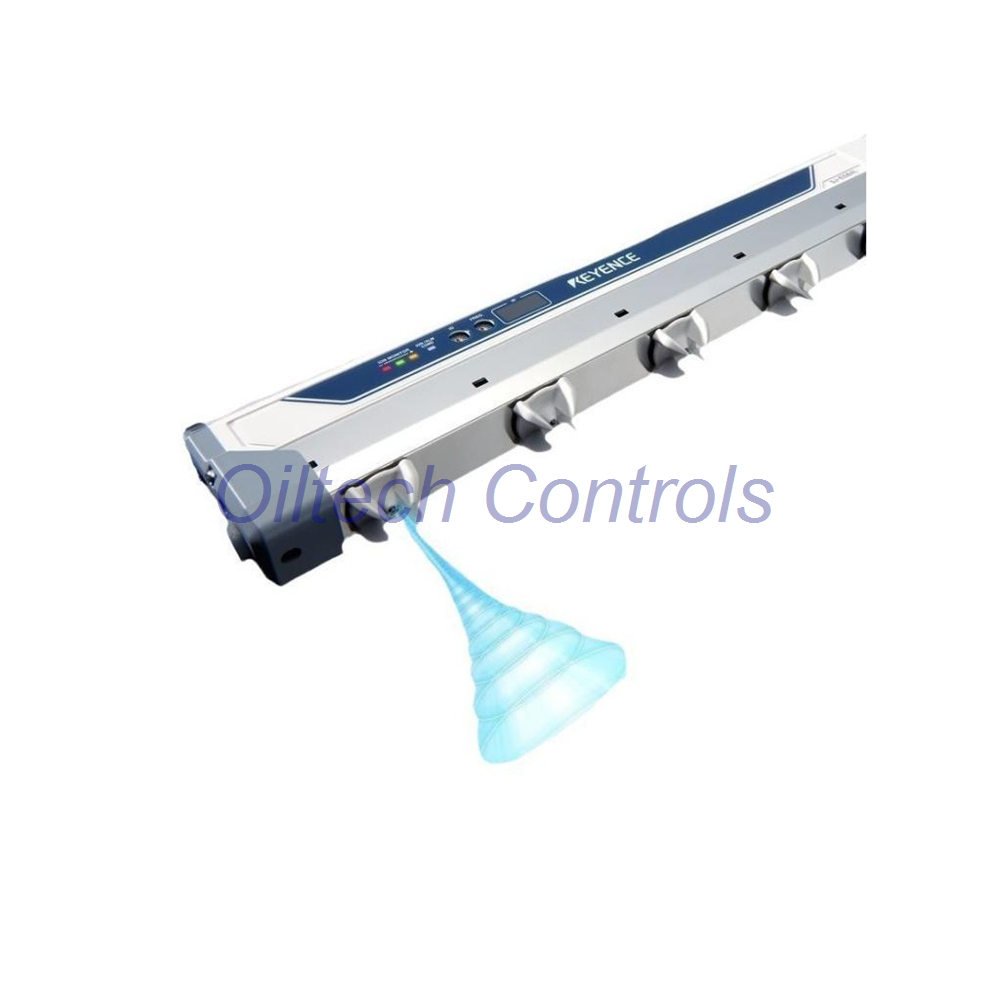

SJ-E132H Keyence Static Eliminator Bar | SJ-E Series High-End Ionizer
SJ-E132H is a high-end bar-type static eliminator from the Keyence SJ-E series. It uses corona discharge with pulse AC and ±8000 V. The Hi-Power I.C.C. method keeps ion balance at ±30 V. This bar suits long-range static control in automated lines.
Why This Static Bar Matters
- Fast static removal with 41 tungsten electrodes.
- Stable ion balance at ±30 V for sensitive parts.
- Long reach from 50 mm to 2000 mm.
- Shockless resistive coupling for safe operation.
- Air-assisted design with Rc 1/8 port.
- 24 to 36 VDC supply for industrial power.
Technical Specifications
| Brand | Keyence |
| Model | SJ-E132H |
| Series | SJ-E series |
| Product type | Bar-type static eliminator (high-end model) |
| Ion generation | Corona discharge |
| Structure | Shockless resistive coupling |
| Voltage application | Pulse AC, ±8000 V |
| Ion balance control | Hi-Power I.C.C. method |
| Ion balance | ±30 V at 300 mm or more, 0.2 MPa air |
| Installation distance | 50 to 2000 mm |
| Number of electrodes | 41 |
| Effective length | 1380 mm (static elimination range at 50 mm) |
| Total length | 1280 mm |
| Supply voltage | 24 to 36 VDC ±10% |
| Current consumption | 700 mA at 24 V, 500 mA at 36 V |
| Output type | NPN open collector (ion level warning, condition warning, alarm output) |
| Control input | Static elimination stop input (NPN open collector or contact point) |
| Control output | NPN open collector, 100 mA max, 40 VDC or less |
| Air connection port | Rc 1/8 |
| Air supply pressure | 0.1 to 0.5 MPa (recommended 0.2 MPa) |
| Overvoltage category | I |
| Pollution degree | 2 |
| Operating temperature | 0 to +40 °C |
| Relative humidity | 35 to 85 % RH, no condensation |
| Protection rating | Not available |
| Dimensions (H×W×D) | Not available (total length 1280 mm) |
| Weight | 1.55 kg |
| Electrode probe material | Tungsten |
| Main body material | ABS / PBT / PP / LCP / PPS / SPS / SUS |
| Communication ports | None built-in |
| Protocols | Remote control communication |
| Communication expansion | None |
Key Technical Parameters
- Measurement range: 50 to 2000 mm installation distance.
- Frequency response: Pulse AC method, not specified in Hz.
- Sensitivity: Ion balance ±30 V at 300 mm or more.
- Linearity: Hi-Power I.C.C. keeps ion balance stable.
- Resolution: Not applicable for static elimination.
- Temperature range: 0 to +40 °C operating.
- Environmental tolerance: 35 to 85 % RH, no condensation.
- Anti-interference: Shockless resistive coupling reduces shock risk.
Installation Guide
- Mount the bar at 50 to 2000 mm from target.
- Use Rc 1/8 air port for clean dry air.
- Set air pressure to 0.2 MPa recommended.
- Keep supply voltage at 24 to 36 VDC.
- Connect control input for static elimination stop.
- Wire NPN open collector outputs for alarms.
- Avoid condensation and metal dust near electrodes.
Setup and Maintenance
- Clean tungsten electrodes with dry soft brush.
- Check ion balance after 300 mm distance.
- Use remote control communication for tuning.
- Monitor condition warning output for early alerts.
- Replace bar if alarm output stays active.
- No built-in communication port, use external controller.
Compatibility Notes
- Works with Keyence SJ-E series controllers.
- Accepts NPN open collector control signals.
- Supports contact point input for stop function.
- No direct Ethernet or serial port.
- Remote control communication needs external module.
- Fits standard industrial 24 VDC power rails.
Certifications and Compliance
- Overvoltage category I.
- Pollution degree 2.
- Protection rating not available.
- RoHS and CE not stated in source data.
- Confirm local rules before installation.
Package Contents
- 1 × Keyence SJ-E132H static eliminator bar.
- 1 × Quick start guide (if supplied by seller).
- Mounting hardware not included unless stated.
- Air fitting not included unless stated.
- Power supply not included.
Warranty and Shipping
- 12-month warranty from Oiltech Controls Limited.
- Shipping by FedEx, UPS, or DHL.
- Tracking number provided after dispatch.
- Global shipment support available.
- Technical verification before shipment.
- Tested surplus or refurbished options may be available.
Typical Applications
- Film and sheet static removal.
- Packaging lines with fast moving webs.
- Printing and converting equipment.
- Plastic injection and molding areas.
- Electronics assembly near sensitive parts.
- Long-range static control up to 2000 mm.
Diagnostic Capabilities
- Ion level warning output.
- Condition warning output.
- Alarm output for fault detection.
- NPN open collector signals for PLC input.
- Static elimination stop input for line control.
- Remote control communication for status check.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts.
- Global shipment support with FedEx, UPS, and DHL.
- Tested industrial surplus and refurbished options.
- 12-month warranty on eligible products.
- Technical verification before shipment.
- Support for obsolete control systems.
FAQ
Q: What is the ion balance of SJ-E132H?
A: ±30 V at 300 mm or more with 0.2 MPa air.
Q: What voltage does this bar need?
A: 24 to 36 VDC ±10%.
Q: How many electrodes does it have?
A: 41 tungsten electrodes.
Q: What is the effective length?
A: 1380 mm at 50 mm distance.
Q: Does it include a communication port?
A: No built-in port. It supports remote control communication.
Q: What is the warranty?
A: 12-month warranty from Oiltech Controls Limited.
Q: How is it shipped?
A: By FedEx, UPS, or DHL with tracking.
Q: Can I use it for obsolete systems?
A: Yes, Oiltech supports obsolete control systems.
