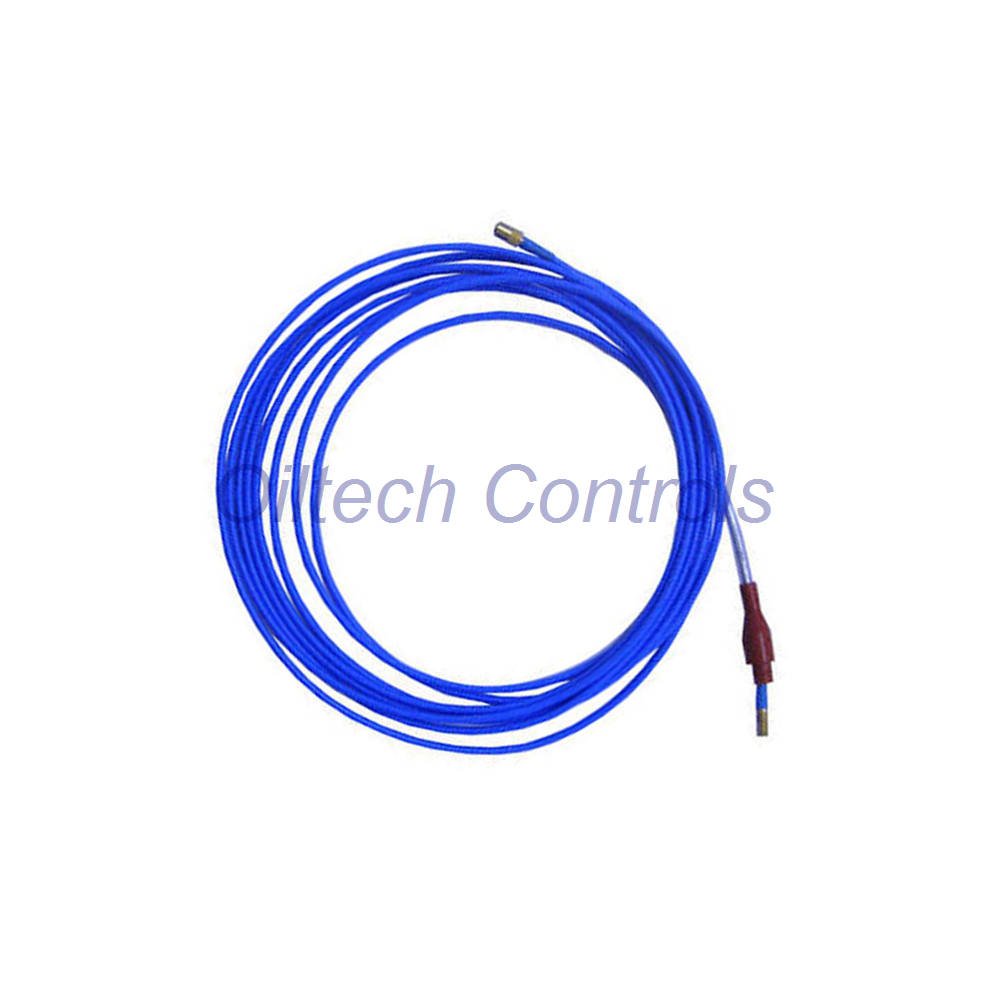

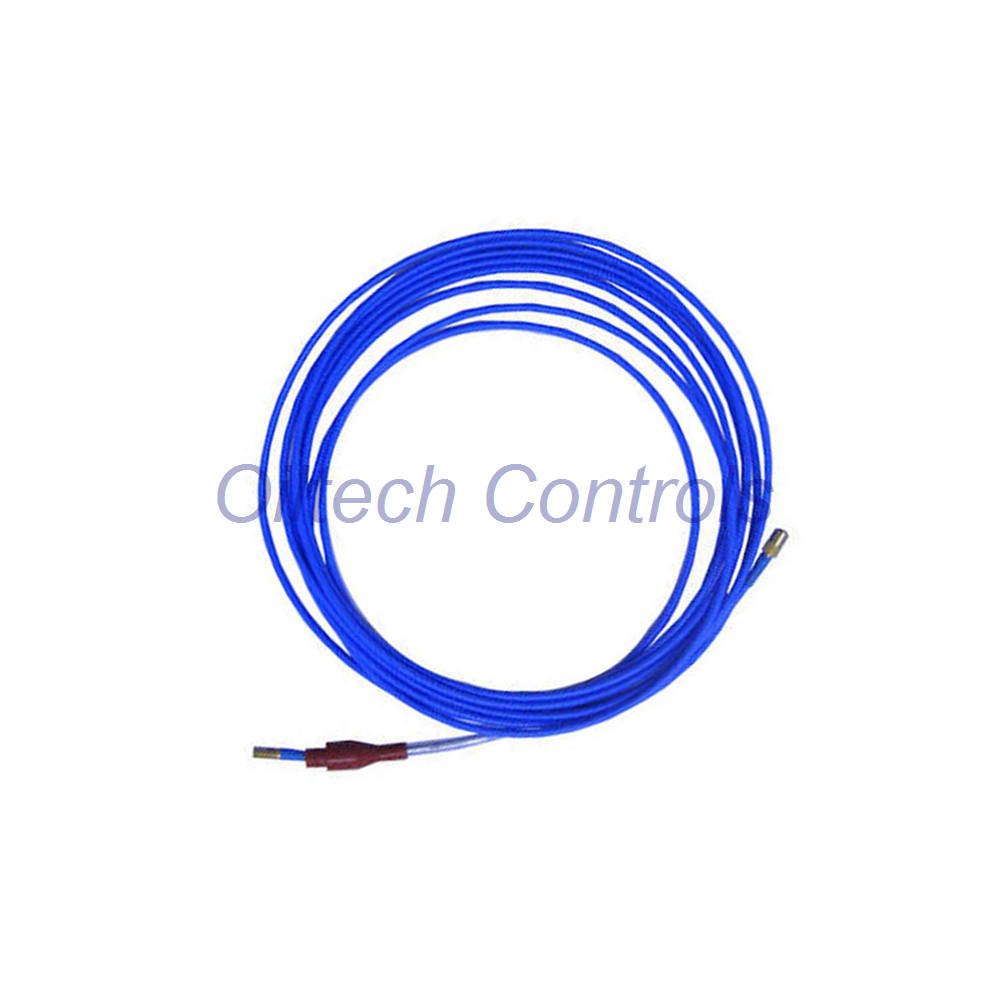

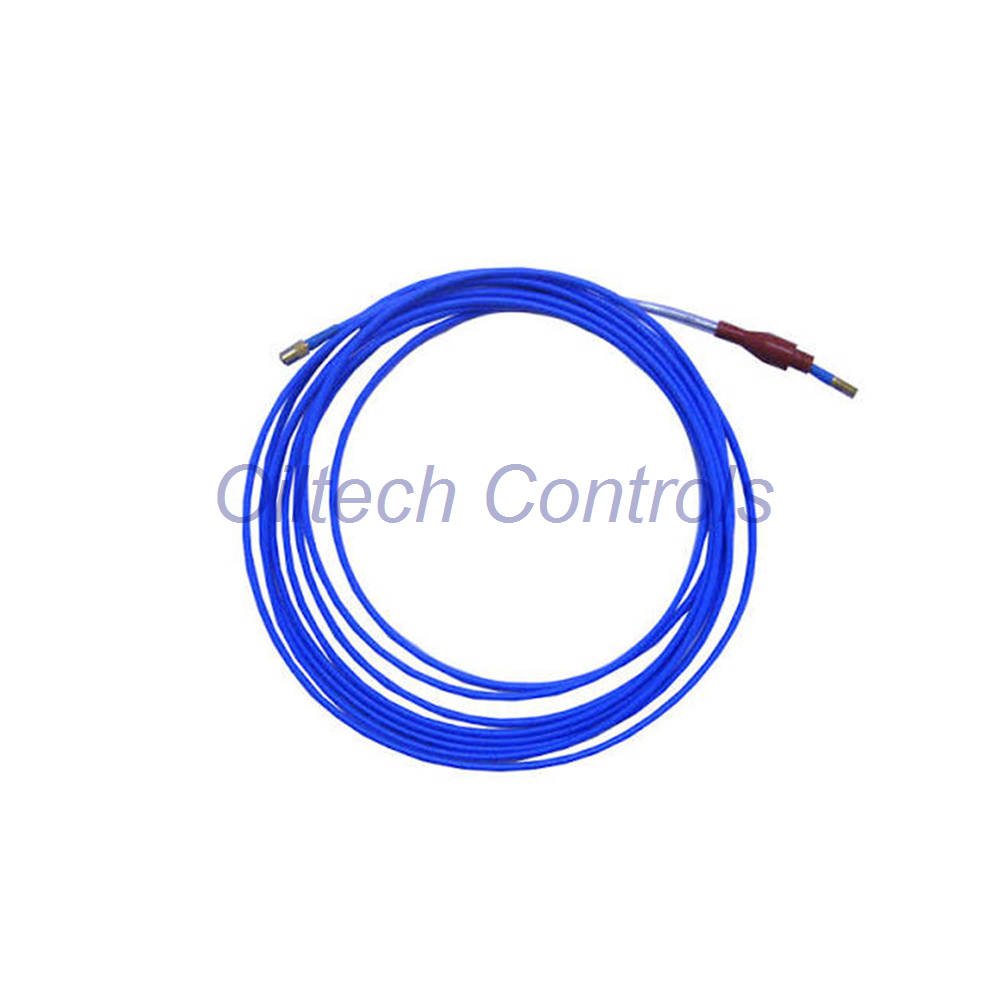

ProvibTech TM0181-080-00 Extension Cable
ProvibTech TM0181 extension cables boost system performance for critical industrial machinery. These cables extend overall probe life cycle in tough factory settings. You must match probe and cable to equal exactly 5 meters or 9 meters total length. The built-in connector meets strict API 670 standards for seamless setup. It works smoothly with major third-party proximity probe systems without hassle. Download our technical manual below to review full wiring instructions for your plant.
Technical Data and Specifications
| Brand | ProvibTech |
| Model Number | TM0181-080-00 |
| Product Type | Proximity Probe Extension Cable |
| Probe Compatibility | Standard 5mm and 8mm Probes |
| Cable Length | 8.0 Meters (80) |
| Armor Option | None (-00) |
| Operating Power | -23 VDC to -30 VDC, Current under 12 mA |
| Linear Range | 2.0 mm (80 mils), starts 0.25 mm from target face |
| Sensitivity | 7.87 mV/um (200 mV/mil) |
| Linearity Error | Within +/- 0.0254 mm (+/- 1.0 mil) calibrated |
| Frequency Response | 0 Hz to 10.0 kHz (+/- 3 dB) |
| Target Requirement | Minimum target diameter 15 mm (0.6 inches) AISI4140 |
| Temperature Limits | -40 deg C to +177 deg C operation and storage |
| Environmental Tolerance | 100% non-condensing humidity protection |
Configuration Breakdown
- TM0181 Series Architecture
- Probe Diameter: 5mm and 8mm Standard Probes
- Cable Options: Unarmored or Stainless Steel Armor
- Length Option 080: 8.0 Meter Cable Length
- Armor Code -00: No Protective Armor Sheath
- Length Option 080: 8.0 Meter Cable Length
- Cable Options: Unarmored or Stainless Steel Armor
- Probe Diameter: 5mm and 8mm Standard Probes
Installation, Calibration, and Maintenance
- Keep total system length strictly at 5m or 9m to avoid measurement drift.
- Clean all connector contacts with proper contact cleaner before final joint assembly.
- Avoid sharp bends in the cable during routing inside wire trays.
- Ensure tight ground seals on junction boxes to reject plant noise.
- Inspect physical cable jacket annually for outer wear or chemical damage.
System Compatibility and Applications
- Full alignment with API 670 standard monitoring hardware platforms.
- Fits steam turbine vibration monitoring panels seamlessly.
- Monitors shaft position in large heavy-duty centrifugal gas compressors.
- Tracks radial displacement in high-speed industrial water pumps.
- Works with gearbox shaft displacement sensing units.
Shipping, Warranty, and Package Details
- Dispatch speed: Fast delivery in 12 to 48 hours.
- Carrier options: Trusted shipping via FedEx, UPS, or DHL.
- Warranty coverage: Comprehensive 12-month factory warranty included.
- Package contents: One sealed ProvibTech TM0181-080-00 cable with protective end caps.
Manager’s Insight
This 8-meter extension cable provides outstanding signal stability across high temperature swings. Combining an 8m cable with a 1m probe forms an ideal 9-meter API 670 loop. Heavy machinery relies on this tight tolerance to prevent false vibration trips. Engineered shields block harsh plant electrical noise effectively. It serves as a cost-effective, rugged replacement cable for plant maintenance teams worldwide.
Frequently Asked Questions
What total system length does this cable support?
You must build total system length to either 5 meters or 9 meters. An 8.0-meter cable requires a 1.0-meter probe for proper calibration.
Does the TM0181-080-00 model include armor protection?
No, the -00 suffix indicates this unit has no outer armor metal sheath.
Can I connect this ProvibTech cable to other brands?
Yes, the connector follows API 670 standard specifications for broad compatibility.
How should I store spare cables in the warehouse?
Store cables flat in dry areas between -40 deg C and +177 deg C.
