Product Overview

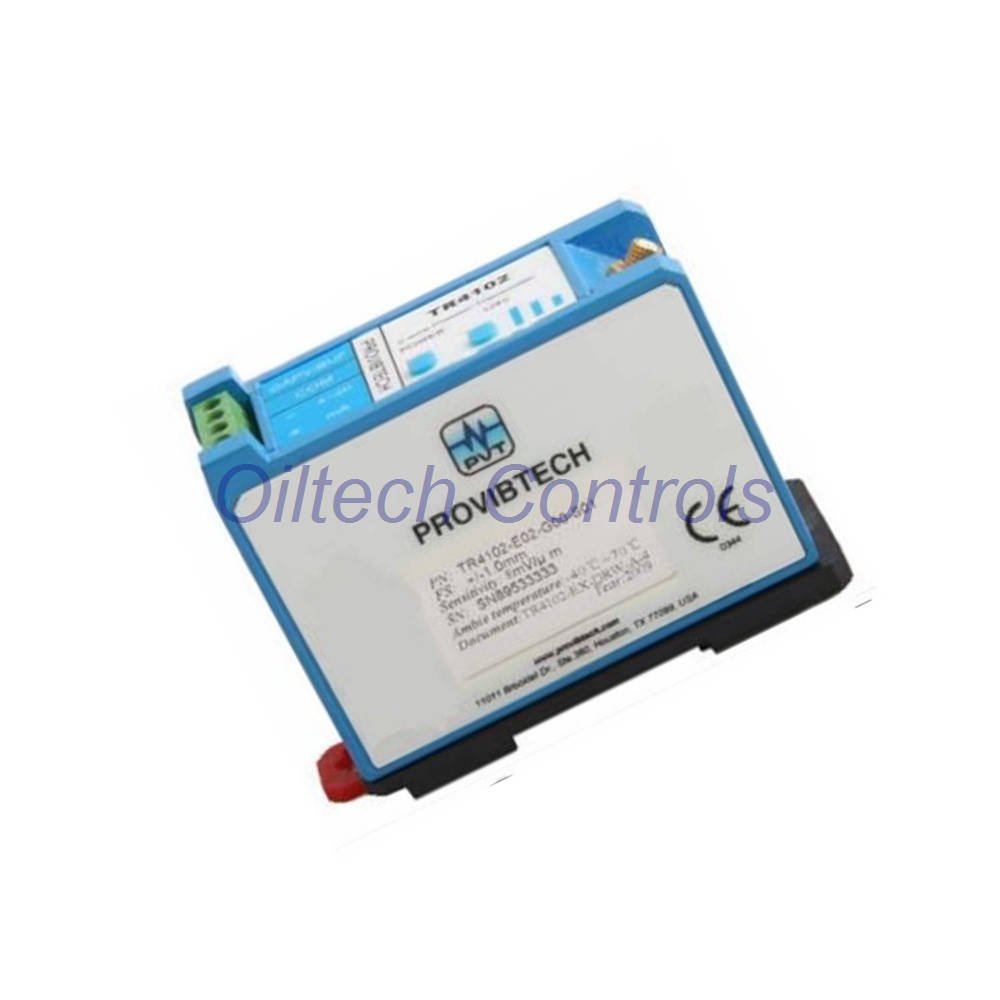

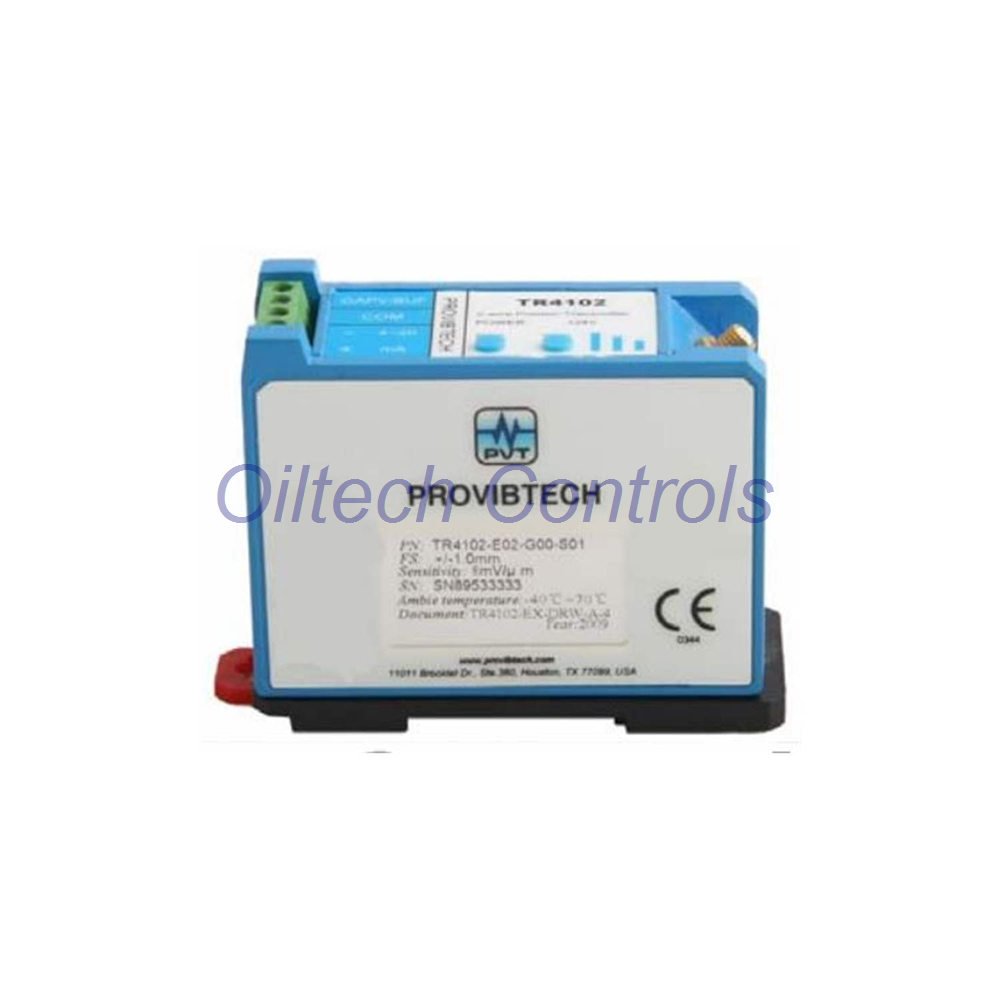

The TR4102-E00-G00-S00 is a reliable proximity speed and phase reference transmitter by ProvibTech. It monitors axial position on balance of plant machines. Engineers use this device for precise industrial measurement. The design combines a probe driver and signal conditioning circuit into one compact unit. Users save panel space and reduce installation time.
Technical Specifications
- Brand: ProvibTech
- Model / Part Number: TR4102-E00-G00-S00
- Product Type: Proximity Speed and Phase Reference Transmitter
- Power Supply (DCS or PLC): 16 to 30 VDC
- Sensor Interface: Special 95-ohm coaxial cable with connector
- Transmission Type: 2-wire, load-powered loop
- Raw Position Signal Nominal: 2 to 18 VDC
- Output Impedance: 1,000 ohms
- Frequency Response: 0 to 10 kHz
- Sensitivity: 7.87 mV per micrometer (200 mV per mil) nominal
- Maximum Cable Distance: 3.0 meters (10 feet) for buffered output
- Maximum Load Resistance: 50 multiplied by (Vs minus 16), where Vs is the power supply
- System Self-Test: System OK outputs 4 to 20 mA; System Not OK outputs less than 3.6 mA
- Measurement Range: 0 to position limit of the probe
- Linearity: High linear output across the operating gap
- Resolution: High precision for dynamic vibration monitoring
- Temperature Range: Industrial grade for standard plant environments
- Environmental Tolerance: 90 percent relative humidity, non-condensing
- Interference Immunity: Copper-free aluminum casted case with epoxy potting for noise protection
Model Configuration Breakdown
- TR4102 – Base Series Model
- E00 – Probe and Cable Option
- TM0180 8mm Probe with 5-meter Cable
- G00 – Mount and Function Option
- DIN Rail Mount for Position Measurement
- S00 – Hazardous Area Approval Option
- Without Approval, CE Compliant
- E00 – Probe and Cable Option
Compatibility and Applications
- Compatible Proximity Probes: Works with 5mm, 8mm, and 11mm probes from ProvibTech and other major manufacturers.
- Target Industrial Equipment: Steam turbines, gas turbines, compressors, pumps, and industrial fans.
- Primary Application Scenarios: Balance of plant machine monitoring, axial position measurement, and speed and phase reference tracking.
Installation, Commissioning and Maintenance
- Mounting Guide: Mount the transmitter securely on standard DIN rails inside the control cabinet.
- Wiring Setup: Connect the 2-wire loop power supply to terminals 16 to 30 VDC. Attach the probe cable to the specialized 95-ohm coaxial connector.
- Commissioning: Power on the system and verify the 4 to 20 mA loop current output. Check the buffered output signal using a digital multimeter or oscilloscope.
- Maintenance Tips: Inspect wiring terminals annually. Ensure the epoxy-potted aluminum housing remains free from moisture and physical damage.
Shipping, Warranty and Package Contents
- Package Contents: One TR4102-E00-G00-S00 Transmitter, installation leaflet, and calibration sheet.
- Warranty Terms: 12 months from the date of purchase.
- Dispatch Time: Fast dispatch within 12 to 48 hours.
- Courier Options: FedEx, UPS, and DHL express shipping available globally.
Expert Review and Manager Insight
Industrial engineers choose the TR4102-E00-G00-S00 for retrofits and new builds. Plant managers value the integrated driver design because it eliminates extra hardware boxes. Field technicians report stable 4 to 20 mA feedback loops during high-vibration events. This unit delivers dependable turbine protection at a lower total cost.
Frequently Asked Questions
- Question: Does the TR4102-E00-G00-S00 require a separate probe driver?
- Answer: No. The unit integrates the driver and signal conditioner into a single housing.
- Question: What power supply voltage does this transmitter accept?
- Answer: It accepts a standard DCS or PLC loop power supply ranging from 16 to 30 VDC.
- Question: How do I check if the system is operating normally?
- Answer: Monitor the loop output. A normal status outputs 4 to 20 mA, while a fault drops output below 3.6 mA.
- Question: Which probe sizes work with this model?
- Answer: It supports 5mm, 8mm, and 11mm proximity probes from multiple manufacturers.
- Question: How should I select the right probe option for my machine?
- Answer: Match your physical probe thread size and required cable length to the configuration suffix codes. Choose option E00 for an 8mm probe with a 5-meter cable.
Manual Download
Download the official user manual and wiring schematic for the TR4102-E00-G00-S00 to assist with your engineering project.
