Product Overview

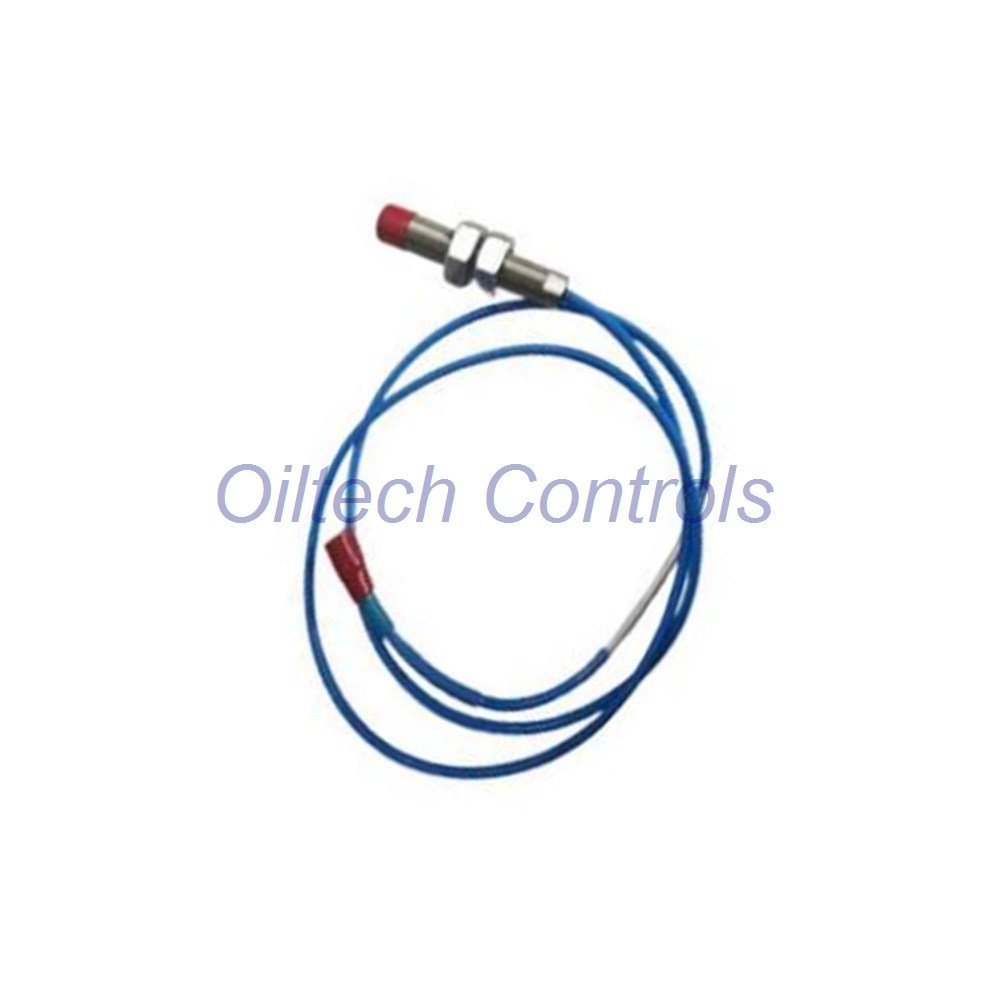

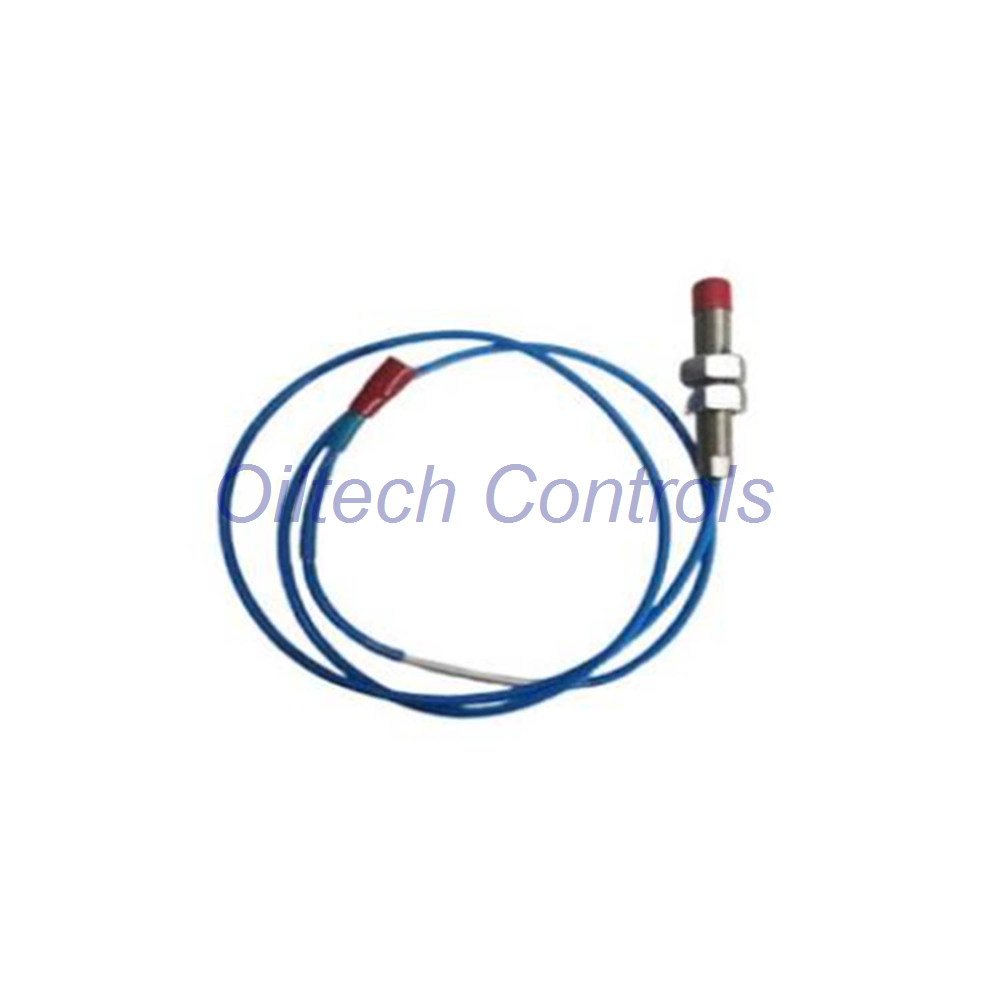

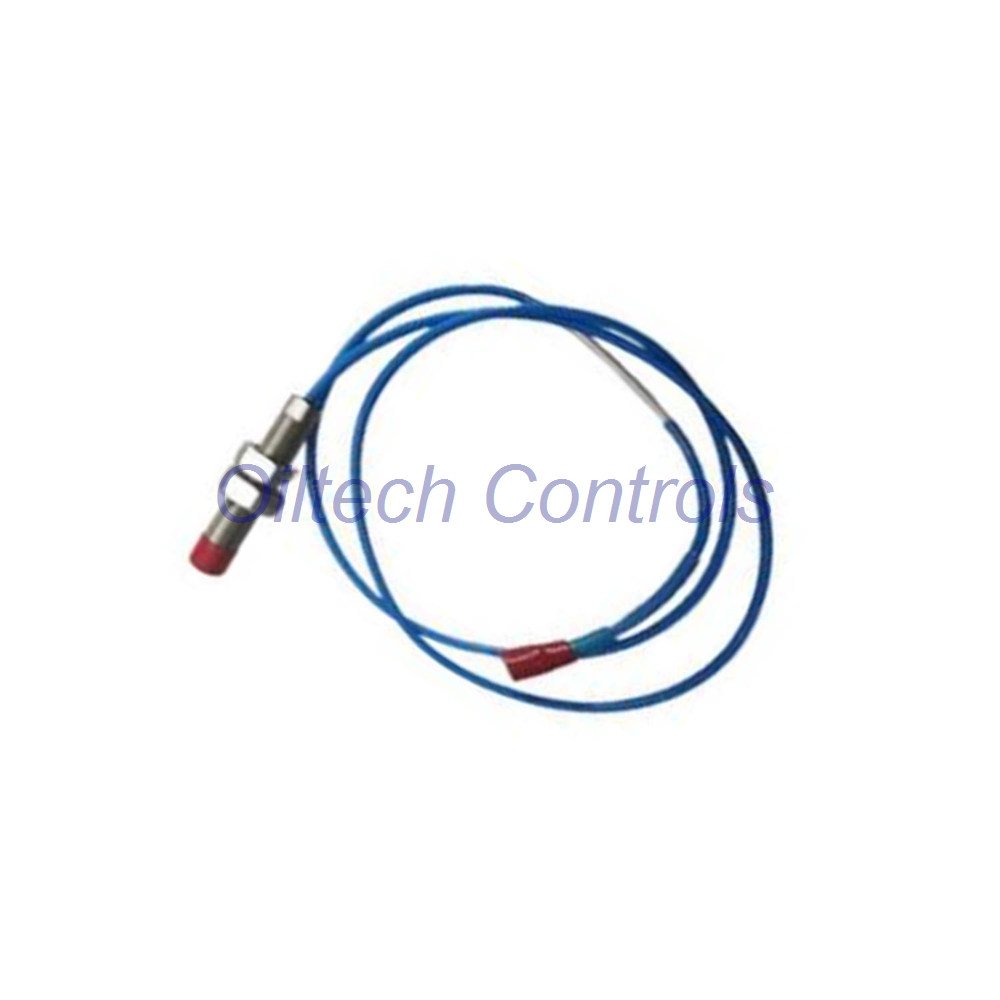

The TM0180-07-00-04-10-02 is a high performance industrial vibration sensor. ProvibTech designed this Standard 8mm Probe for harsh factory environments. Rugged cable jackets stop ground loops and cable damage. Protective rubber boots keep oil and dirt away from electrical connectors. Plant operators use this sensor to monitor machine health accurately.
Configuration Breakdown
- Brand: ProvibTech
- Model: TM0180-07-00-04-10-02
- Product Type: Standard 8mm Probe
- Probe Type: 07
- Unthreaded Length: 00 = 0 mm
- Case Length: 04 = 40 mm
- Total Length: 10 = 1.0 m
- Connector Type: 02 = Yes
Technical Data
- Brand: ProvibTech
- Model: TM0180-07-00-04-10-02
- Power Supply Voltage: -23 to -30 VDC
- Power Supply Current: Less than 12 mA
- Linear Range: 0.25 to 2.25 mm
- Sensitivity: 7.87 mV/um
- Linearity: Within plus or minus 0.0254 mm
- Frequency Response: 0 to 10.0 KHz
- Minimum Target Size: 15 mm in diameter
- Probe Temperature: -40 degrees Celsius to +177 degrees Celsius
- Driver Temperature: -40 degrees Celsius to +80 degrees Celsius
Certifications and Standards
- ATEX hazardous area approvals
- CSA intrinsically safe ratings
- PCEC compliance
- GOST R certification
Compatibility and Target Applications
- Steam turbines
- Industrial compressors
- Large pumps
- Gearboxes
- Heavy industrial fans
Installation, Debugging, and Maintenance
- Mount the probe firmly into the threaded hole.
- Connect the extension cable securely.
- Slide the rubber boot over the connection point.
- Check the DC voltage output during initial startup.
- Inspect cable jackets regularly for physical wear.
Package Contents and Shipping Policy
- One TM0180-07-00-04-10-02 probe unit
- Protective rubber boot
- Factory calibration sheet
- Warranty coverage for 12 months
- Fast shipping within 12 to 48 hours
- Shipping carriers include FedEx, UPS, and DHL
Frequently Asked Questions
- Question: What causes sudden signal loss in proximity probes?
Answer: Damaged cable jackets cause ground loops and signal loss. ProvibTech uses rugged jackets to stop this issue. - Question: How do I select the right probe length for my machine?
Answer: Measure the bracket depth and housing thickness to match the unthreaded and case length codes. - Question: Can I install this sensor in explosive gas areas?
Answer: Yes. Certified ATEX and CSA approvals permit safe use in hazardous zones. - Question: What target material works best for linear range calibration?
Answer: AISI4140 steel targets provide the standard reference surface for factory calibration.
Manager Insight
Engineers trust the TM0180-07-00-04-10-02 for critical machine protection. Rugged build quality ensures stable readings in high vibration settings. Fast global shipping reduces plant downtime effectively.
