Precision Repair: Why Shunt Resistor Choice Matters for GE IS200TBAIH1CCC Boards
Understanding the Critical Role of Onboard Shunt Resistors
In GE Mark VI and EX2100 systems, the IS200TBAIH1CCC terminal board performs high-precision signal conditioning. The onboard shunt resistor is not merely a passive component; it serves as a critical bridge for current monitoring. At Oiltech Controls Limited, we often see maintenance teams attempt to replace these components with standard metal film resistors. However, this shortcut frequently compromises analog accuracy and protective trip reliability. Industrial processes, particularly turbine excitation, demand extreme measurement stability that off-the-shelf components simply cannot provide.
The Hidden Risks of Generic Resistor Substitution
Many engineers prioritize resistance values over thermal and pulse performance. Standard metal film resistors typically lack the surge endurance required for industrial control environments. When a generator synchronizes or a load transient occurs, these generic parts often fail due to thermal stress. Moreover, the temperature coefficient of resistance (TCR) in standard resistors causes significant drift as cabinet temperatures rise. Therefore, choosing a component without matching the original OEM specifications can lead to erratic feedback, calibration offsets, and even unexpected logic trips.

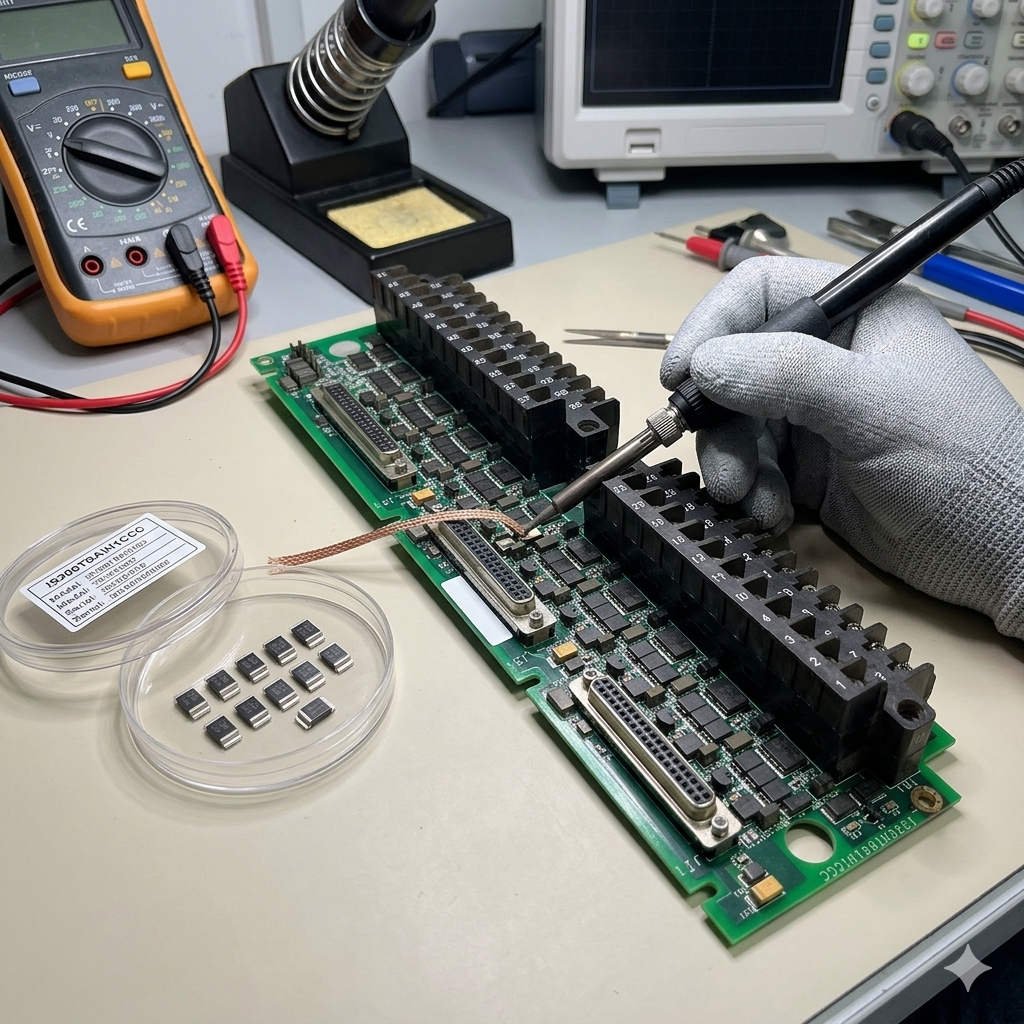

Best Practices for Industrial Board Rework
Repairing a multilayer PCB like the IS200 series requires more than basic soldering skills. An incorrect repair approach often causes permanent damage to copper pads or internal board vias. We recommend the following professional guidelines to ensure system longevity:
- Root Cause Identification: Always investigate downstream short circuits or terminal oxidation before replacing the component. A burned resistor is usually a symptom of a deeper electrical fault.
- Thermal Management: Use temperature-controlled tools to limit heat exposure to under four seconds. This prevents thermal degradation of the surrounding board material.
- Post-Repair Validation: Never bypass loop current simulation and diagnostic trending. You must verify scaling accuracy under dynamic load conditions before returning the unit to service.
Strategic Engineering Recommendations
For mission-critical turbine and excitation applications, we advise against using generic metal film resistors for permanent repairs. Instead, source industrial-grade, pulse-rated, or OEM-equivalent components with verified thermal characteristics. Our field experience shows that the long-term cost of an improper repair—due to unplanned downtime—far exceeds the cost of high-quality, specialized components. Reliability in industrial automation is built on precision, not temporary patches.
Frequently Asked Questions (FAQ)
Q: Can I use a metal film resistor for short-term emergency testing?
A: You may use one for brief diagnostic checks if the wattage matches, but you must replace it with a proper shunt component before returning the cabinet to full operation.
Q: Why does my newly replaced resistor burn out again after a few weeks?
A: This usually points to an unaddressed root cause, such as a ground fault, intermittent arcing at the terminal block, or a mismatch in the pulse-endurance rating of the replacement part.
Q: How can I verify that my board repair is successful after soldering?
A: Beyond checking for board continuity, you must perform a full loop current simulation and compare the results against your ControlST/ToolboxST historical diagnostic trends.
