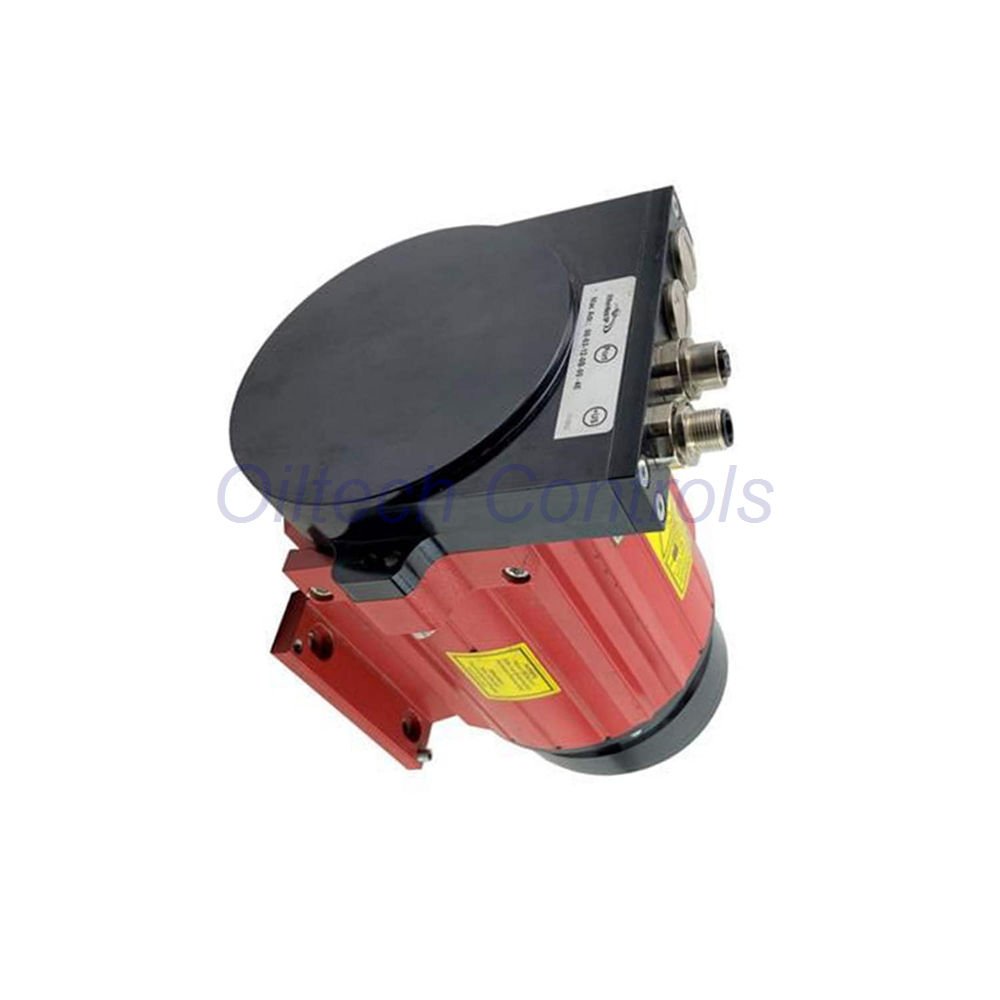

The 2200-00702 by TR Electronic represents a leap in optical displacement sensing. This Laser Distance Measurement device utilizes a Class 2 laser to provide non-contact, wear-free feedback over a massive 125-meter range. Engineered for high-speed Ethernet/IP networks, the 2200-00702 integrates seamlessly into modern PLC architectures for real-time positioning of cranes, shuttles, and heavy machinery. Contact info@oiltechcontrols.com for technical data.
High-Performance Technical Data
- Brand: TR Electronic
- Model: 2200-00702
- Primary Interface: Ethernet/IP (Programmable Code)
- Measurement Range: 125 Meters (Linearized)
- Resolution: 1.0 mm
- Output Level: RS485
- Supply Voltage: 18 to 27 VDC
- Laser Protection: Class 2
- Connector Configuration: Radial M12 (1x4P+8P Male / 4P Female)
- Temperature Tolerance: 0 to 50°C
- Environmental Sealing: IP65 Rated
- Special Feature: Reflective-Foil compatible for maximum accuracy
Oiltech Controls’s Insight
- The 2200-00702 is the “go-to” solution for long-stroke linear tracking where physical scales are impractical.
- Unlike ultrasonic sensors, this laser model maintains high accuracy even in turbulent air conditions.
- We recommend the 2200-00702 for high-bay warehouses where reliability and zero maintenance are critical.
- Its programmable nature allows engineers to fine-tune the linearized output to match specific track offsets.
- Integrated Ethernet/IP reduces wiring complexity compared to traditional analog distance sensors.
Device Compatibility & Equipment Fit
- Automated Storage and Retrieval Systems (ASRS): Ideal for pallet shuttle positioning.
- Overhead Gantry Cranes: Long-distance bridge and trolley tracking up to 125m.
- Transfer Cars: High-speed rail-mounted vehicles in automotive plants.
- Elevator Systems: Precise floor leveling in heavy-duty freight lifts.
- Material Handling: Belt conveyor tensioning and stacker-reclaimer alignment.
Shipping, Warranty & Logistics
- Order Processing: Dispatched within 24-28 hours.
- Express Delivery: Reliable shipping via Fedex, UPS, and DHL.
- Warranty Protection: 12-Month Comprehensive Warranty included.
- Support: Direct WhatsApp access via +86 158 8020 0923 for tracking and quotes.
Expert FAQ: 2200-00702 Selection & Operation
- Q: Is the reflective foil mandatory for the 125m range?A: Yes, for the 2200-00702 to achieve its full linearized accuracy at 125m, the specified reflective foil must be used.
- Q: Can I program the Ethernet/IP parameters without specialized software?A: You can configure the 2200-00702 through standard PLC engineering environments (like Studio 5000) using the provided EDS file.
- Q: What happens if the laser lens gets dusty in an IP65 environment?A: While the 2200-00702 is rugged, heavy dust can attenuate the signal. We suggest routine air-blast cleaning for the lens in high-particulate areas.
- Q: Why choose the 2200-00702 over a draw-wire encoder?A: For a 125m stroke, draw-wires suffer from cable sag and mechanical wear; the 2200-00702 provides a non-contact, zero-wear alternative.
- Q: How do I minimize interference from ambient lighting?A: The 2200-00702 features internal optical filtering, but avoid pointing high-intensity spotlights directly at the receiver lens.
