Product Overview

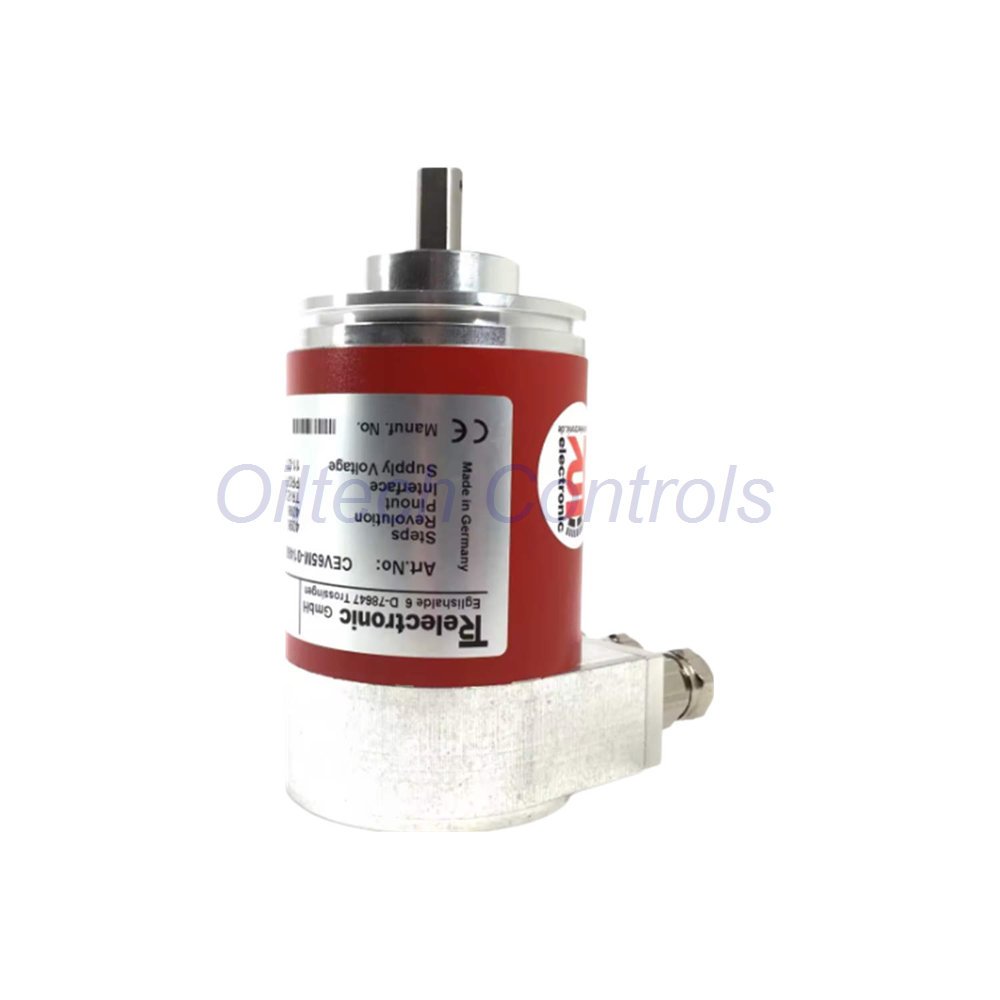

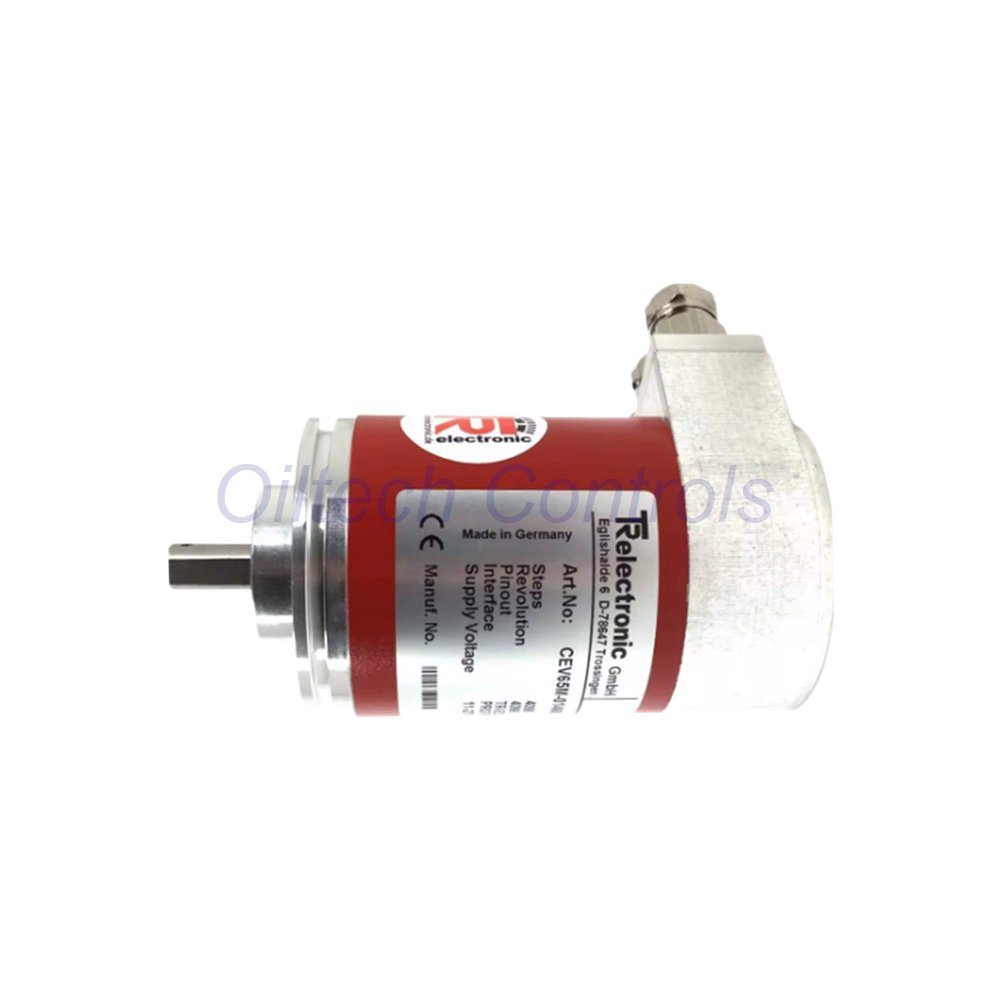

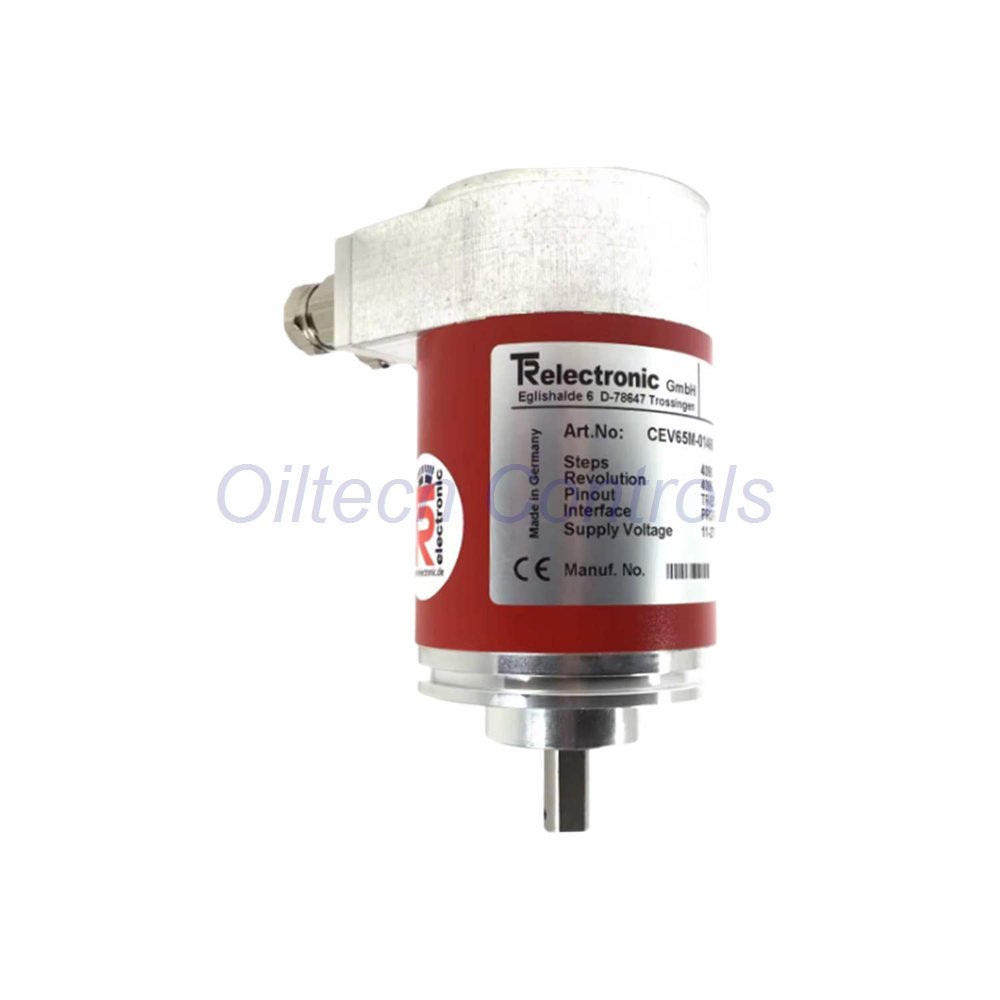

- The CEV65M-01360 is a high-precision multi-turn absolute rotary encoder for industrial automation.
- This TR Electronic device provides reliable position data using advanced electronic scanning.
- The SSI interface ensures rapid data exchange with modern control systems.
- It features a robust ZB36 flange design for stable mechanical mounting.
- Contact info@oiltechcontrols.com for specific project integration advice.
Technical Specifications
- Brand: TR Electronic
- Model: CEV65M-01360
- Steps per Revolution: 8,192 steps (13-bit)
- Number of Revolutions: 4,096 revolutions (12-bit)
- Interface Type: SSI (Synchronous Serial Interface)
- Output Level: RS422
- Supply Voltage: 11-27V DC
- Protection Class: IP65 (Dust and Water Resistant)
- Temperature Range: -20 to +70°C
- Shaft Dimensions: 10mm Diameter (10FL/19.5)
- Connection: 12-Pin Radial Connector (ST185E)
- Programmability: Full support for WinProg software adjustments.
Installation and Compatibility
- The ZB36 flange fits standard industrial mounting brackets and housings.
- Use the 10mm flat shaft to ensure zero slippage during high-speed rotation.
- This unit is fully compatible with any SSI-ready PLC or motion controller.
- The radial connector orientation saves space in compact machine cabinets.
- Connect with us on WhatsApp: +86 158 8020 0923 for installation support.
Diagnostics and Maintenance
- The CEV65M-01360 includes internal health monitoring for signal consistency.
- Use the F/R option to program clockwise or counter-clockwise counting directions.
- The Preset 1+2 functions allow for easy electronic zero-point alignment.
- Mechanical maintenance is minimal due to high-grade internal ball bearings.
Typical Applications
- Precision position feedback in steel mill rollers and heavy machinery.
- Height control for automated warehouse lifting and storage systems.
- Synchronization for multi-axis packaging and bottling lines.
- Accurate tracking for renewable energy solar arrays and wind turbines.
Shipping and Warranty
- Warranty: 12-month quality guarantee from date of purchase.
- Packaging: Includes CEV65M-01360 encoder and the required mating plug.
- Express Delivery: Fast global shipping via FedEx, UPS, and DHL.
- Quality Assurance: Every unit undergoes rigorous factory testing before dispatch.
Resources and FAQ
- Please download the technical manual for full wiring pinout details.
- Q: Is the resolution adjustable? A: Yes, via TR Electronic WinProg tools.
- Q: Does it retain position after power loss? A: Yes, it is a true absolute encoder.
- Email info@oiltechcontrols.com to request the latest firmware files.
