Product Overview

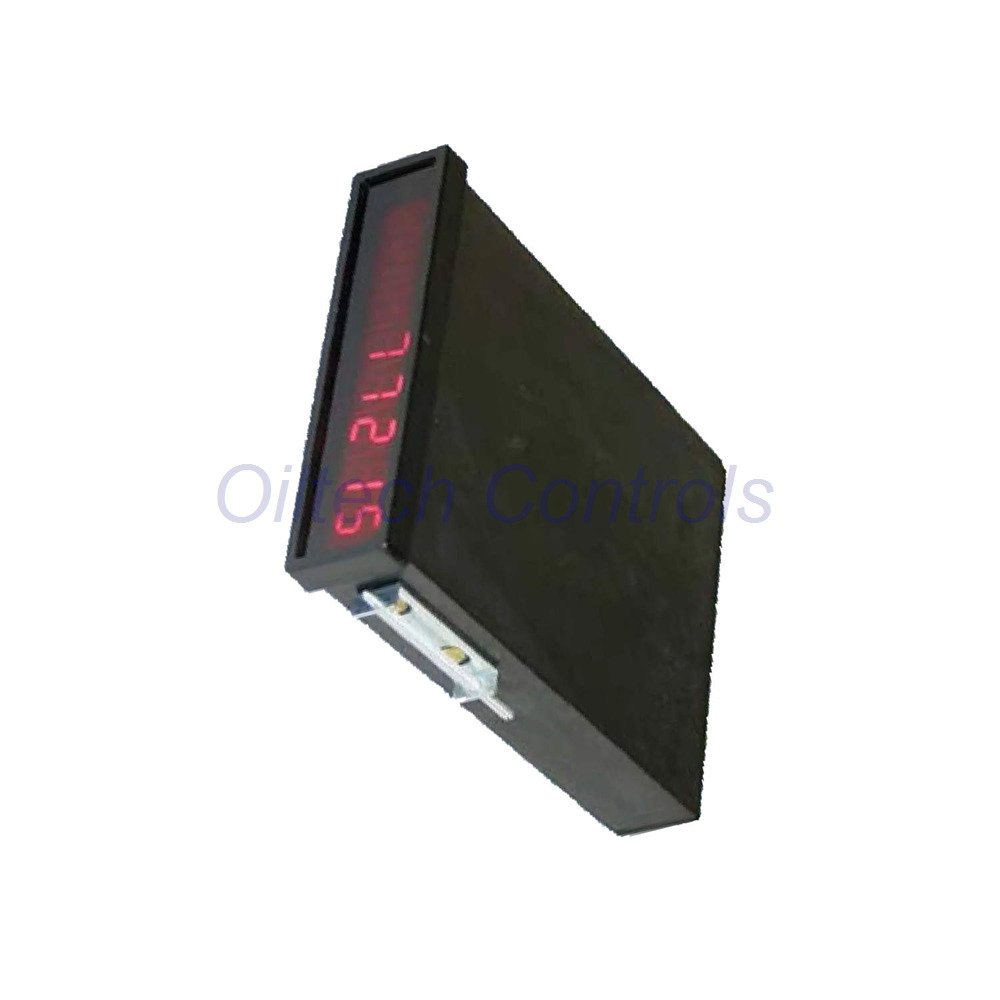

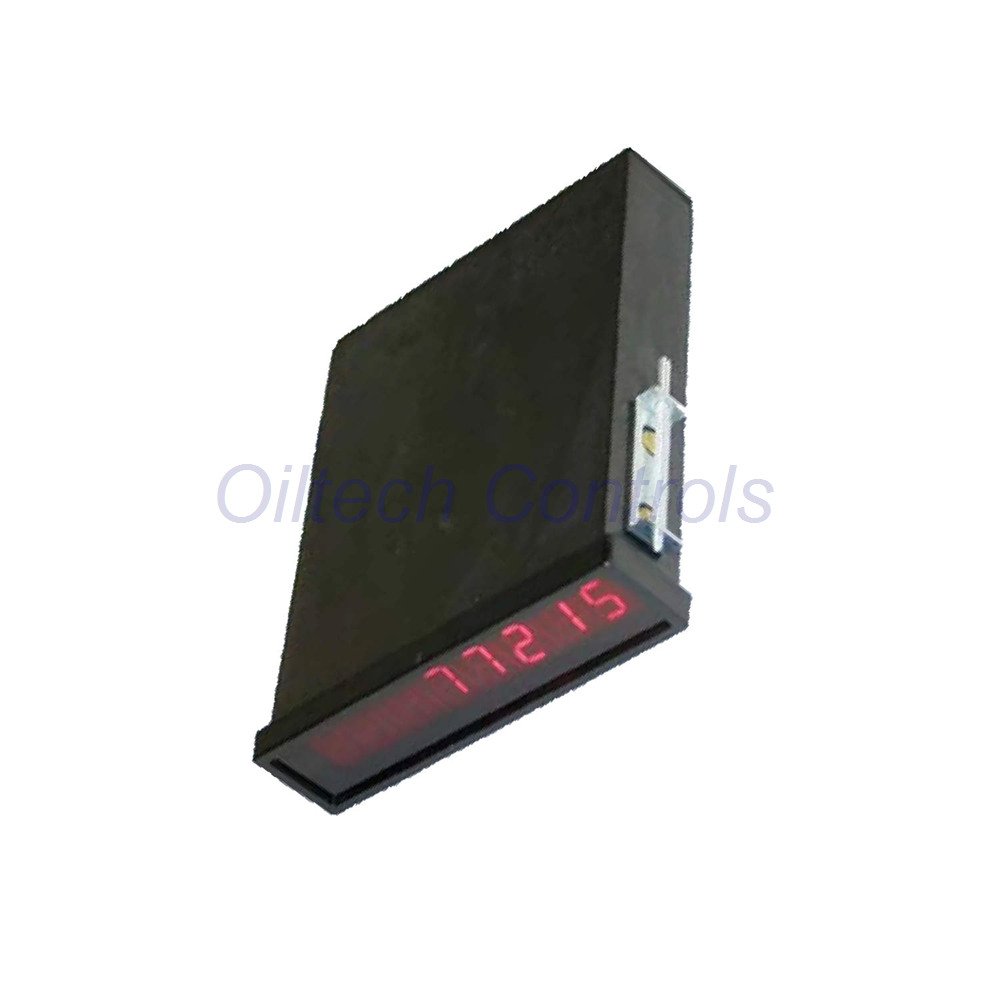

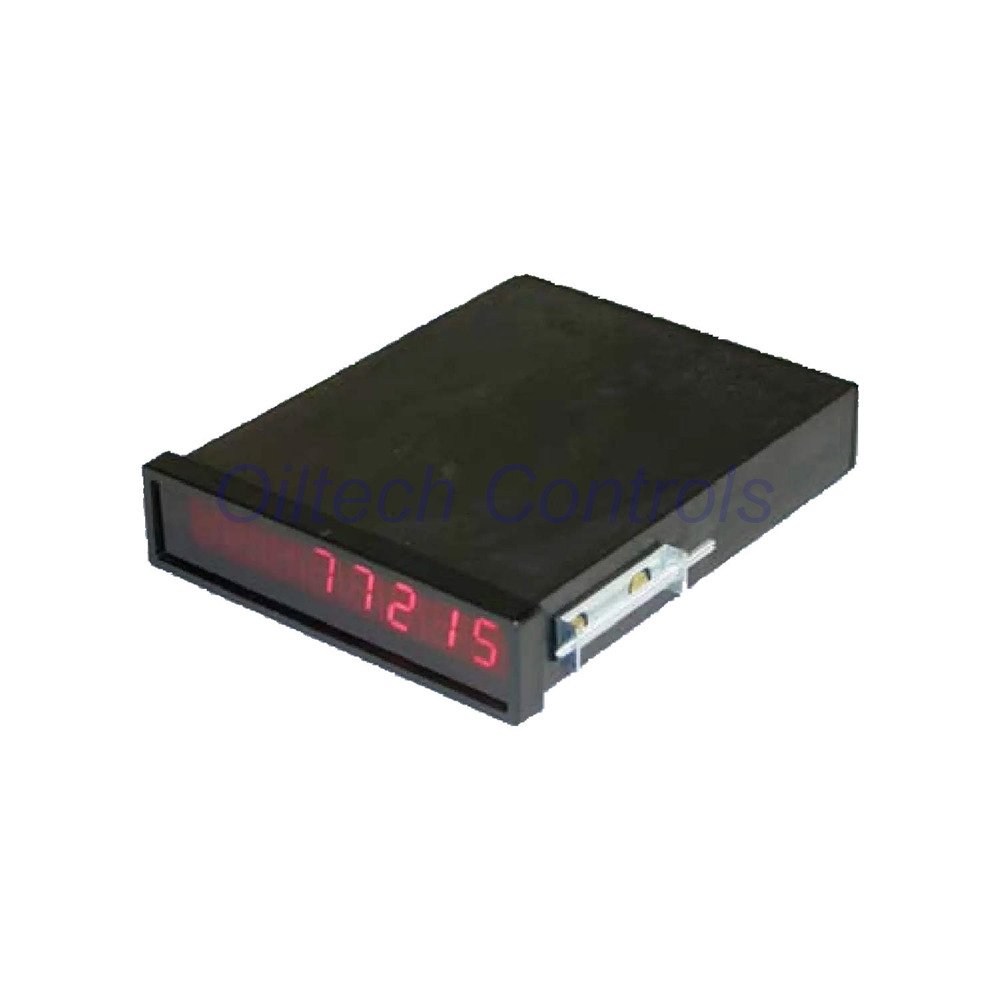

- The TR Electronic 485-80020 belongs to the high-precision TAmini series.
- This 8-digit Master/Slave display unit provides versatile feedback for industrial encoders.
- It supports SSI Master, SSI Slave, and Monitor operating modes for system flexibility.
- Engineers can program the device via USB using the TRWinProg software.
- The unit allows cascading of several slave displays for multi-point visualization.
- Its compact front panel mounting design saves valuable space in control cabinets.
Technical Specifications
- Brand: TR Electronic
- Model: 485-80020
- Series: TAmini
- Supply Voltage: 11 to 30 V DC
- Display: 8-digit 7-segment LED with 10mm character height
- Current Consumption: Less than 350 mA without load
- SSI Frequency: High-speed range from 100 kHz to 750 kHz
- SSI Data Bits: Adjustable from 12 to 31 bits
- Code Types: Compatible with Gray and Binary SSI codes
- Protocols: Supports TRWinProg, EprogW32, LTProg, and LLB via RS485/RS422
- Refresh Time: Adjustable from 50 ms to 2000 ms
- Temperature Range: Reliable operation from 0 °C to +60 °C
- Environmental Protection: Rated at IP 43 per DIN EN 60529
- Display Capacity: Handles data up to 26 Bit depth
Installation and Maintenance
- Mounting Dimensions: Fits standard 92.5mm x 21.5mm panel cutouts.
- Panel Thickness: Compatible with front panels up to 4 mm thick.
- Easy Wiring: Uses high-quality plug-in connectors for fast field replacement.
- Simple Calibration: Adjust offset and scaling directly via the PC interface.
- Diagnostic Capability: Includes a warning level for monitoring supply voltage health.
Compatibility and Shipping
- Device Interoperability: Seamlessly integrates with TR Electronic absolute encoders and sensors.
- Warranty: Includes a standard 12-month warranty for all hardware components.
- Package List: One 485-80020 unit with secure industrial packaging.
- Fast Delivery: Worldwide express shipping via FedEx, UPS, or DHL.
- Expert Support: Contact us at info@oiltechcontrols.com for technical aid.
- Direct Inquiry: Message via WhatsApp: +86 158 8020 0923.
Typical Applications
- Linear Positioning: Displaying values from LLB laser distance measuring modules.
- Rotary Monitoring: Real-time position tracking for SSI absolute rotary encoders.
- System Synchronization: Synchronizing multiple displays in complex automated production lines.
- Quality Control: Providing clear visual metrics for machine operators in harsh environments.
Frequently Asked Questions (FAQ)
- How do I set the scaling factor? Use the TRWinProg software via the USB port.
- Does it support imperial units? Yes, the unit is switchable between mm and Inch.
- Can I hide leading zeros? Yes, the leading zeros are programmable as visible or not.
Please download the technical manual to ensure proper electrical integration and software setup.
