Product Overview

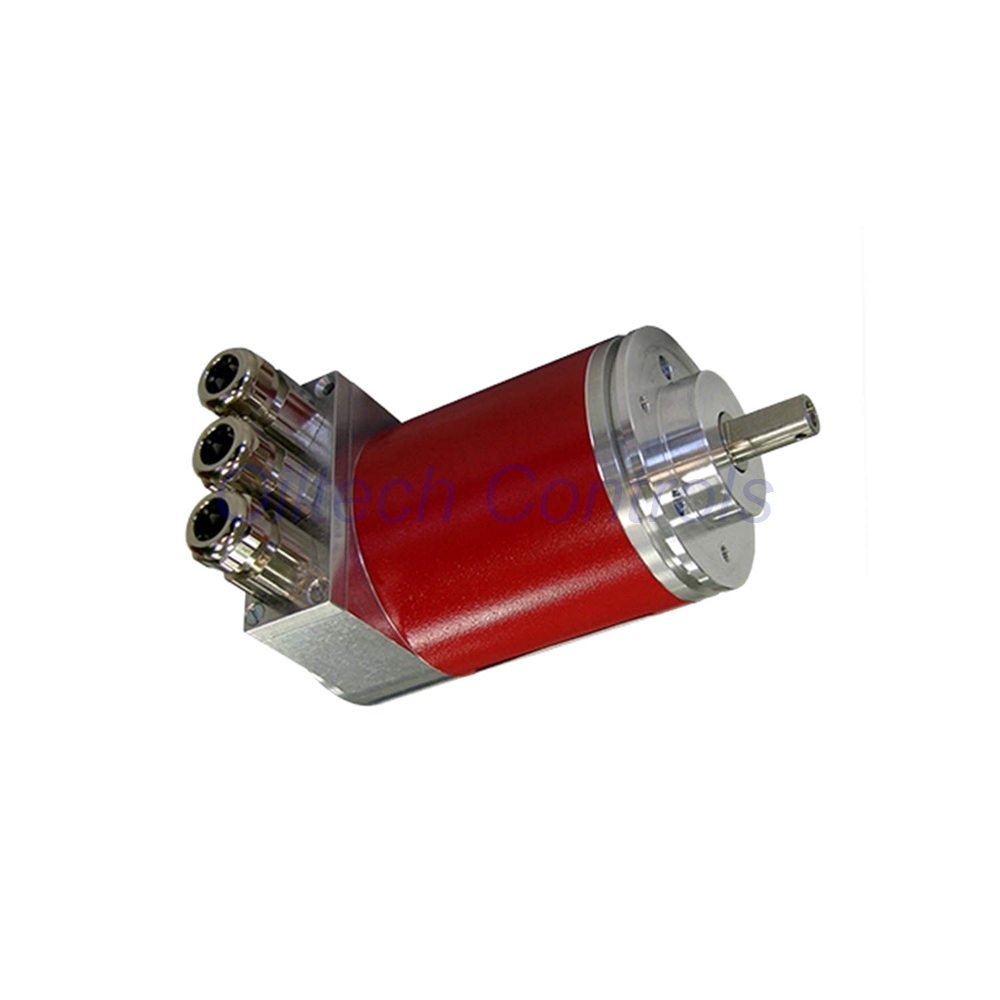

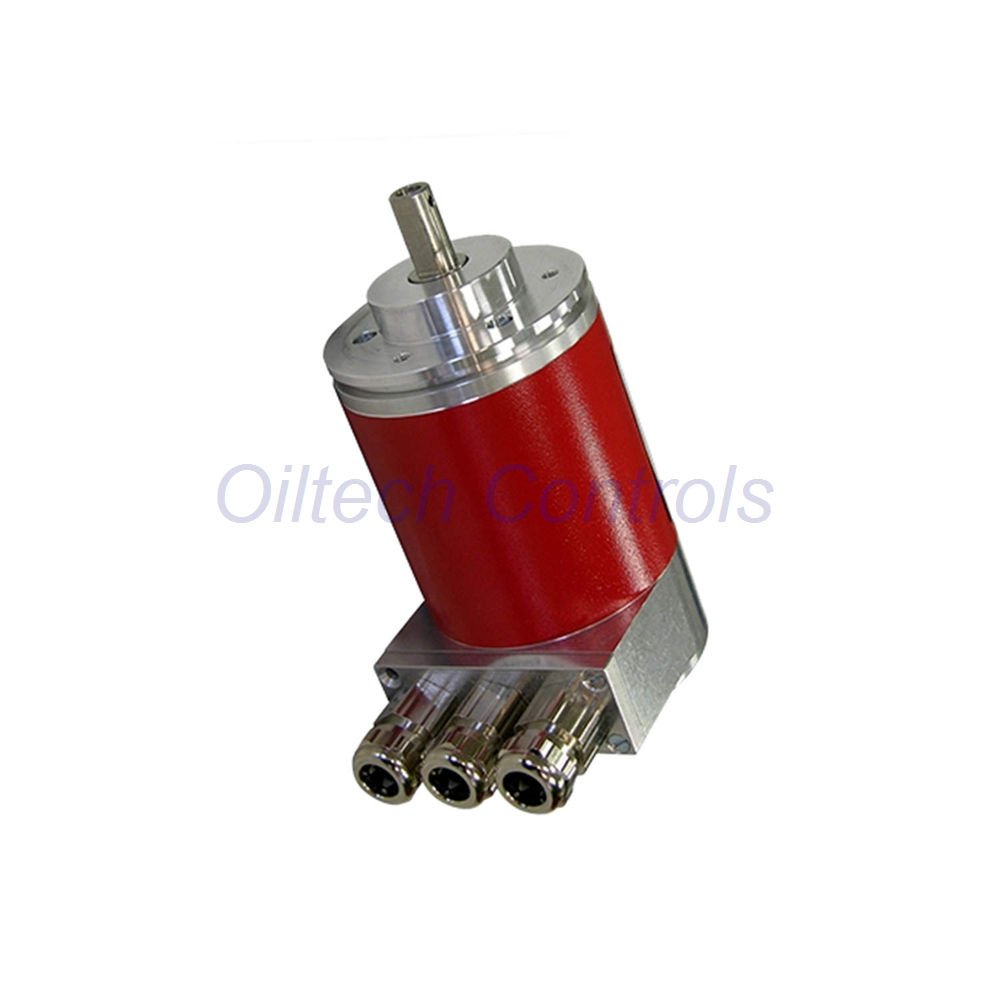

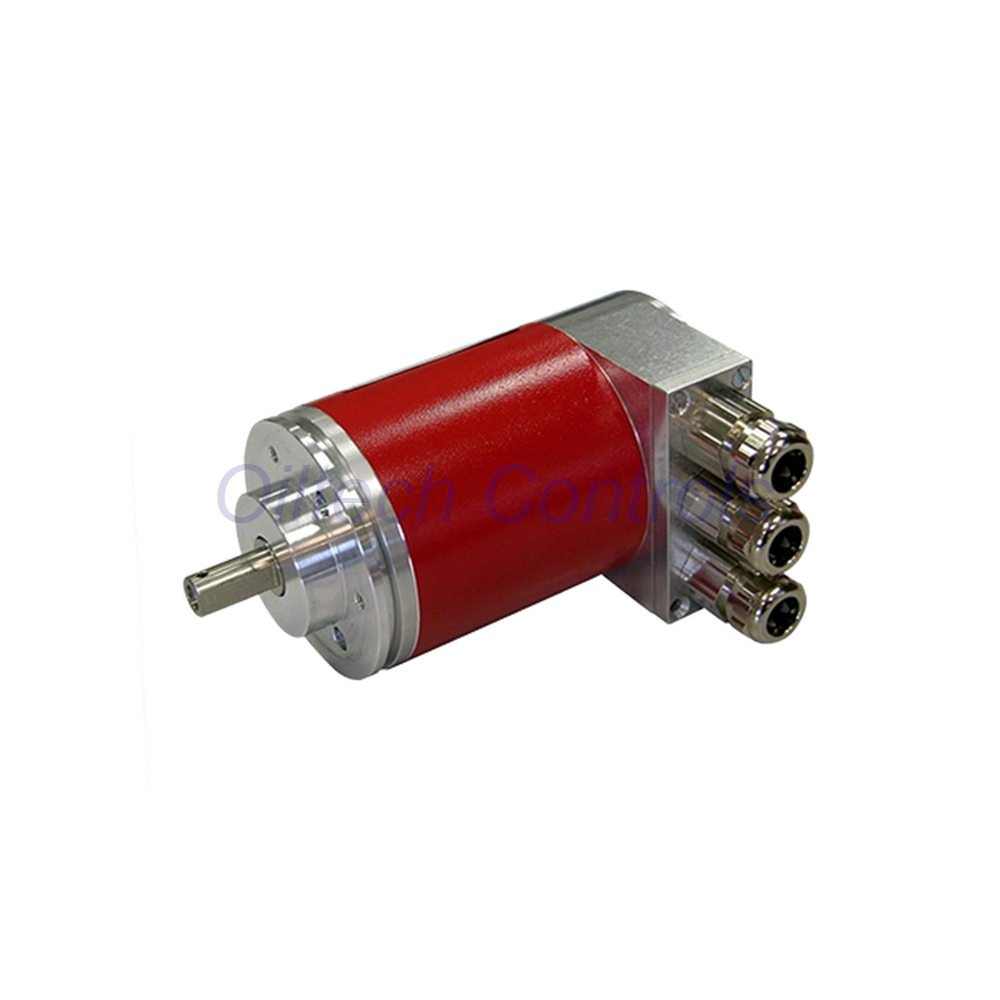

The TR Electronic CEV65M-10579 is a high-performance Absolute Multi-Turn Rotary Encoder designed for precision industrial automation. It utilizes the Profinet IO and SSI interface for real-time data exchange in complex motion control systems. This CEV65M series unit provides exceptional accuracy with 4,096,000 steps per revolution. The robust IP65 housing ensures reliable operation in harsh environments. Contact our technical team at info@oiltechcontrols.com for integration support.
Technical Specifications
- Brand: TR Electronic
- Model: CEV65M-10579
- Resolution: 4,096,000 steps/rev (High Precision)
- Measurement Range: 4,096,000 total revolutions
- Interface: Dual Profinet IO and SSI communication
- Supply Voltage: 11V to 27V DC
- Output Level: Differential RS422 and RS485 signals
- Protection Class: IP65 (Dust and Water Resistant)
- Temperature Range: -20°C to +70°C operating environment
- Flange Type: ZB36 centering bond
- Shaft Type: 10FL/19,5 solid shaft design
- Connector Type: Radial M12 connectors (4-pin, 8-pin, and D-coded)
- Compliance: Encoder Conformance Class C and PN Spec 2.2
- Firmware: Internal version 437892
Installation and Maintenance
- Mount the ZB36 flange directly to your motor or machine frame.
- Ensure the 10mm shaft aligns perfectly to prevent mechanical bearing stress.
- Connect the D-coded M12 cables for high-speed Profinet data transmission.
- The radial connector position allows for flexible cable routing in tight spaces.
- Use the Programmable Preset 1+2 to reset zero points during machine setup.
- Maintain the unit by checking cable integrity and mounting bolt tightness periodically.
- Call us at +86 158 8020 0923 for immediate technical troubleshooting.
Performance and Compatibility
- Linearity: Superior signal consistency across the entire 4,096,000 revolution range.
- Anti-Interference: Shielded RS422 output prevents data loss in noisy factories.
- PLC Compatibility: Fully compatible with Siemens, Beckhoff, and Rockwell Profinet controllers.
- Diagnostic Capability: Built-in Profinet alarms signal communication errors or power drops.
- Programmable Logic: Adjust scaling and direction parameters via the GSDML configuration file.
Applications and Logistics
- Typical Scenes: CNC machining centers, automated logistics, and wind power pitch control.
- Packaging List: One CEV65M-10579 encoder and basic installation guide.
- Warranty: Standard 12-month quality guarantee against manufacturing defects.
- Shipping Methods: Global express delivery via FedEx, UPS, and DHL.
Frequently Asked Questions (FAQ)
- Is the resolution adjustable? Yes, the CEV65M-10579 is fully programmable via the interface.
- Does it support high-speed sync? Yes, it meets Conformance Class C for IRT applications.
- Can I use it outdoors? The IP65 rating allows use in sheltered outdoor industrial settings.
