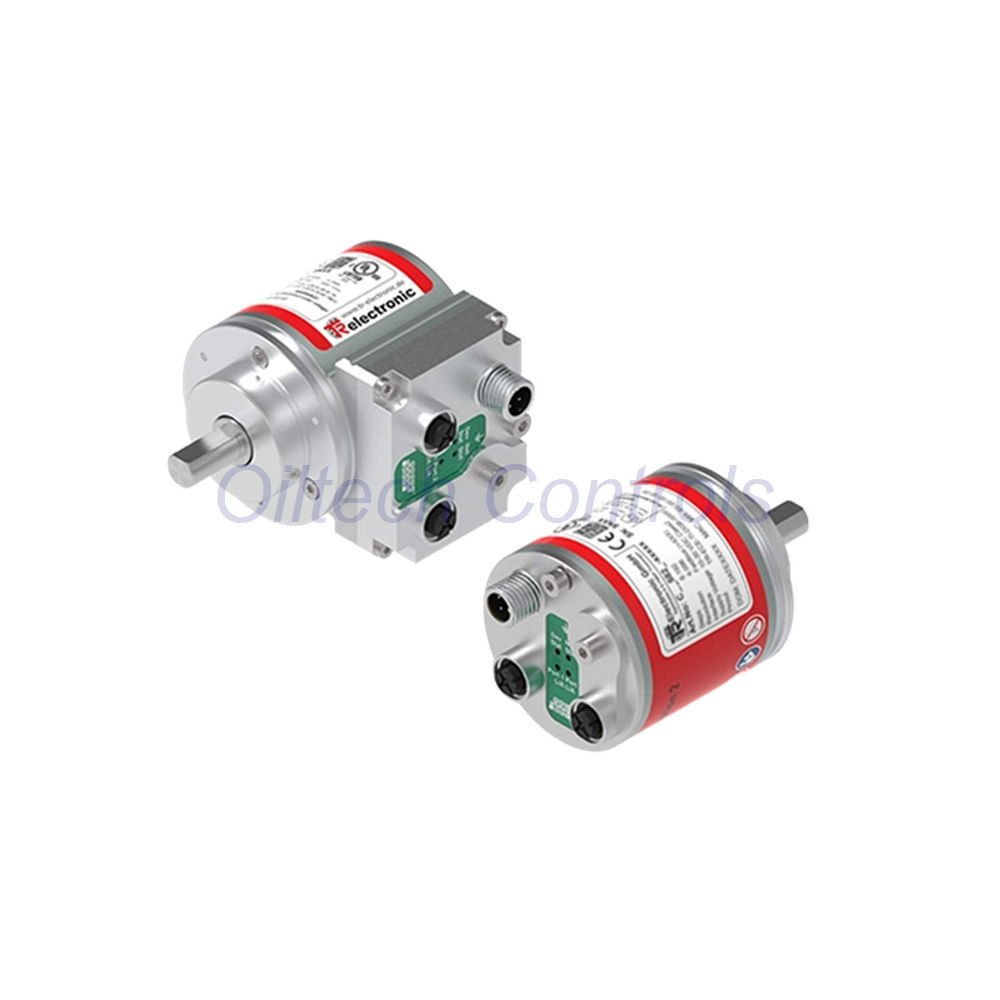

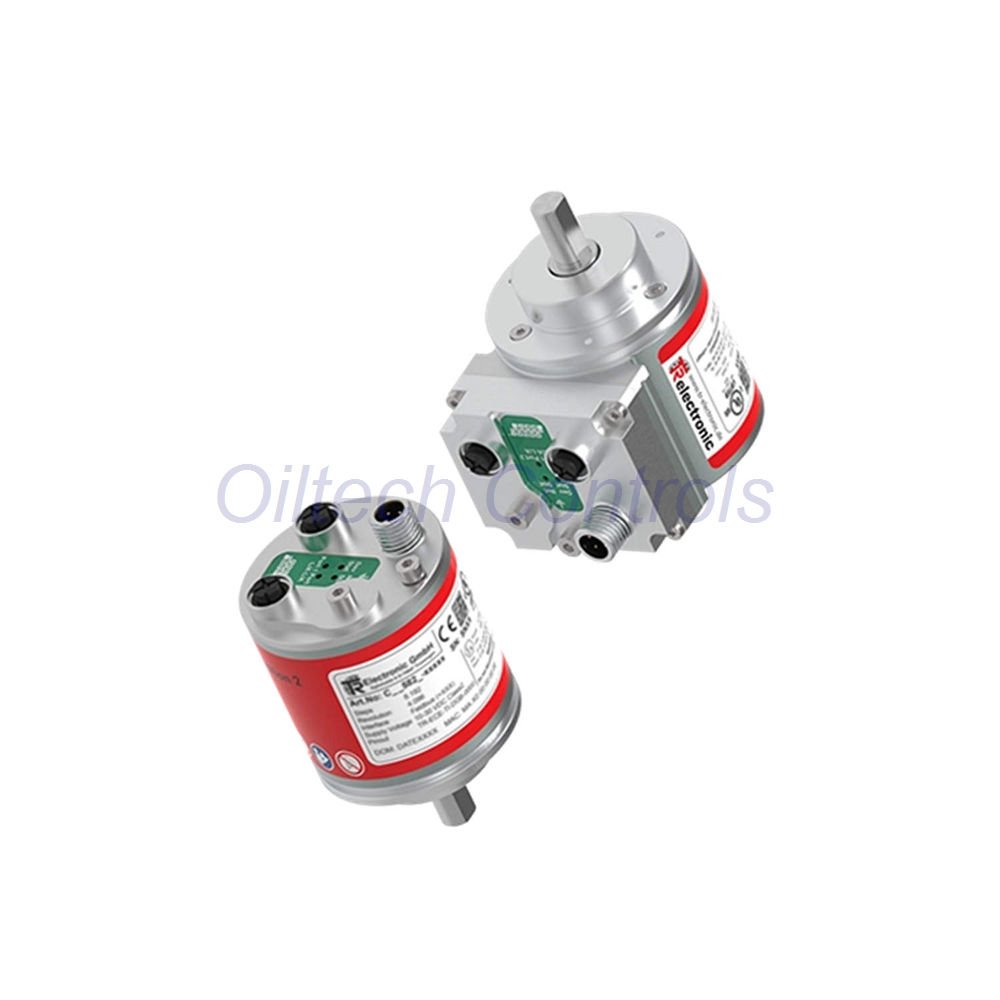

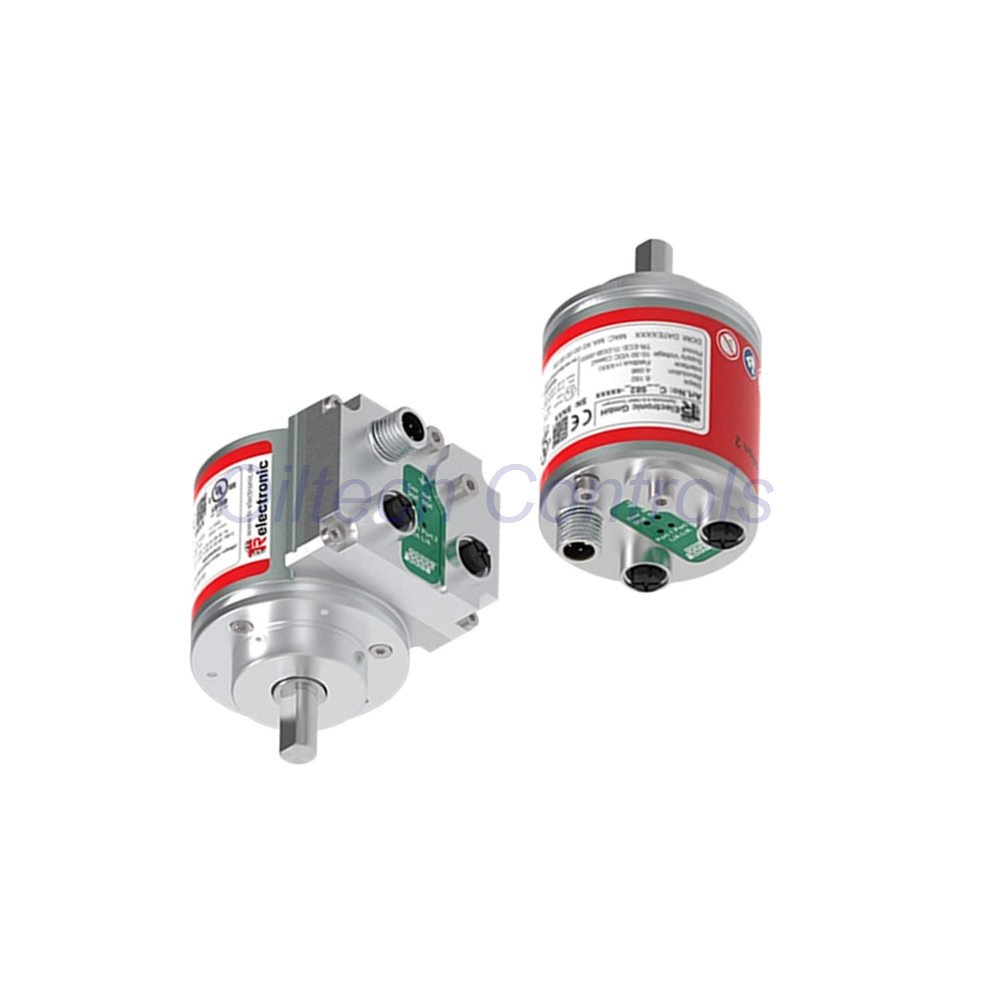

CEV58M-00441 TR Electronic Profinet Absolute Multi-Turn Encoder

Product Overview

• The TR Electronic CEV58M-00441 is a high-performance Absolute Multi-Turn Encoder.
• It uses the Profinet IO interface for real-time industrial automation.
• This device delivers precise motion feedback in harsh industrial environments.
• The CEV58M series supports Conformance Class C for high-speed synchronization.
• It features a robust ZB36 flange and a 10mm shaft for reliable coupling.
• Engineers choose this model for its high resolution and fast data transmission.

Core Technical Specifications

• Brand: TR Electronic
• Model: CEV58M-00441
• Interface: Profinet IO (V2.2)
• Resolution per Revolution: 8,192 steps (13 Bit)
• Number of Revolutions: 4,096 (12 Bit)
• Total Output Capacity: 25 Bit (up to 33 Bit supported)
• Supply Voltage: 11 to 27 VDC
• Nominal Current: 120 mA (unloaded)
• Code Type: Binary
• Transmission Rate: 100 MBit/s
• Cycle Time: Greater than or equal to 1,000 µs (IRT/RT)
• Real-Time Classes: Class 1, 2 (RT), Class 3 (IRT)

Mechanical and Environmental Data

• Shaft Type: 10mm Diameter with Flat (10FL/19.5)
• Flange Design: ZB36
• Maximum Mechanical Speed: 12,000 1/min
• Bearing Life: 3.9E+10 revolutions at 6,000 1/min
• Shaft Loading: 50 N Axial / 100 N Radial
• Mass: 0.3 to 0.5 kg
• Operating Temperature: -20 to +70 °C
• Protection Class: IP65
• Vibration Resistance: 100 m/s² (50 to 2000 Hz)
• Shock Resistance: 1000 m/s² (11 ms half sine)

Connectivity and Integration

• Power Connector: 1x 4-pin M12 Male
• Data Connectors: 2x 4-pin M12 Female (D-Coded)
• Connector Position: Axial
• Compatibility: IEC 61158 / IEC 61784-1 standards
• Programmable Parameters: Resolution, Counting Direction, and Addressing
• Software Support: Standard Fieldbus-Device programming tools

Installation and Maintenance

• Mount the CEV58M-00441 using the ZB36 flange centered on the drive.
• Use flexible couplings to prevent excessive shaft loads.
• Ensure the M12 connectors are fully tightened for IP65 sealing.
• The Profinet interface allows remote diagnostics via the PLC.
• Maintenance is minimal due to the long-life bearing design.
• Check electrical connections if signal loss occurs during operation.

Diagnostic Capabilities

• The CEV58M-00441 provides real-time velocity feedback.
• System status LEDs indicate network and power conditions.
• Internal alarms monitor temperature and internal electronic health.
• Detailed error logs are accessible through the Profinet IO layer.

Shipping and Warranty

• Packaging List: 1x CEV58M-00441 Encoder (mating plugs sold separately).
• Warranty: 12 Months from the date of delivery.
• Express Shipping: Fedex, UPS, DHL worldwide delivery.
• For urgent quotes, contact info@oiltechcontrols.com today.

Typical Applications

• High-speed packaging machinery and labeling systems.
• Automotive assembly lines using Profinet networks.
• Precision material handling and warehouse automation.
• Metalworking CNC machines requiring absolute position feedback.

Frequently Asked Questions (FAQ)

• Q: Does it require a battery for multi-turn data?
• A: No, the CEV58M-00441 uses a mechanical gear system.
• Q: What is the default IP address?
• A: You must assign the address via the Profinet controller.
• Q: Is it resistant to electromagnetic interference?
• A: Yes, it meets DIN EN 61000-6-2 immunity standards.
