Product Overview

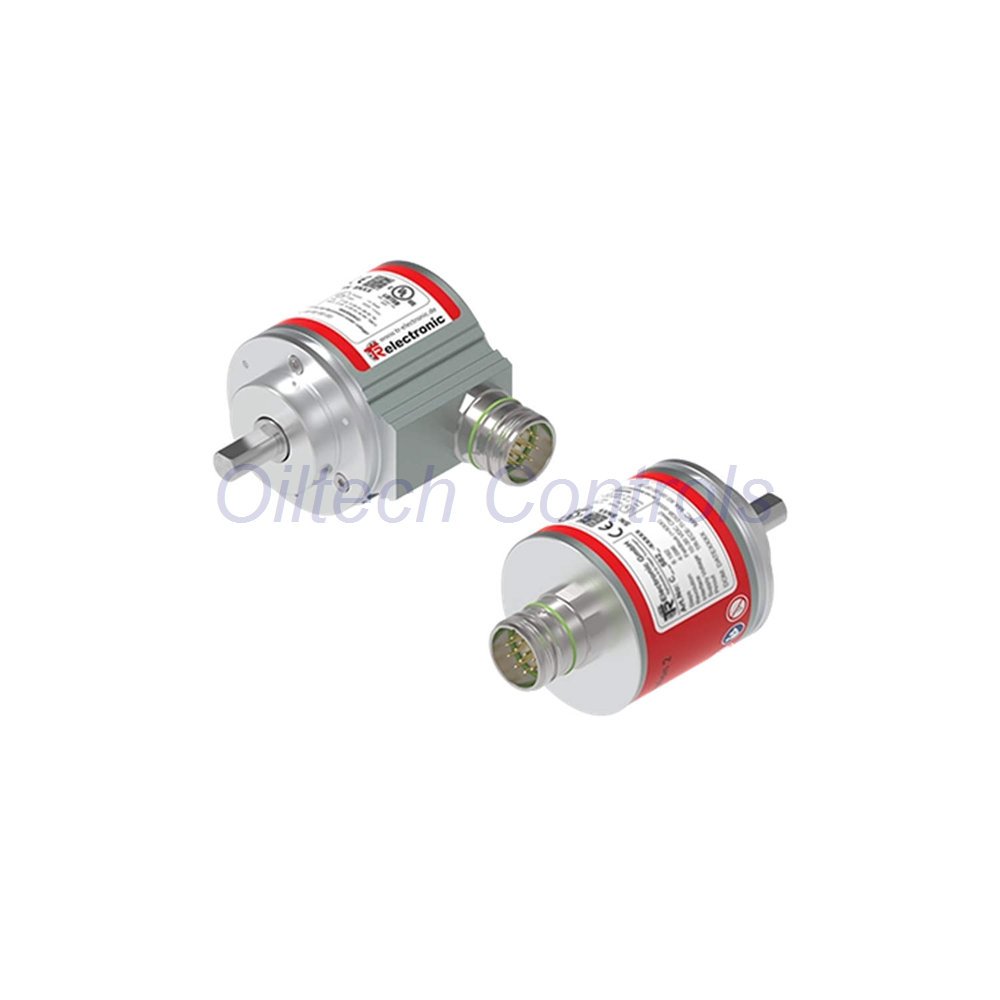

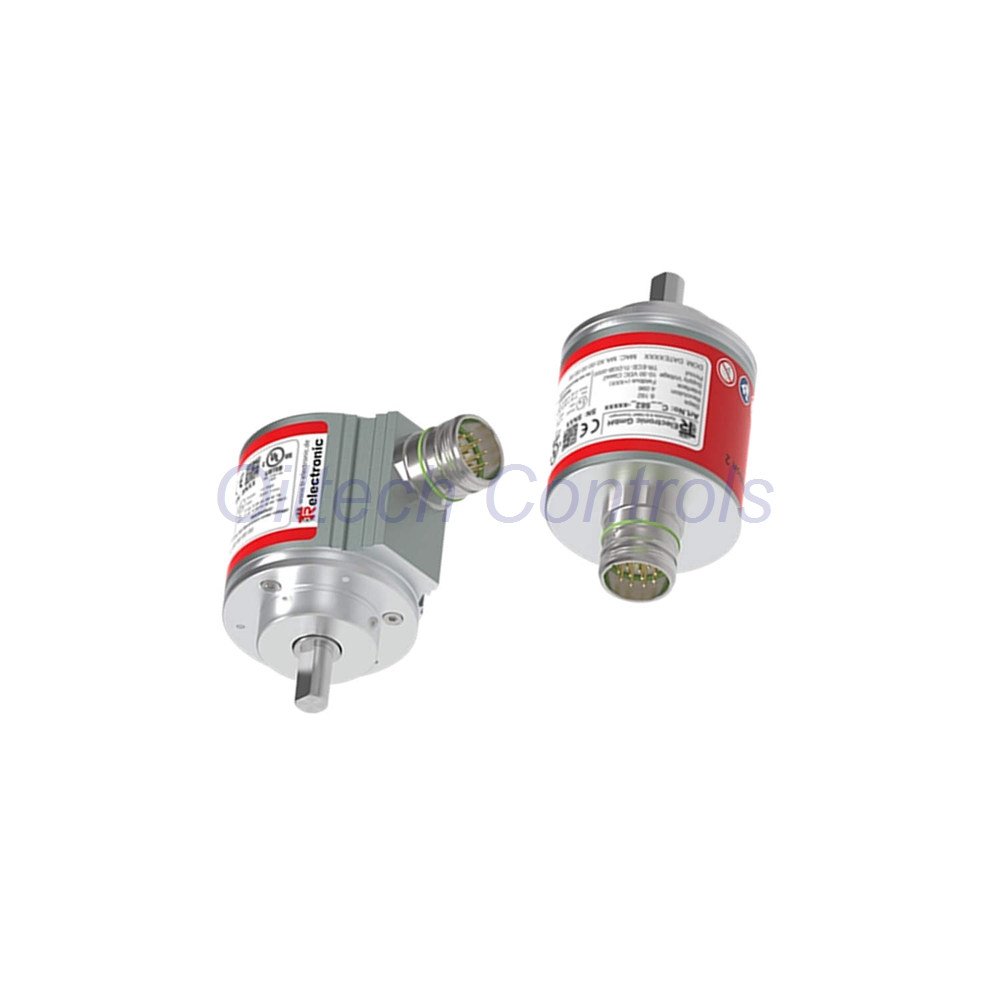

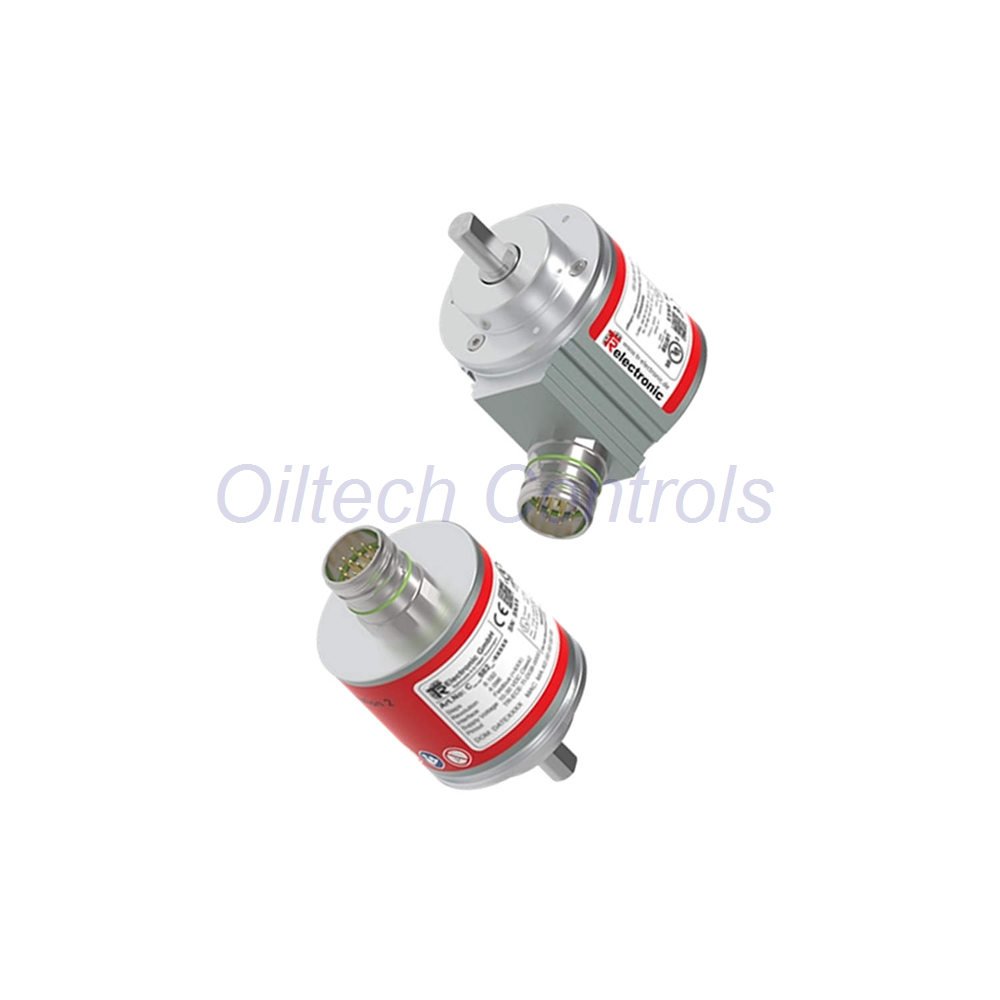

The CEV58M-SSI-1-D-1 is a high-performance absolute rotary encoder designed for precise motion control. It features a robust multi-turn design with a total resolution up to 33 Bit. This device ensures reliable position feedback in demanding industrial automation environments. Engineers trust the CEV58M series for its flexible parameterization and high mechanical stability.
Technical Specifications
- Brand: TR Electronic
- Model: CEV58M-SSI-1-D-1
- Measurement Range: Multi-turn capability with 256,000 revolutions
- Total Resolution: High-precision 33 Bit output capacity
- Steps per Revolution: 32,768 positions
- Interface Type: Synchronous Serial Interface (SSI) with RS-422 data output
- Clock Frequency: Adjustable range from 80 kHz to 1000 kHz
- Supply Voltage: 24 VDC nominal (Range: 11 to 27 VDC)
- Power Consumption: 80 mA typical at unloaded condition
- Cycle Time: Fast 250 µs internal processing
- Output Driver: Optional incremental square wave signals (TTL RS-422)
- Mechanical Speed: Maximum continuous operation at 12,000 1/min
- Protection Class: Standard IP65 rating for dust and moisture resistance
- Working Temperature: Reliable performance from 0 to +60 °C (Standard)
- Shaft Load: Supports up to 50 N axial and 100 N radial forces
- Shock Resistance: Rated at 1000 m/s² (11 ms half sine)
- Vibration Tolerance: Withstands up to 100 m/s² (50 to 2000 Hz)
- Certifications: Compliant with NEC Class 2 for UL/CSA approvals
Installation and Maintenance
- The CEV58M-SSI-1-D-1 supports various shaft diameters including 6mm, 10mm, and 12mm.
- Mount the encoder using the standard flange for optimal alignment.
- Use the TR-Soft: TRWinProg tool for easy software parameterization.
- The device includes programmable outputs for limit switches and error signals.
- Regularly check shaft couplings to ensure long bearing life.
- Diagnostic features monitor overspeed and counting direction automatically.
Compatibility and Applications
- Fully compatible with PLC systems supporting SSI protocol and RS-422 standards.
- Ideal for factory automation, packaging machinery, and material handling systems.
- Works seamlessly in harsh industrial environments with high electromagnetic interference.
- Supports external inputs for preset adjustments and direction switching.
Shipping and Support
- Warranty: Includes a 12-month comprehensive warranty from date of purchase.
- Shipping Methods: Fast global delivery via FedEx, UPS, and DHL.
- Packaging List: Includes one CEV58M-SSI-1-D-1 encoder and factory test report.
- For technical assistance, email info@oiltechcontrols.com today.
- Connect with our engineers via WhatsApp at +86 158 8020 0923 for instant support.
Frequently Asked Questions (FAQ)
- Can I change the resolution? Yes, the resolution is fully programmable via the TR-Soft tool.
- What is the mono time? The typical SSI mono time is 20 µs.
- Is it short-circuit proof? Yes, the external outputs feature built-in short-circuit protection.
Please click here to download the official CEV58M-SSI-1-D-1 instruction manual for detailed wiring diagrams.
