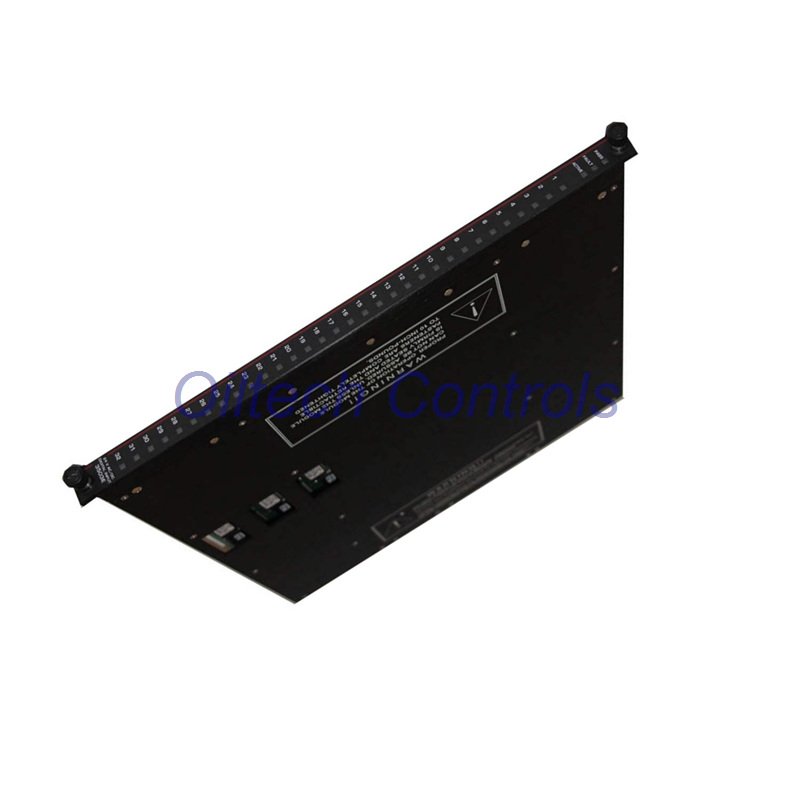

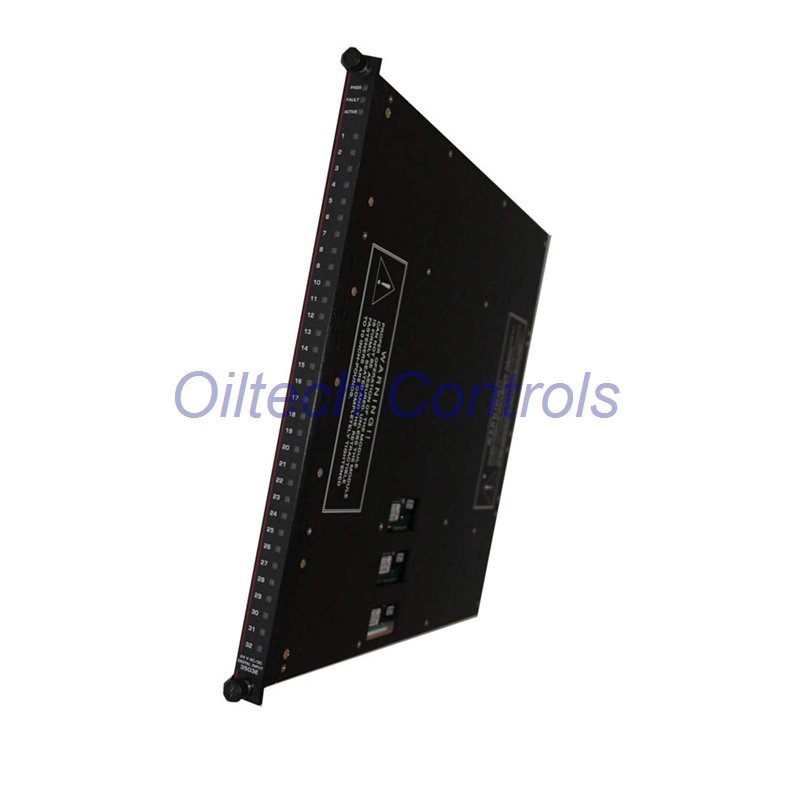

3505E Triconex Digital Input Module TMR 24VDC 32-Point

3505E Triconex TMR Digital Input High-Reliability Interface

The 3505E stands as a critical component for safety-instrumented systems (SIS) within the Tricon platform. This Triple Modular Redundant (TMR) module processes 32 points with a low-threshold 24 VDC architecture, ensuring voting integrity across all input channels. Engineered for “de-energize-to-trip” scenarios, the 3505E utilizes sophisticated internal circuitry to detect stuck-ON faults that could compromise plant safety. For urgent technical data or availability, please email info@oiltechcontrols.com or connect on WhatsApp at +86 158 8020 0923.

Engineering Specifications & Signal Logic

• Manufacturer: Schneider Electric / Triconex
• Module Type: 3505E TMR Digital Input
• Input Points: 32 Channels (Commoned in groups of 8)
• Operating Voltage: 20 to 42.5 VDC Range
• Switching Thresholds: OFF to ON > 12 VDC / ON to OFF < 4 VDC
• Hysteresis: Typical 2 VDC for noise immunity
• Input Delay: < 8 ms (OFF to ON) and < 15 ms (ON to OFF)
• Isolation: 1500 VDC Point-to-Backplane isolation
• Efficiency: Nominal input impedance > 1.25 KΩ with optimized 0.5W power draw per point.

Oiltech Controls’s Insight & Application Compatibility

• The 3505E is specifically valued for its “Stuck Test” capability, which identifies hardware failures in the optical isolation circuitry.
• We recommend this module for Emergency Shutdown (ESD) systems where detecting a failure to transition to OFF is non-negotiable.
• The Dark Red color coding on the faceplate allows technicians to rapidly identify the low-threshold DC input type in a crowded chassis.
• Compatible with Tricon v9/v10/v11 systems, Emergency Shutdown (ESD) loops, and Burner Management Systems (BMS).
• Engineers should leverage the hot-spare capability to ensure continuous protection during module maintenance cycles.

System Integrity & Diagnostic Monitoring

• Self-Test Function: Closes internal switches to simulate zero-input states and verify optical isolation performance.
• Data Freezing: The I/O processor freezes the last valid reading during self-tests to prevent false trips in the safety logic.
• Status Indicators: Comprehensive LEDs for Module Status (PASS, FAULT, ACTIVE) and individual Input Status per point.
• Mechanical Security: Keyed hardware prevents inserting the 3505E into an incorrectly configured slot.
• Shielding: 1500 VDC isolation ensures rugged protection against field-side electrical surges.

Logistics & Service Commitment

• Standard Warranty: Full 12-month quality guarantee provided on all units.
• Shipping Speed: Rapid dispatch within 24-28 hours from order confirmation.
• Express Carriers: Global delivery via FedEx, UPS, and DHL.
• Package Profile: Ships at approximately 2.0 kg with reinforced industrial-grade protection.

Professional FAQ & Selection Guide

• What makes the 3505E ‘Low Threshold’ compared to standard 24V modules?
  The switching levels are optimized to trigger at 12V, providing better sensitivity in systems with long cable runs and potential voltage drops.
• How does the ‘Stuck-ON’ test affect my live process data?
  The communication processor holds the last healthy value during the millisecond-range test, so your logic solver sees no interruption.
• Is the External Termination Panel (ETP) included with the module?
  No, the 3505E requires a separate ETP and interface cable which must be matched to your specific field wiring requirements.
• Selection Guide: Can I replace a standard 3503E with this 3505E module?
  While both are 24V, you must verify the threshold settings in your TriStation 1131 software configuration to ensure timing and logic compatibility.
• Experience Tip: What does an ‘Active’ LED indicate on the front panel?
  The Active LED confirms the module is currently being polled by the Main Processors and is successfully participating in the TMR voting.
