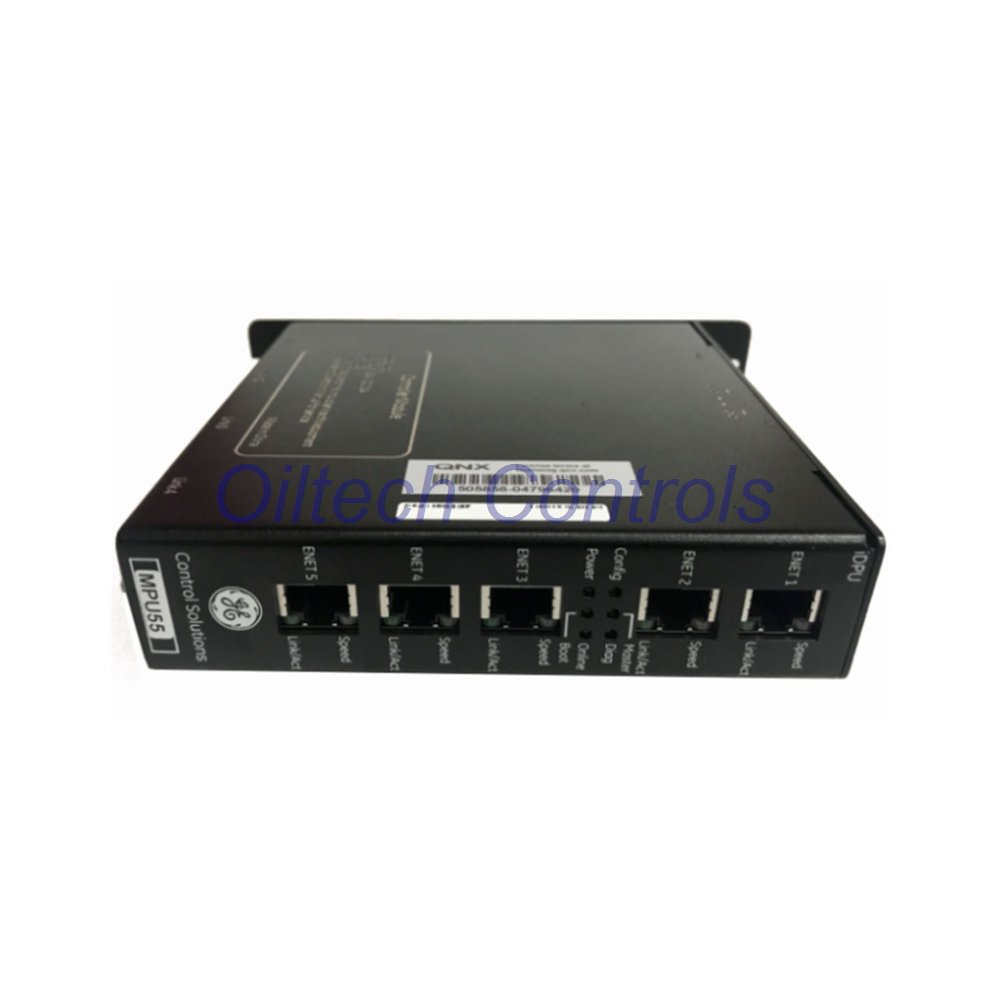

GE 369B1860G0030 Product Description
The 369B1860G0030 serves as the core computing unit in the GE Nexus MPU55 family.
It executes complex fuel metering algorithms and blade geometry adjustments with minimum latency.
The module runs on a high-throughput PowerPC 604e processor for real-time operation.
Dual-channel redundancy prevents control loss during primary system hardware failures.
Heavy-duty aluminum shielding protects internal circuits against severe electromagnetic interference.
Technical Data Specifications
| Brand | GE (General Electric) |
| Model Number | 369B1860G0030 |
| Product Series | GE Nexus MPU55 Series |
| Module Type | Communication and Control Module |
| Processor Architecture | PowerPC 604e RISC Processor |
| On-Board Memory | 128 MB RAM, 512 MB Flash |
| Supply Voltage | 24V DC Nominal |
| Digital Bus Interfaces | MIL-STD-1553, RS-232 Serial Port |
| Network Communication | 10/100/1000Mbps Auto-Sensing Ethernet |
| Supported Protocols | Modbus TCP, Profinet, SNMP, Web Interface |
| Measurement Range | 0 to 100% full scale engine speed parameter monitoring |
| Frequency Response | 10 kHz closed-loop update frequency |
| Control Sensitivity | 0.01% resolution on output signal command channels |
| Linearity & Resolution | 0.05% full-scale linearity, 16-bit analog-to-digital resolution |
| Operating Temperature Range | -55°C to +75°C (Extended Industrial Grade) |
| Environmental Tolerance | IP67 Sealed Housing, High-G Vibration Resistant |
| EMI/Noise Immunity | MIL-STD-461 Compliance for Harsh Noise Environments |
| Dimensions and Weight | 100mm x 100mm x 50mm, 0.5 kg total weight |
System Diagnostics and Protocols
- Built-in test routines run continuous memory integrity checks.
- Integrated watchdogs monitor real-time operating software execution.
- Web and SNMP management tools allow quick remote system parameter verification.
- Engineers use Modbus TCP and Profinet protocol stacks for industrial monitoring.
Installation, Maintenance, and Compliance
- Standard panel mounting and DIN rail options simplify hardware retrofits.
- Modular hardware design speeds up field module swap routines.
- The hardware meets FAA and EASA airworthiness design standards.
- Fast thermal dissipation reduces field calibration requirements over time.
Typical Application Scenarios
- Control loops in commercial and passenger aircraft engines.
- Flight control hardware in military fighters and transport planes.
- Engine management units in rotary-wing helicopters.
- Turbine controls in defense and industrial unmanned aerial vehicles.
Shipping Package and Warranty Details
Each shipment contains one tested GE 369B1860G0030 control module and anti-static packaging.
We provide a comprehensive 12-month warranty covering all internal component failures.
We ship packages worldwide using express options: FedEx, UPS, and DHL.
Frequently Asked Questions
Q: What software interfaces support configuration?
A: Engineers configure parameters via standard SNMP tools or the built-in Web management interface.
Q: Is the 369B1860G0030 resistant to water ingress?
A: Yes, the IP67 enclosure fully seals internal circuits against water and dust intrusion.
