Product Overview

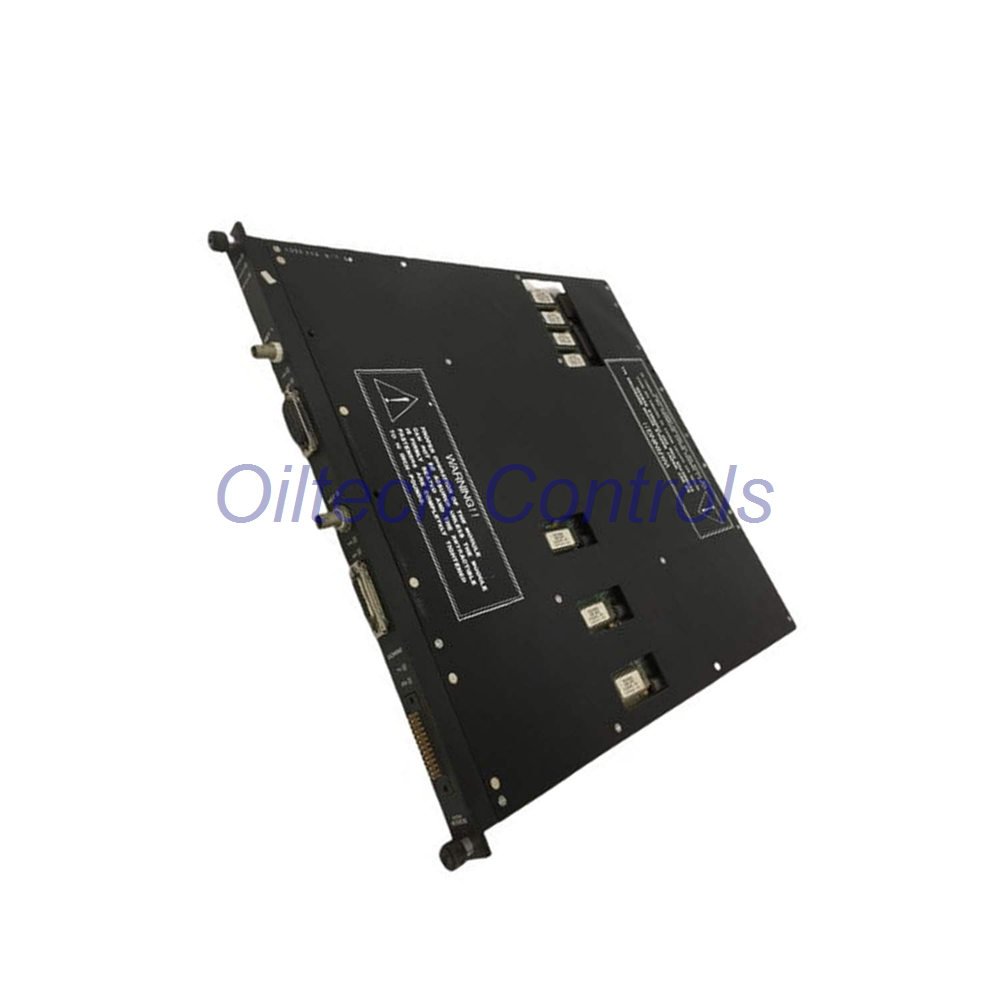

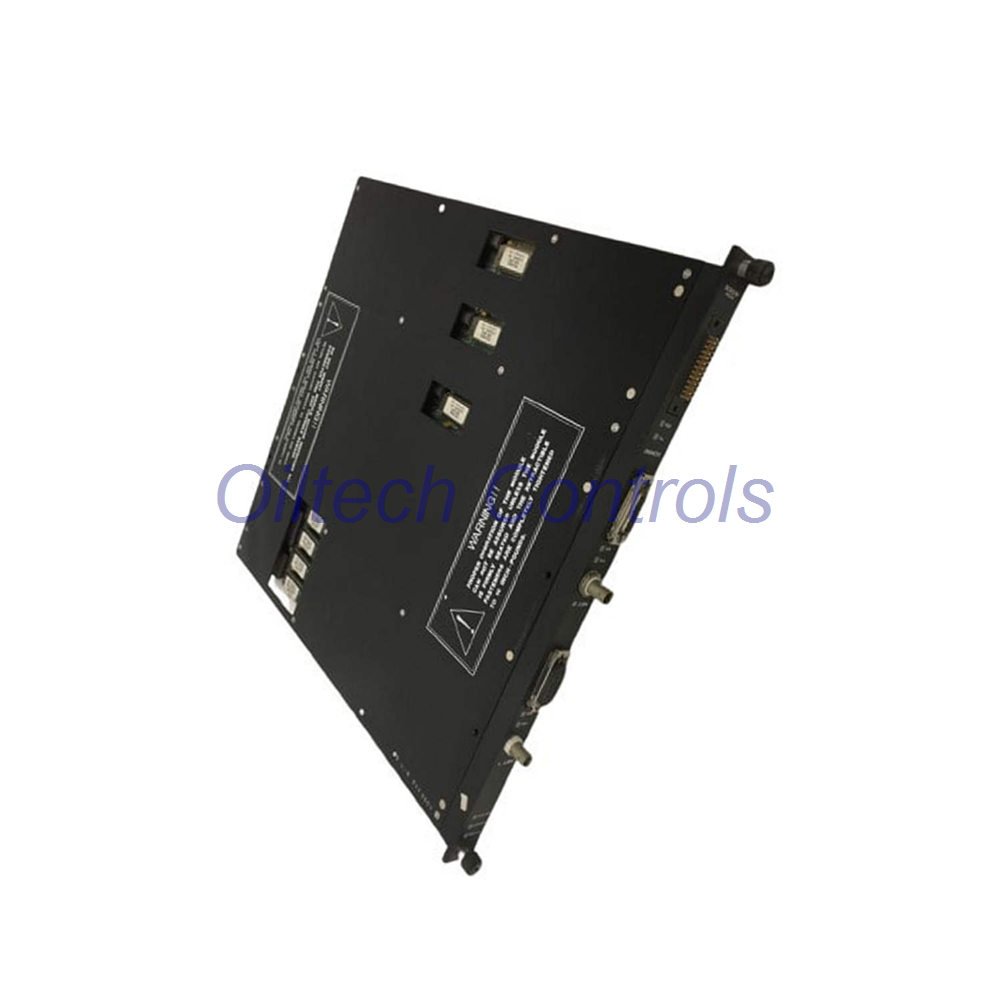

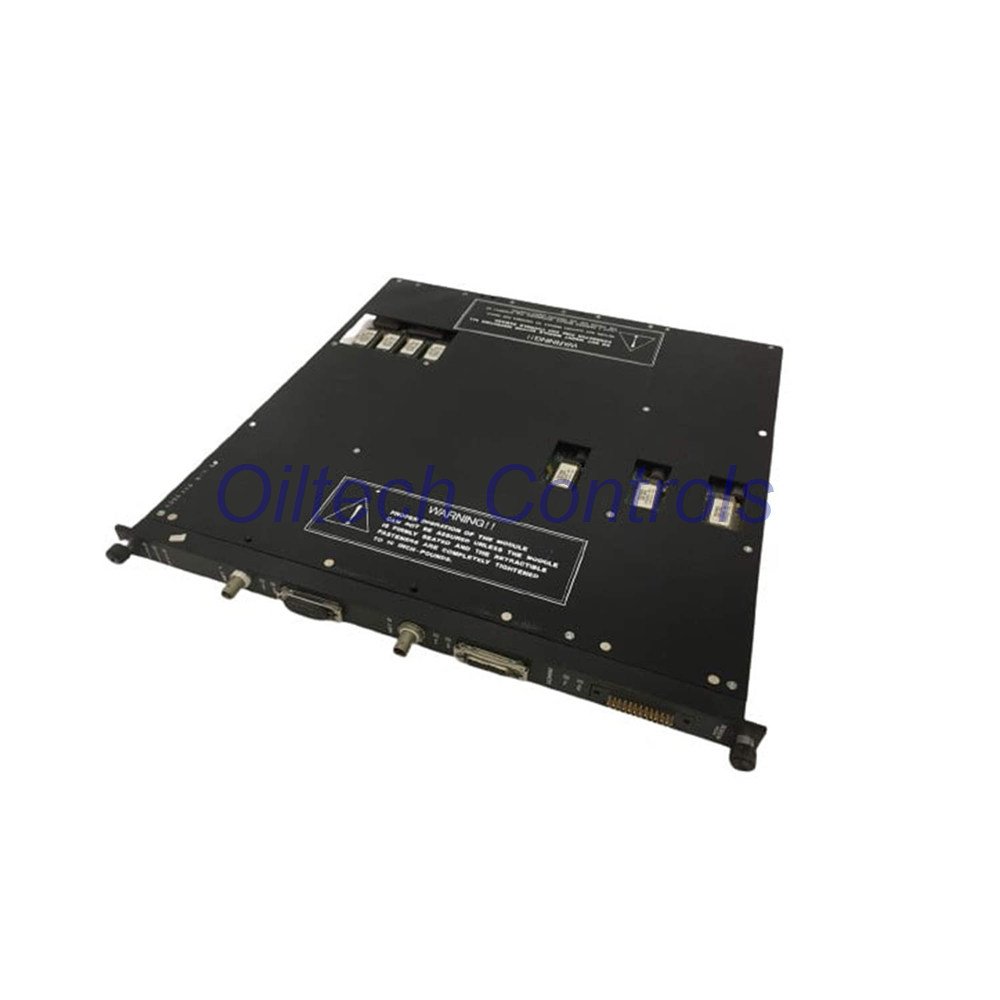

The 4329 Network Communication Module (NCM) provides robust Ethernet connectivity for your Tricon control systems. It enables seamless communication between Tricons and external host computers. This module supports proprietary Triconex protocols and user-written applications, including TSAA. The NCM ensures stable data exchange over IEEE 802.3 networks. It offers high reliability for safety-critical industrial environments. Two NCMs can reside in one logical slot for independent operations. It is a critical component for modernizing your industrial network infrastructure.
Key Technical Specifications
- Brand: Triconex
- Model: 4329
- Module Type: Network Communication Module
- Communication Speed: 10 Megabits per second
- Ethernet Ports: Two BNC connectors (RG58 50-ohm cable)
- External Transceiver: Two 15-pin D-connectors
- Serial Port: One RS-232 compatible
- Port Isolation: 500 VDC
- Protocol Support: TSAA (TCP/UDP/IP/802.3)
- Data Refresh: Once per scan
Installation & Compatibility
- Compatibility: Fully IEEE 802.3 compliant
- Chassis Placement: Mounts in standard Tricon logical slot
- Integration: Supports TriStation, SOE, OPC, and DDE Servers
- Net 1 Usage: Peer-to-Peer and Time Sync
- Net 2 Usage: External host networking
- Diagnostics: Dedicated PASS, FAULT, ACTIVE and TX/RX LEDs
Logistics & Support
- Shipping: Fast delivery via FedEx, UPS, or DHL
- Warranty: 12-month quality guarantee included
- Technical Support: Contact info@oiltechcontrols.com
- WhatsApp: Click to chat: +86 158 8020 0923
- Documentation: Download the Tricon Communication Guide for setup instructions.
FAQ
- Q: Does it support hot-sparing? A: No, two modules function independently.
- Q: What is the cable range? A: 185m standard, up to 4,000m with repeaters.
- Q: How is data accessed? A: External hosts use assigned Alias numbers.
