A06B-6114-H103 FANUC Servo Amplifier Module | A06B Series

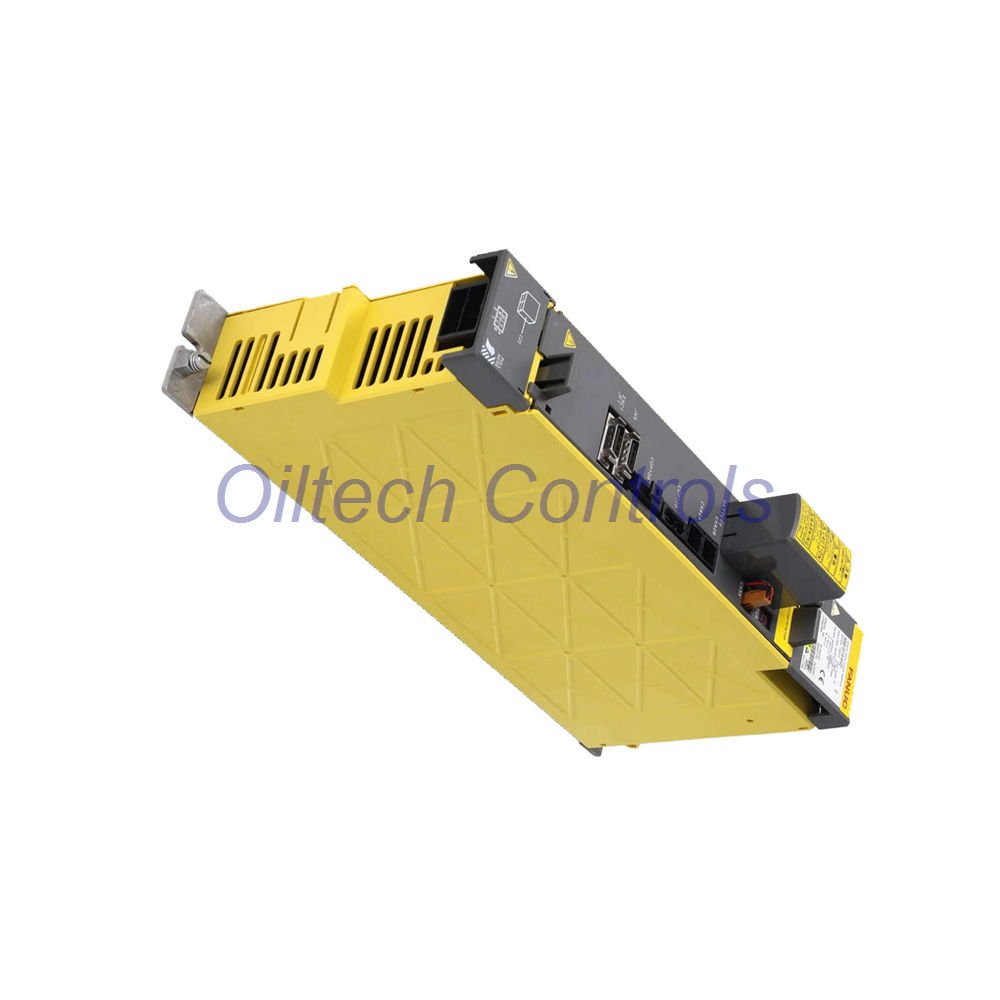

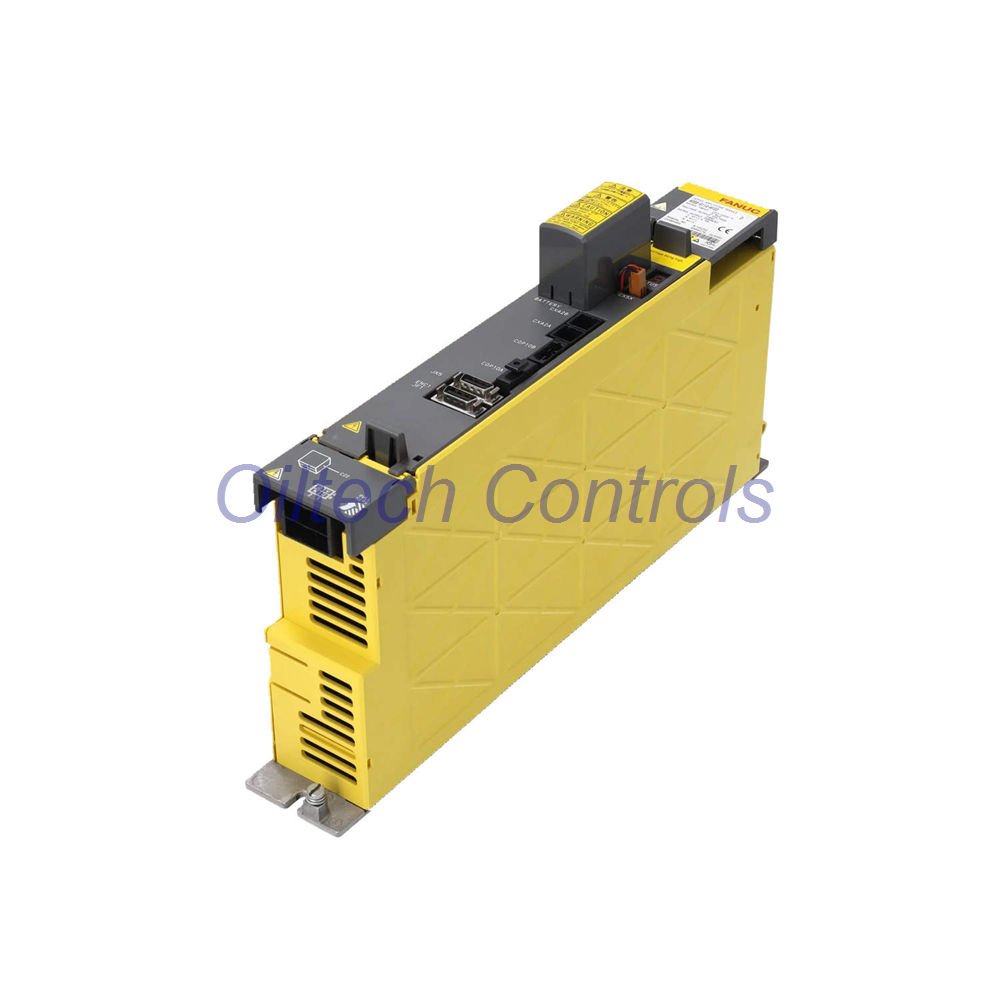

A06B-6114-H103 FANUC Servo Amplifier Module

The A06B-6114-H103 is a FANUC A06B series servo amplifier module. This unit drives servo motors in automation systems. It works from 0°C to 55°C. Moreover, it handles humidity up to 90% RH without condensation. The module uses 283–339 VDC input. In addition, it delivers 200–240 VAC output. Rated output current is 6.5A. Output frequency spans 0.1–800 Hz. Rated input power is 2.5 kW. It supports 50/60 Hz input frequency. As a result, this unit suits stable, high-precision motion control.

Technical Specifications

Key Performance Data

• Measurement Range: Output voltage is 200–240 VAC.
• Frequency Response: It spans 0.1–800 Hz for varied speed needs.
• Sensitivity: Stable response holds under 6.5A rated current.
• Linearity: Smooth control covers the full output range.
• Resolution: Fine speed adjustment comes from the wide frequency span.
• Temperature Range: Operating range is 0°C to 55°C.
• Environmental Tolerance: It allows 90% RH max without condensation.
• Noise Immunity: The design suits industrial automation environments.

Installation Guide

• Mount the module in a dry control cabinet.
• Keep airflow clear around the unit.
• Use 283–339 VDC input power.
• Match output to 200–240 VAC servo motors.
• Ground the unit properly before power-on.
• Check all cable connections twice.
• Avoid condensation during installation.

Setup and Maintenance

• Verify input voltage before first startup.
• Set frequency range for your motion profile.
• Monitor current draw at 6.5A or below.
• Clean dust from vents at regular intervals.
• Inspect terminals for looseness or corrosion.
• Replace damaged fans or cables early.
• Log operating temperature and humidity.

Compatibility Notes

• Fits FANUC A06B series systems.
• Works with 50 Hz and 60 Hz power lines.
• Pairs with servo motors rated 200–240 VAC.
• Supports legacy FANUC automation setups.
• Check drive pairing before installation.

Certifications and Compliance

• Built to FANUC industrial standards.
• RoHS and REACH compliance may apply.
• CE and UL status depends on batch.
• Confirm documents before regulated use.

Package List

• 1 x A06B-6114-H103 servo amplifier module
• Protective packing
• Test report or label as available
• Order invoice

Warranty and Shipping

• 12-month warranty included.
• Shipping by FedEx, UPS, or DHL.
• Tracking number provided after dispatch.
• Packed for safe industrial transport.

Typical Applications

• CNC machine servo axes
• Industrial robots
• Automated production lines
• Legacy FANUC control systems
• Motion control retrofits

Diagnostic Capability

• Supports alarm and fault feedback.
• Helps trace overcurrent and voltage issues.
• Aids checks for overload and heat problems.
• Works with FANUC diagnostic tools.
• Simplifies troubleshooting in servo loops.

Why Buy From Oiltech Controls?

• 15+ years in industrial automation spare parts.
• Global shipment support.
• Tested surplus and refurbished options.
• 12-month warranty.
• Technical verification before shipment.
• Support for obsolete control systems.

FAQ

Q: What is the input voltage?
A: It needs 283–339 VDC.

Q: What is the output voltage?
A: It provides 200–240 VAC.

Q: What is the rated current?
A: The rated output current is 6.5A.

Q: What is the frequency range?
A: It spans 0.1–800 Hz.

Q: What is the operating temperature?
A: It runs from 0°C to 55°C.

Q: Does it ship worldwide?
A: Yes, via FedEx, UPS, or DHL.

Q: Is warranty included?
A: Yes, 12-month warranty.

Q: How do I contact support?
A: Email info@oiltechcontrols.com or WhatsApp +86 158 8020 0923.

Contact Information
Inquiries: info@oiltechcontrols.com | WhatsApp: +86 158 8020 0923
