FS-MC8P Keyence Multi-Output Unit | FS-N40 PNP 8 Output

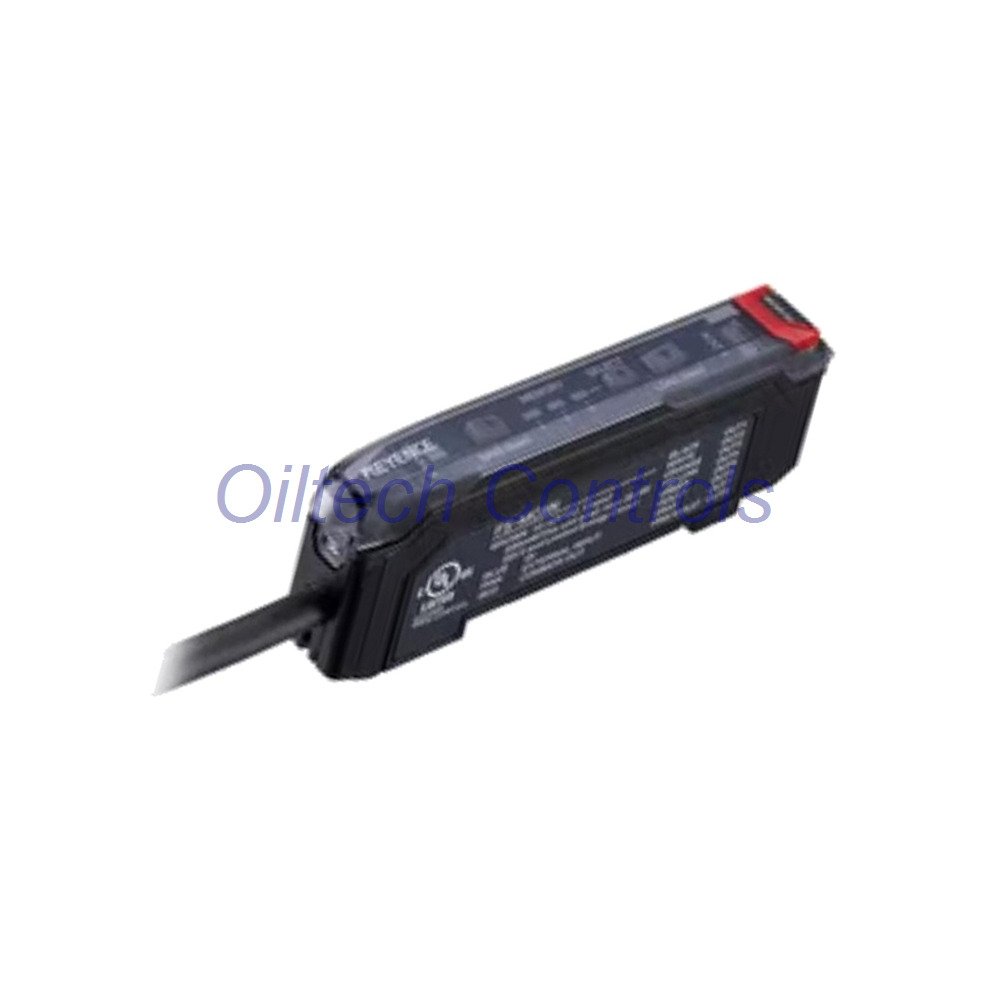

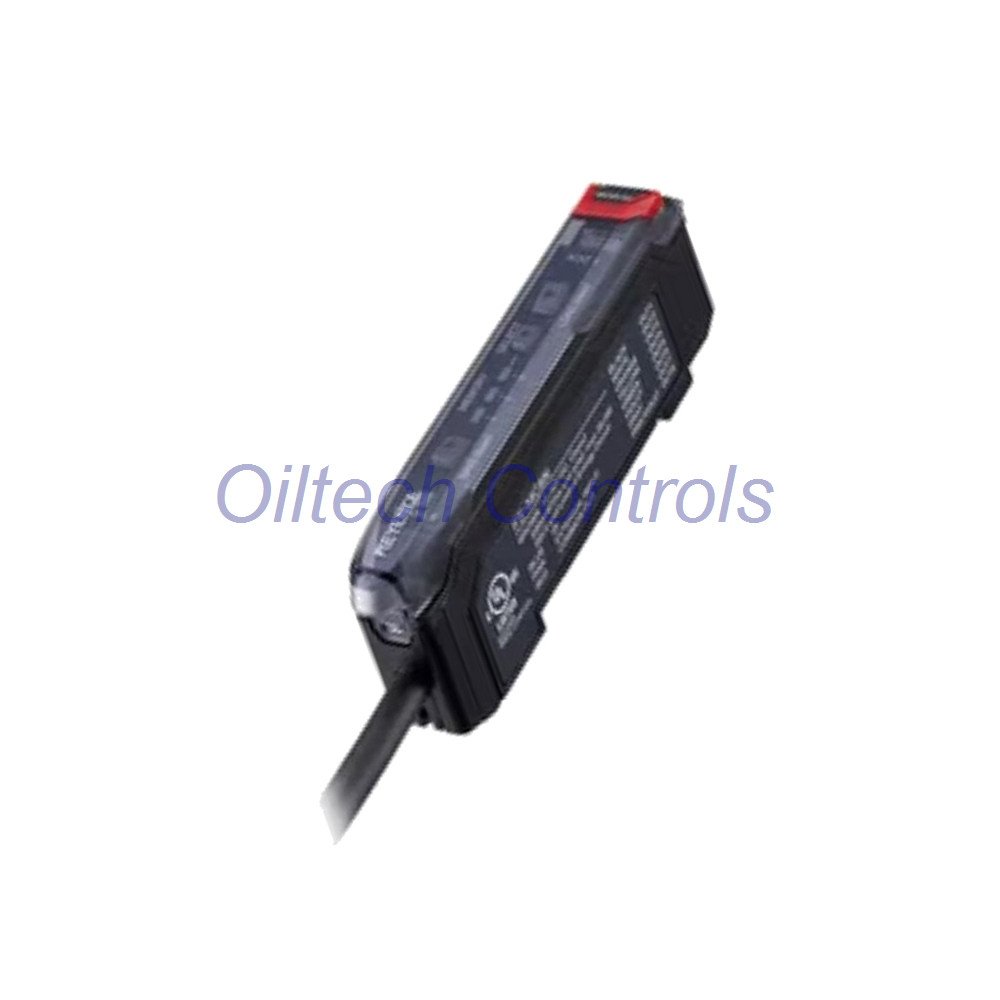

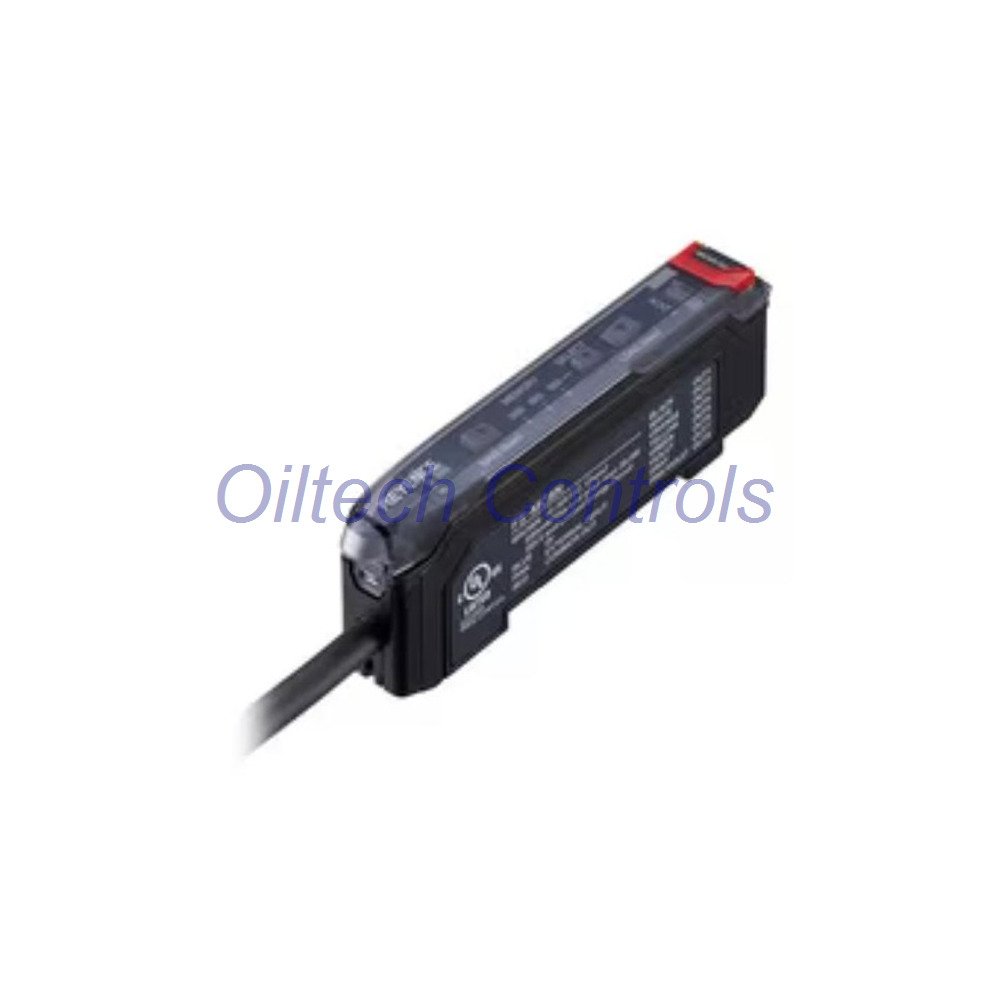

FS-MC8P Keyence Multi-Output Unit for FS-N40 Series

The FS-MC8P is a multi-output unit built for the Keyence FS-N40 series. It gives you 8 separate PNP control outputs plus 1 common output and 1 common input. Up to 8 expansion units can link together. Dual-output units count as 2. Total passing current must stay at or below 1,200 mA. This unit suits sensor banks that need grouped outputs without extra wiring.

Output and I/O Specifications

• Model: FS-MC8P
• Brand: Keyence
• Series: FS-N40
• Type: Multi-output unit
• Output: PNP
• Separate control outputs: 8
• Common output: 1
• Common input: 1
• Control output type: PNP open-collector
• Max output voltage: 30 V
• Max current per output: 20 mA
• Residual voltage: 1.4 V NPN, 1.6 V PNP
• External input time: Expansion unit input time +11 ms

Expansion and Indicator Details

• Expands up to 8 units.
• Dual-output units count as 2.
• Allowable passing current 1,200 mA or less.
• STATUS indicator: Green or red
• MEMORY indicator: Orange
• LOCK indicator: Orange

Electrical Data

• Supply voltage: 10 to 30 VDC
• Ripple 10% P-P or less.
• Class 2 or LPS power source.
• Power consumption: 690 mW or less alone
• Current draw: 26 mA at 24 V, excluding load

Environment and Physical Data

• Operating temperature: -20 to +55 °C, no freezing
• Storage temperature: Not available
• Humidity: Not available
• Protection rating: Not available
• Dimensions: Not available
• Weight: Approx. 110 g

Installation Guidance

• Mount on DIN rail with FS-N40 units.
• Keep passing current under 1,200 mA.
• Use Class 2 or LPS power supply.
• Check ripple stays under 10% P-P.
• Wire PNP loads to match output type.

Setup and Maintenance Tips

• Watch STATUS for green or red state.
• Check MEMORY and LOCK orange lights.
• Count dual-output units as 2 during expansion.
• Verify current per output stays under 20 mA.
• Recheck wiring after adding units.

Compatibility Notes

• Works with Keyence FS-N40 series units.
• Links up to 8 expansion units.
• No built-in ports or protocols.
• No communication expansion.
• PNP output suits PNP input devices.

Certification Information

• Use Class 2 or LPS supply only.
• Confirm local panel rules before use.
• Ground the panel for stable operation.

Packing List and Warranty

• 1 x Keyence FS-MC8P multi-output unit
• 1 x Quick guide
• 1 x Test report
• 12-month warranty
• 24 to 28 hour dispatch

Shipping Methods

• Ships by FedEx, UPS, and DHL.
• Tracking provided after dispatch.
• Industrial packing for safe transit.
• Contact us for freight and customs support.

Oiltech Controls Review

• Oiltech Controls supplies tested industrial automation spares.
• Each FS-MC8P is checked before shipment.
• We support obsolete and hard-to-find sensor units.
• Global buyers use us for fast replacement sourcing.
• Our team verifies output type, indicators, and voltage range.

Oiltech Controls’s Insight

• Use the FS-MC8P to group FS-N40 sensor outputs.
• It fits panels with many sensor lines.
• It suits PNP control systems.
• It works well in compact sensor banks.
• It replaces worn output units without rewiring the bank.

Best Fit Equipment

• Multi-sensor inspection stations
• Packaging line sensor banks
• Assembly machines with many sensors
• Labeling and print detection cells
• OEM panels using FS-N40 units

FAQ

Q: How many FS-N40 units can the FS-MC8P expand to?

A: Up to 8 expansion units. A dual-output unit counts as 2. Plan the total before wiring.

Q: What limits the passing current on the FS-MC8P?

A: The allowable passing current is 1,200 mA or less. Add up all connected loads first. Exceeding this can damage the unit.

Q: Can I use the FS-MC8P with NPN sensors?

A: No. This model is PNP output. Match it with PNP devices. For NPN systems, check other FS-N40 output units.

Q: Why does the external input time add 11 ms?

A: The FS-MC8P adds 11 ms to the connected expansion unit input time. Factor this into fast response logic. Slow input timing can affect high-speed sorting.

Q: How do I verify a used FS-MC8P before buying?

A: Ask for output tests, indicator checks, and voltage range checks. Confirm PNP output type and current limits. Oiltech Controls runs these checks before shipment.
