IS200TSVOH1BBB GE Mark VI Servo Terminal Board – TMR & Simplex

IS200TSVOH1BBB Servo I/O Terminal Board – GE Mark VI

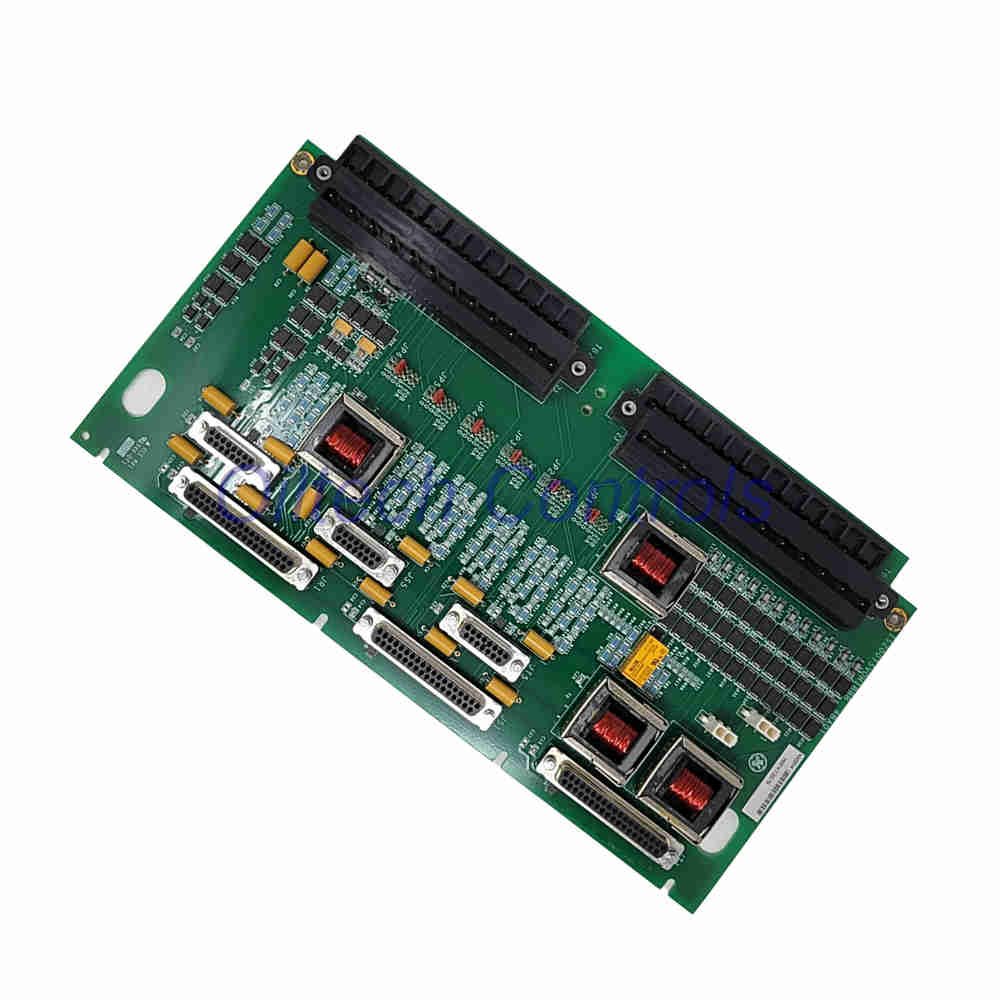

IS200TSVOH1BBB is a servo terminal board from General Electric. It belongs to the Mark VI Speedtronic series. The board interfaces with electro-hydraulic servo valves for steam and fuel valve actuation. It supports both Simplex and TMR (Triple Modular Redundancy) signals. This design ensures fault tolerance and high system reliability.

The TSVO board provides continuous current monitoring and feedback validation. It integrates external trip inputs via JD1/JD2 connectors. The board uses surface-mount technology and operates in harsh industrial environments.

Technical Specifications

• Part Number: IS200TSVOH1BBB
• Brand: General Electric
• Series: Mark VI Speedtronic
• Span: 0.3532 to 4.054 V
• Size: 17.8 cm (H) x 33.02 cm (W)
• Operating Temperature: -30 to 65 °C
• Technology: Surface mount
• Weight: ~2.00 lbs
• Connectors: 6 d-shell, 2 terminal strips, multiple vertical plugs
• Jumpers: 6 jumpers (each with 6 settings)
• Conformal Coating: Yes (normal assembly)
• Revisions: Total 3 revisions; backward-compatible with first two

Measurement & Signal Capabilities

• Signal Types: 0 to ±50 V dc analog, AC (< 24 VAC), 4–20 mA loops
• Feedback: LVDT inputs for precise valve position
• Redundancy: TMR signals distributed via JR1, JS1, JT1
• Fault Detection: Servo current out-of-limits, regulator feedback errors, failed ID chip

Installation & Wiring Guide

• Secure board using brackets or fixtures. Align for easy access.
• Wire sensors and servo valves to two terminal blocks (24 terminals each, 12 AWG max).
• Attach shield wires to chassis-grounded strips beside each block.
• External trip connects via JD1 or JD2 plugs.
• Use cable ties for neat cable management.
• Verify all terminations and test sensor/servo responses.

Diagnostics & Fault Handling

• Monitors servo current for over-limit or non-response.
• Checks regulator feedback against expected ranges.
• Detects failed ID chip for hardware integrity.
• Alerts operators for timely corrective actions.

Compatibility & Integration

• Designed for GE Mark VI control systems.
• Interfaces with VSVO I/O processor via J5, J3/J4 connectors.
• Supports standard connectors and communication protocols.
• Can integrate into existing turbine control infrastructure.

Environmental & Robustness

• Operating range: -30 to 65 °C.
• Surface-mount technology for durability.
• Shield termination reduces EMI and noise.
• Conformal coating protects against moisture/dust.

Certification & Compliance

• Manufactured in the USA by GE.
• Mark VI series certified for turbine control.
• RoHS and industry-standard compliance (refer to GE manuals).

Package Contents

• IS200TSVOH1BBB board (1 unit).
• Installation and handling guide (digital copy available).
• Shield termination strips (pre-installed).

Warranty & Shipping

• 12-month warranty against manufacturing defects.
• Shipping via FedEx, UPS, or DHL (global).
• All units tested before shipment.

Typical Applications

• Steam turbine valve actuation.
• Fuel valve control in gas turbines.
• Industrial servo valve systems.
• Power generation and process control.

Why Buy From Oiltech Controls?

• 15+ years in industrial automation spares.
• Global shipment support – fast and reliable.
• Tested surplus and refurbished options.
• 12-month warranty on all products.
• Technical verification before every shipment.
• Expert support for obsolete control systems.
