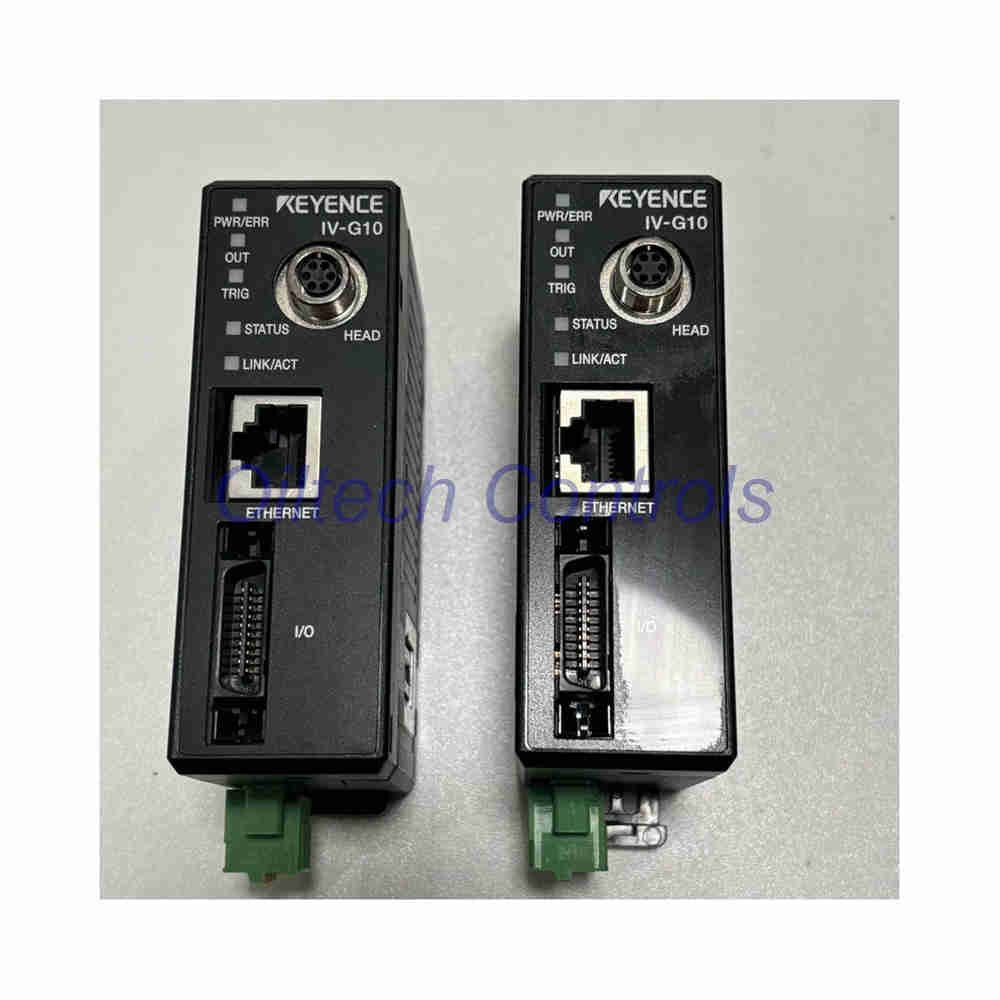

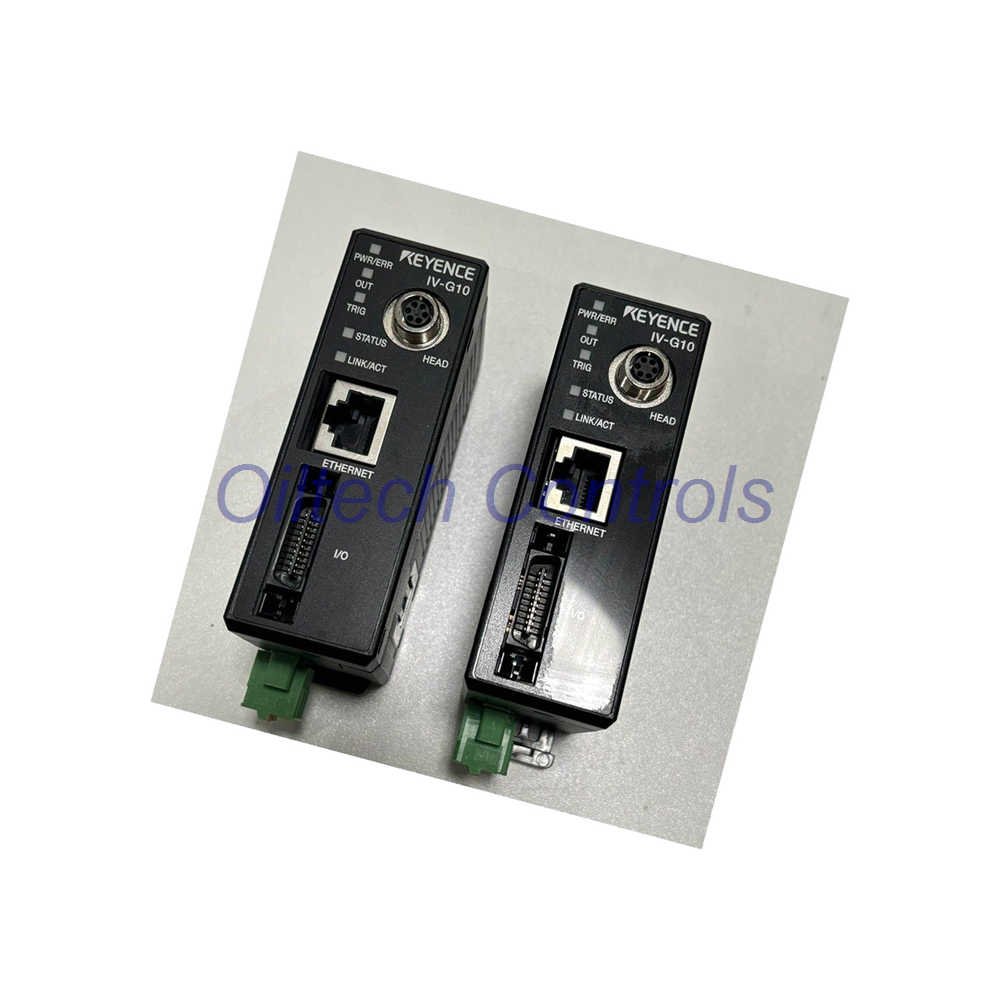

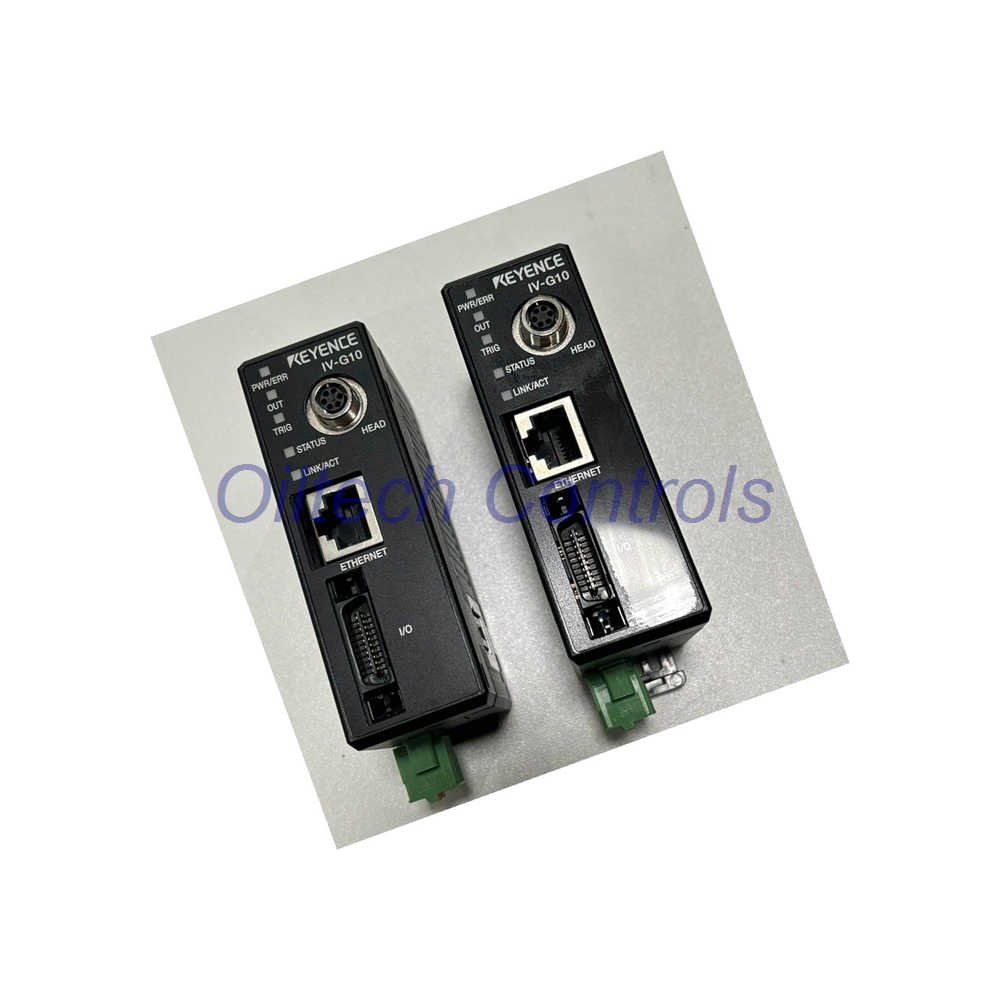

IV-G10 Keyence Vision Sensor Amplifier Main Unit | IV-G Series
The IV-G10 is a sensor amplifier main unit built for Keyence IV-G Series vision sensor heads. It runs shape detection, color area, area, and position adjustment tools. Machine builders use it for stable inline inspection. It supports 16 detection tools, 1 position tool, and 32 programs. The unit offers Ethernet, EtherNet/IP, and PROFINET connectivity for factory networks.
Condition: Discontinued by Keyence. A recommended replacement exists. Oiltech Controls supplies tested surplus and refurbished options for legacy lines.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts
- Global shipment support through FedEx, UPS, and DHL
- Tested industrial surplus and refurbished options
- 12-month warranty on every eligible unit
- Technical verification before shipment
- Support for obsolete control systems
Technical Specifications
| Brand | Keyence |
| Model | IV-G10 |
| Series | IV-G Series |
| Type | Sensor amplifier, main unit |
| Tools | Shape Detection, Color Area, Area, position adjustment |
| Detection tools | 16 |
| Position tool | 1 |
| Programs | 32 |
| Built-in port | RJ-45 8-pin, 100BASE-TX / 10BASE-T |
| Protocols | FTP client, EtherNet/IP, PROFINET |
| Expansion | IV-G15 expansion unit |
| Supply voltage | 24 VDC +/-10%, ripple included |
| Power draw | 0.8 A or less; 1.5 A or less with IV-G15, output load excluded |
| Output type | Open collector, NPN/PNP switchable, N.O./N.C. switchable |
| Output rating | 26.4 V, 50 mA max |
| Inputs | 6, IN1 to IN6 |
| Outputs | 8, OUT1 to OUT8 |
| Temperature range | 0 to +50°C, no freezing |
| Humidity | 35 to 85% RH, no condensation |
| Protection rating | Not available |
| Dimensions | Not available |
| Weight | Approx. 150 g |
| Lifecycle | Discontinued; replacement recommended |
Note: Measurement range, frequency response, sensitivity, linearity, resolution, and anti-interference data are not published for this amplifier. Please confirm with our team before purchase.
Installation Guide
- Mount the IV-G10 on a DIN rail or panel.
- Keep the unit away from heat and moisture.
- Connect the vision head to the amplifier port.
- Use a stable 24 VDC power supply.
- Wire inputs and outputs with shielded cable.
- Set NPN or PNP mode before power-on.
- Ground the panel to reduce noise.
Setup and Maintenance
- Teach tools through the Keyence interface.
- Store up to 32 programs for fast changeover.
- Clean the lens and head with soft tools.
- Check connectors for tight fit.
- Log tool results to spot drift early.
- Replace the unit if output behavior becomes unstable.
Compatibility
- Works with IV-G Series vision sensor heads.
- Supports FTP client, EtherNet/IP, and PROFINET.
- Expands with the IV-G15 expansion unit.
- Fits legacy Keyence inspection cells.
- Serves as a drop-in spare for discontinued lines.
Typical Applications
- Presence and absence checks
- Shape and pattern inspection
- Color area detection
- Position adjustment on assembly lines
- Inline quality gates
- Legacy automation retrofits
Diagnostic Capability
- Tool-level pass and fail results
- Program switching for quick fault checks
- Network status through Ethernet ports
- Output monitoring on OUT1 to OUT8
- Input verification on IN1 to IN6
- Fast isolation of head or amplifier faults
Certification and Packaging
- Certification data: confirm with our team
- Packaging: anti-static bag, foam, and carton
- Items: IV-G10 unit and basic packing
- Accessories: not included unless stated
- Shipping: FedEx, UPS, DHL
- Warranty: 12 months
FAQ
Q: Is the IV-G10 still in production?
A: No. Keyence marks it discontinued. We supply tested surplus and refurbished units.
Q: Does it work with all IV-G Series heads?
A: Yes. It is the main amplifier for IV-G Series heads. Confirm your head model with us.
Q: How many programs can I store?
A: Up to 32 programs.
Q: What warranty do you offer?
A: Every eligible unit carries a 12-month warranty.
Q: How fast do you ship?
A: We ship worldwide by FedEx, UPS, and DHL. Lead time depends on stock.
Q: Do you test before shipping?
A: Yes. We verify function and condition before dispatch.
