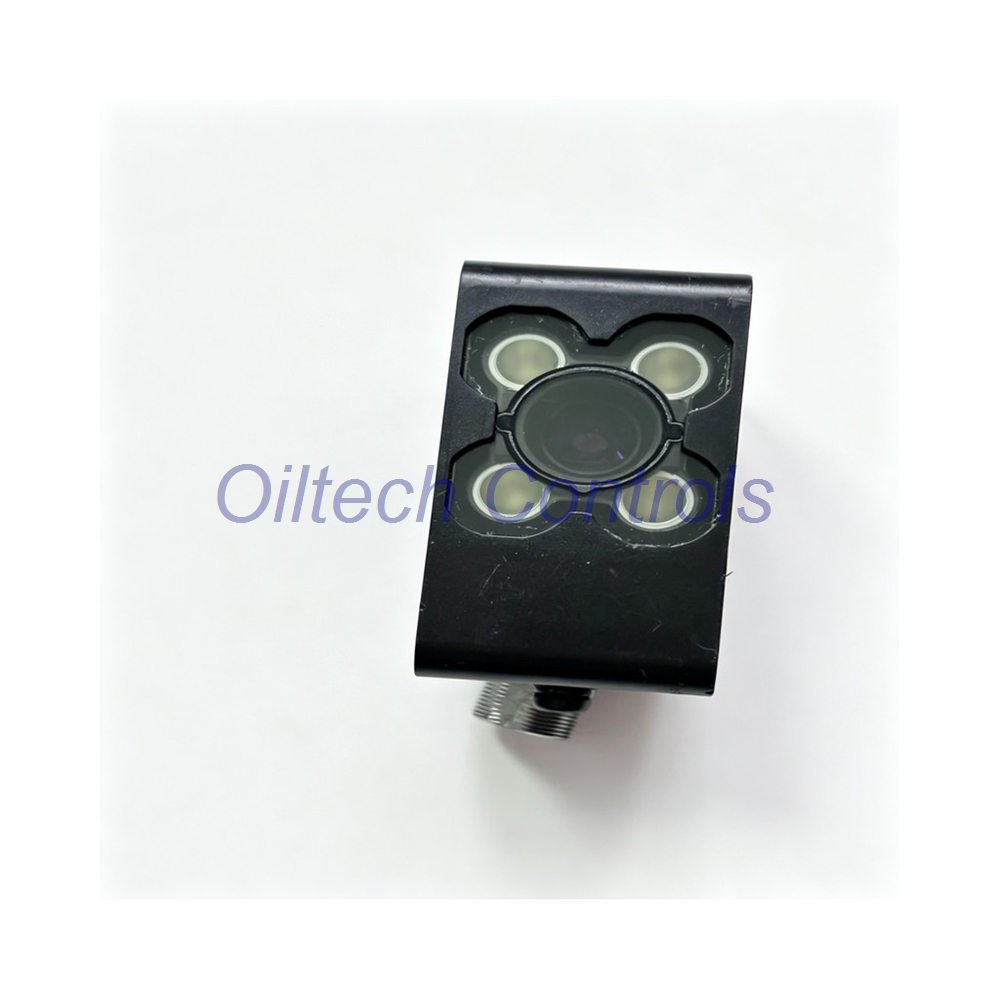

IV-HG300CA Keyence IV Series Compact Color Sensor Head
Product Overview
The IV-HG300CA is a wide300 color sensor head from the Keyence IV Series. It pairs with IV-HG10 or IV-HG15 amplifiers. This head captures color images with a 1/3 inch CMOS sensor. It offers auto focus and white LED lighting. The unit is compact, IP67 rated, and built for industrial inspection.
Keyence designed this sensor for wide field coverage. At 40 mm distance, the view is 42 x 31 mm. At 300 mm, it reaches 275 x 206 mm. Pulse or DC lighting modes give flexible contrast control.
Technical Specifications
The table below lists core performance data. Values reflect Keyence official specs. All parameters are verified for industrial use.
| Brand | Keyence |
| Model | IV-HG300CA |
| Series | IV Series |
| Type | Sensor head, wide300, color |
| Installed distance | 40 to 300 mm |
| Field of view (FOV) | 40 mm: 42 x 31 mm; 300 mm: 275 x 206 mm |
| Image sensor | 1/3 inch color CMOS, 752 x 480 pixels |
| Focus | Auto |
| Exposure time | 1/25 to 1/50,000 s |
| Lighting | White LED, pulse or DC switchable |
| Supply voltage | Via connected amplifier |
| Operating temperature | 0 to +50°C (no freezing) |
| Humidity | 35 to 85% RH (no condensation) |
| Protection | IP67 (except with filter or dome attachments) |
| Vibration resistance | 10 to 55 Hz, 1.5 mm, 2 h each axis |
| Shock resistance | 500 m/s², 3 times, 6 directions |
| Material | Zinc die-cast case, acrylic cover, TPU indicator |
| Weight | Approx. 75 g |
| Lifecycle | Active (verified 2026-09) |
Key Performance Areas
- Measurement range: 40 to 300 mm distance, wide FOV up to 275 x 206 mm.
- Resolution: 752 x 480 pixels color CMOS for fine detail.
- Exposure control: 1/25 to 1/50,000 s for fast moving targets.
- Lighting flexibility: Pulse or DC white LED for contrast tuning.
- Temperature range: 0 to +50°C, stable in industrial cells.
- Environmental resistance: IP67 sealing, vibration and shock rated.
- Noise immunity: Dedicated cable to amplifier reduces interference.
Installation Guide
Mount the IV-HG300CA on a stable bracket. Keep the front cover clean. Use the dedicated cable to connect to the IV-HG10 or IV-HG15 amplifier. Set the distance between 40 and 300 mm. The auto focus adjusts to your target. For IP67, ensure the connector is tight and no attachment is mounted.
Debug and Maintenance
Debugging runs through the amplifier menu. You can change lighting mode and exposure. The operation indicator shows status. Maintenance is simple. Wipe the acrylic cover with a soft cloth. Do not use solvents. Check the cable for wear. Replace the head if the image quality drops.
Compatibility Notes
This head works only with IV-HG10 and IV-HG15 amplifiers. It has no built-in ports or protocols. All communication and output go through the amplifier. Optional polarized filters and dome attachments are available. Note that these attachments reduce the IP67 rating.
Certifications and Warranty
Keyence confirms active production status. The unit carries CE and RoHS compliance as part of the IV Series. Oiltech Controls offers a 12-month warranty on this product. Every unit is tested before shipment. We provide technical verification for obsolete systems.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts.
- Global shipment support with FedEx, UPS, DHL.
- Tested industrial surplus and refurbished options.
- 12-month warranty on every order.
- Technical verification before shipment.
- Support for obsolete control systems.
Typical Applications
- Color inspection on packaging lines.
- Presence and position checks in assembly.
- Label and print verification.
- Part sorting by color or shape.
Diagnostic Capabilities
The amplifier provides live image display. You can check focus, exposure, and lighting. Error codes help identify cable or setup issues. The operation indicator gives quick pass/fail status. This supports fast troubleshooting on the line.
Packing List
- IV-HG300CA sensor head x 1
- Dedicated cable (if ordered) x 1
- Quick guide x 1
Shipping
We ship worldwide via FedEx, UPS, and DHL. Tracking is provided. Orders ship within 1 to 3 business days after verification.
FAQ
Q: Does this head work alone?
A: No. It needs an IV-HG10 or IV-HG15 amplifier.
Q: What is the IP rating?
A: IP67 when no filter or dome attachment is mounted.
Q: Is the warranty included?
A: Yes, Oiltech Controls provides a 12-month warranty.
Q: How fast is shipping?
A: We use FedEx, UPS, or DHL. Delivery time depends on your location.
