Product Overview

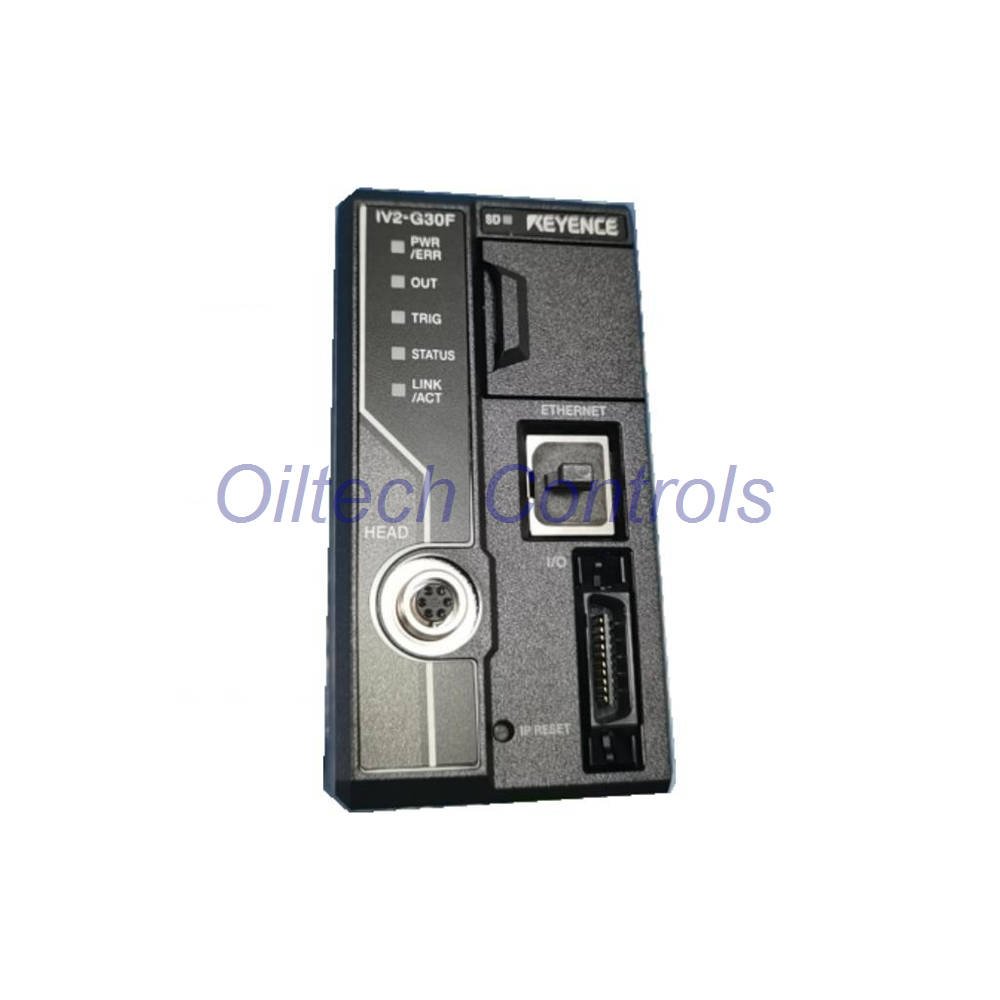

The Keyence IV2-G30 is a standard sensor amplifier from the IV2 Series. It delivers fast, stable detection for automated lines. Built for industrial networks, it supports EtherNet/IP, PROFINET, and TCP/IP. This unit is active and in production as of 2026. Oiltech Controls supplies tested units with a 12-month warranty.
Technical Specifications
| Brand | Keyence |
| Model | IV2-G30 |
| Series | IV2 Series |
| Type | Sensor amplifier, Standard type |
| Detection Tools | 16 detection tools + 1 position adjustment tool |
| Programs | 128 with SD card / 32 without SD card |
| Supply Voltage | 24 VDC +/-10% (including ripple) |
| Power Consumption | 1.8 A or less (including communication unit and load) |
| Output Type | Open collector, NPN/PNP switchable, N.O./N.C. switchable |
| Output Rating | 26.4 V, 50 mA max |
| Inputs | 8 (IN1 to IN8) |
| Outputs | 8 (OUT1 to OUT8) |
| Built-in Port | RJ45 8-pin (100BASE-TX/10BASE-T) |
| Protocols | EtherNet/IP, PROFINET, TCP/IP non-procedure, FTP client, SNTP client |
| Communication Expansion | EtherCAT, CC-Link, DeviceNet, PROFIBUS, RS-232C via DL Series unit |
| Operating Temperature | 0 to +50°C (no freezing) |
| Relative Humidity | 35 to 85% RH (no condensation) |
| Protection Rating | Not available |
| Weight | Approx. 330 g |
| Material | PC case, PA/POM power connector, PA I/O connector, zinc + Ni plating sensor head connector, copper alloy + Ni plating Ethernet connector, aluminum heat sink, POM DIN rail tab, PC nameplate |
Note: Dimensions (H×W×D) are not available in the official data. Please contact us for drawing support.
Installation Guide
- Mount on a standard DIN rail using the rear fixing tab.
- Keep the heat sink clear for airflow.
- Use 24 VDC power with less than 10% ripple.
- Connect I/O and sensor head before power-on.
- For Ethernet, use the RJ45 8-pin port.
Setup and Maintenance
- Switch between standard mode and tool mode easily.
- Store up to 128 programs with an SD card.
- Adjust NPN/PNP and N.O./N.C. via hardware switches.
- Check LEDs for quick status and diagnostics.
- Clean the unit with a dry cloth only.
Compatibility Notes
- Works with IV2 series sensor heads.
- Expands to EtherCAT, CC-Link, DeviceNet, PROFIBUS, or RS-232C via DL Series communication unit.
- Supports EtherNet/IP and PROFINET for factory networks.
- FTP client and SNTP client for data logging and time sync.
Diagnostic Capabilities
- Real-time output monitoring via 8 outputs.
- Program switching for fast changeover.
- Network-based remote diagnostics over TCP/IP.
- SD card for logging and backup.
Typical Applications
- Presence/absence detection on conveyors.
- Position adjustment on assembly lines.
- Part sorting in automotive and electronics.
- Quality checks in packaging.
FAQ
Q: What is the lead time?
A: We ship from stock. Global delivery via FedEx, UPS, or DHL.
Q: Is a warranty included?
A: Yes, 12-month warranty on all units.
Q: Can I use it with older IV2 heads?
A: Yes, it is compatible with IV2 series sensor heads.
Q: Do you offer tested refurbished units?
A: Yes, we test and verify before shipment.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts.
- Global shipment support.
- Tested surplus and refurbished options.
- 12-month warranty on every unit.
- Technical verification before shipment.
- Support for obsolete control systems.
Contact us: info@oiltechcontrols.com | +86 158 8020 0923 (WhatsApp)
Shipping: FedEx, UPS, DHL. Warranty: 12 months.
Packaging: 1x IV2-G30 amplifier, power connector, I/O connector, sensor head connector, Ethernet connector, DIN rail tab, nameplate. (Cables and sensor head sold separately.)
Certifications: Contact us for current compliance documents.
