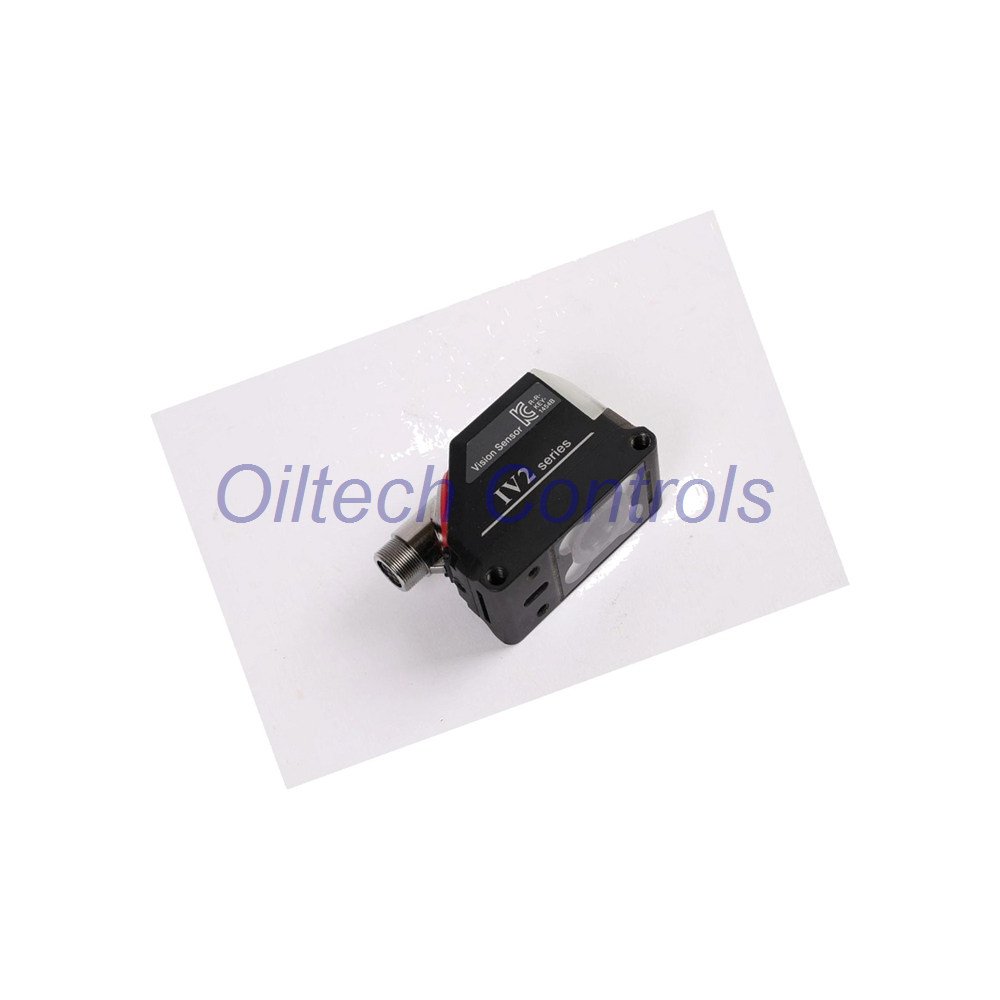

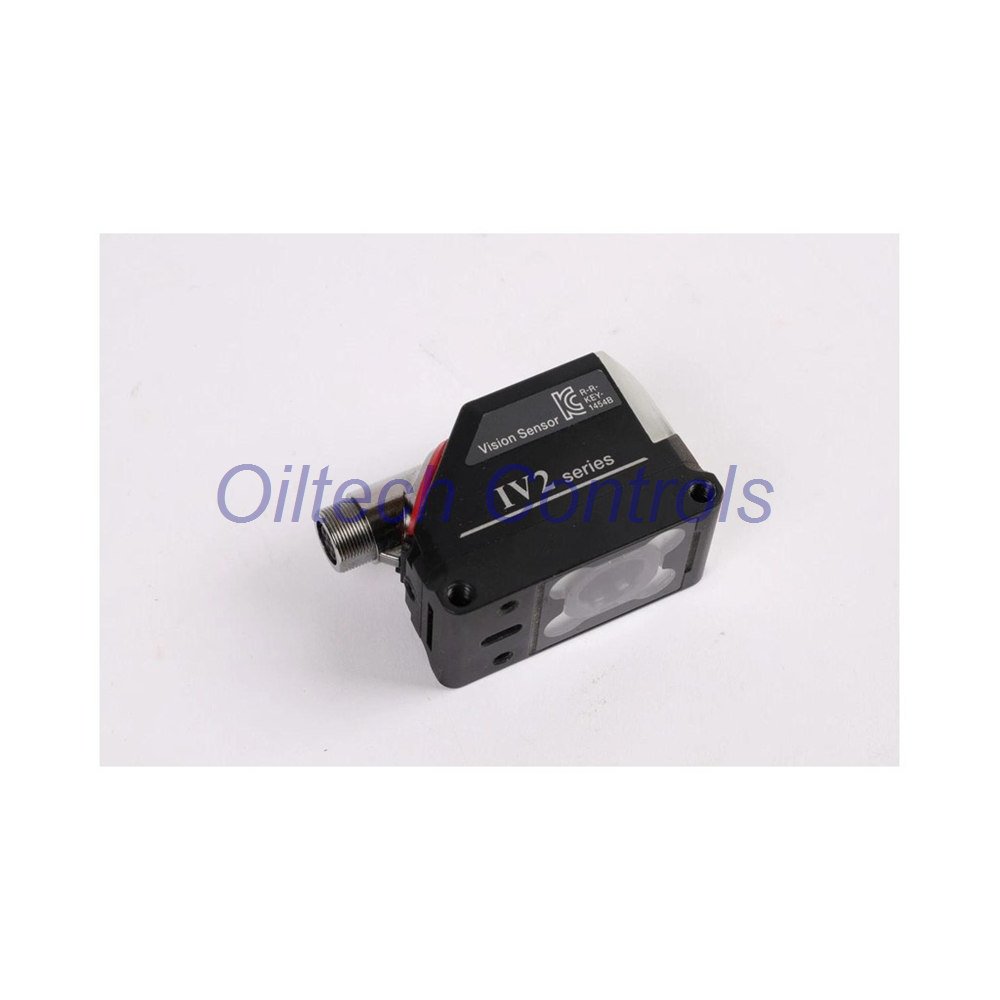

IV2-G500MA Keyence IV2 Series Sensor Head
IV2-G500MA is a standard field of view sensor head for the Keyence IV2 Series. It works with the IV2-G30 or IV2-G30F amplifier. This monochrome model delivers stable imaging from 20 mm to 500 mm. It suits inspection, positioning, and presence detection in factory automation.
The head uses a 1/3 inch monochrome CMOS sensor with 752 x 480 pixels. Auto focus and fast exposure help reduce setup time. White LED lighting supports pulse and DC modes. The IP67 housing fits harsh production lines.
Technical Specifications
| Brand | Keyence |
| Model | IV2-G500MA |
| Series | IV2 Series |
| Module Type | Sensor head, standard field of view |
| Reference Distance | 20 to 500 mm |
| Field of View | 20 mm: 10 x 7.5 mm; 500 mm: 200 x 150 mm |
| Image Sensor | 1/3 inch monochrome CMOS, 752 x 480 pixels |
| Focus | Auto |
| Exposure Time | 1/10 to 1/50000 |
| Illumination | White LED |
| Lighting Method | Pulse or DC, switchable |
| Supply Voltage | From connected amplifier |
| Power Consumption | Not available |
| Output Type | Via amplifier |
| Built-in Ports | None, dedicated cable to amplifier |
| Protocols | None |
| Communication Expansion | Via amplifier |
| Operating Temperature | 0 to +50°C, no freezing |
| Relative Humidity | 35 to 85% RH, no condensation |
| Protection Rating | IP67, except with OP-87899 / OP-87900 / OP-87901 filter or OP-87902 lens |
| Vibration Resistance | 10 to 55 Hz, 1.5 mm double amplitude, 2 hours X/Y/Z |
| Shock Resistance | 500 m/s², 6 times in 3 directions |
| Dimensions | Not available |
| Material | Zinc die-cast case, acrylic front cover, TPU indicator cover |
| Weight | Approx. 75 g |
| Lifecycle | Active, Keyence production status confirmed |
Measurement Range and Response
- Measurement range: 20 to 500 mm reference distance.
- Field of view: 10 x 7.5 mm at 20 mm; 200 x 150 mm at 500 mm.
- Frequency response: Not specified by Keyence for this head.
- Sensitivity: Depends on amplifier and lighting setup.
- Linearity: Not published for this sensor head.
- Resolution: 752 x 480 pixels.
- Temperature range: 0 to +50°C.
- Environmental tolerance: IP67, 35 to 85% RH, vibration and shock rated.
- Interference resistance: White LED with pulse or DC lighting.
Installation Guide
Mount the IV2-G500MA on a stable bracket. Keep the reference distance between 20 mm and 500 mm. Connect the head to the IV2-G30 or IV2-G30F amplifier using the dedicated cable. Adjust focus through the amplifier. Use pulse lighting for moving targets. Use DC lighting for static targets. Keep the front cover clean. Do not block the operation indicator.
Setup and Maintenance
- Auto focus cuts adjustment time.
- Fast exposure supports high-speed lines.
- IP67 body simplifies cleaning.
- White LED gives clear monochrome images.
- Amplifier handles all output and communication.
Compatibility
The IV2-G500MA connects only to the IV2-G30 and IV2-G30F amplifiers. It has no built-in ports or protocols. All outputs and expansion pass through the amplifier. Optional filters and lenses may change the IP67 rating.
Certifications and Packaging
Keyence confirms active production status. Contact us for current certification documents. The standard package includes the sensor head and basic accessories. Please confirm the exact packing list before order.
Warranty and Shipping
Oiltech Controls offers a 12-month warranty. We ship by FedEx, UPS, and DHL. Every unit passes technical verification before shipment. We support obsolete control systems and global shipment needs.
Typical Applications
- Presence and absence checks
- Part positioning
- Assembly verification
- Small part inspection
- Packaging line detection
- Automotive component checks
Diagnostic Capability
The amplifier provides image display and setup diagnostics. Users can check focus, lighting, and exposure through the amplifier. This helps isolate cable, lighting, or target issues fast.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts.
- Global shipment support.
- Tested industrial surplus and refurbished options.
- 12-month warranty.
- Technical verification before shipment.
- Support for obsolete control systems.
FAQ
Q: What amplifier works with the IV2-G500MA?
A: It works with the IV2-G30 and IV2-G30F.
Q: Does the head have built-in outputs?
A: No. Outputs pass through the amplifier.
Q: What is the protection rating?
A: IP67, except when certain filters or lenses are mounted.
Q: What is the warranty?
A: 12 months.
Q: How do you ship?
A: FedEx, UPS, and DHL.
Contact us for inquiries: info@oiltechcontrols.com or +86 158 8020 0923.
