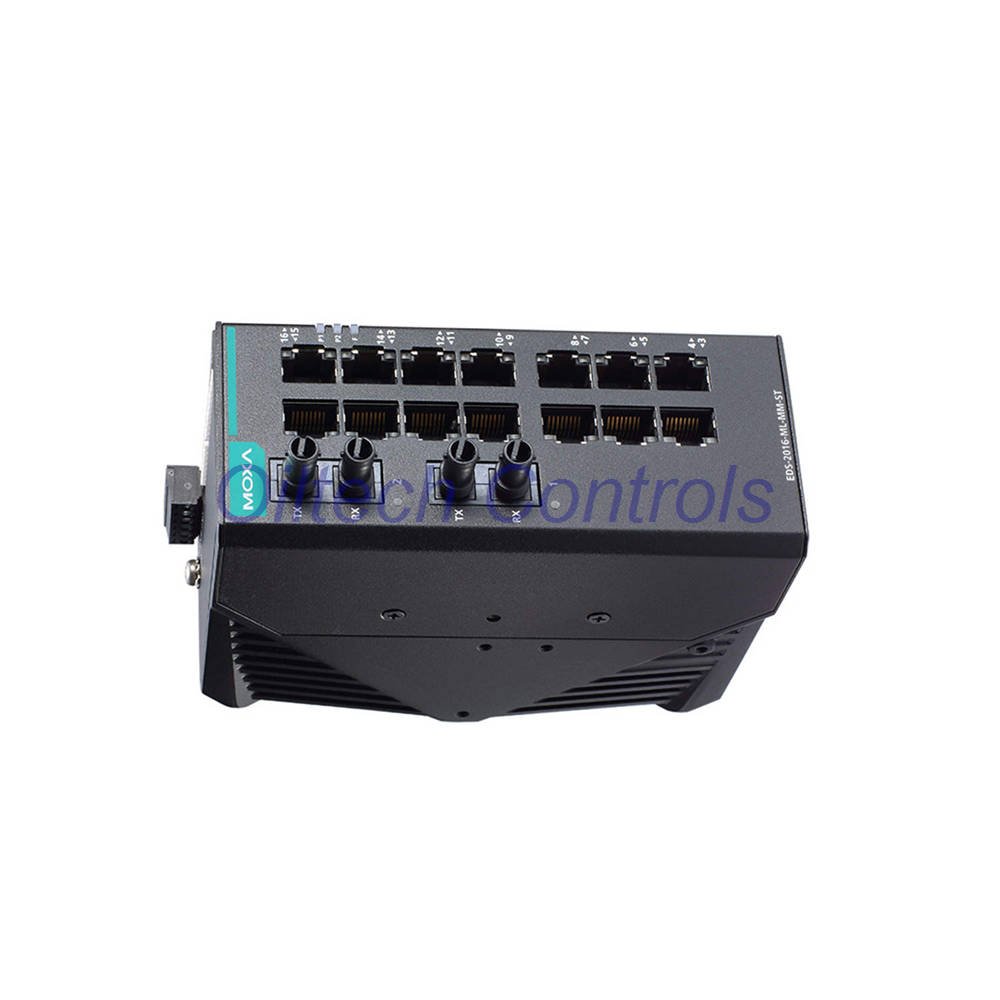

MOXA EDS-2016-ML-MM-ST Industrial Ethernet Switch Overview
MOXA EDS-2016-ML-MM-ST delivers stable industrial Ethernet connectivity with fourteen copper ports and two fiber uplinks.
This unmanaged switch targets harsh environments requiring consistent data transmission and simple deployment without configuration complexity.
Engineers rely on this model for deterministic communication, high reliability, and flexible installation in automation networks.
Network Architecture and Port Configuration
- 14 × 10/100BaseT(X) RJ45 ports support standard Ethernet devices with auto negotiation capability.
- 2 × 100BaseFX fiber ports use multi-mode ST connectors for long-distance signal transmission.
- Supports IEEE 802.3, 802.3u, and 802.3x ensuring compatibility with standard Ethernet protocols.
- IEEE 802.1p QoS prioritizes critical traffic for stable industrial communication performance.
Switch Performance and Processing
- Store-and-forward switching ensures accurate packet transmission and reduces data collision risks.
- 8K MAC address table supports medium-scale industrial network deployments.
- 2 Mbit packet buffer enhances burst data handling and network stability.
- DIP switch enables QoS, broadcast storm protection, and port break alarm configuration.
Power Design and Protection
- Dual redundant power inputs improve system reliability under power failure conditions.
- Wide input voltage range from 12 to 48 VDC supports diverse industrial power systems.
- Overload current protection safeguards the device against electrical faults.
- Reverse polarity protection prevents damage during incorrect wiring installation.
- Low power consumption ensures efficient operation in continuous industrial use.
Mechanical Structure and Installation
- Compact metal housing provides durability and effective heat dissipation in industrial cabinets.
- IP30 protection rating suits controlled industrial environments.
- Supports DIN-rail mounting and optional wall mounting for flexible installation.
- Dimensions: 58 × 135 × 95 mm allow easy integration into tight control panels.
Environmental and Compliance Performance
- Operating temperature ranges from -10°C to 60°C ensuring stable performance in varying climates.
- Withstands humidity levels from 5% to 95% without condensation impact.
- Certified for UL, EMC, and industrial safety standards for global deployment.
- Supports railway, marine, and hazardous location certifications including ATEX and Class I Division 2.
- MTBF reaches 2,070,826 hours, demonstrating long-term operational reliability.
Oiltech Controls’s Insight
- This switch fits industrial automation systems requiring stable Layer 2 communication without configuration overhead.
- Fiber uplinks extend network coverage across large facilities or electrically noisy environments.
- Dual power input design suits mission-critical applications such as SCADA and factory automation systems.
- Ideal for engineers who prioritize reliability, simplicity, and fast deployment in industrial networks.
Recommended Applications
- PLC and SCADA communication networks in manufacturing plants
- Transportation systems and traffic control infrastructure
- Power substations and energy monitoring systems
- Marine and offshore automation environments
- Factory floor device connectivity and distributed I/O systems
Warranty and Shipping
- 12-month warranty ensures dependable after-sales support and product confidence.
- Orders ship within 24–28 hours after confirmation for fast project deployment.
- Global delivery available via FedEx, UPS, and DHL logistics partners.
FAQ – Engineering Guidance and Selection
- Is unmanaged switch suitable for industrial automation networks?
Yes, unmanaged switches like MOXA EDS-2016-ML-MM-ST provide plug-and-play reliability without configuration complexity. - When should I choose fiber ports instead of copper?
Use fiber ports for long-distance communication or environments with high electromagnetic interference. - How does dual power input improve system reliability?
Dual inputs allow backup power sources, ensuring uninterrupted operation during primary power failure. - What factors should I consider when selecting an industrial switch?
Evaluate port count, environmental rating, power redundancy, and certification requirements based on your application. - Can this switch operate in harsh environments like marine or railway systems?
Yes, it meets multiple industrial certifications, making it suitable for demanding environments.
