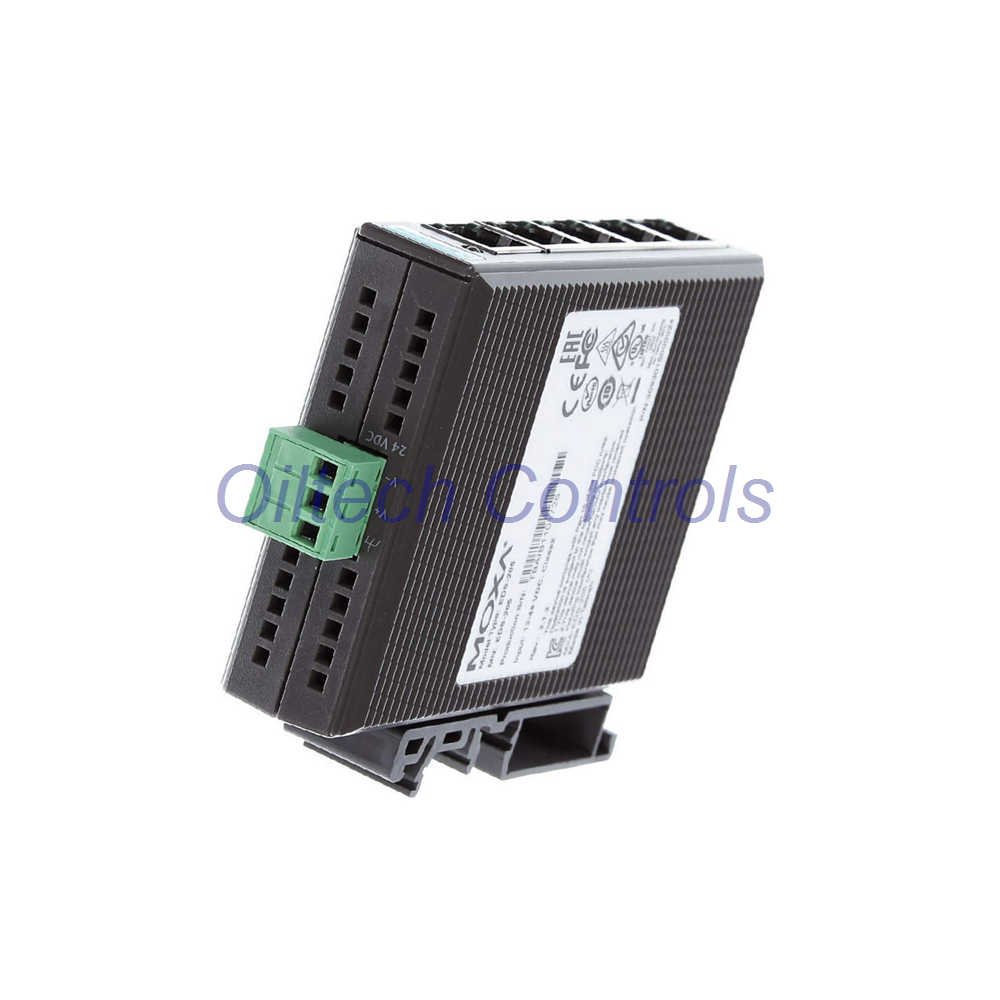

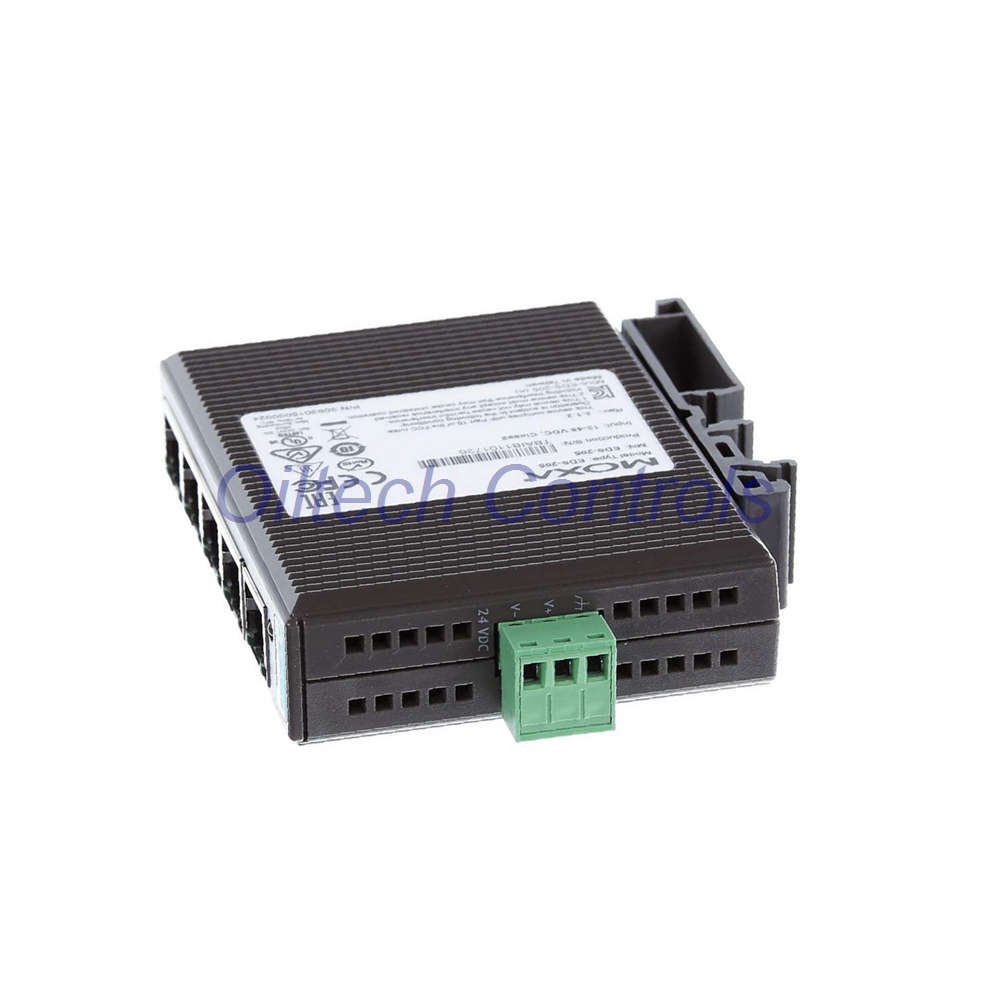

EDS-205 MOXA Industrial Ethernet Switch Technical Overview
The MOXA EDS-205 delivers stable Ethernet connectivity for entry-level industrial networking applications.
Engineers use this compact switch to build simple and reliable communication structures inside control cabinets.
The device integrates five Fast Ethernet ports with automatic negotiation and flexible power input support.
Its lightweight plastic housing and DIN-rail design simplify installation across multiple industrial environments.
Core Network Capabilities
- 5 x 10/100BaseT(X) RJ45 ports support fast and stable Ethernet communication.
- Auto-negotiation ensures optimal speed selection without manual configuration.
- Full and half duplex modes improve flexibility across different network setups.
- Auto MDI/MDI-X eliminates crossover cable requirements during installation.
- IEEE 802.3, 802.3u, and 802.3x standards ensure compatibility with industrial Ethernet systems.
Switching Performance
- Store and Forward mechanism ensures accurate data transmission.
- 2K MAC address table supports small to mid-size network environments.
- 768 kbits packet buffer stabilizes traffic during data bursts.
- Consistent performance supports PLC, HMI, and sensor communication.
Electrical Parameters
- Brand: MOXA
- Model: EDS-205
- Input Voltage: 12/24/48 VDC or 24 VAC.
- Operating Voltage Range: 9.6 to 60 VDC or 18 to 30 VAC.
- Input Current: 0.06 to 0.02 A depending on voltage input.
- Power Consumption: 0.77 W maximum for energy-efficient operation.
- Protection: Overload and reverse polarity protection supported.
Mechanical Design and Installation
- Compact size: 24.9 x 100 x 74 mm fits tight cabinet spaces.
- Lightweight design: only 111 g simplifies mounting and handling.
- Plastic housing with IP30 rating protects against dust and contact.
- DIN-rail mounting ensures quick and secure installation.
Environmental Adaptability
- Operating temperature range: -10 to 60°C.
- Storage temperature: -40 to 85°C supports safe logistics and storage.
- Humidity tolerance: 5 to 95% non-condensing environments.
- Designed for stable operation in industrial indoor conditions.
Industrial Protection and Compliance
- Meets UL 61010-2-201 and EN 62368-1 safety standards.
- Complies with EMC standards EN 55032 and EN 55035.
- Supports ESD protection up to 4 kV contact and 8 kV air.
- Provides surge protection up to 2 kV on power lines.
- Meets IEC standards for vibration, shock, and freefall resistance.
Oiltech Controls’s Insight
- This switch fits entry-level automation systems requiring stable Ethernet communication.
- Engineers deploy it in PLC cabinets, packaging machines, and small production lines.
- The low power consumption design supports energy-efficient industrial projects.
- Its simple unmanaged architecture reduces configuration time and maintenance cost.
Typical Application Equipment
- PLC controllers and remote I/O modules in automation systems.
- Industrial HMIs and SCADA interface terminals.
- Packaging machines and conveyor control systems.
- Factory monitoring systems and basic network nodes.
Logistics and Warranty
- 12-month warranty ensures reliable product support.
- Fast dispatch within 24–28 hours after order confirmation.
- Shipping available via FedEx, UPS, and DHL worldwide.
- Secure packaging protects the device during transportation.
FAQ – Engineering Guidance
- How do I select between unmanaged and managed switches?
Choose unmanaged switches like this model for simple networks without VLAN or monitoring requirements. - Can this switch support outdoor installation?
Install it inside a protected cabinet because the IP30 housing suits indoor industrial environments only. - What power input should I use in mixed systems?
Use 24 VDC when possible because it offers stable and widely compatible industrial power supply. - How many devices can this switch handle efficiently?
It supports small networks with limited nodes such as PLCs, sensors, and HMI devices. - What should I consider when mounting this device?
Ensure proper airflow and secure DIN-rail installation to maintain stable long-term operation.
