Product Description

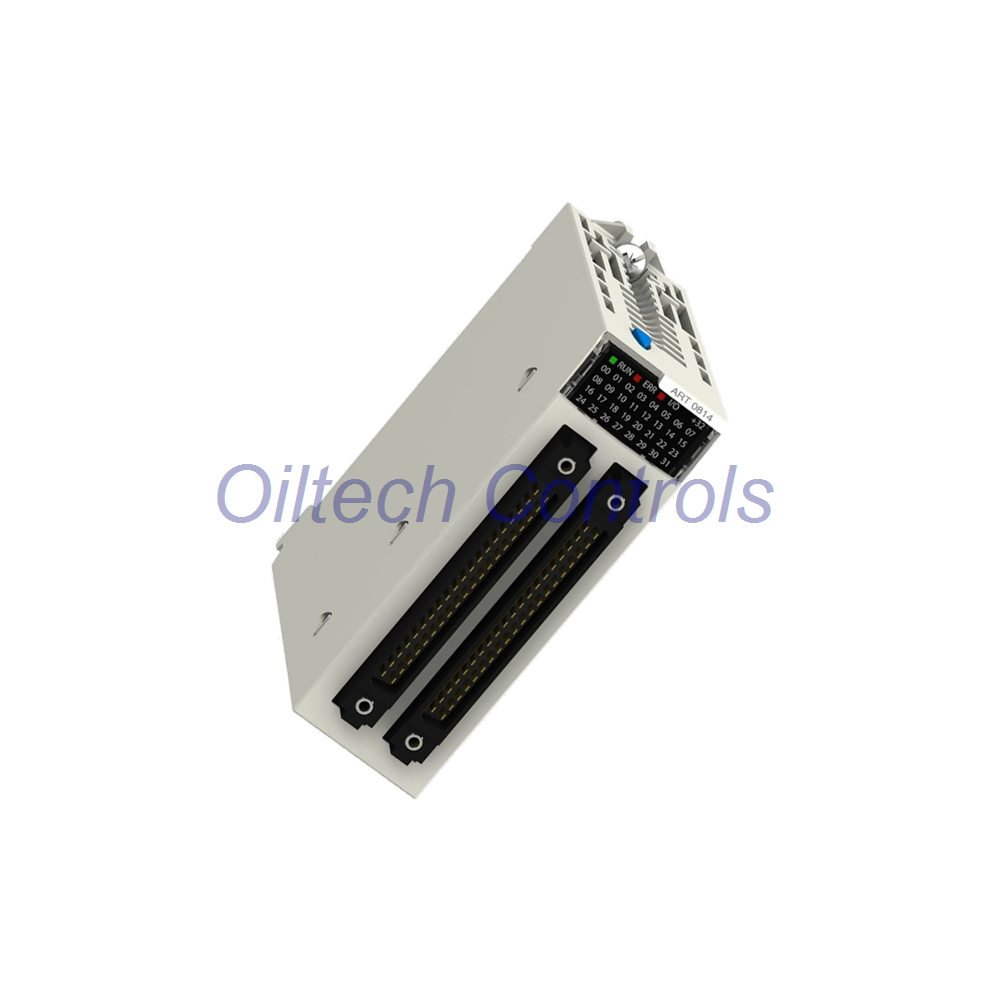

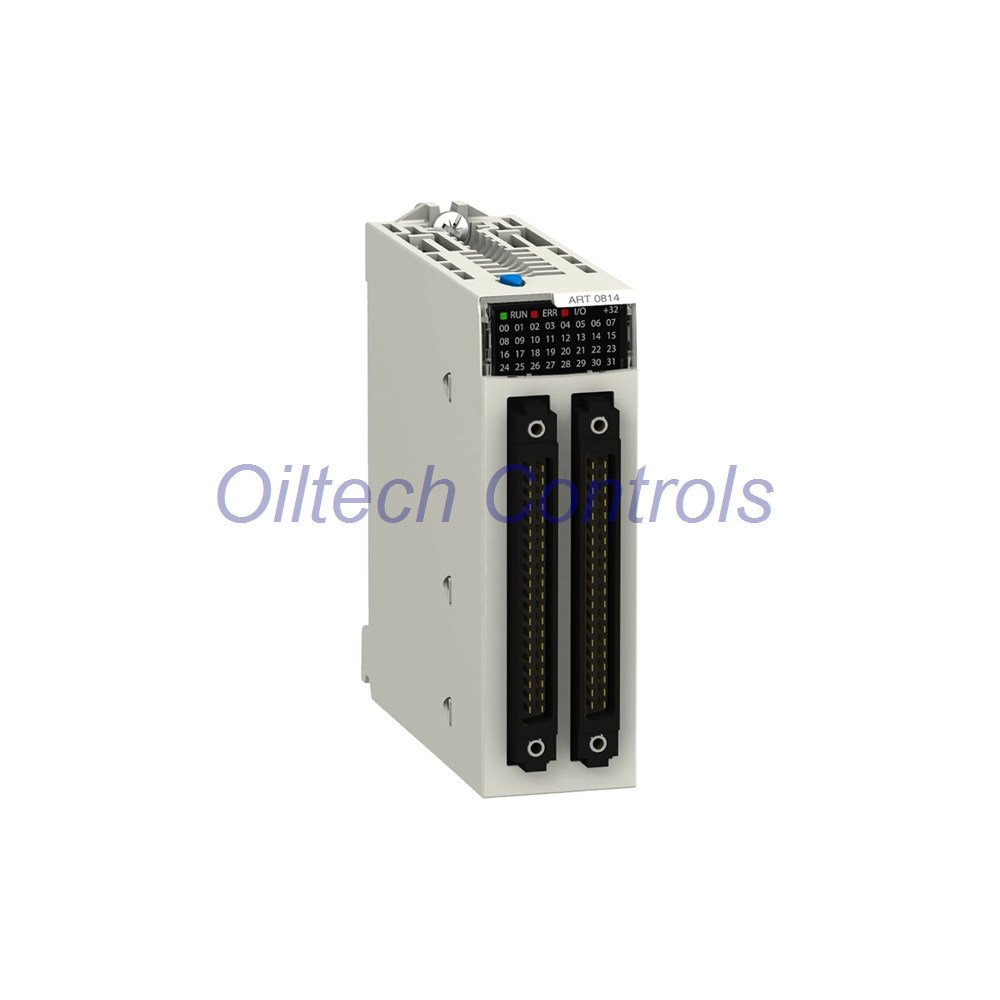

BMXART0814 is a Schneider Electric temperature input module for the Modicon X80 series. It serves M340 and M580 control platforms. This module reads 8 RTD or thermocouple channels. Each channel is configurable. It uses 16-bit resolution for stable process data. The module supports channel-to-channel isolation. This reduces signal interference in mixed industrial cabinets. It also provides module status LED and per-channel diagnostics. The unit connects through a 28-pin terminal block. It is suitable for temperature monitoring, furnace control, heat treatment, and process skids.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | BMXART0814 |
| Series | Modicon X80 |
| Module Type | Temperature Input Module |
| Channels | 8 channels |
| Signal Type | RTD: PT100, PT1000, etc.; Thermocouple: J, K, T, E, R, S, B, N |
| Measurement Range | RTD and thermocouple configurable per channel |
| Resolution | 16-bit |
| Accuracy | ≤ 0.1 °C for RTD; ≤ 1% for thermocouple |
| Isolation | Channel-to-channel isolation |
| Diagnostics | Module status LED; per-channel status |
| Connection | 28-pin terminal block |
| Supply Voltage | 24 V DC via backplane |
| Power Consumption | 3.6 W |
| Bus Current | 150 mA at 24 V DC |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -25 °C to +70 °C |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Rating | IP20 |
| Dimensions | 100 × 28 × 93 mm |
| Weight | 0.17 kg |
| Lifecycle | Active, shared I/O platform for M340 and M580 |
Key Performance Points
- Measurement range: RTD and thermocouple types configurable per channel.
- Frequency response: Not specified in the source data. Use Schneider engineering data for update rates.
- Sensitivity: 16-bit resolution supports small temperature changes.
- Linearity: Not specified in the source data. Refer to the official module manual.
- Resolution: 16-bit for stable process values.
- Temperature range: 0 °C to +60 °C operating.
- Environmental tolerance: 5% to 95% RH, non-condensing, IP20.
- Anti-interference: Channel-to-channel isolation improves noise immunity.
Installation Guide
- Mount the module on a Modicon X80 backplane.
- Keep the cabinet within 0 °C to +60 °C.
- Use the 28-pin terminal block for field wiring.
- Separate RTD and thermocouple cables from power lines.
- Check 24 V DC backplane supply before power-up.
- Confirm channel type in the control software.
- Verify LED status after startup.
Commissioning and Maintenance
Set each channel for RTD or thermocouple before operation. Use shielded cables for low-level signals. Check per-channel status during commissioning. Replace a faulty module only after power isolation. Keep spare terminal blocks for fast service. Clean the cabinet air path regularly. Log temperature drift for preventive maintenance.
Compatibility
BMXART0814 works with Schneider Electric Modicon M340 and Modicon M580 platforms. It belongs to the Modicon X80 shared I/O family. Confirm CPU, rack, and power supply compatibility before order. For legacy systems, contact info@oiltechcontrols.com for verification.
Certifications
Certification details depend on the module label and Schneider documentation. Typical Modicon X80 modules carry industrial EMC and safety approvals. Check the product label for CE, UL, or other marks. Contact info@oiltechcontrols.com for current certificate copies.
Packing List
- 1 × Schneider BMXART0814 module
- 1 × protective factory packaging
- 1 × packing slip
- Terminal block included only if stated in the sale offer
Warranty and Shipping
All modules include a 12-month warranty. We test and verify each unit before shipment. We ship by FedEx, UPS, and DHL. Tracking is provided after dispatch. Delivery time depends on destination and customs. Contact +86 158 8020 0923 for urgent orders.
Typical Applications
- Furnace and kiln temperature control
- Heat treatment lines
- Plastic injection machines
- Food and beverage process skids
- Boiler and steam monitoring
- Chemical reactor temperature loops
- Metals and glass production
Diagnostic Capabilities
The module provides a module status LED. It also reports per-channel status. These features help find open sensors, wiring faults, and out-of-range signals. Use the LED and software diagnostics together. This shortens troubleshooting time in the cabinet.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts.
- Global shipment support for urgent plant needs.
- Tested industrial surplus and refurbished options.
- 12-month warranty for qualified products.
- Technical verification before shipment.
- Support for obsolete control systems.
Inquiries: info@oiltechcontrols.com or +86 158 8020 0923.
FAQ
Q: What is BMXART0814?
A: It is a Schneider Modicon X80 8-channel temperature input module.
Q: Does it support RTD and thermocouple?
A: Yes. Each channel supports RTD or thermocouple types.
Q: What is the resolution?
A: The module uses 16-bit resolution.
Q: Is it isolated?
A: Yes. It has channel-to-channel isolation.
Q: What is the warranty?
A: It includes a 12-month warranty.
Q: How do you ship?
A: We ship by FedEx, UPS, and DHL.
Q: Can you verify compatibility?
A: Yes. Contact info@oiltechcontrols.com before order.
