Product Overview

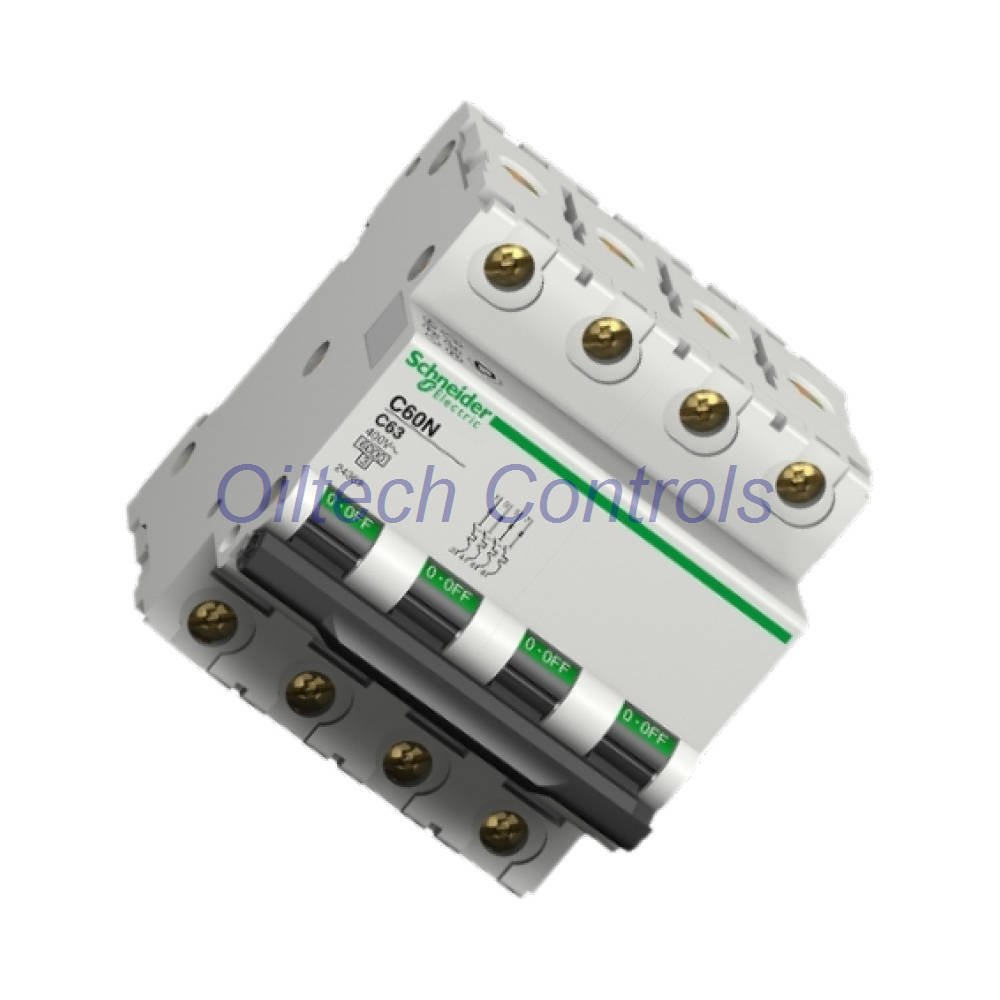

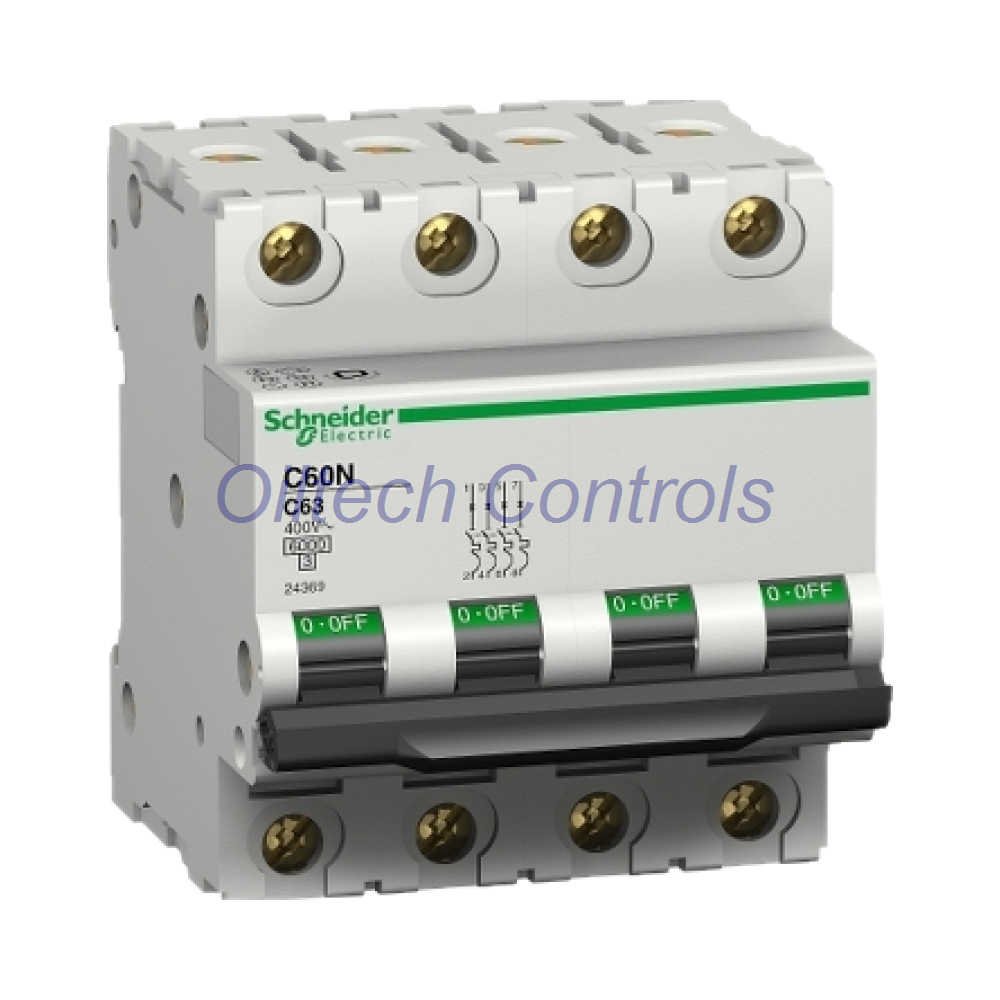

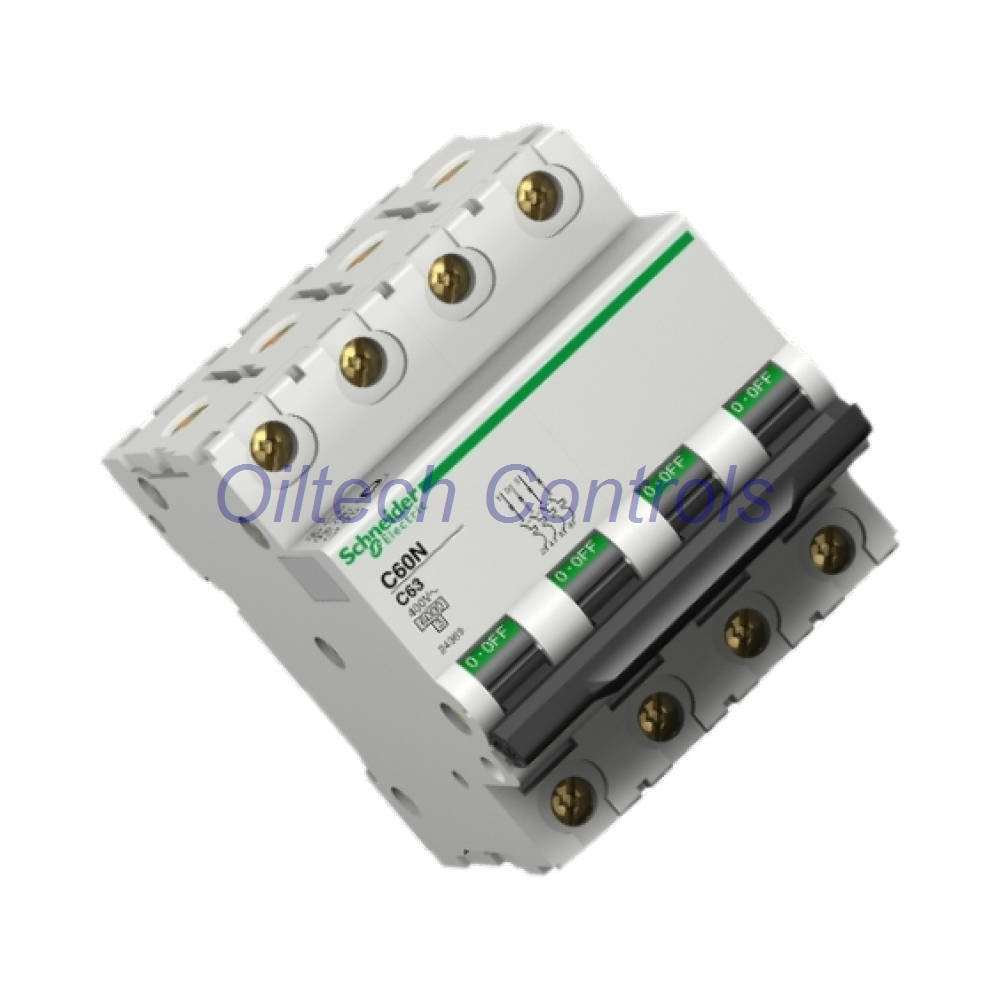

The iC60N 4P C63 is a Schneider Electric Acti9 miniature circuit breaker. It protects industrial and commercial circuits from overload and short circuit. The 4-pole design suits three-phase systems. The C-curve trips at 8×In ±20% for motor and inductive loads.
This 63A breaker delivers 6 kA breaking capacity at 230/400V. It meets IEC 60898-1 and IEC 60947-2. The Acti9 iC60 range supports reliable DIN rail installation. Engineers trust it for machine control, distribution boards, and panel builds.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts
- Worldwide shipping via FedEx, UPS, and DHL
- Tested surplus and refurbished options available
- 12-month warranty on every order
- Technical verification before shipment
- Support for obsolete control systems
Questions? Email info@oiltechcontrols.com or message us on +86 158 8020 0923.
Technical Specifications
| Brand | Schneider Electric |
| Model | iC60N 4P C63 |
| Series | Acti9 iC60 |
| Module Type | Miniature Circuit Breaker (MCB) |
| Poles | 4P |
| Rated Current | 63 A |
| Trip Curve | C (thermal-magnetic) |
| Magnetic Trip | 8×In ±20% |
| Breaking Capacity | 6 kA @ 230/400V |
| Rated Voltage | 400V AC |
| Frequency | 50/60 Hz |
| Measurement Range | Up to 63 A per pole |
| Sensitivity | C-curve magnetic response |
| Linearity | Stable thermal trip across rated current |
| Resolution | Fixed thermal-magnetic trip point |
| Temperature Range | -35 to 70 °C |
| Environmental Resistance | Industrial panel and DIN rail use |
| Interference Immunity | Meets IEC 60898-1 EMC requirements |
| Standard | EN/IEC 60898-1, EN/IEC 60947-2 |
| Mounting | 35 mm DIN rail |
| Mechanical Life | 20,000 cycles |
| Electrical Life | 10,000 cycles |
| Dimensions (H×W×D) | 85 × 72 × 78.5 mm |
| Weight | 0.5 kg |
| Lifecycle | Active (Acti9 range) |
| Last Verified | 2026-09 |
Installation Guide
- Mount on a standard 35 mm DIN rail.
- Use 4-pole wiring for three-phase plus neutral.
- Tighten terminals to the torque in the Schneider datasheet.
- Keep 63A load below the rated current.
- Verify 400V AC system voltage before power-up.
Setup and Maintenance
- Test the trip function before first use.
- Check terminal torque after the first week.
- Replace after 10,000 electrical cycles.
- Inspect for heat or discoloration each year.
- Store in a dry area from -35 to 70 °C.
Compatibility
- Fits all Acti9 iC60 distribution boards.
- Works with standard 35 mm DIN rail enclosures.
- Compatible with Schneider Acti9 accessories.
- Suits 400V AC three-phase networks.
Certifications
- IEC 60898-1 circuit breaker standard
- IEC 60947-2 industrial breaker standard
- CE marked for European use
Package Contents
- 1 × Schneider iC60N 4P C63 breaker
- 1 × product documentation
- Protective packaging for transit
Warranty and Shipping
Every order includes a 12-month warranty. We ship by FedEx, UPS, and DHL. Tracking is provided after dispatch.
Typical Applications
- Three-phase machine control panels
- Industrial distribution boards
- Motor and inductive load circuits
- Commercial building power systems
- Obsolete control system replacement
Diagnostic Capabilities
- C-curve trip shows overload or inrush events.
- Visible contact position aids fault finding.
- 6 kA rating confirms short-circuit protection.
- Thermal-magnetic trip supports quick diagnosis.
FAQ
Q: What does C63 mean?
A: It is a 63A breaker with a C-curve trip.
Q: How many poles does it have?
A: It has 4 poles for three-phase circuits.
Q: What is the breaking capacity?
A: It is 6 kA at 230/400V.
Q: Does it fit standard DIN rail?
A: Yes, it mounts on 35 mm DIN rail.
Q: What is the warranty?
A: It comes with a 12-month warranty.
Q: How do you ship?
A: We ship by FedEx, UPS, and DHL.
Q: Can you verify the part before shipping?
A: Yes, we do technical verification before dispatch.
Q: Do you support obsolete systems?
A: Yes, we support obsolete control systems.
Contact us at info@oiltechcontrols.com or +86 158 8020 0923 for stock and pricing.
