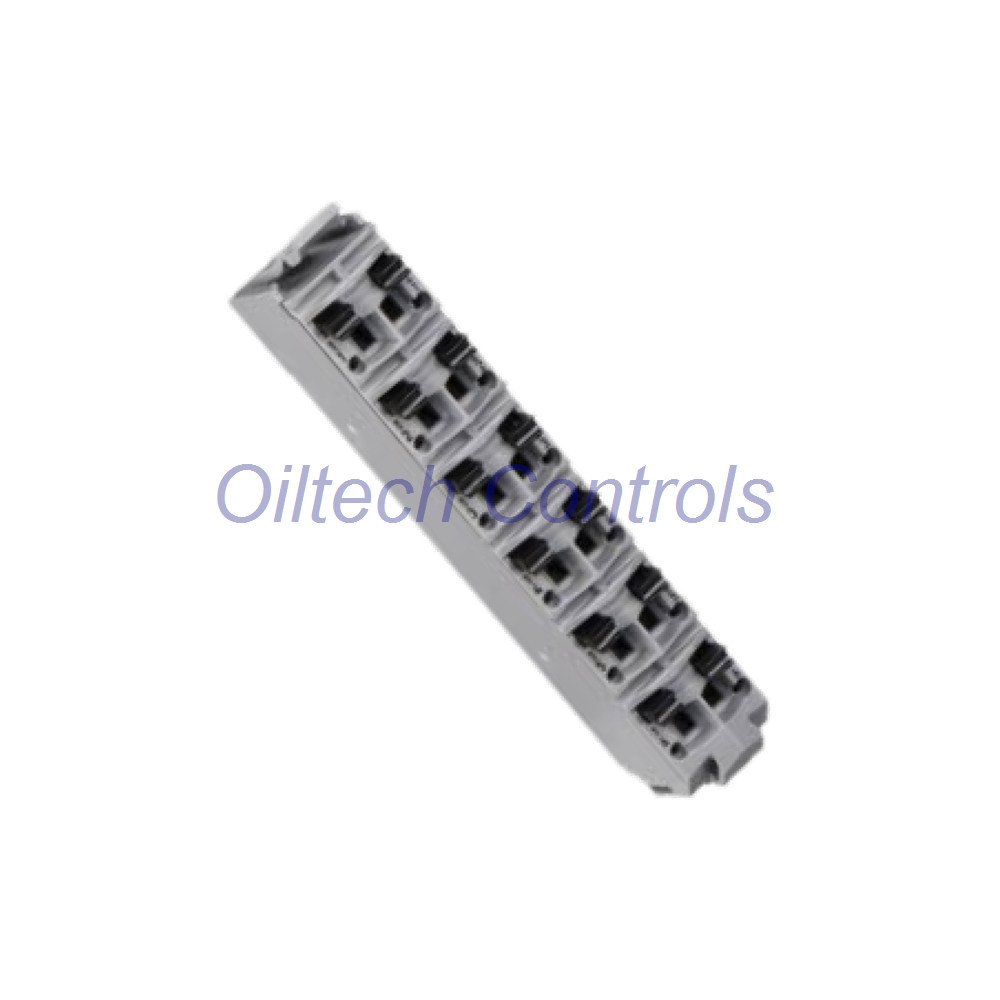

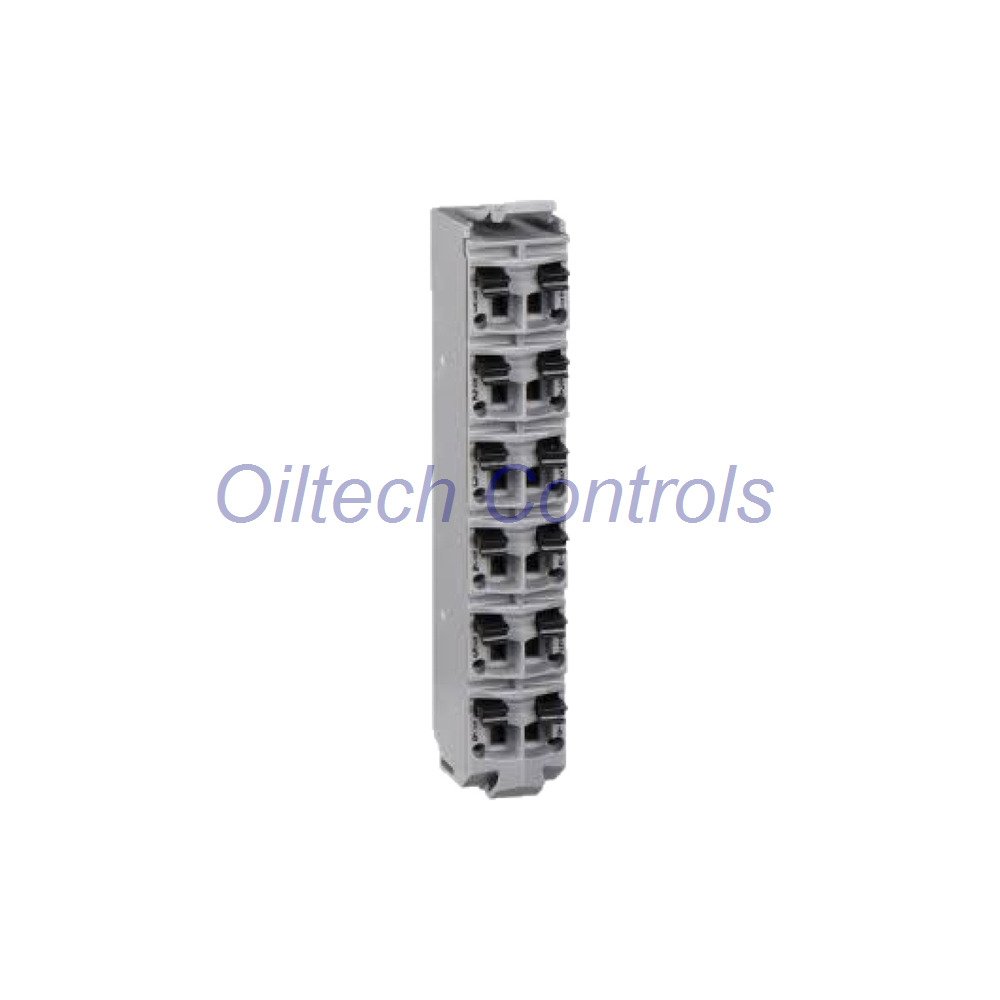

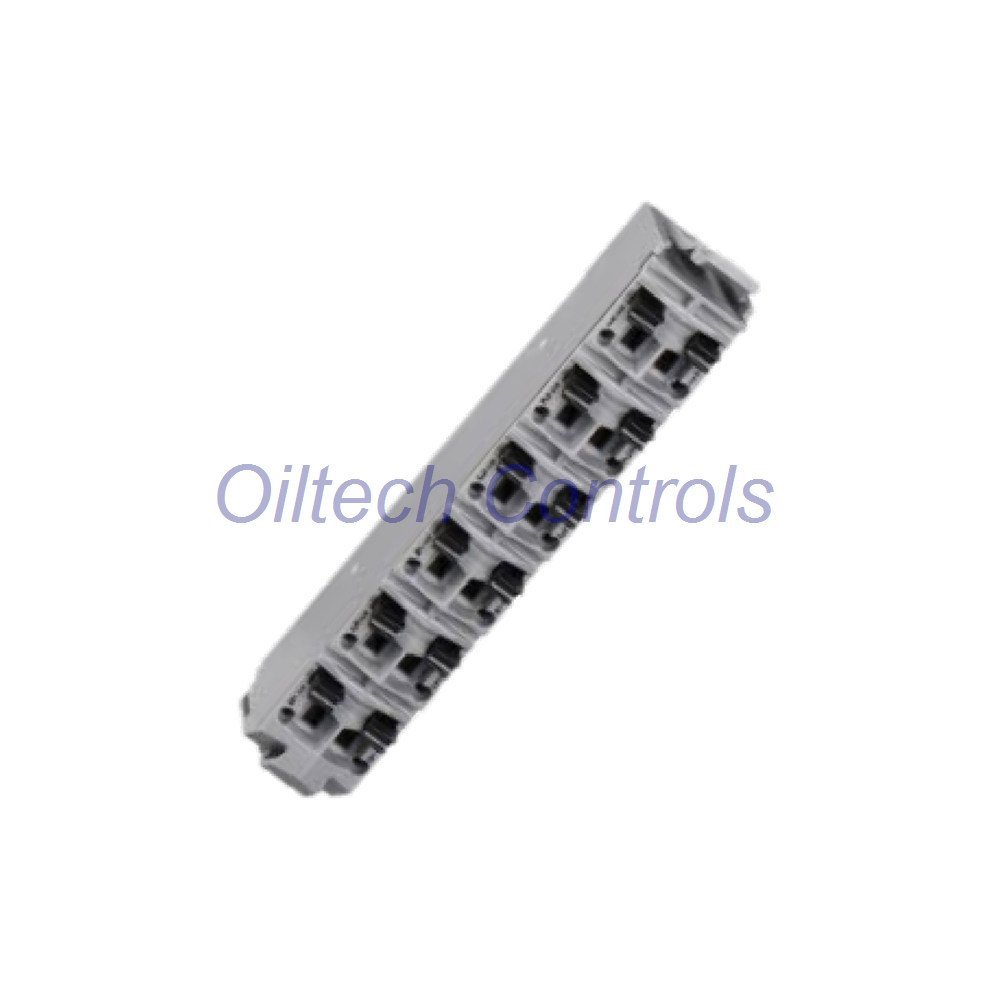

TM5ACTB12PS Schneider Electric Modicon TM5 Terminal Block 12-Pin Spring Type
TM5ACTB12PS is a 12-pin spring-cage terminal block from the Schneider Electric Modicon TM5 series. It connects field wiring to TM5 I/O modules. This passive accessory supports fast installation and stable signal transfer in compact control systems.
The spring-cage design saves wiring time. It also reduces loose connection risks in vibrating cabinets. The block fits standard TM5 module setups. It suits machine builders, system integrators, and maintenance teams.
Why Choose TM5ACTB12PS
- Spring-cage wiring: No screw tightening needed. Faster field assembly.
- 12-pin layout: Clear channel mapping for TM5 modules.
- Compact body: Saves panel space in dense installations.
- IP20 protection: Suitable for clean industrial cabinets.
- Wide temperature range: Works from 0 to +55 °C.
- Active lifecycle: Still available for current TM5 systems.
Technical Specifications
| Brand | Schneider Electric |
| Model | TM5ACTB12PS |
| Series | Modicon TM5 |
| Module Type | Terminal block accessory |
| Channels | 12 pins |
| Wiring | Spring-cage terminal, 12-pin |
| Signal Type | Not applicable |
| Measurement Range | Not applicable |
| Frequency Response | Not applicable |
| Sensitivity | Not applicable |
| Linearity | Not applicable |
| Resolution | Not applicable |
| Accuracy | Not applicable |
| Isolation | Not applicable |
| Diagnostics | Not applicable |
| Response Time | Not applicable |
| Supply Voltage | Not applicable, passive accessory |
| Power Consumption | Not applicable |
| Bus Current | Not applicable |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -25 to +70 °C |
| Protection Rating | IP20 |
| Dimensions (H×W×D) | Not available |
| Weight | Not available |
| Compatible Platforms | Modicon M241, M251, M258, LMC058 |
| Lifecycle Status | Active |
Installation Guide
- Power off the TM5 station before work.
- Align the TM5ACTB12PS with the module slot.
- Press the block into place until it locks.
- Insert wires into the spring-cage terminals.
- Check each wire for tight retention.
- Restore power and verify signals.
Commissioning and Maintenance
- No calibration is needed. This is a passive terminal block.
- Inspect terminals during routine panel checks.
- Replace damaged blocks before restart.
- Keep the cabinet clean and dry.
- Use correct wire ferrules for reliable contact.
Compatibility Notes
The TM5ACTB12PS works with Modicon M241, M251, M258, and LMC058 platforms. It serves as a terminal accessory for TM5 modules. Confirm your module type before ordering. Contact our team for cross-reference support.
Diagnostic Capability
This terminal block has no built-in diagnostics. System diagnostics come from the connected TM5 module. Proper wiring helps reduce faults. Loose wires can cause intermittent signals. Regular inspection improves uptime.
Typical Applications
- Machine control panels
- Distributed I/O systems
- Packaging lines
- Material handling equipment
- Assembly cells
- Obsolete control system maintenance
Certifications and Compliance
The product follows Schneider Electric quality standards. It belongs to the Modicon TM5 platform. For specific certification files, contact us with your project needs. We can help verify documents before purchase.
Packing List
- 1 × TM5ACTB12PS terminal block
- Protective packaging
- Order confirmation and shipping documents
Warranty and Shipping
All products include a 12-month warranty. We ship by FedEx, UPS, and DHL. Tracking details go out after dispatch. Delivery time depends on destination and customs clearance.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts.
- Global shipment support for urgent projects.
- Tested industrial surplus and refurbished options.
- 12-month warranty on eligible products.
- Technical verification before shipment.
- Support for obsolete control systems.
Email: info@oiltechcontrols.com
Phone / WhatsApp: +86 158 8020 0923
FAQ
Q: What is TM5ACTB12PS?
A: It is a 12-pin spring terminal block for Modicon TM5 modules.
Q: Does it need power?
A: No. It is a passive accessory.
Q: Which platforms use it?
A: Modicon M241, M251, M258, and LMC058.
Q: What is the warranty?
A: 12 months.
Q: How do you ship?
A: We ship by FedEx, UPS, and DHL.
Q: Can you test before shipping?
A: Yes. We verify technical condition before dispatch.
