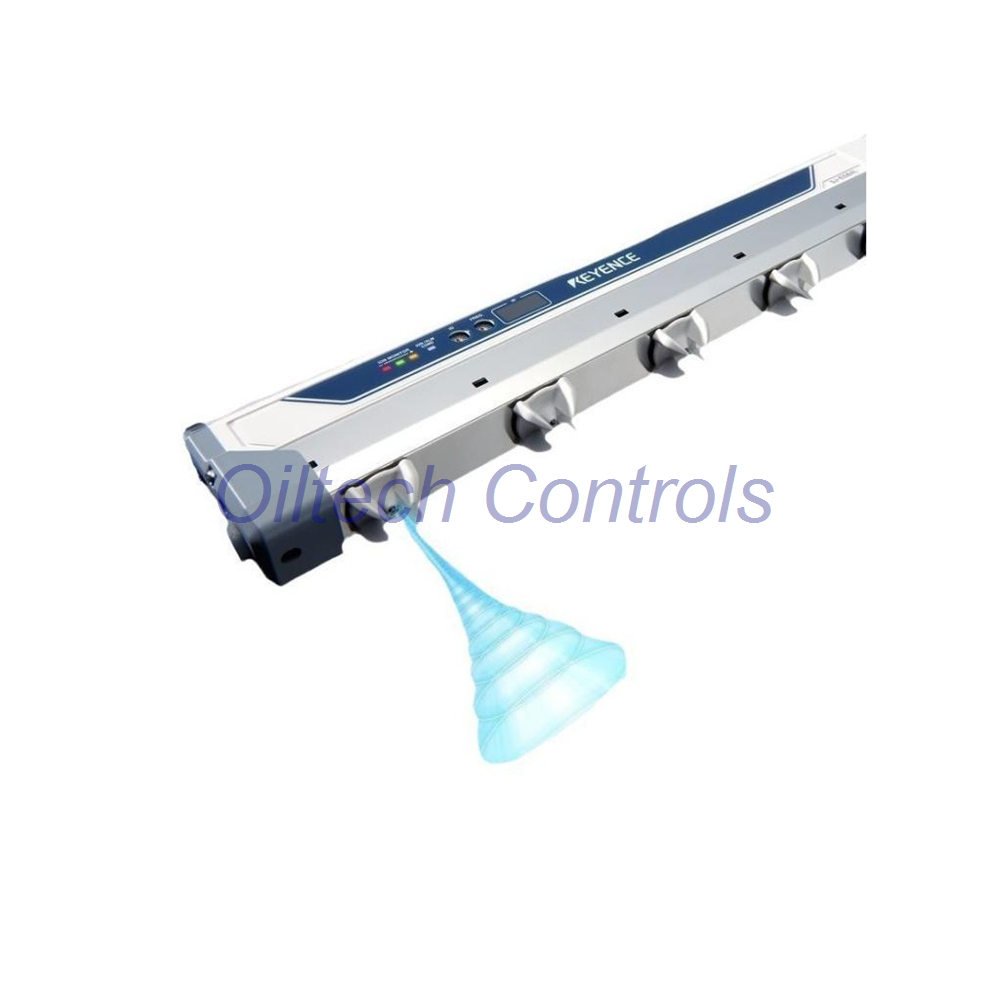

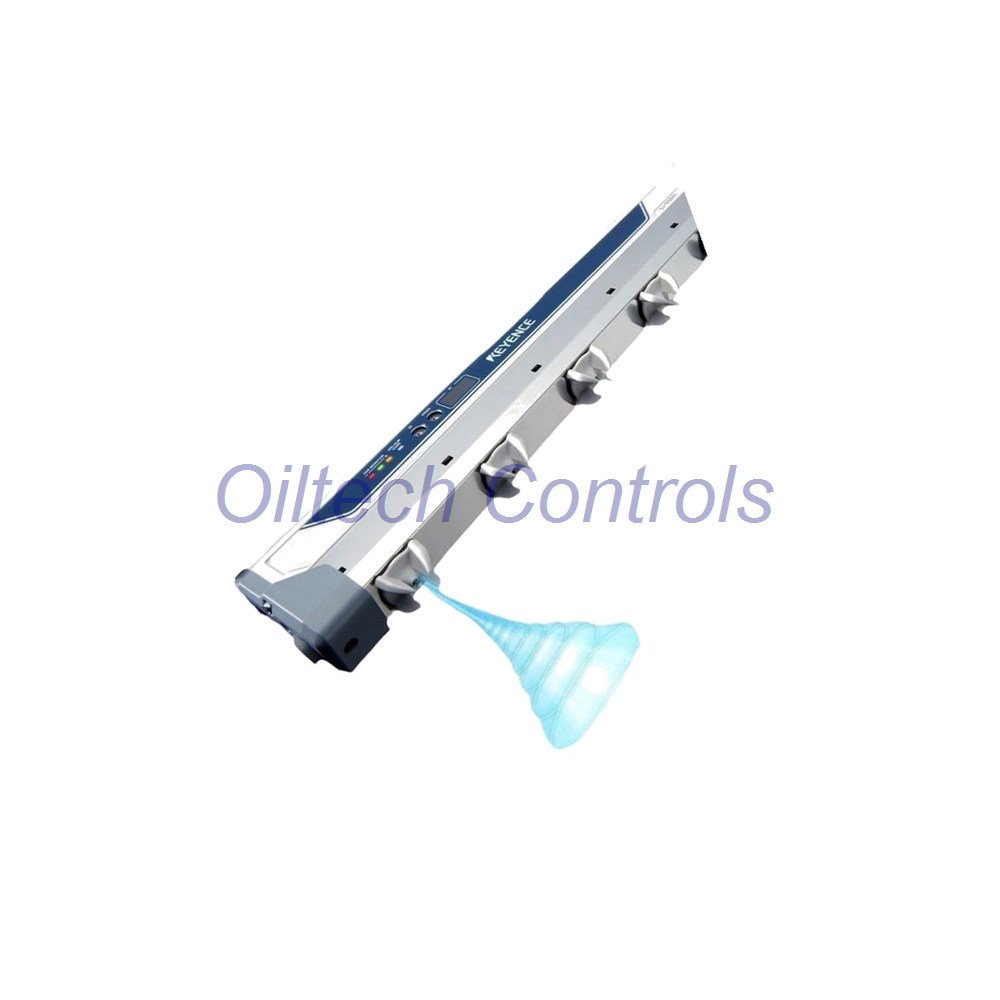

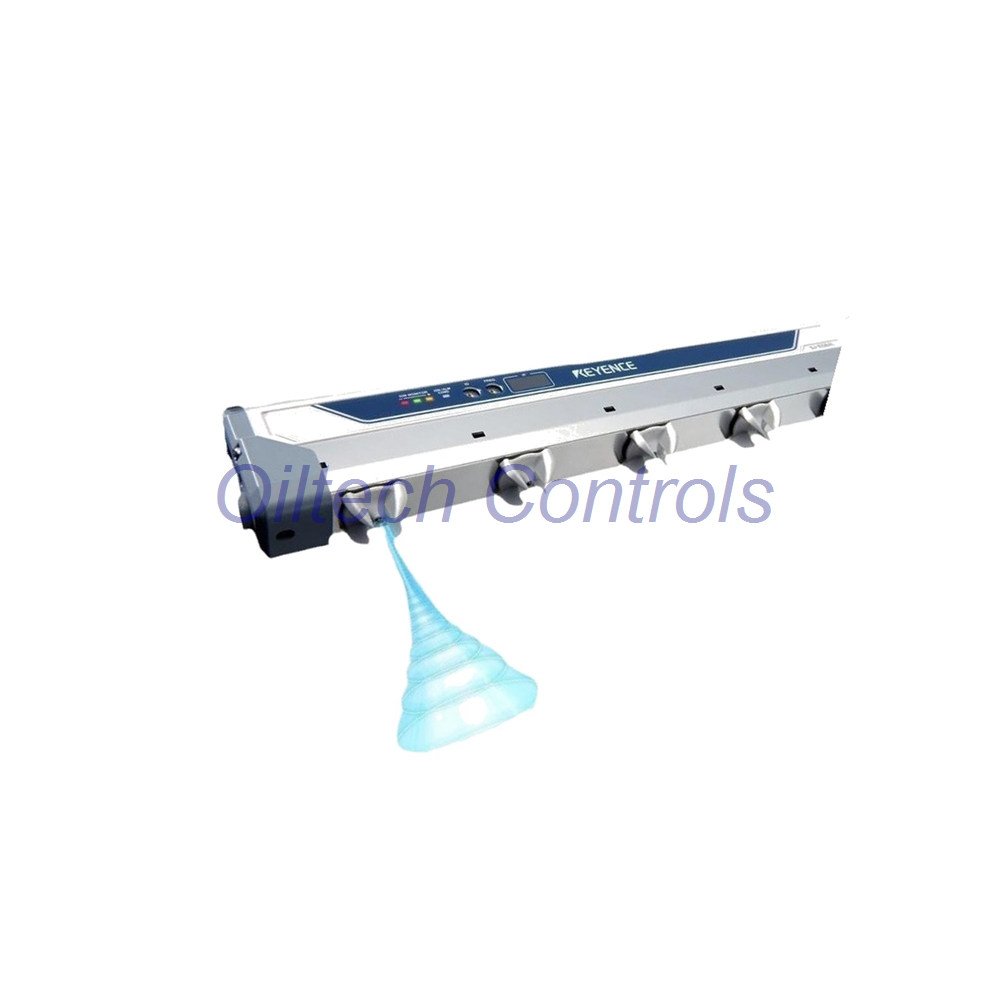

Keyence SJ-E084H Bar-Type Static Eliminator – High-End Ionizer for Critical Processes
The Keyence SJ-E084H belongs to the SJ-E series. It is a high-end bar-type static eliminator. This ionizer uses corona discharge. It delivers stable ion balance for industrial automation. The Hi-Power I.C.C. method ensures precise control. The pulse AC method applies ±8000 V. This design suits high-speed lines and sensitive parts. The shockless resistive coupling structure protects operators. The 900 mm effective length covers wide targets. The total length is 800 mm. It works with air pressures from 0.1 to 0.5 MPa. The recommended pressure is 0.2 MPa. The 25 tungsten electrodes provide uniform ionization. This model fits 50 to 2000 mm installation distances. It is active and in production as of 2026-09.
Technical Specifications
| Brand | Keyence |
| Model | SJ-E084H |
| Series | SJ-E series |
| Product Type | Bar-type static eliminator (high-end model) |
| Ion Generation | Corona discharge method |
| Structure | Shockless resistive coupling type |
| Voltage Application | Pulse AC method, ±8000 V |
| Ion Balance Control | Hi-Power I.C.C. method |
| Ion Balance | ±30 V (at 300 mm or more, 0.2 MPa air pressure) |
| Installation Distance | 50 to 2000 mm |
| Number of Electrodes | 25 |
| Effective Length | 900 mm (static elimination range at 50 mm) |
| Total Length | 800 mm |
| Built-in Ports | None |
| Protocols | Remote control communication |
| Communication Expansion | None |
| Supply Voltage | 24 to 36 VDC ±10% |
| Current Consumption | 700 mA (at 24 V), 500 mA (at 36 V) |
| Output Type | NPN open collector (ion level warning, condition warning, alarm output) |
| Control Input | Static elimination stop input (NPN open collector or contact point) |
| Control Output | NPN open collector, 100 mA max (40 VDC or less) |
| Air Connection Port | Rc 1/8 |
| Air Supply Pressure | 0.1 to 0.5 MPa (recommended 0.2 MPa) |
| Overvoltage Category | I |
| Pollution Degree | 2 |
| Operating Temperature | 0 to +40 °C |
| Relative Humidity | 35 to 85 % RH (No condensation) |
| Protection Rating | Not available |
| Dimensions (H×W×D) | Not available (total length 800 mm) |
| Weight | 1.10 kg |
| Electrode Probe Material | Tungsten |
| Main Body Material | ABS/PBT/PP/LCP/PPS/SPS/SUS |
| Lifecycle | Active; official Keyence production status confirmed (Last verified: 2026-09) |
Measurement Range: Static elimination covers 900 mm effective length at 50 mm distance. Frequency Response: Not applicable for ionizers. Sensitivity: Ion balance ±30 V. Linearity: Stable via Hi-Power I.C.C. control. Resolution: Not specified. Temperature Range: 0 to +40 °C. Environmental Resistance: 35 to 85 % RH, no condensation. Anti-Interference: Shockless resistive coupling and NPN outputs reduce noise impact.
Installation Guide
- Mount the bar at 50 to 2000 mm from the target.
- Use Rc 1/8 air connection. Set pressure to 0.2 MPa typical.
- Connect 24 to 36 VDC power. Observe polarity.
- Wire NPN open collector outputs for warnings and alarms.
- Use the static elimination stop input for remote control.
- Keep the unit away from conductive dust and moisture.
- Verify ion balance after installation with a charge plate monitor.
Commissioning and Maintenance Convenience
This Keyence SJ-E084H offers remote control communication. You can stop static elimination via NPN or contact input. Alarm and condition warnings simplify diagnostics. The tungsten electrodes resist wear. Clean the bar with soft cloth and approved solvent. Check air pressure and ion balance regularly. The shockless resistive coupling reduces maintenance risk. The unit has no built-in ports, so use external controllers for advanced monitoring. The 1.10 kg body mounts easily on standard brackets.
Compatibility Notes
This ionizer works with common 24 to 36 VDC industrial power supplies. It accepts NPN open collector signals. It also accepts contact point inputs. The Rc 1/8 air port fits standard pneumatic fittings. It does not include built-in communication ports. For network integration, use external I/O modules. The SJ-E series shares accessories with other Keyence bar ionizers. Always confirm connector pinouts before wiring.
Certification Information
Keyence confirms active production status. The product page verifies this as of 2026-09. Specific certifications are not listed in the provided data. Overvoltage category I and pollution degree 2 apply. Contact info@oiltechcontrols.com for certificate requests. We can provide compliance documents when available.
Packaging List
- 1 × Keyence SJ-E084H bar-type static eliminator
- 1 × Installation guide (if supplied by Keyence)
- 1 × Warranty card (12 months)
- Mounting hardware is not included unless specified
Warranty and Shipping
Oiltech Controls offers a 12-month warranty on this unit. We ship via FedEx, UPS, and DHL. Tracking is provided for every order. We test and verify before shipment. For urgent needs, contact us at +86 158 8020 0923 (WhatsApp). Email us at info@oiltechcontrols.com.
Typical Applications
- Film and sheet converting lines
- Printing and packaging machines
- Automotive parts assembly
- Electronics manufacturing and PCB handling
- Plastic injection molding areas
- Web handling and slitting operations
- Cleanroom and controlled environments
Diagnostic Capabilities
The unit provides ion level warning, condition warning, and alarm output. These NPN open collector signals help PLCs and controllers detect faults. The static elimination stop input allows remote disable. The Hi-Power I.C.C. method maintains ion balance and reduces drift. For deeper diagnostics, use external meters and charge plate monitors. No built-in port limits direct data logging. However, the alarm outputs support quick troubleshooting.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts.
- We ship worldwide with FedEx, UPS, and DHL.
- We offer tested industrial surplus and refurbished options.
- Every order includes a 12-month warranty.
- We perform technical verification before shipment.
- We support obsolete control systems and hard-to-find parts.
Questions? Reach us at info@oiltechcontrols.com or +86 158 8020 0923 on WhatsApp.
FAQ
Q: What is the ion balance of the SJ-E084H?
A: ±30 V at 300 mm or more with 0.2 MPa air pressure.
Q: What voltage does it use?
A: 24 to 36 VDC ±10%. Current draw is 700 mA at 24 V.
Q: Does it have built-in communication ports?
A: No. It supports remote control communication only.
Q: What is the effective static elimination length?
A: 900 mm at 50 mm distance. Total length is 800 mm.
Q: How many electrodes does it have?
A: 25 tungsten electrodes.
Q: What air pressure is recommended?
A: 0.2 MPa. The range is 0.1 to 0.5 MPa.
Q: What is the warranty?
A: 12 months from Oiltech Controls.
Q: How do you ship?
A: We use FedEx, UPS, and DHL.
