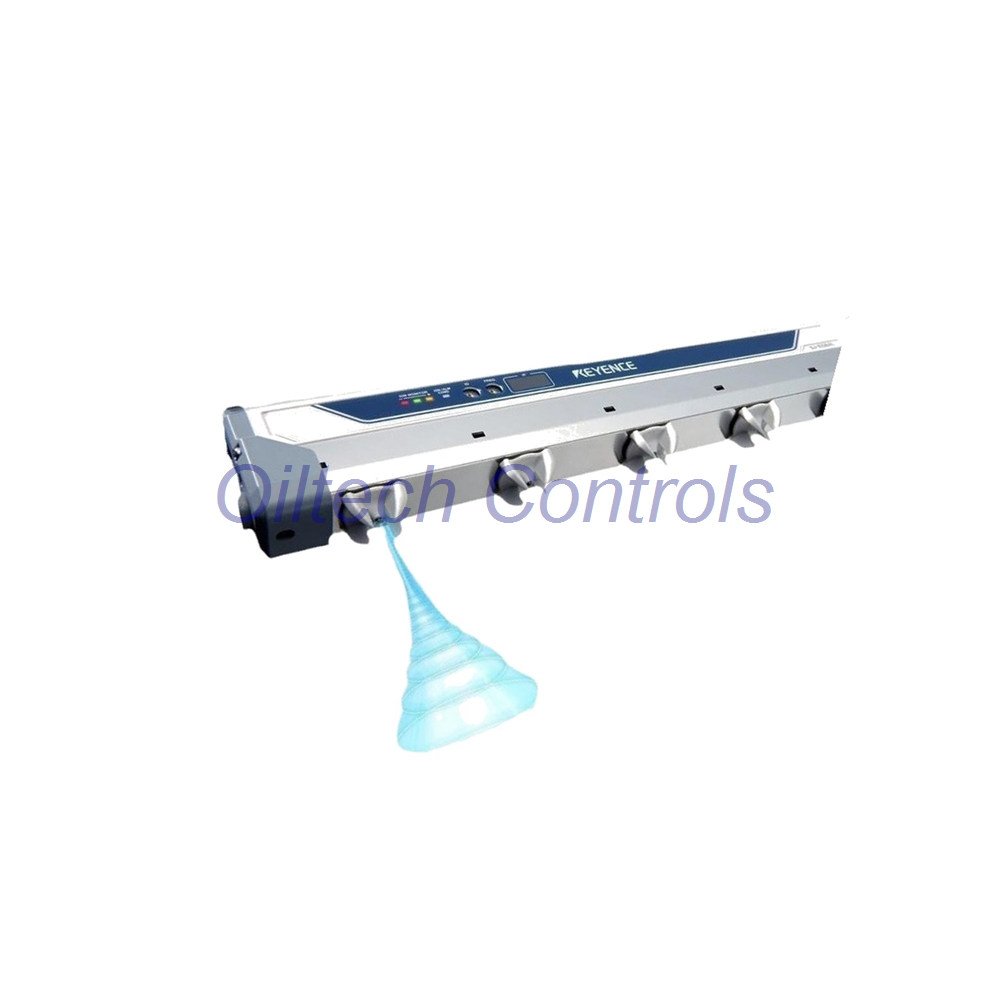

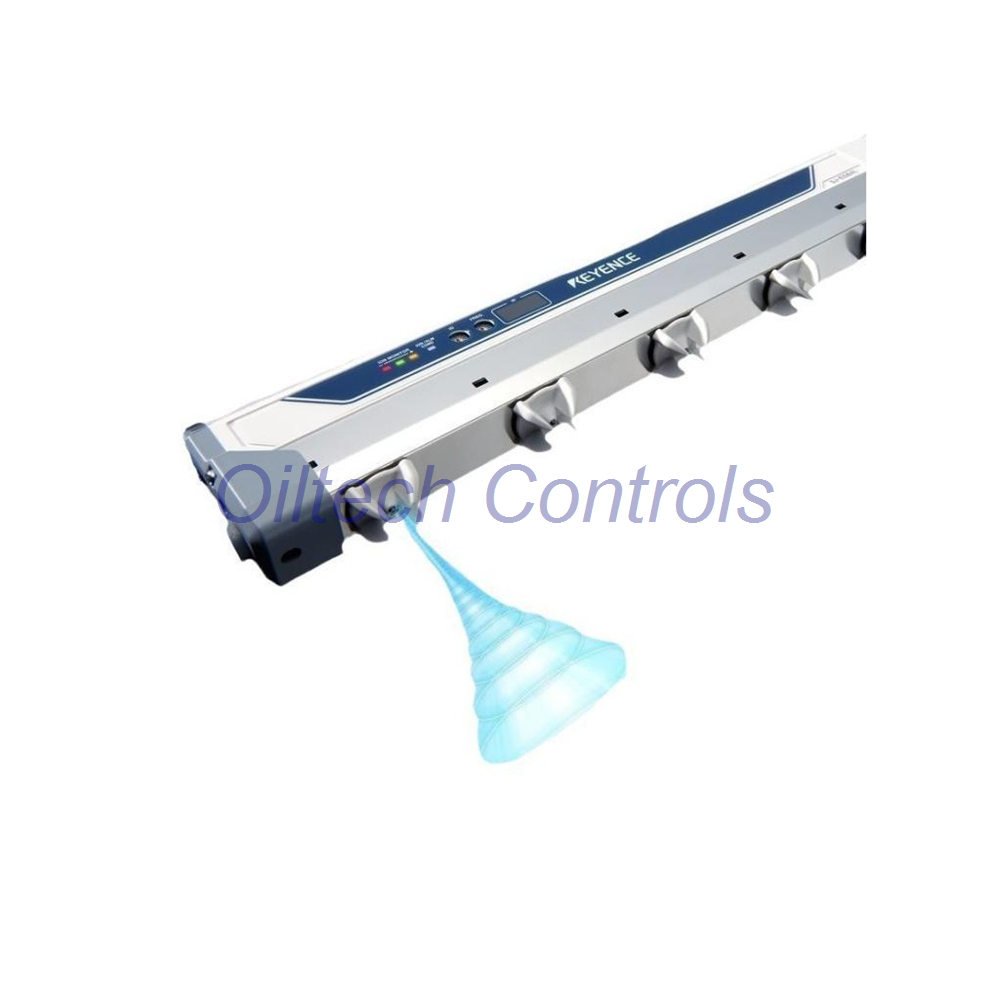

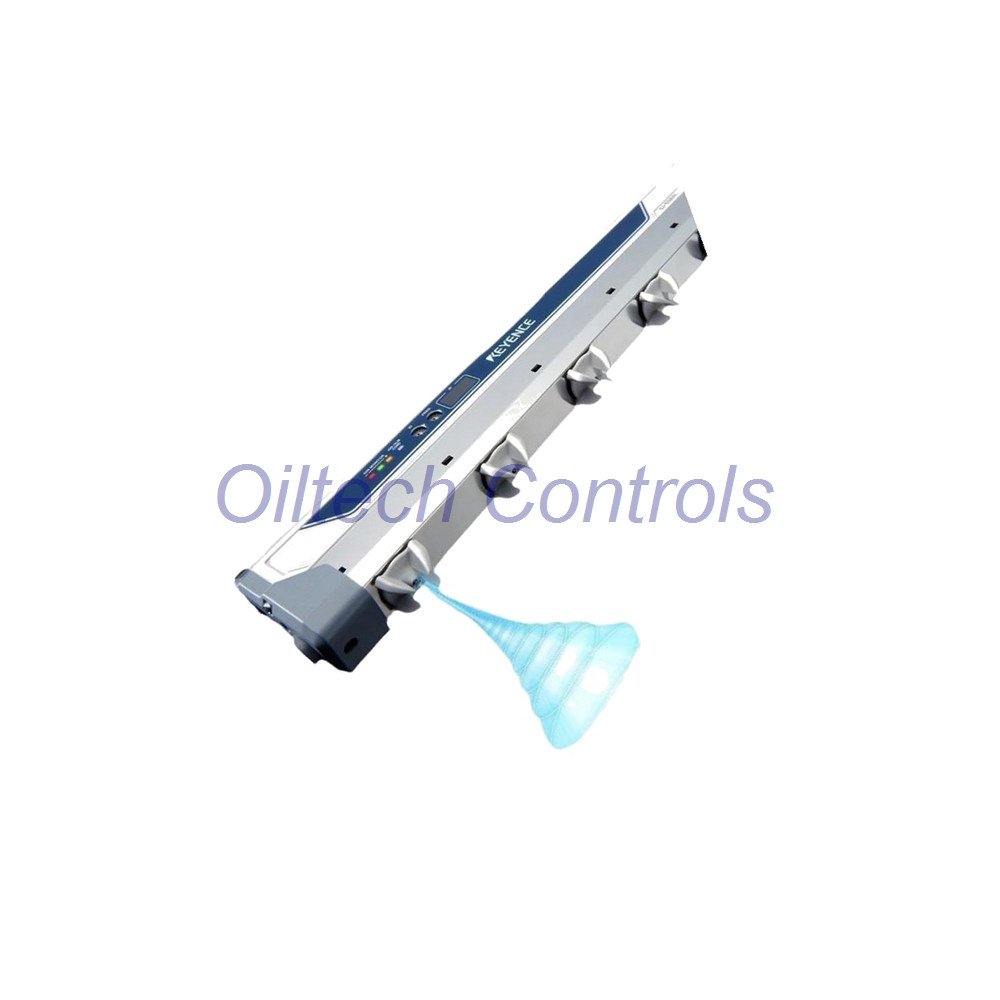

Keyence SJ-E204H Bar-Type Static Eliminator (Ionizer) – High-End Model
Keyence SJ-E204H is a high-end bar-type static eliminator from the SJ-E series. It uses corona discharge with a shockless resistive coupling structure. The pulse AC method applies ±8000 V. Hi-Power I.C.C. controls ion balance. This model suits long-range static removal in industrial automation.
Effective length reaches 2100 mm at 50 mm distance. Total length is 2000 mm. It has 65 electrodes. Installation distance ranges from 50 to 2000 mm. Ion balance stays within ±30 V at 300 mm or more with 0.2 MPa air. The unit operates on 24 to 36 VDC. Current draw is 700 mA at 24 V and 500 mA at 36 V. It weighs 2.15 kg.
This ionizer includes remote control communication. It offers NPN open collector outputs for ion level warning, condition warning, and alarm. A static elimination stop input is available. Air connection uses Rc 1/8 port. Recommended air pressure is 0.2 MPa. Operating temperature is 0 to +40 °C. Humidity range is 35 to 85 % RH without condensation. The electrode probe uses tungsten. Body materials include ABS, PBT, PP, LCP, PPS, SPS, and SUS.
Technical Specifications
| Brand | Keyence |
| Model | SJ-E204H |
| Series | SJ-E series |
| Product Type | Bar-type static eliminator (high-end model) |
| Ion Generation | Corona discharge method |
| Structure | Shockless resistive coupling type |
| Voltage Application | Pulse AC method, ±8000 V |
| Ion Balance Control | Hi-Power I.C.C. method |
| Ion Balance | ±30 V (at 300 mm or more, 0.2 MPa air) |
| Installation Distance | 50 to 2000 mm |
| Number of Electrodes | 65 |
| Effective Length | 2100 mm (static elimination range at 50 mm) |
| Total Length | 2000 mm |
| Supply Voltage | 24 to 36 VDC ±10% |
| Current Consumption | 700 mA (at 24 V), 500 mA (at 36 V) |
| Output Type | NPN open collector (ion level warning, condition warning, alarm output) |
| Control Input | Static elimination stop input (NPN open collector or contact point) |
| Control Output | NPN open collector, 100 mA max (40 VDC or less) |
| Air Connection Port | Rc 1/8 |
| Air Supply Pressure | 0.1 to 0.5 MPa (recommended 0.2 MPa) |
| Overvoltage Category | I |
| Pollution Degree | 2 |
| Operating Temperature | 0 to +40 °C |
| Relative Humidity | 35 to 85 % RH (No condensation) |
| Protection Rating | Not available |
| Dimensions (H×W×D) | Not available (total length 2000 mm) |
| Weight | 2.15 kg |
| Electrode Probe Material | Tungsten |
| Main Body Material | ABS/PBT/PP/LCP/PPS/SPS/SUS |
| Communication | Remote control communication (built-in ports: none, expansion: none) |
Installation Guide
- Mount the bar at 50 to 2000 mm from the target.
- Use Rc 1/8 air port for clean dry air.
- Set air pressure between 0.1 and 0.5 MPa. Recommended value is 0.2 MPa.
- Connect 24 to 36 VDC power. Observe polarity.
- Keep wiring away from high-voltage lines to reduce noise.
- Use NPN open collector for stop input and alarm output.
Debugging and Maintenance Convenience
- Hi-Power I.C.C. keeps ion balance stable. This reduces manual adjustment.
- Remote control communication allows monitoring from a host system.
- NPN outputs give early warning for ion level and condition.
- Tungsten electrodes resist wear. Clean them with soft brush and dry air.
- Shockless resistive coupling improves safety during maintenance.
Compatibility Notes
- Works with 24 VDC and 36 VDC control panels.
- Accepts NPN open collector or dry contact stop signals.
- No built-in communication ports. Remote control runs through dedicated lines.
- No expansion modules are available for this model.
- Compatible with standard Rc 1/8 air fittings.
Certifications and Compliance
- Overvoltage category I
- Pollution degree 2
- Designed for industrial automation environments
- Official Keyence production status confirmed (Last verified: 2026-09)
Packing List and Warranty
- 1 × Keyence SJ-E204H bar-type static eliminator
- 1 × Quick reference guide (subject to stock)
- 12-month warranty from Oiltech Controls Limited
- Shipping via FedEx, UPS, or DHL
Typical Applications and Diagnostics
- Film and sheet production lines
- Packaging machines with high static charge
- Printing and converting equipment
- Plastic injection and blow molding areas
- Electronics assembly near sensitive parts
- Diagnostics: alarm output, ion level warning, condition warning via NPN open collector
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts
- Global shipment support
- Tested industrial surplus and refurbished options
- 12-month warranty on eligible products
- Technical verification before shipment
- Support for obsolete control systems
Contact us for inquiries: info@oiltechcontrols.com or +86 158 8020 0923 (WhatsApp).
FAQ
Q: What is the ion balance of SJ-E204H?
A: ±30 V at 300 mm or more with 0.2 MPa air.
Q: What voltage does it require?
A: 24 to 36 VDC ±10%. Current is 700 mA at 24 V and 500 mA at 36 V.
Q: How many electrodes does it have?
A: 65 electrodes. Effective length is 2100 mm at 50 mm distance.
Q: What is the air connection size?
A: Rc 1/8. Recommended air pressure is 0.2 MPa.
Q: Does it have built-in communication ports?
A: No built-in ports. It supports remote control communication.
Q: What is the warranty?
A: 12-month warranty from Oiltech Controls Limited.
Q: How is it shipped?
A: FedEx, UPS, or DHL.
Q: What is the operating temperature range?
A: 0 to +40 °C. Humidity 35 to 85 % RH without condensation.
Q: What material is the electrode probe?
A: Tungsten. Body materials include ABS, PBT, PP, LCP, PPS, SPS, and SUS.
Q: Is this model active?
A: Yes. Official Keyence production status confirmed (Last verified: 2026-09).
