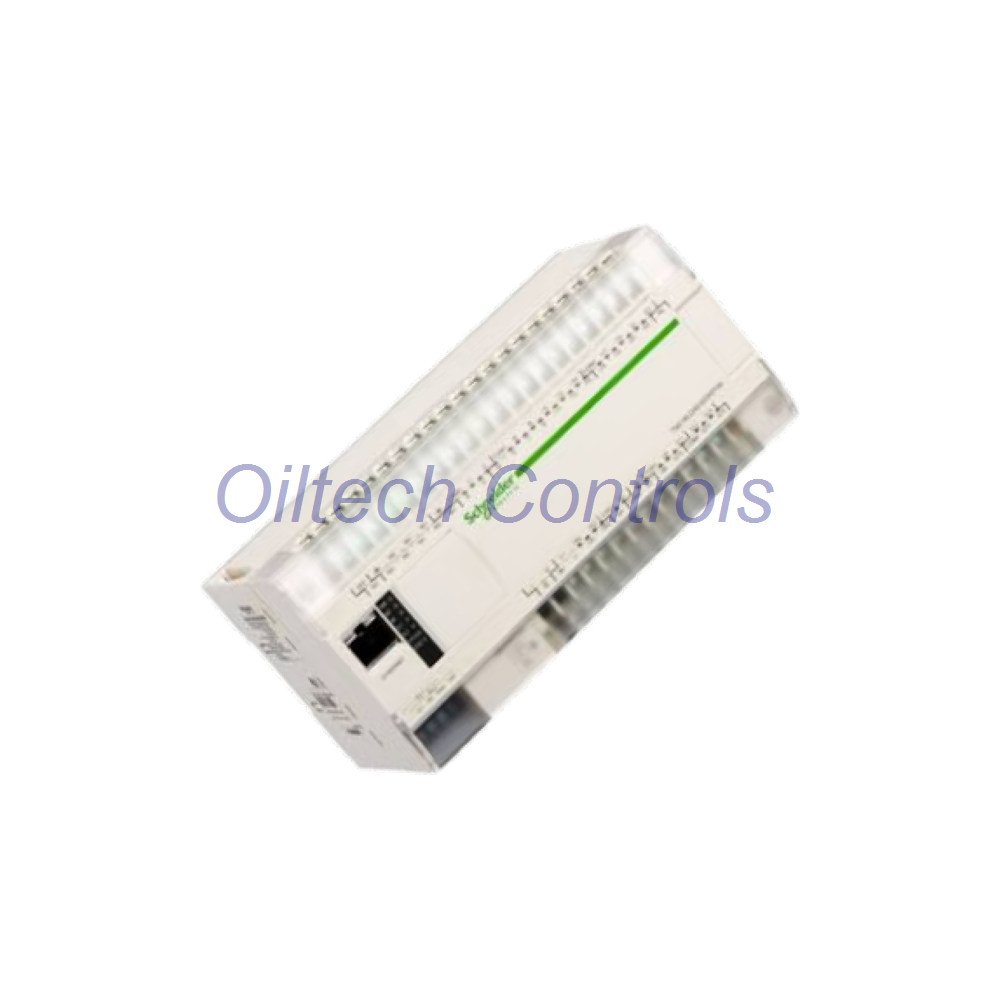

TM218LDD24DUPHN Modicon M218 Compact Logic Controller by Schneider Electric
The TM218LDD24DUPHN is a compact logic controller from the Schneider Electric Modicon M218 series. It offers 24 I/O, transistor outputs, and a 24 VDC supply. This unit fits small machines, simple process control, and legacy system support. It uses SoMachine or EcoStruxure Machine Expert software. The Modicon M218 line is discontinued. The Modicon M221 is the suggested replacement. Oiltech Controls supplies tested surplus and refurbished options for obsolete control systems.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts
- Global shipment support through FedEx, UPS, and DHL
- Tested industrial surplus and refurbished options
- 12-month warranty on eligible products
- Technical verification before shipment
- Support for obsolete control systems
Questions? Email us at info@oiltechcontrols.com or message us on WhatsApp at +86 158 8020 0923.
Technical Specifications
| Brand | Schneider Electric |
| Model | TM218LDD24DUPHN |
| Series | Modicon M218 |
| Module Type | Compact Logic Controller |
| I/O Count | 24 I/O |
| Output Type | Transistor, source/PNP |
| Supply Voltage | 24 VDC (19.2…28.8 V) |
| Processor | Not available |
| Clock Speed | Not available |
| Program Memory | 1 MB Flash |
| Data Memory | 1 MB RAM |
| Programming Software | SoMachine / EcoStruxure Machine Expert |
| Scan Speed | 1 Kinst per 2 ms typical |
| Digital Inputs | 14 total: 10 regular 24 VDC + 4 fast HSC 10 kHz |
| Digital Outputs | 10 transistor, 0.5 A per point, 2 fast PTO/PWM |
| Analog Inputs | None |
| Analog Outputs | None |
| High-Speed Counters | 2 x 10 kHz |
| Pulse Outputs | 2 x PTO/PWM up to 100 kHz |
| Expansion Modules | Up to 7 TM2 modules, max 248 I/O |
| Built-in Ports | 2 x RS-485, 1 x mini USB-B |
| Protocols | Modbus RTU/ASCII, USB programming protocol |
| Communication Expansion | TMCOM cartridge slot for Modbus, CANopen, or Profibus |
| Power Consumption | 15 W |
| Operating Temperature | 0…+55 °C |
| Storage Temperature | -25…+70 °C |
| Relative Humidity | 10…95%, non-condensing |
| Protection Rating | IP20 |
| Dimensions (HxWxD) | 94.5 x 87.5 x 70 mm |
| Weight | 0.35 kg |
| Lifecycle Status | Discontinued; replacement: Modicon M221 |
Key Technical Data Explained
Measurement range: Not applicable for this logic controller. It handles digital signals, not analog measurement.
Frequency response: Fast inputs support 10 kHz high-speed counting. Pulse outputs reach 100 kHz for PTO/PWM tasks.
Sensitivity: Digital inputs respond to standard 24 VDC logic levels. Fast inputs suit encoder and pulse signals.
Linearity: Not applicable. This unit uses digital I/O, not analog conversion.
Resolution: Counter and pulse functions work at 10 kHz input and 100 kHz output rates.
Temperature range: Runs from 0 to +55 °C. Stores from -25 to +70 °C.
Environmental tolerance: Handles 10…95% relative humidity, non-condensing. Rated IP20 for cabinet use.
Interference immunity: Built for industrial cabinets. Use proper grounding, shielded cables, and stable 24 VDC supply.
Installation Guide
- Mount the controller on a 35 mm DIN rail inside a protected cabinet.
- Keep clear space above and below for airflow.
- Use a stable 24 VDC supply within 19.2…28.8 V.
- Wire digital inputs and outputs with correct polarity.
- Use shielded cable for RS-485 and fast pulse signals.
- Ground the panel and follow local electrical codes.
- Do not exceed 0.5 A per transistor output point.
Commissioning and Maintenance
- Program with SoMachine or EcoStruxure Machine Expert.
- Connect through mini USB-B for fast setup.
- Use Modbus RTU/ASCII over RS-485 for field devices.
- Add a TMCOM cartridge for Modbus, CANopen, or Profibus expansion.
- Back up programs to the 1 MB Flash memory.
- Check terminals and cooling paths during routine service.
- Replace aging units before failure in critical lines.
Compatibility Notes
- Works with up to 7 TM2 expansion modules.
- Supports Modbus RTU/ASCII over RS-485.
- Accepts TMCOM communication cartridges.
- Compatible with SoMachine and EcoStruxure Machine Expert.
- Replacement path: Modicon M221 for new projects.
- Related mature lines: M258 and M241.
Certifications and Compliance
This product carries the Schneider Electric brand. It is a Modicon M218 series controller. Certification details may vary by batch and region. Contact Oiltech Controls for current compliance documents before purchase.
Package List
- 1 x TM218LDD24DUPHN controller
- 1 x protective packaging
- 1 x technical documentation reference
Warranty and Shipping
Oiltech Controls offers a 12-month warranty on eligible products. We ship worldwide by FedEx, UPS, and DHL. Every unit passes technical verification before shipment. Contact info@oiltechcontrols.com or WhatsApp +86 158 8020 0923 for stock and lead time.
Typical Applications
- Small machine control
- Packaging equipment
- Material handling
- Simple process control
- Legacy system replacement
- Pulse and counting tasks
- Modbus field networks
Diagnostic Capabilities
- USB programming port for live monitoring
- RS-485 Modbus diagnostics
- Fast counter and pulse status checks
- Program backup and restore through Flash memory
- I/O status indication for quick fault finding
FAQ
Is the TM218LDD24DUPHN still active? No. Schneider Electric lists it as discontinued. The Modicon M221 is the replacement.
How many I/O does it have? It has 24 I/O: 14 digital inputs and 10 transistor outputs.
Does it have analog I/O? No. It has no analog inputs or outputs.
What software does it use? Use SoMachine or EcoStruxure Machine Expert.
How fast are the pulse outputs? Up to 100 kHz for PTO/PWM.
What is the warranty? Oiltech Controls provides a 12-month warranty on eligible products.
How do you ship? We ship by FedEx, UPS, and DHL.
Can you test before shipping? Yes. We perform technical verification before shipment.
Do you support obsolete systems? Yes. We support obsolete control systems and tested surplus options.
