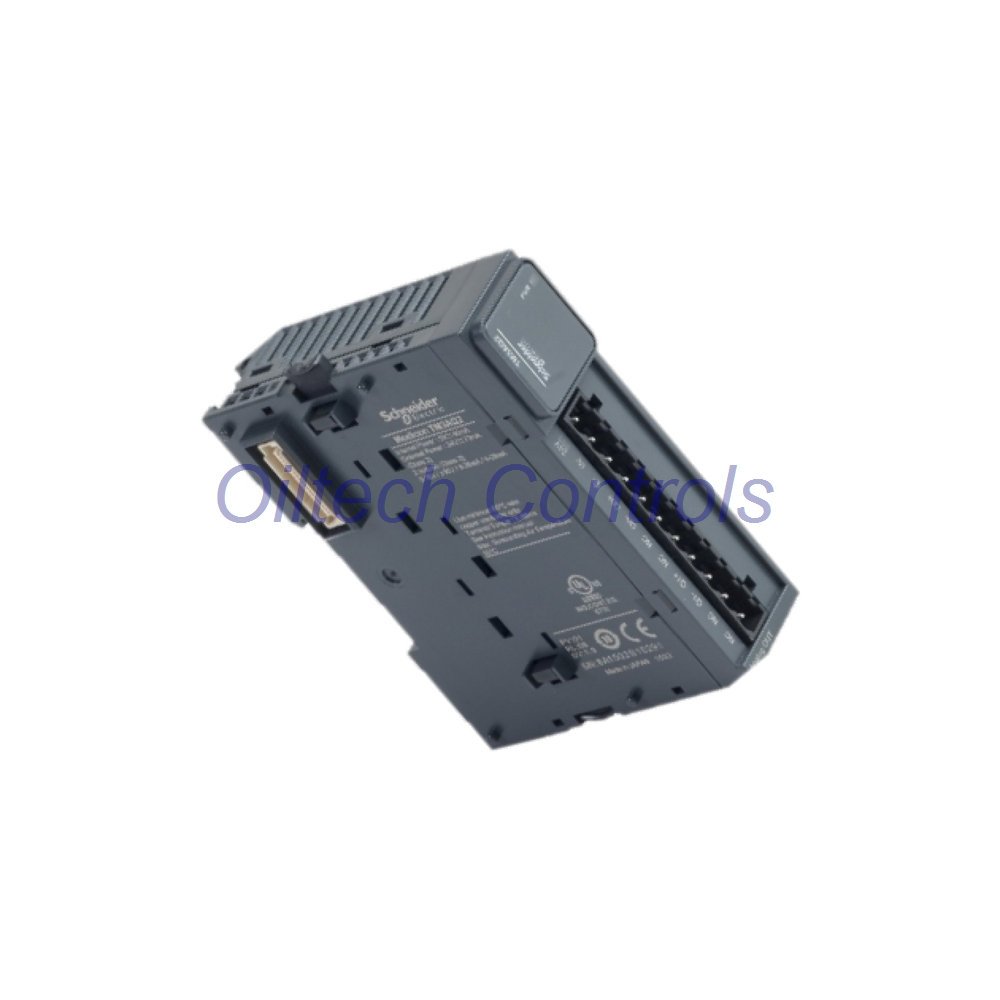

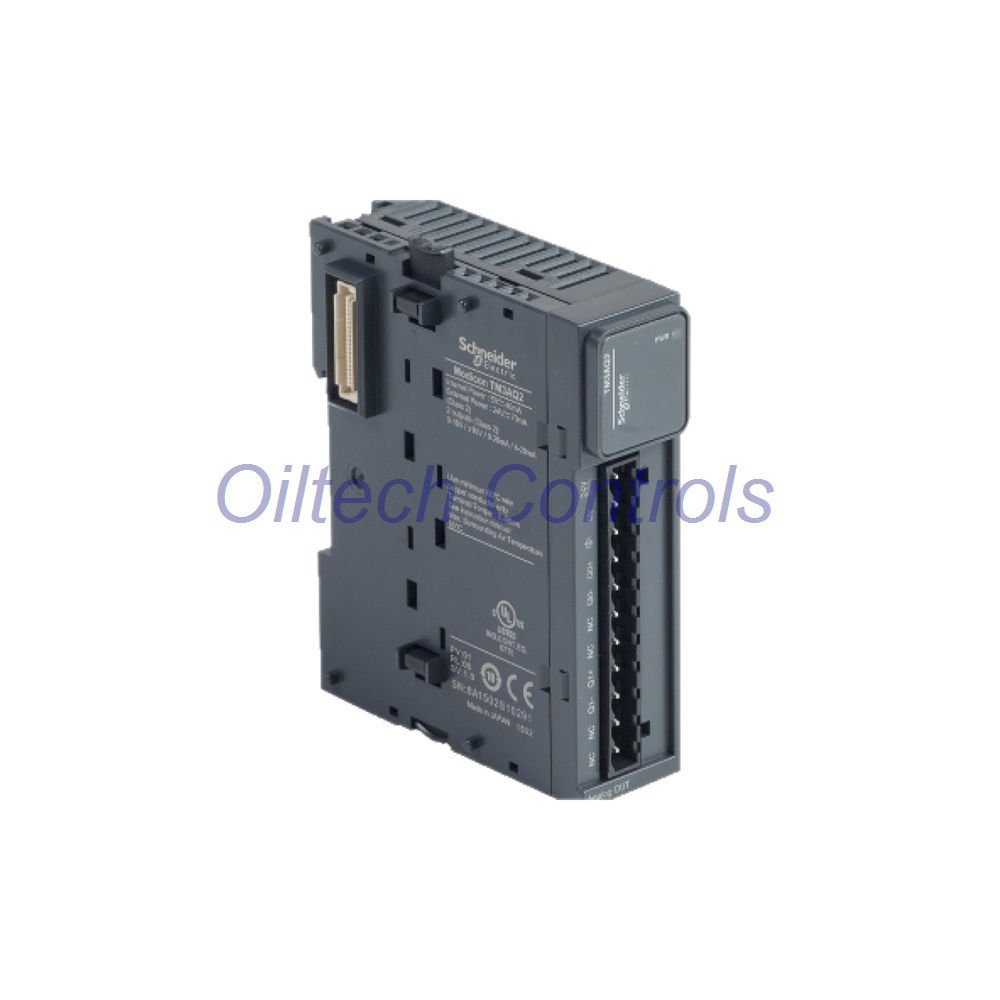

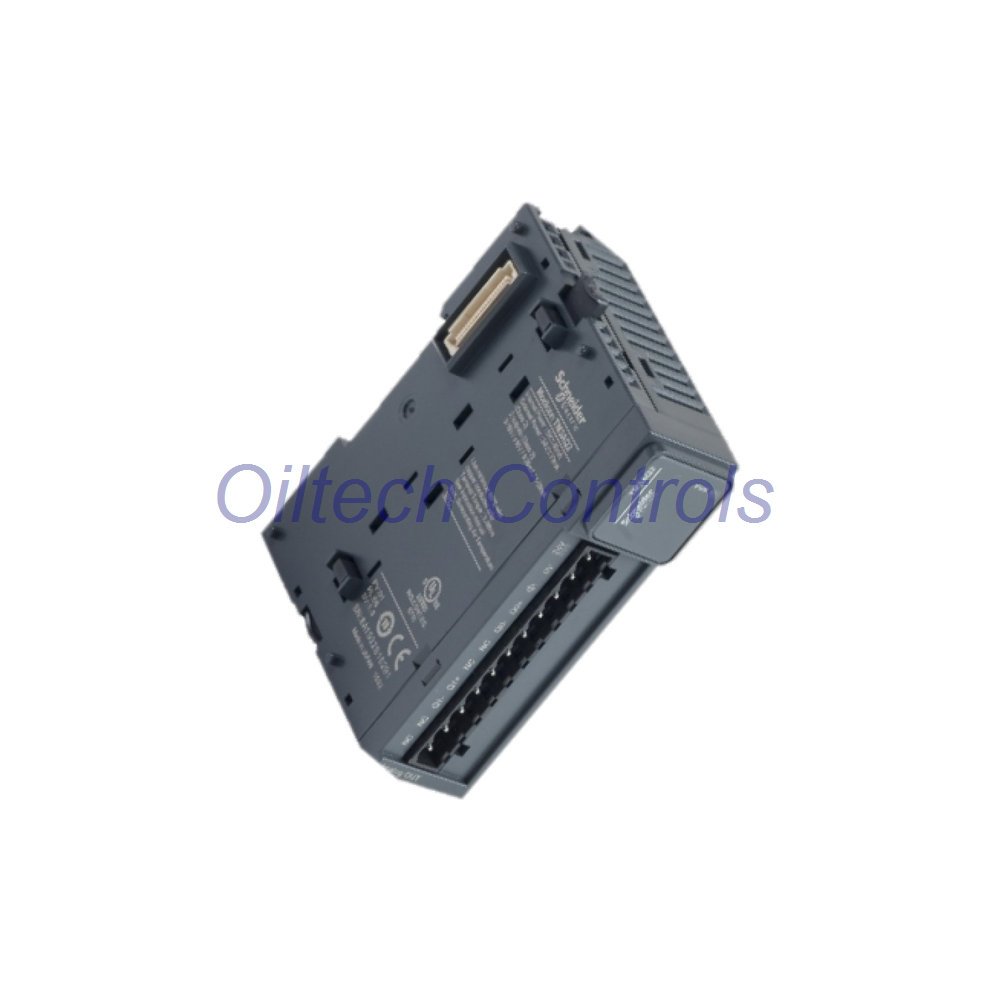

TM3AQ2 Schneider Modicon TM3 Analog Output Module 2 Channel

TM3AQ2 Schneider Electric Modicon TM3 Analog Output Module

The TM3AQ2 is a 2-channel analog output module from the Schneider Electric Modicon TM3 series. Each channel configures in software for 0-10 Vdc, ±10 Vdc, 0-20 mA, or 4-20 mA. It delivers 12-bit resolution and ±0.1% full-scale accuracy at 25 °C. The module fits Modicon M221, M241, M251, and M262 controllers. It uses a removable screw terminal block with 5.08 mm pitch. This module suits valve control, drive speed reference, and analog signal retransmission in compact machines. Oiltech Controls supplies tested units with a 12-month warranty and 24-28 hour dispatch.

Oiltech Controls’s Insight

• Best for machine builders needing flexible voltage or current outputs
• Software configuration per channel reduces spare part variants
• 12-bit resolution fits most position and speed reference loops
• 1500 V AC output-to-supply isolation protects control circuits
• Compact 23.6 mm width saves DIN rail space
• Ideal for M221 and M241 compact control panels
• Suits M251 and M262 distributed architectures

Technical Specifications

• Brand: Schneider Electric
• Model: TM3AQ2
• Series: Modicon TM3
• Module Type: Analog output, 2 channels, 12-bit
• Signal Types: 0-10 Vdc, ±10 Vdc, 0-20 mA, 4-20 mA
• Channel Configuration: Software configurable per channel
• Resolution: 12 bits
• Accuracy: ±0.1% of full scale at 25 °C
• Accuracy Over Temperature: ±1% of full scale
• Isolation: 1500 V AC output to supply
• Logic Isolation: 500 V AC output to internal logic
• Response Time: 1 ms conversion + 1 ms per channel + 1 controller cycle
• Stabilization Time: 1 ms
• Diagnostics: Module status, bus status
• Wiring: Removable screw terminal block, 5.08 mm pitch
• Supply Voltage: 24 Vdc via TM3 bus
• Bus Current: 35 mA at 5 V DC no load
• Bus Current: 40 mA at 5 V DC full load
• Bus Current: 30 mA at 24 V DC no load
• Bus Current: 70 mA at 24 V DC full load
• Operating Temperature: 0 to +55 °C
• Storage Temperature: -25 to +70 °C
• Protection Rating: IP20
• Dimensions: 90 × 23.6 × 70 mm
• Weight: 0.115 kg
• Compatible Platforms: Modicon M221, M241, M251, M262
• Lifecycle: Active, last verified 2026-09

Installation Notes

• Mount on the TM3 expansion bus next to the controller
• Confirm 24 Vdc supply from the TM3 bus
• Wire outputs to the removable screw terminal block
• Keep analog cables away from motor and drive power lines
• Use shielded cable for long current loops
• Check channel configuration in the controller software
• Verify module and bus status LEDs after power up

Commissioning and Maintenance

• Set each channel mode in software before wiring loads
• Confirm output range matches the actuator input
• Measure loop current or voltage during first startup
• Check terminal torque during scheduled maintenance
• Inspect for dust, moisture, and loose strands
• Replace damaged terminal blocks with the same pitch
• Keep controller firmware and module catalog matched

Diagnostics Capability

• Module status LED for local health check
• Bus status LED for communication faults
• Controller software diagnostics for channel errors
• Output range verification through process feedback
• Fast fault isolation in compact panels

Compatibility and Suitable Equipment

• Modicon M221 logic controllers
• Modicon M241 logic controllers
• Modicon M251 logic controllers
• Modicon M262 logic and motion controllers
• Proportional valve drivers
• Variable frequency drive speed references
• Analog signal retransmission to recorders
• Damper and actuator positioners
• Process control loops with 4-20 mA input

Why Buy From Oiltech Controls?

• More than 15 years in industrial automation spare parts
• Global shipment support to most regions
• Tested industrial surplus and refurbished options
• 12-month warranty on eligible products
• Technical verification before dispatch
• Support for obsolete control systems
• 24-28 hour dispatch on stocked items
• Shipping by FedEx, UPS, and DHL

Send inquiries to info@oiltechcontrols.com or +86 158 8020 0923.

FAQ

Q: Can I mix voltage and current outputs on the two channels?

A: Yes. Each channel configures independently in software. You can set channel 1 to 0-10 Vdc and channel 2 to 4-20 mA. This helps when one machine uses a valve and a drive together. Confirm your controller firmware supports per-channel settings. Always wire each channel to the correct load type.

Q: How do I choose between 0-20 mA and 4-20 mA?

A: Use 4-20 mA for long cable runs and noisy plants. The live zero helps detect broken wires. Use 0-20 mA only when the actuator requires it. Most process valves and drives accept 4-20 mA. Check the input card or actuator datasheet before wiring. Set the same range in the controller software.

Q: What causes output drift over temperature?

A: The module holds ±0.1% full scale at 25 °C. Over the full temperature range, accuracy moves to ±1% full scale. Install the module in a stable cabinet area. Avoid mounting next to drives or power supplies. Allow air flow around the module. Recalibrate the process loop if drift affects quality.

Q: Which controller should I pair with the TM3AQ2?

A: Use Modicon M221 for small machines with basic analog needs. Choose M241 when you need Ethernet and more I/O. Select M251 for distributed architectures. Pick M262 for motion and high-speed processing. All four platforms accept TM3 expansion modules. Match the controller to your cycle time and network needs.

Q: How fast does the output respond after a command change?

A: Conversion takes 1 ms. Each channel adds 1 ms. The controller cycle time also adds delay. Stabilization takes 1 ms. Total response depends on your scan time. For fast loops, use a short controller cycle. For valve control, this speed is normally sufficient.

Warranty and Dispatch

• 12-month warranty on eligible products
• 24-28 hour dispatch on stocked items
• Shipping by FedEx, UPS, and DHL
• Technical verification before shipment
• Tracking details sent after dispatch

Packing List

• 1 x TM3AQ2 analog output module
• Removable screw terminal block
• Protective packaging
• Documentation reference
