Troubleshooting Schneider ABL8RPS24100 Overload Protection and Reset Procedures

Strategic Importance of the ABL8RPS24100 in Industrial Automation

The Schneider Electric ABL8RPS24100 (24V/10A) serves as a critical power foundation for factory automation and process control. This regulated power supply ensures that PLCs, sensors, and I/O modules receive stable DC energy. However, unexpected stops in chemical or pharmaceutical production lines can be incredibly costly. Therefore, understanding the internal protection mechanisms of this unit is essential for maintaining continuous operations and minimizing downtime.

Analyzing Overload Protection: Hiccup vs. Latch Behavior

The ABL8RPS24100 primarily utilizes an auto-recovery or “hiccup” mode to handle transient faults. Nevertheless, during severe or sustained overcurrent events, the unit may enter a protection state that appears “latched off.” In our experience at Oiltech Controls Limited, engineers often mistake this protective state for a hardware failure. In reality, the power supply is actively preventing thermal stress and protecting downstream components from cascading electrical faults.

Managing Current Thresholds and Inrush Loads

This model typically allows a short-term current boost ranging from 110% to 150% of its nominal rating. This feature effectively supports high-inrush loads such as DC motors and large contactors without causing nuisance trips. Consequently, if your system trips frequently during startup, it usually suggests a lack of load sequencing. We recommend reviewing your control systems design to ensure that high-draw devices do not activate simultaneously.

Thermal Impact on Power Supply Reliability

Ambient conditions significantly affect the performance of power electronics. The ABL8RPS24100 operates reliably up to 60°C, though power derating applies as temperatures rise. In compact or poorly ventilated control panels, internal heat buildup can trigger premature overload alarms even within nominal current limits. Proper cabinet ventilation and spacing are therefore mandatory for long-term industrial automation stability.

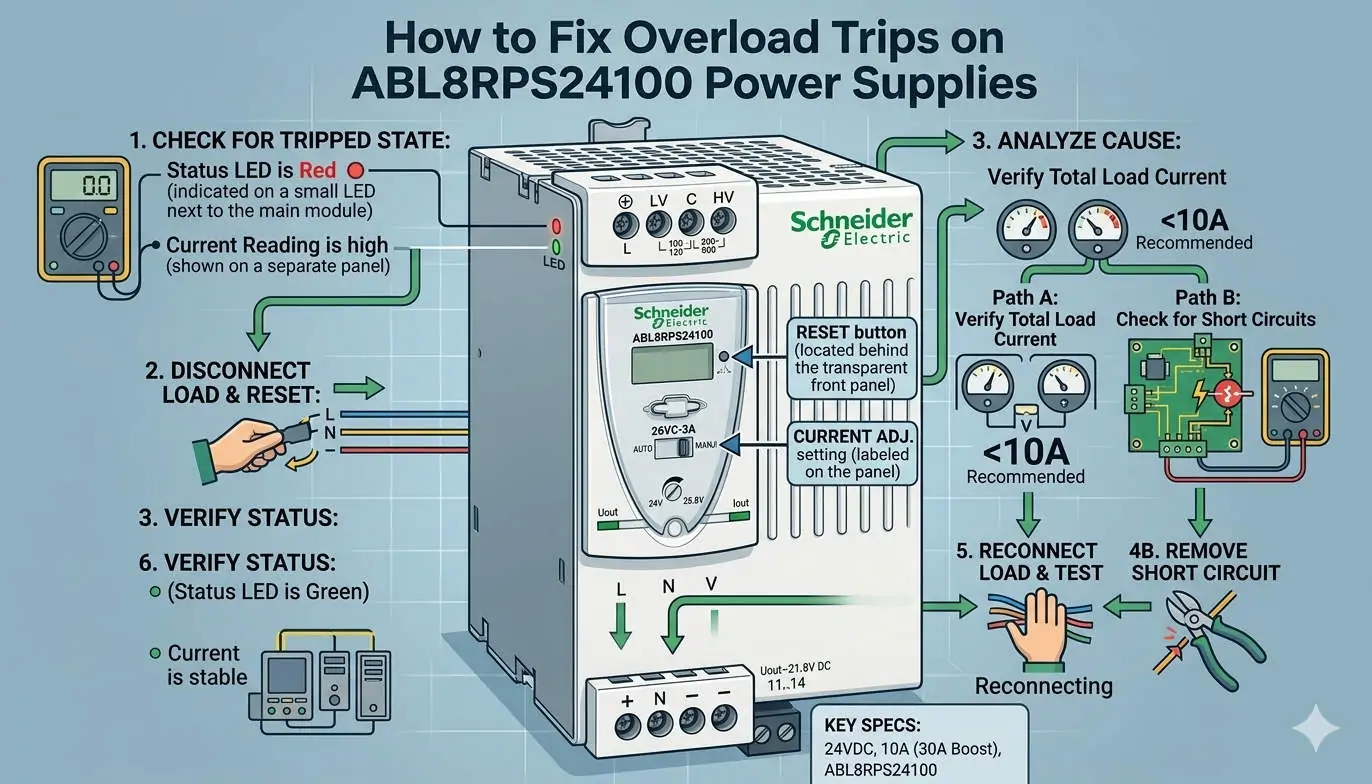

Step-by-Step Manual Reset Procedure

The ABL8RPS24100 does not feature a physical reset button. To restore functionality after a protection event, follow these specific steps:

• ✓ Isolate Power: Disconnect the AC input supply (L/N) immediately.
• ✓ Discharge Period: Wait at least 30 seconds to allow internal capacitors to fully discharge.
• ✓ Fault Investigation: Identify and rectify the root cause, such as a shorted solenoid or faulty wiring.
• ✓ Restore Power: Re-apply the AC input to restart the DC output.

Note: If the fault persists, the unit will immediately re-enter protection mode to prevent internal damage.

Author Insights from Oiltech Controls Limited

At Oiltech Controls Limited, we believe that effective power management is the “silent partner” of successful DCS and PLC integration. While the ABL8RPS24100 is a robust workhorse, we often suggest segmenting loads using electronic circuit breakers. This strategy isolates individual faults without compromising the entire system. Furthermore, ensuring proper terminal torque in high-vibration environments prevents the resistance-based heat that often causes “false” overload triggers.

To find genuine Schneider Electric modules and professional engineering support, visit our website at Oiltech Controls Limited for comprehensive power solutions.

Engineering Recommendations for Best Performance

• &wrench; Load Segmentation: Use DC distribution modules to isolate critical loads.
• &wrench; Surge Immunity: Install upstream surge protection devices (SPD) in lightning-prone areas.
• &wrench; Terminal Integrity: Use spring clamp terminals in high-vibration stamping or packaging machines.

Frequently Asked Questions (FAQ)

Q1: Why does my power supply stay at 0V even after I clear a short circuit?
This occurs because the internal capacitors need time to fully discharge to reset the logic circuit. If you restore AC power too quickly, the unit may stay in its “latched” protection state. Ensure you wait at least 30 seconds before reapplying power.

Q2: Can the ABL8RPS24100 be used in parallel for higher current?
Yes, this model supports parallel connection to increase power capacity. However, you must ensure that the voltage settings are perfectly matched between units to prevent one supply from carrying the entire load, which leads to premature aging and thermal trips.

Q3: Is it normal for the unit to feel hot to the touch during full load?
Industrial power supplies dissipate heat through their chassis. While it is normal for them to feel warm, if the casing exceeds 70°C, you should check for overcrowding in the DIN rail layout or improve the enclosure’s airflow to avoid derating issues.

Application Scenario: Packaging Line Reliability

In a large-scale packaging facility, frequent trips were occurring due to several DC conveyor motors starting at once. By replacing standard breakers with the ABL8RPS24100 and implementing a 500ms startup delay between motors, the client eliminated nuisance trips. This simple change in factory automation logic saved the plant hours of manual reset downtime each week.
