Troubleshooting Frequent Fuse Failures in Bently Nevada 3500/15 Power Supplies

The Critical Role of the 3500/15-05-00-02 Power Supply

The Bently Nevada 3500/15-05-00-02 module acts as the heartbeat of the 3500 Machinery Protection System. It converts incoming AC power into stable DC voltages for monitoring and communication modules. Frequent fuse failures often indicate deeper electrical issues rather than simple component defects. At Oiltech Controls Limited, we frequently see maintenance teams replace the module only to face the same issue days later. Understanding the root cause is vital for maintaining turbine protection and preventing costly production downtime.

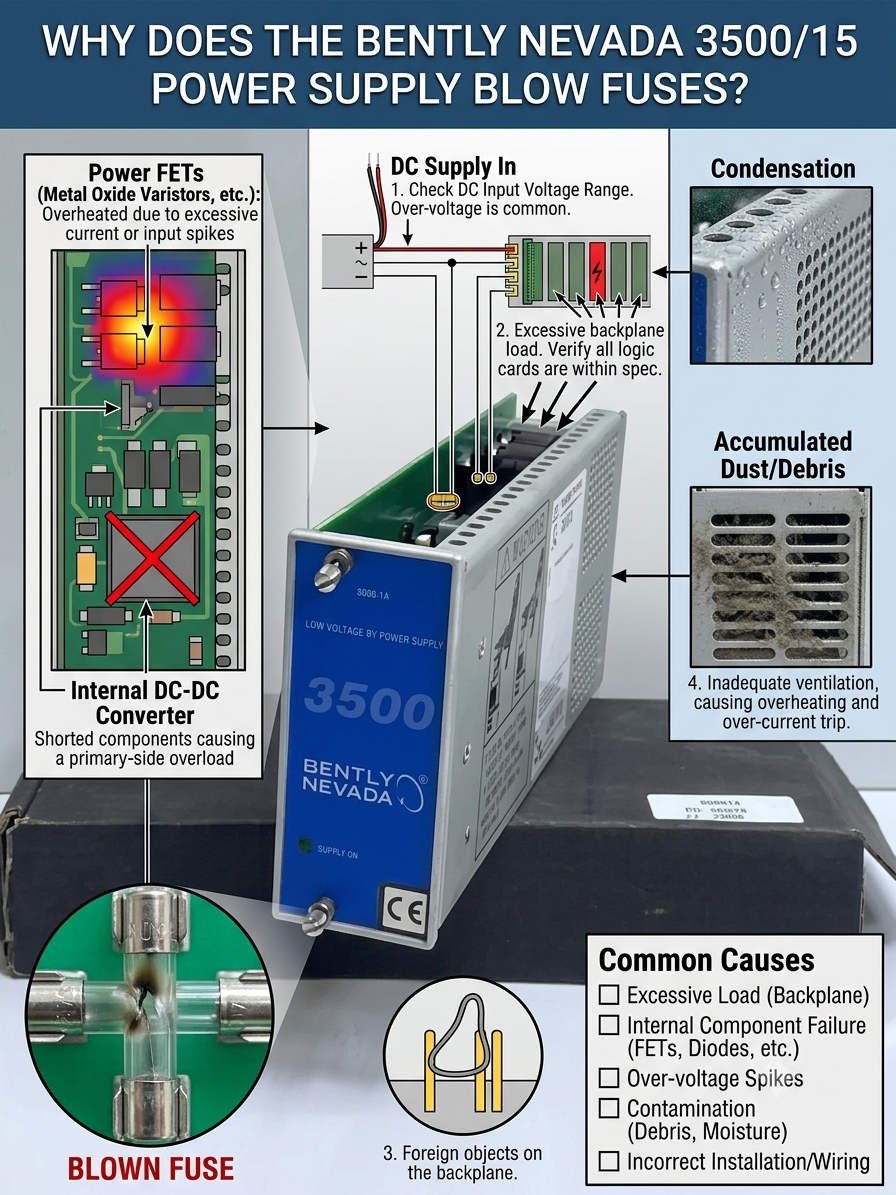

Root Causes of Persistent Fuse Blows

Most fuse failures stem from external factors rather than the supply module itself. Voltage transients, such as lightning strikes or large motor switching, often overstress internal rectifiers. In addition, aging electrolytic capacitors can increase leakage current, gradually fatiguing the fuse over several months. Furthermore, downstream faults—such as shorted backplane circuits or damaged monitoring cards—can force the supply into an overcurrent state. As a result, we recommend a systematic diagnostic approach to prevent recurring hardware damage.

Best Practices for Troubleshooting and Maintenance

Before installing a new module, perform a thorough inspection to ensure the environment is safe. Following these steps will significantly improve your diagnostic accuracy and prevent secondary failures:

• ✅ Analyze Power Quality: Use a power quality analyzer to detect voltage spikes or phase imbalances before energizing the rack.
• ⚙️ Isolate Downstream Loads: Remove all non-essential modules and reinstall them one by one to identify potential short circuits in the backplane.
• 🔧 Verify Surge Suppression: Install industrial-grade surge protection devices (SPDs) if your site experiences frequent utility switching or storm-related transients.
• 🔍 Perform Thermal Checks: Monitor internal rack temperatures to prevent the premature degradation of critical electrolytic capacitors.

Author Insights on Long-Term System Reliability

At Oiltech Controls Limited, we believe that preventive maintenance is often undervalued in industrial automation. Many users replace the 3500/15 power supply as a “quick fix” without addressing the underlying power stability. If your site operates in harsh environments like refineries or compressor stations, you must ensure your cabinet grounding meets Bently Nevada’s stringent requirements. Moreover, continuous machinery protection requires a stable power foundation; therefore, investing time in diagnostic verification is significantly more cost-effective than repetitive hardware replacement.

Frequently Asked Questions (FAQ)

Q: Can I repair the internal fuse if the power supply is out of warranty?
A: We strongly advise against board-level repair for critical protection systems. Internal fuse failure usually indicates catastrophic damage to rectifiers or capacitors, and professional refurbishment or replacement is required for system safety.

Q: Why does the fuse fail only during the startup cycle?
A: This usually indicates a failure in the inrush-limiting circuitry or an accumulation of minor short circuits in your monitoring modules that trigger a protection trip during the initial power surge.

Q: Does a redundant power supply configuration prevent fuse failures?
A: Redundancy improves availability, but it does not fix the root cause. If the incoming power quality is poor, both primary and secondary supplies will eventually experience the same failures.
