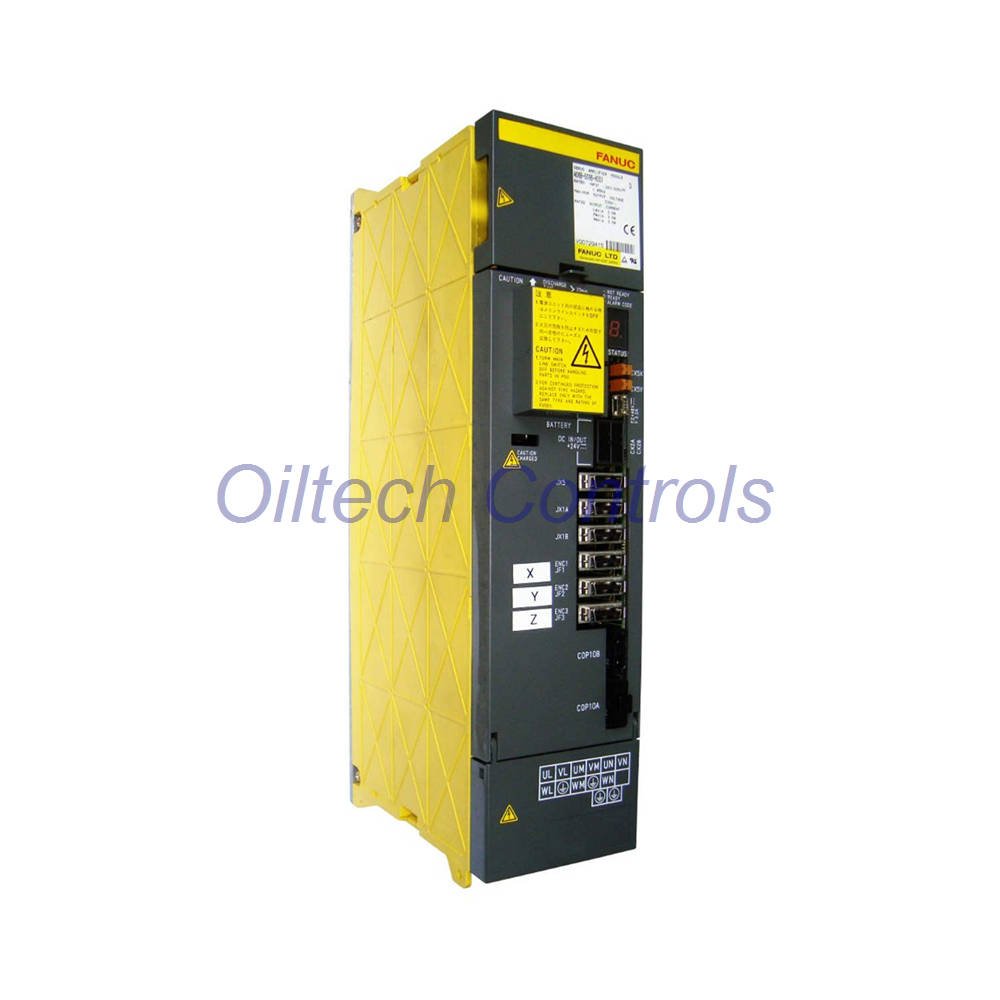

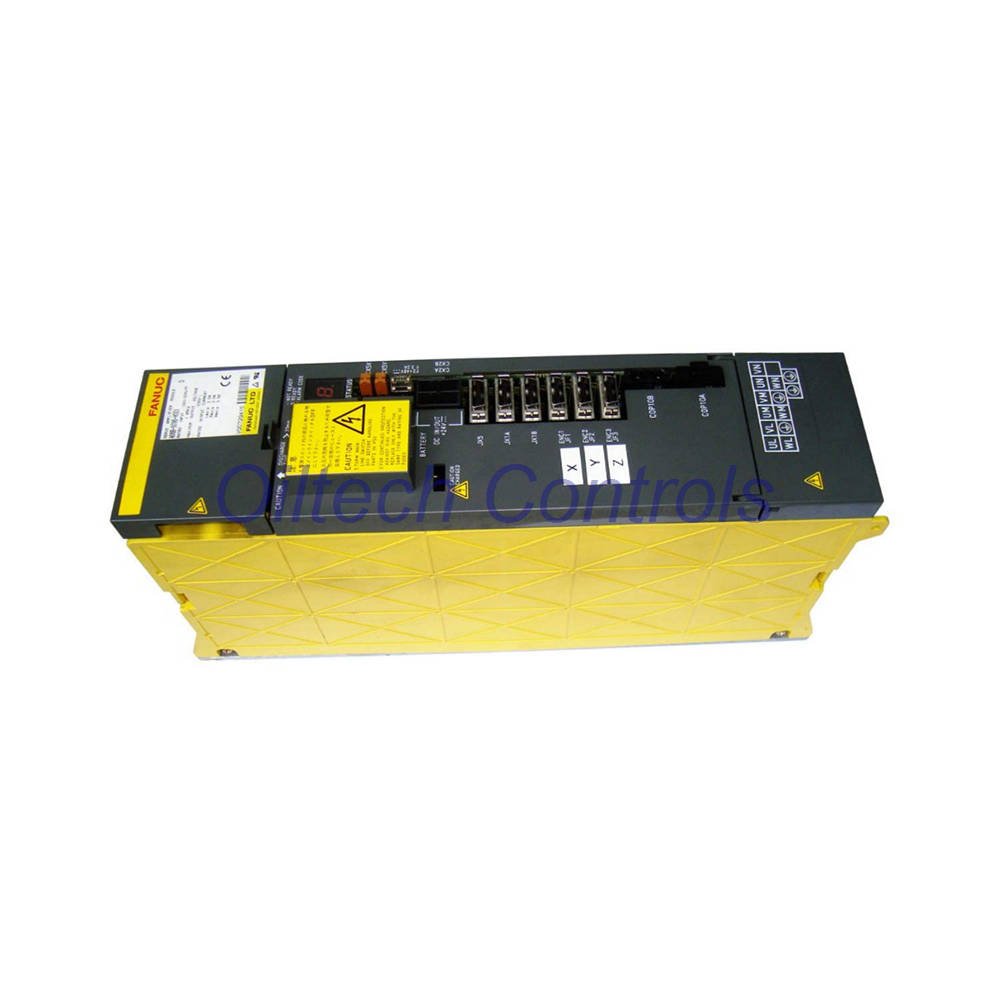

FANUC A06B-6096-H301 Servo Amplifier Module – 3 Axis, 1.85 kW, 230V Output
The FANUC A06B-6096-H301 is a 3-axis servo amplifier module built for CNC motion control. It belongs to the FANUC A06B series. This unit drives up to three axes at once. It delivers stable power for complex machining tasks.
The module accepts 283–325V input and outputs up to 230V. Its power rating reaches 1.85 kW. Each L/M/N axis carries 3A output current. A built-in fan keeps the unit cool during long cycles. The operating range spans 0 to 40°C. It withstands vibration up to 5G and works at altitudes up to 1000 meters.
Protection features include overcurrent, overvoltage, overheating, and short circuit safeguards. These protections reduce downtime risk. The design suits demanding industrial environments.
Technical Specifications
| Brand | FANUC |
| Model | A06B-6096-H301 |
| Series | A06B |
| Product Type | Servo Amplifier Module |
| Number of Axes | 3 Axes |
| Input Voltage | 283–325V |
| Output Voltage | 230V Maximum |
| Power Rating | 1.85 kW |
| L/M/N Axis Output Current | 3 Amps |
| Operating Temperature | 0 to 40°C |
| Maximum Vibration | 5G |
| Maximum Altitude | 1000 Meters Above Sea Level |
| Cooling Method | Built-In Fan |
| Weight | 22.00 lbs (9.98 kg) |
| Overcurrent Protection | Supported |
| Overvoltage Protection | Supported |
| Overheating Protection | Supported |
| Short Circuit Protection | Supported |
Measurement Range, Frequency Response, Sensitivity, Linearity, Resolution
- Measurement Range: 3-axis current control up to 3A per axis
- Frequency Response: Matched to FANUC CNC control loops
- Sensitivity: Stable at 230V output with 1.85 kW load
- Linearity: Consistent current output across 283–325V input
- Resolution: Fine axis motion resolution via servo feedback
- Temperature Range: 0 to 40°C
- Environmental Tolerance: 5G vibration, 1000m altitude
- Noise Immunity: Protected against overcurrent, overvoltage, overheating, and short circuits
Installation Guide
- Mount the module in a dry, ventilated cabinet.
- Keep ambient temperature between 0 and 40°C.
- Allow space for the built-in fan to pull air.
- Connect input lines rated for 283–325V.
- Wire L/M/N axes to the matching servo motors.
- Ground the unit properly to reduce electrical noise.
- Check all connections before powering up.
Setup and Maintenance Convenience
- Fan cooling reduces heat buildup.
- Protection circuits cut downtime risk.
- Module layout supports quick inspection.
- Standard FANUC connectors simplify replacement.
- Routine checks keep performance stable.
Compatibility Notes
The A06B-6096-H301 fits FANUC CNC systems that use the A06B amplifier family. It works with 3-axis servo setups. Always verify the control model and axis current needs before purchase. Contact us at info@oiltechcontrols.com or +86 158 8020 0923 for fitment help.
Certification Information
This module follows FANUC factory standards. It meets common industrial automation requirements. Contact us for specific certificate copies.
Packing List
- 1 x FANUC A06B-6096-H301 Servo Amplifier Module
- Protective shipping foam
- Anti-static bag
- Test report or verification note
Warranty and Shipping
Every unit includes a 12-month warranty. We ship by FedEx, UPS, and DHL. Tracking details go out after dispatch.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts
- Worldwide shipping support
- Tested surplus and refurbished options
- 12-month warranty on every order
- Technical check before shipment
- Help for obsolete control systems
Typical Applications
- CNC machining centers
- 3-axis motion control systems
- Industrial automation lines
- Legacy FANUC servo drives
- Retrofit and repair projects
Diagnostic Capability
The module supports fault detection through its protection circuits. It flags overcurrent, overvoltage, overheating, and short circuit events. These signals help engineers trace issues fast. Use FANUC diagnostics tools for deeper checks.
FAQ
Q: How many axes does this module drive?
A: It drives up to 3 axes.
Q: What is the output power?
A: The power rating is 1.85 kW.
Q: What input voltage does it need?
A: It accepts 283–325V.
Q: What is the warranty period?
A: We offer a 12-month warranty.
Q: Which couriers do you use?
A: We ship via FedEx, UPS, and DHL.
Q: Can you help with obsolete FANUC parts?
A: Yes. We support obsolete control systems. Email info@oiltechcontrols.com or message +86 158 8020 0923.
