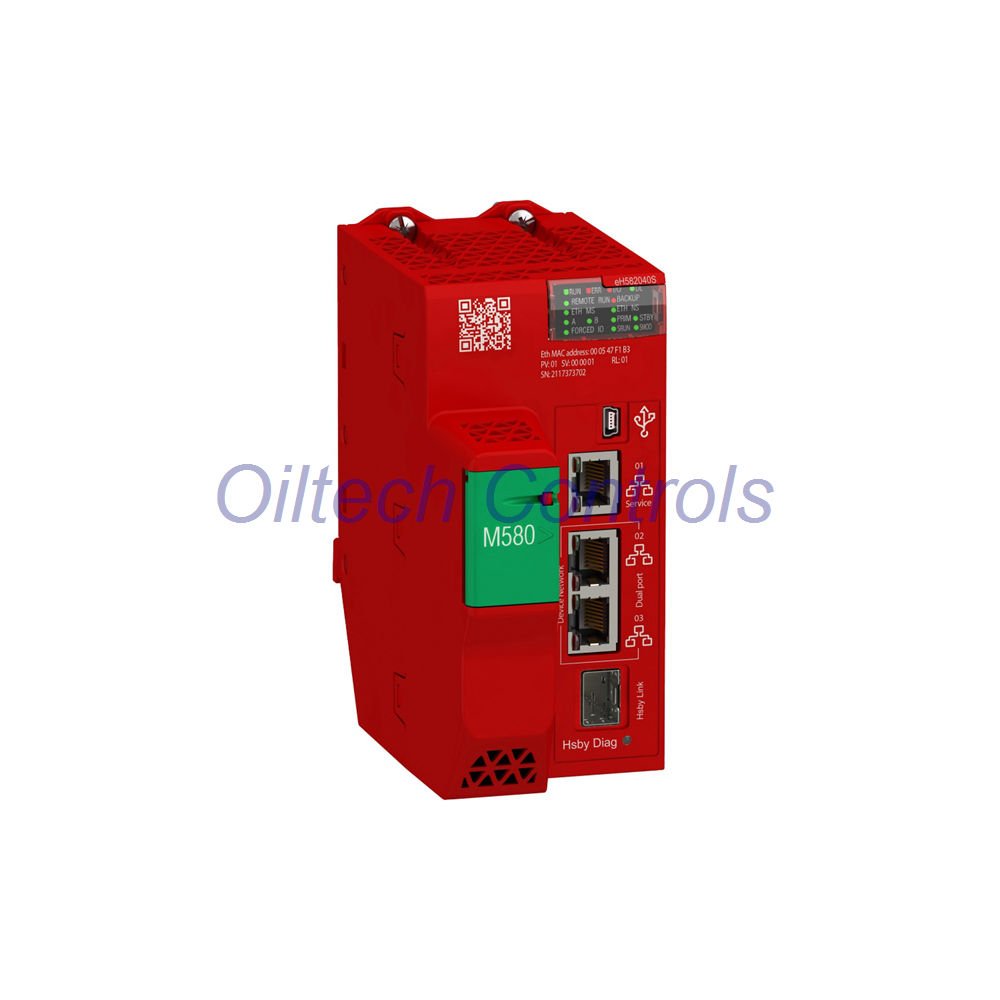

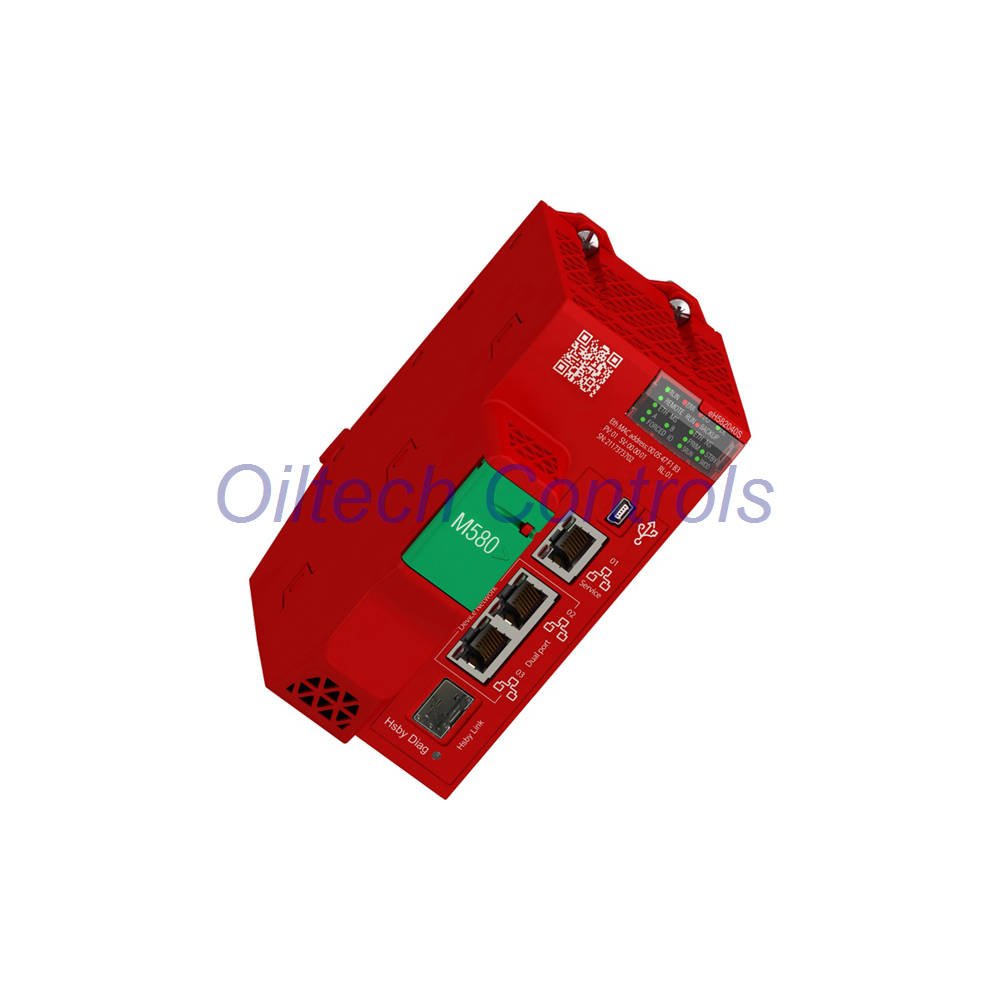

BMEH582040S Modicon M580 Redundant Hot Standby Safety CPU
BMEH582040S is a Level 2 redundant Hot Standby safety CPU from the Modicon M580 ePAC platform by Schneider Electric. It carries SIL3 / IEC 61508 safety integrity. A 600 MHz ARM dual-core processor runs redundant Hot Standby tasks. The CPU occupies 2 slots on an X80 Ethernet backplane. It replaces Quantum and Premium systems with a modern, safety-rated architecture. Conformal coating protects the board in harsh plant environments. This is the current flagship controller for process and hybrid safety loops.
Technical Data
- Brand: Schneider Electric
- Model: BMEH582040S
- Series: Modicon M580
- Type: Redundant Hot Standby Safety CPU, Level 2
- Processor: ARM dual-core, 600 MHz
- Program memory: 8 MB integrated RAM
- Data memory: 512 KB
- Safety integrity: SIL3 / IEC 61508
- Architecture: Redundant Hot Standby (HSBY)
- Slot occupation: 2 slots on X80 backplane
- Remote I/O racks: 8 X80 remote racks
- Distributed devices: 61 DIO devices
- Compatible racks: 4, 6, 8, 12 slots
- Built-in ports: 1× Ethernet service RJ45, 2× Ethernet RIO/DIO RJ45, 1× USB Mini-B
- Protocols: Modbus TCP/IP, EtherNet/IP, PROFIsafe over PROFINET
- Communication modules: BMENOC03xx, BMENOS0300, BMENOR2200, BMENUA0100
- Supply voltage: 24 V DC (19.2–31.2 V DC via backplane)
- Power consumption: 7.2 W
- Bus current: 300 mA @ 24 V DC
- Operating temperature: 0°C to +60°C
- Storage temperature: -25°C to +70°C
- Humidity: 5% to 95% non-condensing
- Protection: IP20, conformal coated
- Dimensions (H×W×D): 100 × 56 × 93 mm
- Weight: 0.849 kg
- SD card: 4 GB optional (BMXRMS004GPF)
- Software: EcoStruxure Machine Expert / Unity Pro XL
- Lifecycle: Active, introduced 2014
Oiltech Controls Insight
- Best fit for safety instrumented functions up to SIL3.
- Hot Standby pairs cut switchover time in critical loops.
- Two Ethernet RIO ports simplify ring and star topologies.
- PROFIsafe support links safety I/O over PROFINET.
- Conformal coating suits humid, dusty, or chemically exposed cabinets.
- Ideal for retrofit of aging Quantum or Premium safety systems.
Oiltech Controls Review
Engineers choose the BMEH582040S when downtime is not an option. The redundant Hot Standby design keeps the process running if one CPU fails. SIL3 rating covers emergency shutdown, burner management, and fire and gas loops. The 8 MB program memory handles large safety and control logic in one project. X80 rack compatibility protects existing I/O investments. This CPU is a practical upgrade path for legacy Modicon users.
Suitable Equipment
- Emergency shutdown (ESD) systems
- Fire and gas detection panels
- Burner management systems
- Oil and gas wellhead control
- Chemical reactor safety loops
- Power plant turbine protection
- Water treatment safety interlocks
Why Buy From Oiltech Controls?
- Over 15 years supplying industrial automation spare parts.
- Worldwide shipping through FedEx, UPS, and DHL.
- Tested surplus and refurbished units available.
- Every CPU gets a 12-month warranty.
- Technical verification before dispatch.
- Support for obsolete and legacy control systems.
- Orders ship in 24–28 hours.
Ordering and Support
- Email: info@oiltechcontrols.com
- WhatsApp: +86 158 8020 0923
- Shipping: FedEx, UPS, DHL
- Dispatch: 24–28 hours after payment
- Warranty: 12 months
Professional FAQ
Q: What safety rating does BMEH582040S carry?
A: It is rated SIL3 according to IEC 61508. This suits high-demand safety loops in process plants.
Q: How does Hot Standby work on this CPU?
A: Two CPUs run in parallel. The primary controls the process. The standby takes over automatically if the primary fails. Bumpless switchover keeps outputs stable.
Q: Can I use existing X80 racks with this CPU?
A: Yes. It supports 4, 6, 8, and 12 slot X80 Ethernet backplanes. You can keep current I/O modules and wiring.
Q: Which software should I use for programming?
A: Use EcoStruxure Machine Expert or Unity Pro XL. Both support safety and Hot Standby configuration. Choose the version matching your project standards.
Q: How do I select the right CPU for a safety retrofit?
A: Check your required SIL level, rack count, and protocol needs. The BMEH582040S fits SIL3 with up to 8 remote racks and 61 DIO devices. For smaller non-redundant jobs, a lower-cost M580 CPU may be enough.
