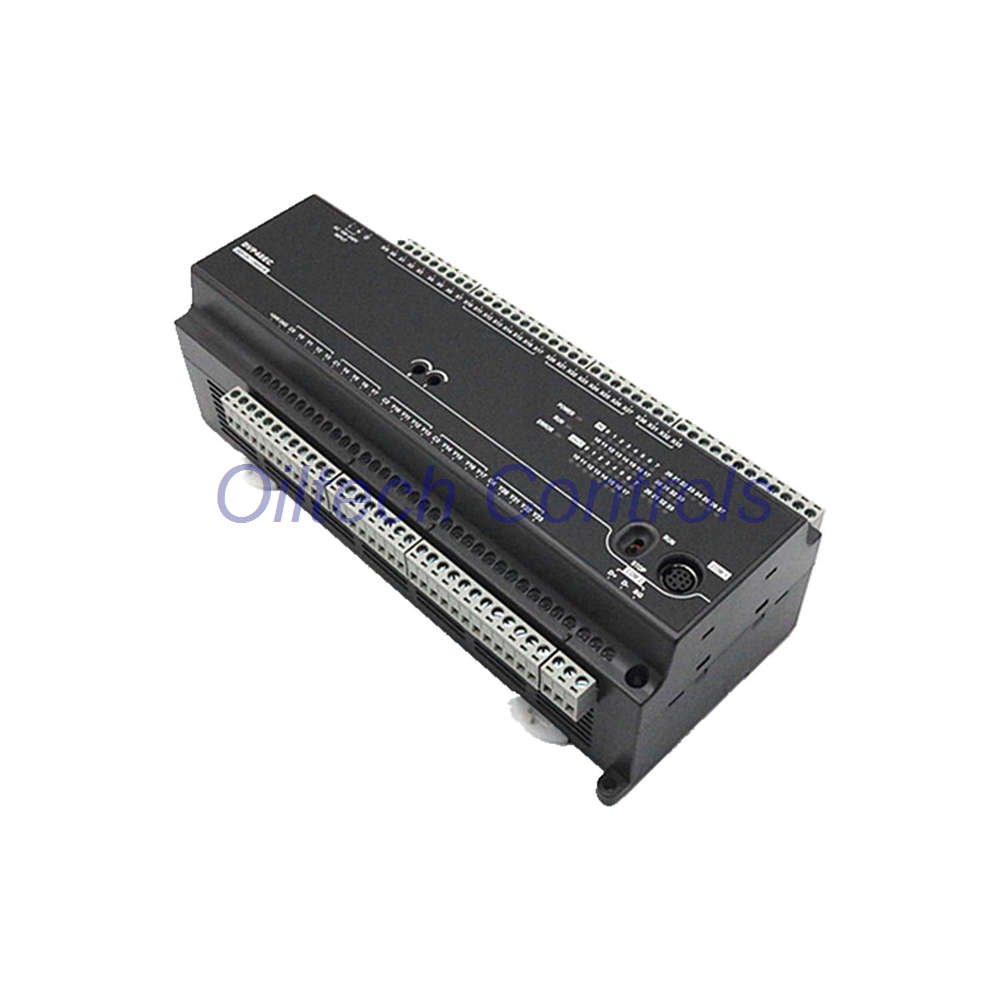

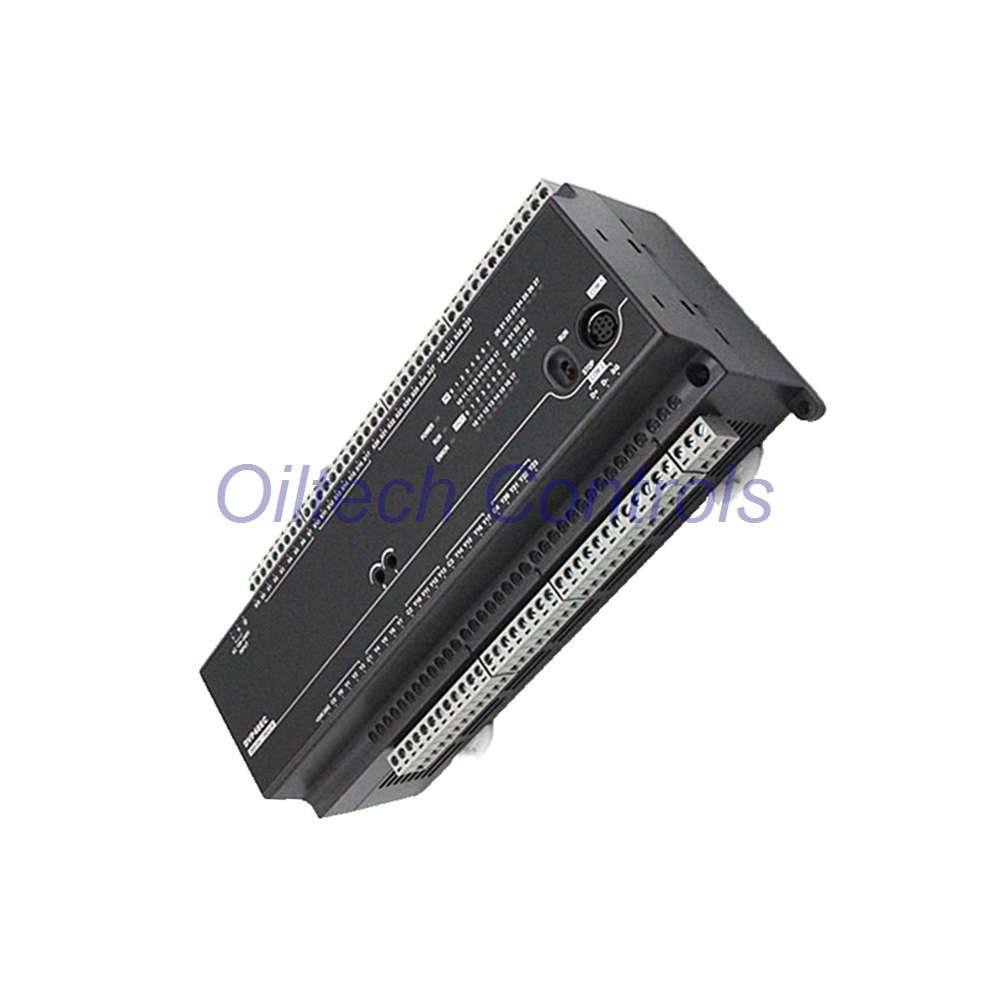

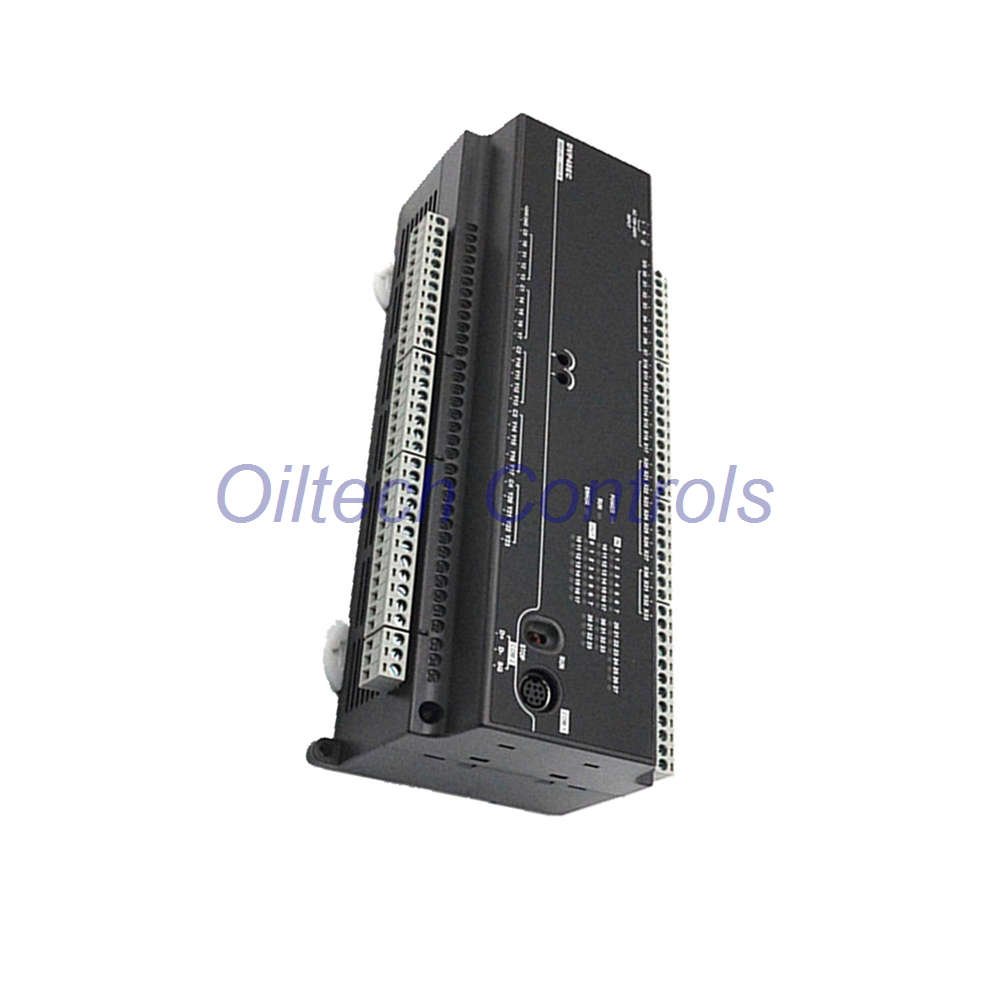

DVP40EC00T3 – DELTA EC3 Series Standard PLC (Transistor Output)

Controller Overview

DVP40EC00T3 is a standard PLC from the DELTA EC3 series.
It is a main processing unit with 40 built‑in I/O points (24 inputs, 16 outputs).
The transistor (NPN) outputs support high‑speed pulse generation up to 10 kHz on Y0 and Y1.
Program capacity is 4k steps, with built‑in RS‑232 and RS‑485 for Modbus communication.

Core Technical Features

• I/O Configuration – 24 digital inputs / 16 transistor outputs (NPN)
• Program Memory – 4k steps capacity for sequence control
• High‑Speed Pulse Output – 2 points (Y0, Y1) at max. 10 kHz
• Communication Ports – built‑in RS‑232 and RS‑485 (Modbus ASCII/RTU)
• Input Type – AC input (H type) for industrial environments
• Compatibility – supports simple RS‑485 / Modbus networking

Installation & Configuration

• Mounting – standard DIN rail or panel mounting
• Programming – use DELTA ISPSoft or WPLSoft software
• Communication Setup – RS‑232 for programming; RS‑485 for Modbus networking
• Power Supply – 24 VDC (typical for transistor output models)

Typical Applications

• Small to medium automation systems – conveyor control, packaging machinery
• Sequence control with simple RS‑485 / Modbus communication
• Positioning and speed control via high‑speed pulse outputs
• Retrofit or upgrade of existing EC3 series systems

Oiltech Controls’s Insight

“The DVP40EC00T3 offers a cost‑effective solution for small‑scale automation with reliable transistor outputs.
Its 10 kHz pulse capability makes it suitable for basic positioning tasks.
The built‑in RS‑485 port simplifies integration with Modbus networks.
We recommend this PLC for applications that require compact I/O and simple communication without sacrificing performance.”

Package, Shipping & Warranty

• Package Contents – 1x DVP40EC00T3 PLC unit (main processing unit)
• Warranty – 12 months against manufacturing defects
• Dispatch Time – 24‑28 hours after order confirmation
• Shipping Carriers – FedEx, UPS, DHL (tracking provided)

Why Buy From Oiltech Controls?

• Over 15 years in industrial automation spare parts supply
• Global shipping network – fast and reliable delivery
• Fully tested surplus and refurbished options available
• 12‑month warranty on every product
• Technical verification performed before shipment
• Expert support for obsolete and legacy control systems

Frequently Asked Questions

• Q: What is the maximum frequency for pulse outputs on Y0/Y1?
  A: The DVP40EC00T3 supports up to 10 kHz on each of the two high‑speed pulse outputs.
• Q: Can this unit communicate via Modbus RTU?
  A: Yes, the built‑in RS‑485 port supports Modbus ASCII and RTU protocols.
• Q: What software is needed to program this PLC?
  A: Use DELTA ISPSoft (preferred) or WPLSoft for programming and configuration.
• Q: What is the program capacity of this model?
  A: The DVP40EC00T3 provides 4k steps of program memory.
• Q: Is this model suitable for analog control?
  A: It is a digital I/O unit. For analog control, you would need additional expansion modules.
