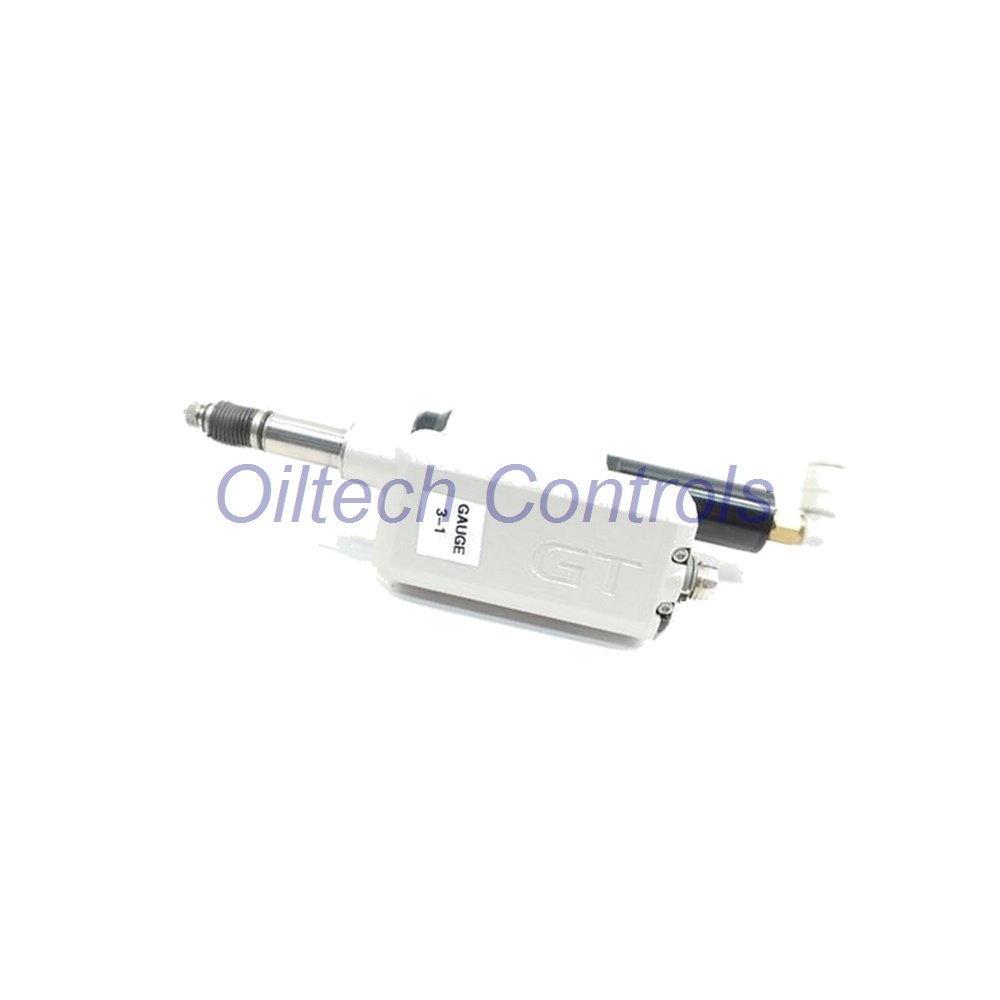

GT2-A12 Keyence Digital Contact Sensor Head – Air Push Type, 12 mm Stroke
GT2-A12 is a high-accuracy digital contact sensor head from the Keyence GT2 series. It uses the Scale Shot System with absolute detection. This design avoids tracking error. The sensor head suits precision positioning and inline measurement. It connects to a GT2 series amplifier through an M8 connector. The air push type supports stable operation in automated fixtures.
The 12 mm measuring range and 0.5 µm resolution support fine measurement tasks. The 2 µm indicated accuracy helps maintain repeatable results. The 1 ms sampling cycle supports fast production cycles. The IP67 protection rating allows use in harsh industrial environments. The GT2-A12 is active and confirmed by Keyence as of 2026-09.
Technical Specifications
| Brand | Keyence |
| Model | GT2-A12 |
| Series | GT2 series |
| Module Type | Digital contact sensor head |
| Detection System | Scale Shot System, absolute type |
| Measuring Range | 12 mm |
| Resolution | 0.5 µm |
| Indicated Accuracy | 2 µm (p-p) |
| Measuring Force Downward | 1.2 N |
| Measuring Force Side | 1.1 N |
| Measuring Force Upward | 1.0 N |
| Sampling Cycle | 1 ms |
| Frequency Response | Not available |
| Sensitivity | Not available |
| Linearity | Not available |
| Operation Indicator | 2-colour LED (red, green) |
| Fluid Used | Dry air |
| Pressure Resistance | 1 MPa |
| Applied Pressure Range | 0.25 to 0.50 MPa |
| Built-in Ports | None |
| Protocols | None |
| Communication Expansion | None |
| Supply Voltage | Powered by GT2 series amplifier |
| Power Consumption | Not available |
| Output Type | Sensor head; connects to GT2 amplifier via M8 connector |
| Operating Temperature | 0 to +55 °C, no freezing |
| Storage Temperature | Not available |
| Relative Humidity | 35 to 85 % RH, no condensation |
| Protection Rating | IP67 (IEC) |
| Dimensions (H×W×D) | Not available |
| Weight | Approx. 145 g, not including cable |
| Lifecycle | Active; official Keyence production status confirmed |
| Last Verified | 2026-09 |
Installation Guide
- Mount the GT2-A12 on a stable fixture. Keep the measuring axis aligned with the target.
- Use dry air only. Keep pressure within 0.25 to 0.50 MPa.
- Do not exceed 1 MPa pressure resistance.
- Connect the sensor head to a GT2 series amplifier using the M8 connector.
- Check the 2-colour LED for red or green operation status.
- Keep the cable free from sharp bends and heavy loads.
Debugging and Maintenance Convenience
- The absolute system needs no tracking error correction.
- The 1 ms sampling cycle helps fast setup and quick checks.
- The 2-colour LED gives clear status feedback.
- The IP67 rating supports easy cleaning in dusty or wet areas.
- Use clean, dry air to reduce contamination and wear.
- Check mounting force direction before operation.
Compatibility Notes
- Works with Keyence GT2 series amplifiers.
- Uses an M8 connector for sensor head connection.
- No built-in ports, protocols, or communication expansion.
- Suits replacement use in existing GT2-based systems.
- Verify amplifier model before ordering.
Certification Information
- IP67 (IEC) protection rating.
- Official Keyence production status confirmed.
- Compliance documents may be available on request.
Package List
- 1 x Keyence GT2-A12 sensor head
- Protective packaging
- Order confirmation and shipping documents
Warranty and Shipping
- 12-month warranty included.
- Shipping by FedEx, UPS, or DHL.
- Tracking number provided after dispatch.
- Technical verification before shipment.
Typical Applications
- Inline dimensional inspection
- Position feedback in automated fixtures
- Thickness and height measurement
- Small part presence and gap checks
- Production line quality control
- Replacement for existing GT2 sensor heads
Diagnostic Capabilities
- LED status shows red or green operation state.
- Absolute detection avoids tracking error.
- Fast sampling supports quick fault checks.
- Stable output helps isolate mounting or air pressure issues.
- Amplifier connection supports system-level diagnostics.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts.
- Global shipment support for urgent needs.
- Tested industrial surplus and refurbished options.
- 12-month warranty for added confidence.
- Technical verification before every shipment.
- Support for obsolete control systems.
FAQ
Q: What is the measuring range of the GT2-A12?
A: The measuring range is 12 mm.
Q: What resolution does the GT2-A12 offer?
A: It offers 0.5 µm resolution.
Q: What is the sampling cycle?
A: The sampling cycle is 1 ms.
Q: Does the GT2-A12 work alone?
A: No. It needs a GT2 series amplifier.
Q: What air pressure is required?
A: Use dry air at 0.25 to 0.50 MPa.
Q: What is the protection rating?
A: The rating is IP67 (IEC).
Q: What is the warranty?
A: The warranty is 12 months.
Q: How is the product shipped?
A: We ship by FedEx, UPS, or DHL.
