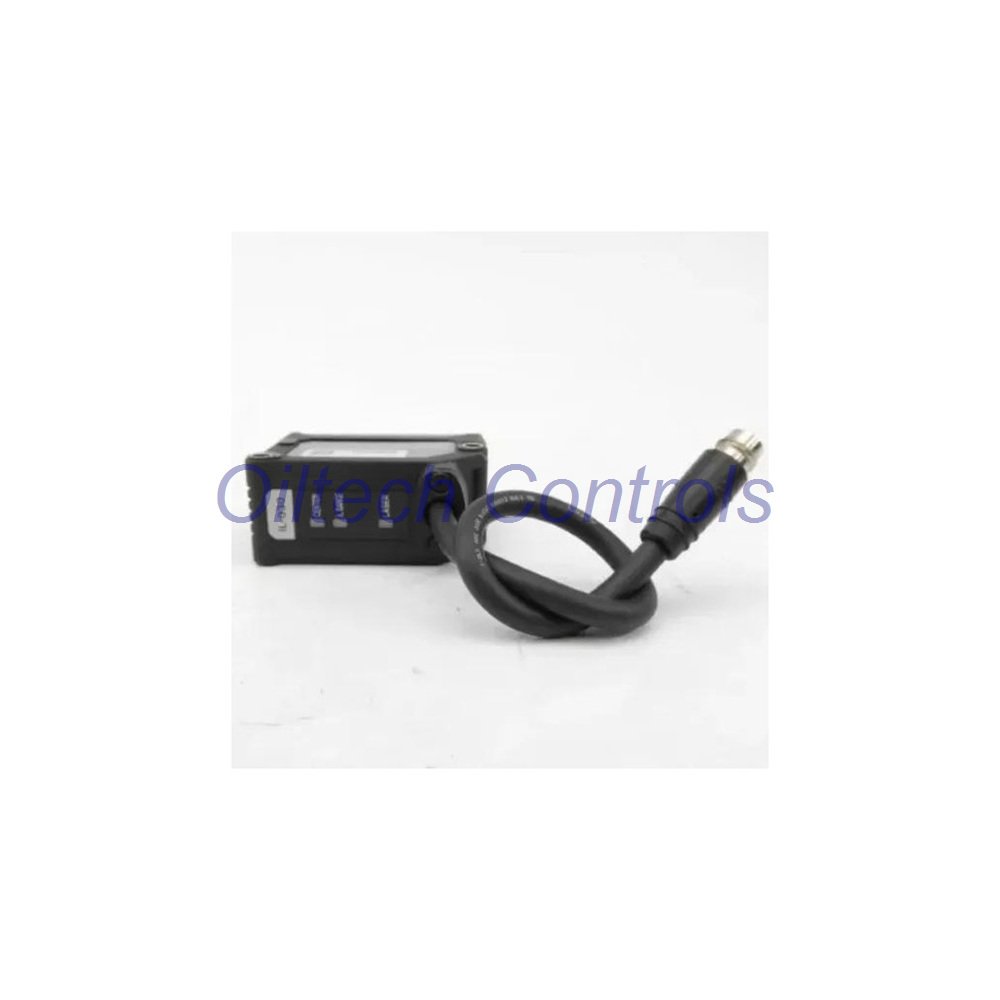

IL-100 CMOS Laser Displacement Sensor Head by Keyence
The IL-100 is a mid-range reflective CMOS laser displacement sensor head from the Keyence IL series. It uses triangulation to measure distance and position with high speed and stable repeatability.
This sensor head connects to an IL series amplifier unit. It has no built-in communication port. The amplifier handles output, protocols, and power.
Typical users include automation engineers, machine builders, and maintenance teams. The IL-100 suits inline inspection, positioning, and profile checks.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts
- Global shipment support through FedEx, UPS, and DHL
- Tested industrial surplus and refurbished options
- 12-month warranty for eligible products
- Technical verification before shipment
- Support for obsolete control systems
Questions? Email info@oiltechcontrols.com or WhatsApp +86 158 8020 0923.
Technical Specifications
| Brand | Keyence |
| Model | IL-100 |
| Series | IL series |
| Module Type | CMOS laser displacement sensor head |
| Sensor Type | Triangulation, reflective |
| Reference Distance | 100 mm |
| Measurement Range | 75 to 130 mm |
| Light Source | Red semiconductor laser, 655 nm, visible light |
| Laser Output | 560 µW |
| Laser Class | Class 2 (IEC 60825-1; FDA CDRH Part 1040.10) |
| Spot Diameter | Approx. 400 x 1,350 µm at standard distance |
| Linearity | ±0.15% of F.S. (80 to 120 mm) |
| Repeatability | 4 µm (standard white diffuse target, 1 ms sampling) |
| Sampling Rate | 0.33 / 1 / 2 / 5 ms, 4 levels selectable |
| Frequency Response | Up to 3 kHz at 0.33 ms sampling |
| Sensitivity | 4 µm repeatability on standard white diffuse target |
| Resolution | 4 µm repeatability class |
| Temperature Characteristics | 0.06% of F.S./°C |
| Operating Temperature | -10 to +50 °C, no condensation or freezing |
| Relative Humidity | 35 to 85% RH, no condensation |
| Protection Rating | IP67 |
| Weight | Approx. 75 g |
| Built-in Ports | None |
| Protocols | None |
| Communication Expansion | None |
| Supply Voltage | Powered by IL series amplifier unit |
| Power Consumption | Not available |
| Output Type | Sensor head; connects to IL amplifier |
| Dimensions | Not available |
| Lifecycle | Active; official Keyence production status confirmed |
Installation Guide
- Mount the IL-100 near the target at about 100 mm reference distance.
- Keep the beam path clear of dust, mist, and strong ambient light.
- Connect the head to a compatible IL series amplifier unit.
- Use the IP67 rating for wet or dusty cells.
- Check the spot position on the target before tightening.
- Avoid strong vibration and sharp temperature swings.
Setup and Maintenance
- Select 0.33 / 1 / 2 / 5 ms sampling based on speed needs.
- Use a standard white diffuse target for repeatability checks.
- Clean the window with a soft, dry lens cloth.
- Do not touch the optical surface with bare hands.
- Verify linearity across 80 to 120 mm after mounting.
- Keep records of repeatability and temperature drift.
Compatibility
- Works with Keyence IL series amplifier units.
- No direct communication port on the head.
- No built-in protocol support on the head.
- Output type depends on the connected amplifier.
- Not a standalone sensor; amplifier required.
- Check amplifier model before ordering.
Certifications
- Laser Class 2 per IEC 60825-1
- FDA CDRH Part 1040.10
- IP67 protection rating
- Keyence official production status confirmed
Packing List and Warranty
- 1x Keyence IL-100 sensor head
- Protective packaging
- 12-month warranty for eligible products
- Technical verification before shipment
- FedEx, UPS, and DHL shipping options
- Tracking number provided after dispatch
Typical Applications
- Inline height and thickness checks
- Part presence and position detection
- Robot guidance and pick-and-place
- Small gap and step measurement
- Profile inspection on moving lines
- Obsolete control system support
Diagnostic Capability
- Repeatability checks with white diffuse targets
- Linearity checks from 80 to 120 mm
- Sampling rate tests at 0.33 to 5 ms
- Temperature drift checks at 0.06% of F.S./°C
- Signal stability checks near reflective surfaces
- Amplifier compatibility checks before shipment
FAQ
Q: Does the IL-100 work alone?
A: No. It needs an IL series amplifier unit.
Q: What is the measurement range?
A: The range is 75 to 130 mm.
Q: What is the reference distance?
A: The reference distance is 100 mm.
Q: What is the repeatability?
A: It is 4 µm at 1 ms sampling.
Q: Is the IL-100 IP67 rated?
A: Yes. The protection rating is IP67.
Q: What shipping methods do you use?
A: We ship by FedEx, UPS, and DHL.
Q: What warranty do you offer?
A: Eligible products include a 12-month warranty.
Q: How do I contact Oiltech Controls?
A: Email info@oiltechcontrols.com or WhatsApp +86 158 8020 0923.
