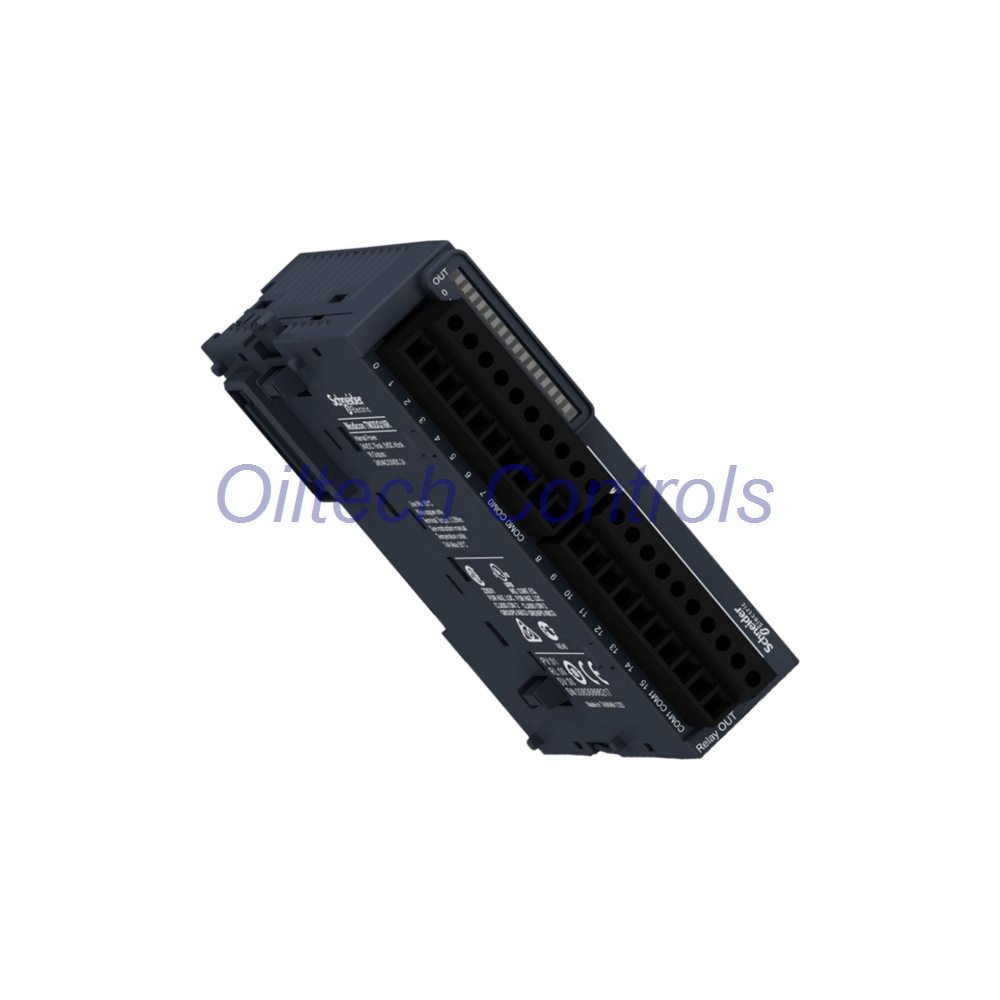

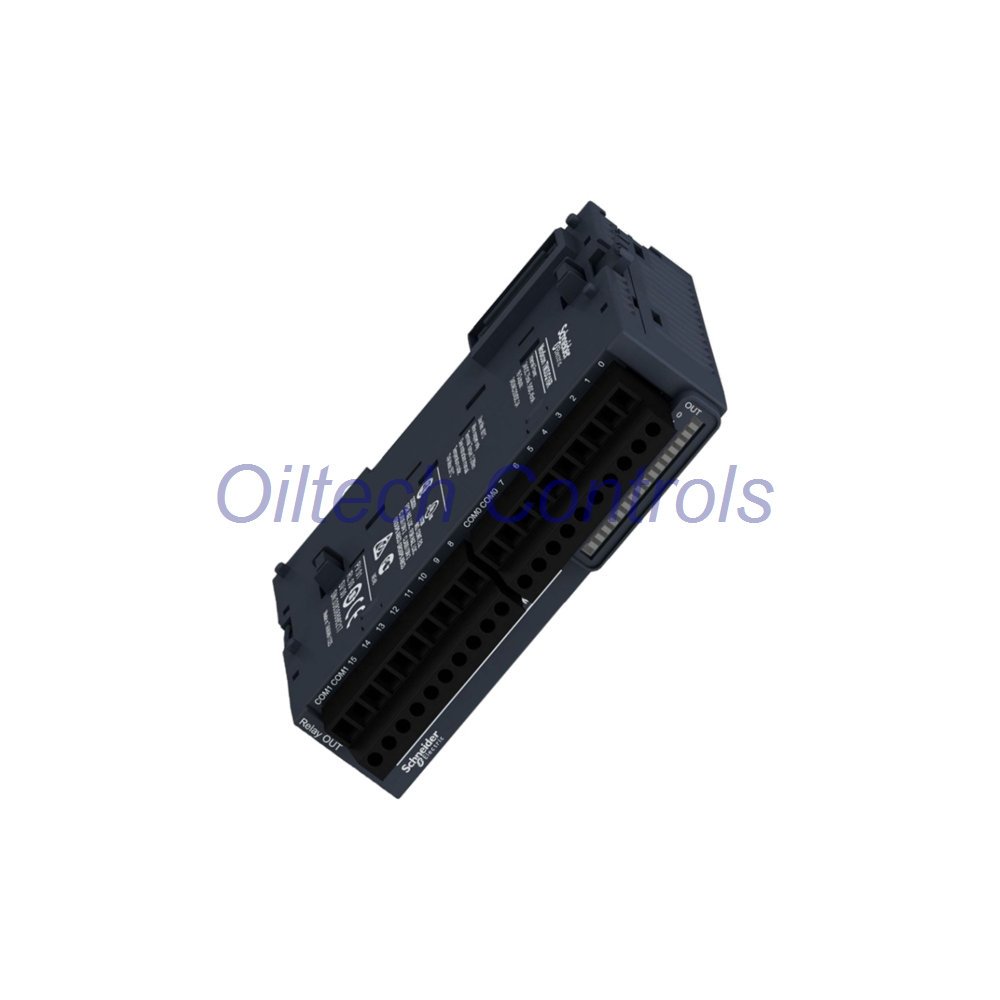

TM3DQ16R Schneider Electric Modicon TM3 Digital Output Module – 16 Relay Channels, 2 A
The TM3DQ16R is a relay digital output module in the Schneider Electric Modicon TM3 range. It gives engineers 16 normally open relay outputs. Each channel switches up to 2 A. The module works with 5–30 Vdc and 5–250 Vac loads. It fits Modicon M221, M241, M251, and M262 controllers. Use it for mixed AC and DC switching in compact cabinets. The TM3DQ16R suits machine builders who need flexible output voltage and strong isolation.
Who This Module Is For
- Machine builders using Modicon M221, M241, M251, or M262.
- Panel shops that need AC and DC load switching.
- Maintenance teams replacing relays in active lines.
- System integrators upgrading legacy M2xx or M340 PLCs.
- OEMs building compact control cabinets.
Technical Specifications
| Brand | Schneider Electric |
| Model | TM3DQ16R |
| Series | Modicon TM3 |
| Module Type | Digital output, relay |
| Channels | 16 |
| Signal Type | Relay output, NO (normally open) |
| Voltage Range | 5–30 Vdc / 5–250 Vac, max |
| Output Current | 2 A per channel, max; 7 A per common line |
| Isolation | 500 V AC output to internal logic; 1500 V AC between channel groups |
| Diagnostics | Module status, bus status |
| Response Time | Mechanical relay |
| Wiring | Removable screw terminal block, 3.81 mm pitch |
| Supply Voltage | 24 Vdc via TM3 bus |
| Bus Current | 37 mA at 5 V DC, all outputs on; 5 mA, all outputs off |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -25 to +70 °C |
| Protection Rating | IP20 |
| Dimensions | 90 × 27.4 × 84.6 mm |
| Weight | 0.11 kg |
| Compatible Platforms | Modicon M221, M241, M251, M262 |
| Lifecycle Status | Active, verified 2026-09 |
Key Ratings You Should Check
- Voltage range: 5–30 Vdc and 5–250 Vac.
- Current: 2 A per channel; 7 A per common line.
- Isolation: 500 V AC logic isolation; 1500 V AC between groups.
- Resolution: Not applicable; relay output is ON/OFF.
- Accuracy: Not applicable for relay switching.
- Frequency response: Limited by mechanical relay contacts.
Installation Notes
- Snap the module onto the TM3 bus.
- Use 24 Vdc through the TM3 bus.
- Mount inside an IP20 cabinet.
- Keep AC and DC wiring separated.
- Use the removable screw terminal block.
- Respect the 7 A common line limit.
Commissioning and Maintenance
- Check module status and bus status LEDs.
- Test each relay with the real load.
- Confirm relay life for high-cycle loads.
- Inspect screw terminals during service.
- Replace worn relays before line stops.
- Keep spare modules in a dry place.
Compatibility and System Fit
- Works with Modicon M221, M241, M251, and M262.
- Expands Modicon TM3 systems.
- Supports legacy M2xx and M340 PLC environments.
- Fits mixed AC and DC output panels.
- Suits compact machine control cabinets.
Shipping, Warranty, and Service
- 12-month warranty on every unit.
- Dispatch in 24–28 hours after order.
- Shipping by FedEx, UPS, and DHL.
- Tracking number sent after dispatch.
- Technical check before shipment.
- Global support for urgent spare parts.
Why Buy From Oiltech Controls?
- More than 15 years in industrial automation parts.
- Worldwide shipping for hard-to-find modules.
- Tested surplus and refurbished options.
- 12-month warranty for added confidence.
- Technical verification before every shipment.
- Support for obsolete control systems.
Oiltech Controls Review and Insight
- Engineers value clear relay ratings and strong isolation.
- The 3.81 mm terminal block speeds up wiring.
- Relay outputs suit AC valves, lamps, and contactors.
- Bus current is low when outputs are off.
- Good choice for mixed-voltage output panels.
- Check relay cycle life for fast switching tasks.
Typical Devices and Applications
- AC solenoid valves
- Small contactors and relays
- Indicator lamps and buzzers
- Packaging and labeling machines
- Material handling systems
- Legacy M2xx or M340 PLC upgrades
Professional FAQ
Q: Can I switch both AC and DC loads with the TM3DQ16R?
A: Yes. The relay contacts support 5–30 Vdc and 5–250 Vac. This makes the module useful for mixed panels. Always check the load current. Keep each channel at or below 2 A. Keep each common line at or below 7 A.
Q: How do I choose between the TM3DQ16R and a transistor output module?
A: Choose the relay version for AC loads or mixed voltages. Choose a transistor module for fast switching and long cycle life. The TM3DQ16R uses mechanical relays. It is better for lower switching rates and flexible load types.
Q: What should I check before installing this module in an existing M241 panel?
A: Check bus compatibility, panel space, and wiring clearance. The module is 27.4 mm wide. Confirm the 24 Vdc bus supply. Also check the 7 A common line limit. Review the existing output loads before you wire the module.
Q: Does the TM3DQ16R provide short-circuit protection?
A: No. It is a relay output module. It provides module status and bus status diagnostics. It does not provide electronic short-circuit protection. Add external fuses or breakers for load protection.
Q: How fast can I expect delivery, and what warranty applies?
A: Oiltech Controls dispatches in 24–28 hours. We ship by FedEx, UPS, and DHL. Every unit carries a 12-month warranty. We also verify the module before shipment. Contact us for stock and lead time.
