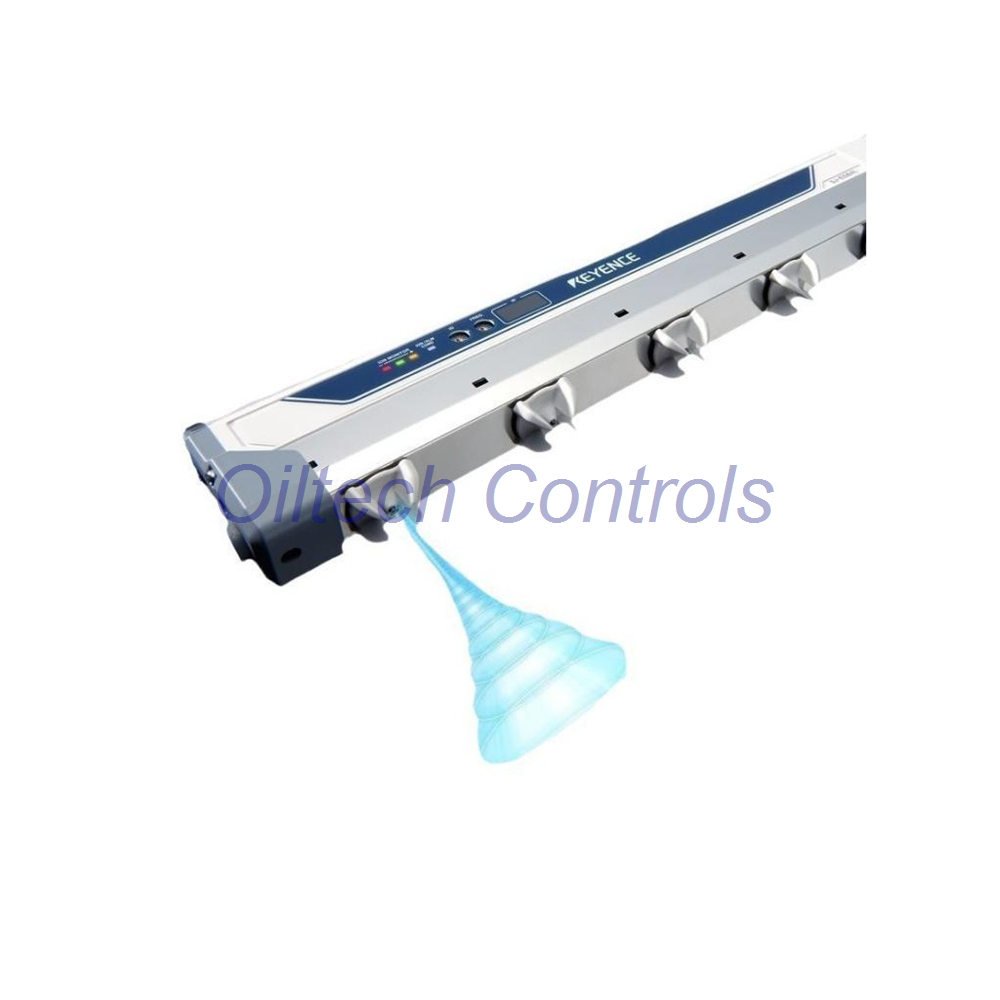

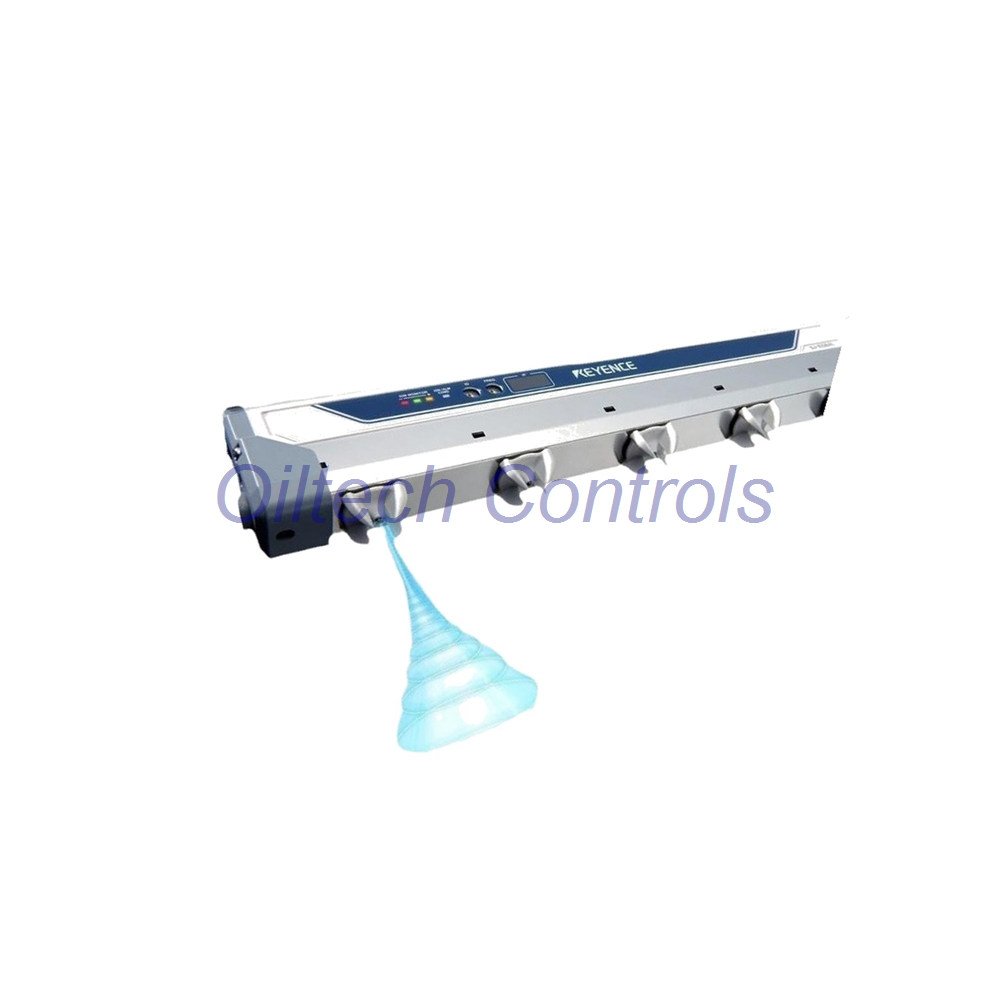

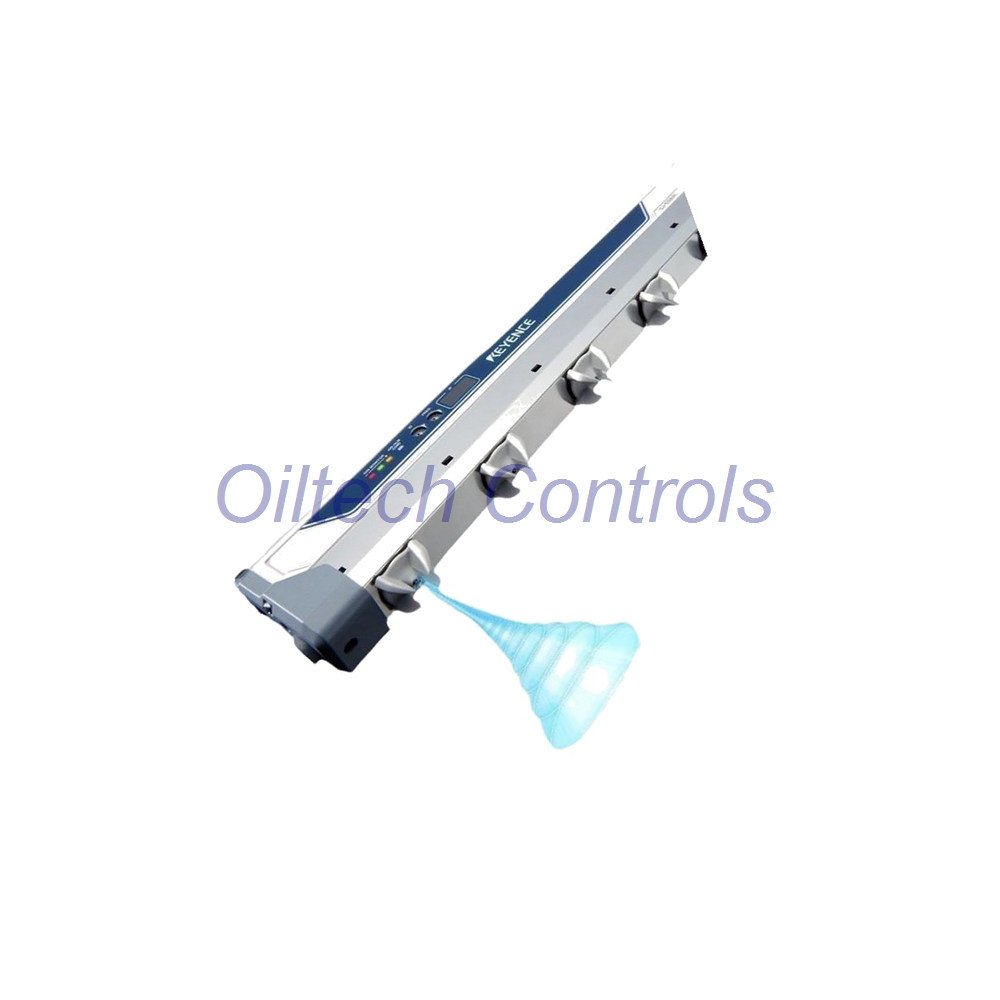

SJ-E036H Keyence SJ-E Series Bar-Type Static Eliminator | High-End Pulse AC Ionizer
Model SJ-E036H is a high-end bar-type static eliminator from the Keyence SJ-E series. It uses corona discharge with a pulse AC method. The unit applies ±8000 V and controls ion balance with the Hi-Power I.C.C. method. It suits industrial lines that need stable static removal over a long range.
This ionizer has 9 electrodes and an effective length of 420 mm. The total body length is 350 mm. It works at an installation distance of 50 to 2000 mm. The shockless resistive coupling structure helps protect operators and nearby parts.
Keyence SJ-E036H is an active model. Official Keyence production status is confirmed. Last verified: 2026-09. Oiltech Controls supplies tested industrial surplus and refurbished options for automation users who need fast replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Keyence |
| Model | SJ-E036H |
| Series | SJ-E series |
| Product type | Bar-type static eliminator, high-end model |
| Ion generation | Corona discharge method |
| Structure | Shockless resistive coupling type |
| Voltage application | Pulse AC method, ±8000 V |
| Ion balance control | Hi-Power I.C.C. method |
| Ion balance | ±30 V at 300 mm or more, 0.2 MPa air pressure |
| Installation distance | 50 to 2000 mm |
| Number of electrodes | 9 |
| Effective length | 420 mm at 50 mm static elimination range |
| Total length | 350 mm |
| Supply voltage | 24 to 36 VDC ±10% |
| Current consumption | 700 mA at 24 V, 500 mA at 36 V |
| Output type | NPN open collector: ion level warning, condition warning, alarm output |
| Control input | Static elimination stop input, NPN open collector or contact point |
| Control output | NPN open collector, 100 mA maximum, 40 VDC or less |
| Air connection port | Rc 1/8 |
| Air supply pressure | 0.1 to 0.5 MPa, recommended 0.2 MPa |
| Overvoltage category | I |
| Pollution degree | 2 |
| Operating temperature | 0 to +40 °C |
| Relative humidity | 35 to 85 % RH, no condensation |
| Protection rating | Not available |
| Dimensions | Not available, total length 350 mm |
| Weight | 0.68 kg |
| Electrode probe material | Tungsten |
| Main body material | ABS, PBT, PP, LCP, PPS, SPS, SUS |
| Built-in ports | None |
| Protocols | Remote control communication |
| Communication expansion | None |
| Lifecycle | Active; official Keyence production status confirmed |
Performance and Diagnostic Capabilities
- Ion balance: ±30 V helps keep charge stable on sensitive parts.
- Long reach: Works from 50 to 2000 mm, so mounting is flexible.
- Wide bar coverage: 420 mm effective length covers broad webs and trays.
- Stable discharge: ±8000 V pulse AC supports strong ion output.
- Status alerts: NPN outputs report ion level, condition, and alarm states.
- Remote control: Supports remote control communication for line integration.
- Stop input: Static elimination stop input allows safe line control.
- Diagnostics: Alarm output helps operators find ion faults fast.
- Air assist: Rc 1/8 port supports air pressure from 0.1 to 0.5 MPa.
- No protection rating: Install in clean, dry control areas.
Typical Applications
- Film and sheet converting lines
- Labeling and printing equipment
- Packaging and bag-making machines
- Plastic injection and molded part handling
- Electronics assembly and PCB handling
- Web feeding, winding, and slitting systems
- Clean rooms with static-sensitive parts
- Automated cells that need remote ion control
Installation Guide
- Mount the bar at 50 to 2000 mm from the target surface.
- Keep the bar parallel to the material path for even ion coverage.
- Use the Rc 1/8 port for clean, dry air.
- Set air pressure between 0.1 and 0.5 MPa.
- Use 0.2 MPa for the rated ion balance condition.
- Connect 24 to 36 VDC ±10% power with correct polarity.
- Wire NPN outputs to the machine control circuit.
- Connect the stop input for safe static elimination control.
- Ground the machine frame to reduce noise and charge buildup.
- Check the installation distance after any line change.
Setup and Maintenance Convenience
- Remote control communication reduces manual setup time.
- Alarm output supports fast fault finding during production.
- Ion level warning helps users plan cleaning and service.
- Condition warning shows changes in ion output.
- Tungsten electrodes resist wear in continuous use.
- Clean electrodes with soft tools and approved solvents only.
- Check air supply for oil, water, and dust before use.
- Inspect the bar after line stops or material jams.
- Replace worn parts with compatible SJ-E series parts.
- Keep records of alarm codes for faster service.
Compatibility Notes
- Works with Keyence SJ-E series static eliminator systems.
- Supports remote control communication where the host controller allows it.
- No built-in communication ports are available on the bar.
- No communication expansion is available on this model.
- NPN open collector I/O fits many industrial PLC input circuits.
- Check host input type before wiring NPN outputs.
- Use a stable 24 to 36 VDC supply for best results.
- Contact Oiltech Controls for obsolete control system support.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts.
- Global shipment support for hard-to-find parts.
- Tested industrial surplus and refurbished options are available.
- 12-month warranty on eligible products.
- Technical verification before shipment helps reduce downtime risk.
- Support for obsolete control systems keeps old lines running.
- Fast quotes: Email info@oiltechcontrols.com.
- Quick contact: Message +86 158 8020 0923 on WhatsApp.
Shipping and Delivery
- FedEx: Fast global delivery for urgent spare parts.
- UPS: Reliable door-to-door industrial shipping.
- DHL: Strong coverage for international automation buyers.
- Tracking details are shared after dispatch.
- Shipping time depends on stock, customs, and destination.
- Contact us for expedited options before ordering.
Packaging List and Warranty
- 1x Keyence SJ-E036H bar-type static eliminator.
- Protective packing for safe transport.
- Test report or verification record where available.
- Commercial invoice and packing list.
- 12-month warranty on eligible products.
- Warranty covers defects under normal use.
- Warranty does not cover misuse, water damage, or unauthorized repair.
- Contact info@oiltechcontrols.com for warranty support.
Certification and Compliance Notes
- Official certification details are not listed in the source data.
- Confirm local rules before installation.
- Overvoltage category: I.
- Pollution degree: 2.
- Protection rating: Not available.
- Use in dry, clean, and controlled areas.
- Ask Oiltech Controls for document support.
FAQ
Q: What is the model number?
A: The model is SJ-E036H from Keyence.
Q: Which series does it belong to?
A: It belongs to the Keyence SJ-E series.
Q: What is the ion generation method?
A: It uses the corona discharge method.
Q: What voltage does it apply?
A: It applies ±8000 V with a pulse AC method.
Q: How many electrodes does it have?
A: It has 9 electrodes.
Q: What is the effective length?
A: The effective length is 420 mm at 50 mm.
Q: What is the installation distance?
A: The range is 50 to 2000 mm.
Q: What is the ion balance?
A: It is ±30 V at 300 mm or more and 0.2 MPa.
Q: What power supply is needed?
A: Use 24 to 36 VDC ±10%.
Q: What is the current consumption?
A: It draws 700 mA at 24 V and 500 mA at 36 V.
Q: What output type does it use?
A: It uses NPN open collector outputs.
Q: What air port does it use?
A: It uses an Rc 1/8 air connection port.
Q: What air pressure is recommended?
A: Use 0.1 to 0.5 MPa, with 0.2 MPa recommended.
Q: What is the operating temperature?
A: The range is 0 to +40 °C.
Q: What is the weight?
A: The weight is 0.68 kg.
Q: What material are the electrodes?
A: The electrode probe material is tungsten.
Q: Does it have built-in communication ports?
A: No. It has no built-in ports.
Q: Does it support remote control?
A: Yes. It supports remote control communication.
Q: Is it still active?
A: Yes. It is active and official production status is confirmed.
Q: How do I contact Oiltech Controls?
A: Email info@oiltechcontrols.com or message +86 158 8020 0923 on WhatsApp.
