Troubleshooting the Modicon PC-E984-385: Can You Still Communicate When the Ready LED is OFF?

The Enduring Role of Modicon 984 in Legacy Industrial Automation

The Modicon PC-E984-385 remains a vital component in legacy industrial automation systems, particularly within the petrochemical and manufacturing sectors. This controller provides deterministic logic execution and high protocol reliability. However, engineers often face a dilemma when the Ready LED turns off. While this indicator signals the CPU execution status, it does not always mean the system has lost serial communication capabilities. Understanding this nuance prevents costly, unnecessary hardware replacements.

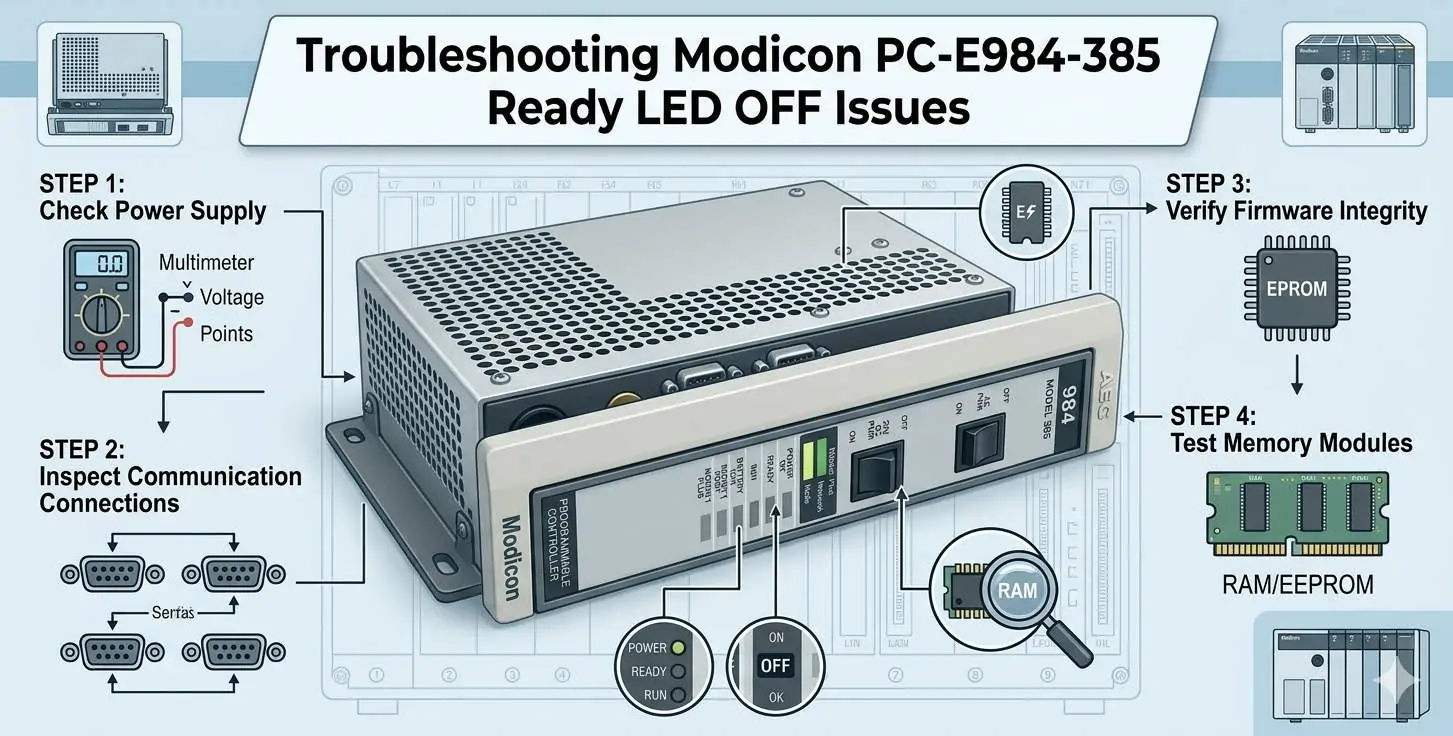

Troubleshooting Modicon PC-E984-385 Ready LED OFF Issues
Troubleshooting Modicon PC-E984-385 Ready LED OFF Issues

CPU Execution State vs. Physical Layer Communication

The “Ready” light specifically monitors the internal CPU health and program execution. If the LED is OFF, the controller might be in STOP mode or experiencing a non-fatal fault. However, the physical serial port often remains active. Therefore, maintenance teams can still access the Modbus RTU or programming port to extract diagnostic data. Only a total hardware crash or a watchdog timeout will completely sever the communication link between the PLC and the operator interface.

Serial Protocol Stability and Firmware Tasking

Modern factory automation depends on consistent data flow. The PC-E984-385 handles Modbus communication as a background task. Even when logic execution stops, the firmware often keeps the communication stack alive. This architectural separation allows engineers to perform memory inspections or remote recoveries during a fault state. Consequently, maintaining a serial connection helps reduce the Mean Time to Repair (MTTR) in complex process plants.

Impact of Backplane Integrity and Power Stability

Voltage instability across the backplane can trigger a CPU fault, turning the Ready LED off. Since the communication port often draws power independently from the CPU logic core, it might stay functional. At Oiltech Controls Limited, we have observed that many “failed” CPUs are actually victims of poor module seating or I/O bus errors. Moreover, retrieving fault codes via serial before cycling power is essential for identifying the root cause of intermittent failures.

Field Maintenance Strategies for Legacy Modicon Systems

When the Ready LED fails to illuminate, do not cycle the power immediately. First, attempt to connect via Modbus or specialized programming software. Power cycling often wipes volatile fault registers, making transient issues impossible to trace. In high-noise environments, ensure your RS-485 or RS-232 lines utilize single-point grounding. In addition, periodically re-seating modules in vibration-heavy racks can prevent false “Ready OFF” conditions caused by poor contact.

Expert Analysis from Oiltech Controls Limited

As specialists in control system continuity, Oiltech Controls Limited recognizes that legacy hardware requires a strategic diagnostic approach. The Modicon 984 series is incredibly robust; however, its age means that environmental factors like EMI and mechanical vibration now pose higher risks. We recommend using isolated converters for all long-distance serial runs. If you are struggling with legacy system reliability, our team can provide the hardware and technical expertise needed to keep your facility running.

Discover our full range of Modicon solutions and technical support by visiting Oiltech Controls Limited today.

Technical Diagnostic Checklist

  • ✓ Check Serial Link: Always test Modbus connectivity before assuming hardware failure.
  • ✓ Register Analysis: Read the CPU status words to distinguish between STOP mode and fatal errors.
  • ✓ Verify Grounding: Ensure shield integrity to prevent EMI-induced CPU trips.
  • ✓ Mechanical Audit: Inspect locking clips and backplane pins for signs of wear or oxidation.

Frequently Asked Questions (FAQ)

Q1: If the Ready LED is OFF but I can still communicate, what is the most likely cause?
Usually, this indicates the CPU is in a “Halt” or “Stop” state due to a software error or a manual command. It proves the hardware is likely healthy, but the logic is not executing. You should check the error logs to see if an I/O mismatch or a logic overflow occurred.

Q2: Is the PC-E984-385 compatible with modern M580 or M340 platforms?
Not natively. While they share the Modicon heritage, the architectures are very different. You will need a Modbus gateway or a protocol converter to bridge the legacy 984 system with modern Ethernet-based DCS platforms.

Q3: How does EMI specifically affect the “Ready” status in older PLC models?
Legacy controllers lack the advanced filtering of modern units. High-frequency noise from nearby VFDs can enter the backplane, causing the CPU to enter a fault state as a safety measure. The “Ready” light goes off to protect the process from unpredictable logic execution.

Industrial Solution Scenario

In a large-scale chemical refinery, a PC-E984-385 controller suddenly dropped its Ready status. Rather than replacing the unit, the technician connected via the serial port and identified a “Low Battery” fault that had corrupted a specific memory register. By maintaining communication, the team restored the program and avoided six hours of unplanned downtime and the cost of a new CPU module.
