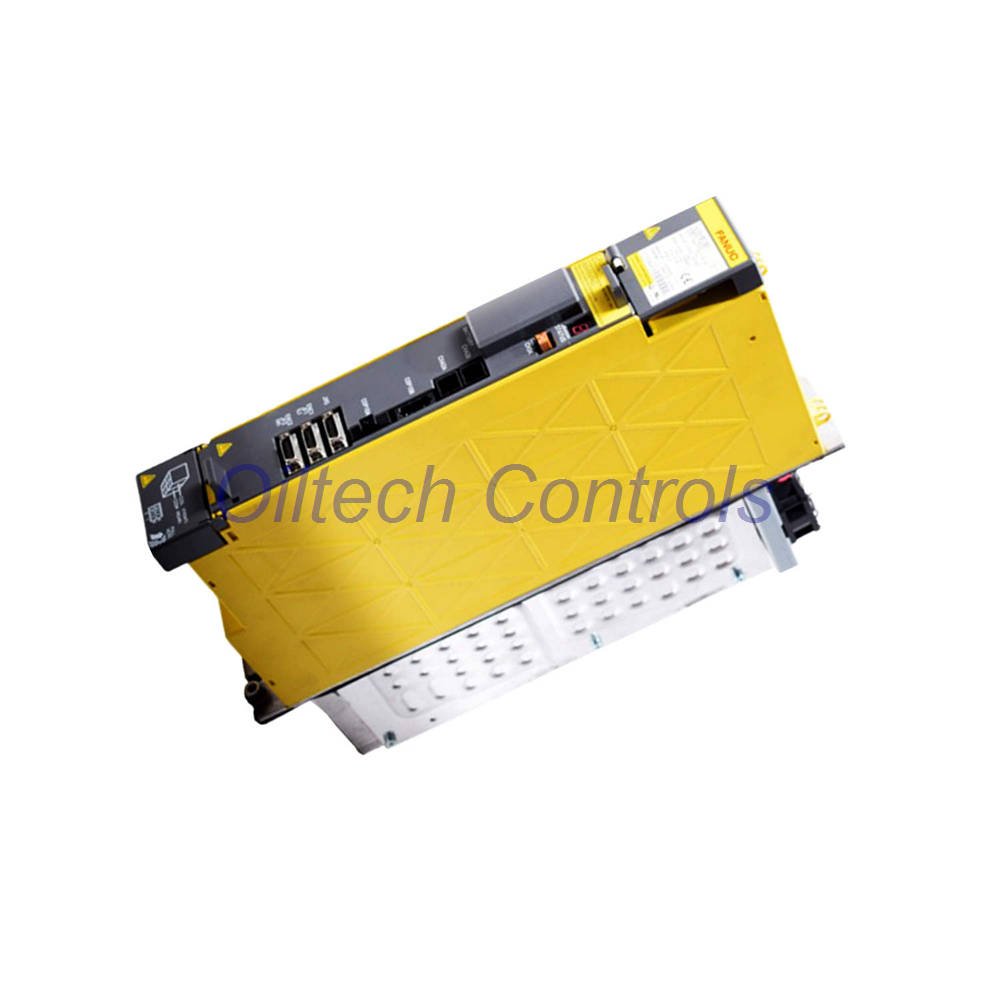

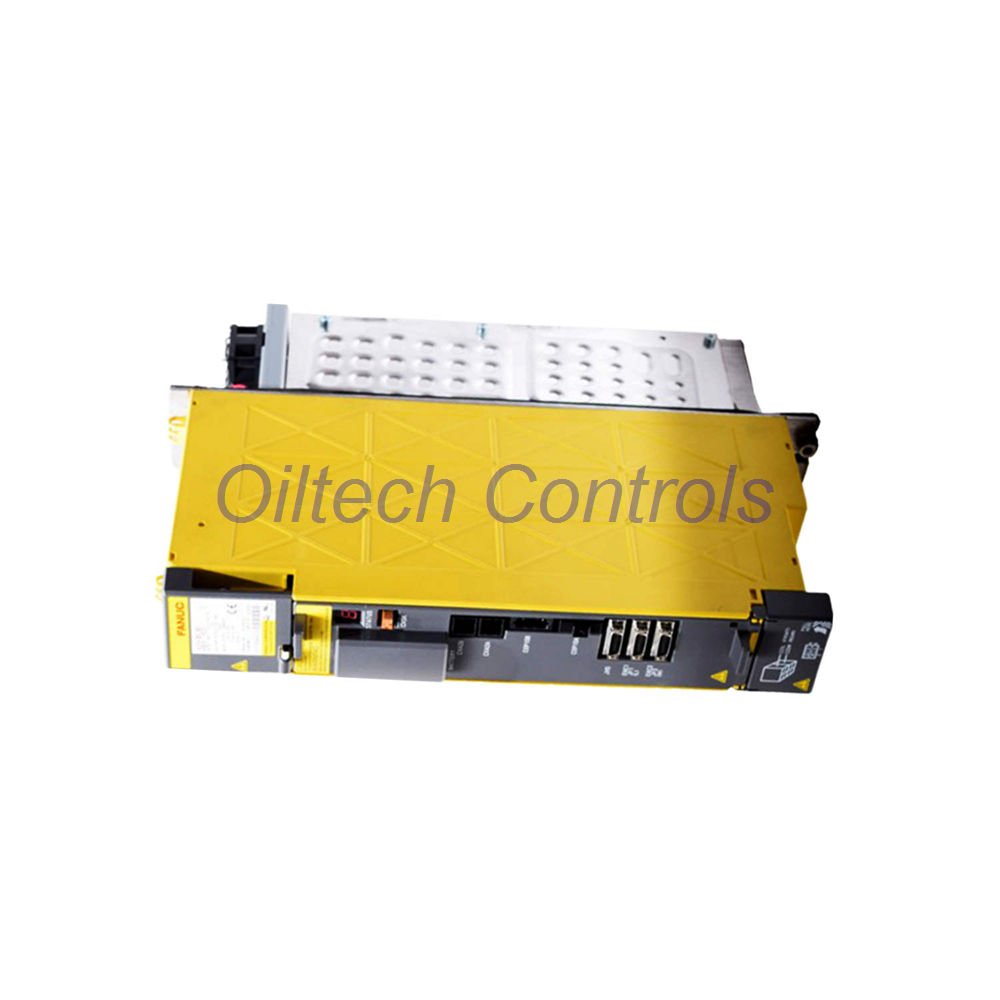

FANUC A06B-6117-H209 Servo Amplifier Module
The A06B-6117-H209 is a FANUC servo amplifier module from the A06B series. This unit drives L-axis and M-axis motors in demanding motion systems. It runs from 0°C to 55°C. Moreover, it handles 90% RH or less without condensation. Output voltage is 200–240 VAC. In addition, output frequency reaches 0.1–800 Hz. Rated output current is 19A per axis. Besides that, input voltage is 283–339 VDC. Rated input power is 11 kW. Also, input frequency is 50/60 Hz. The module weighs about 11.34 kg. Therefore, it suits CNC, robotics, and factory automation systems.
Technical Specifications
| Brand | FANUC |
| Model | A06B-6117-H209 |
| Series | A06B |
| Product Type | Servo Amplifier Module |
| Output Voltage | 200–240 VAC |
| Output Frequency | 0.1–800 Hz |
| Rated Output Current | 19A L-axis, 19A M-axis |
| Input Voltage | 283–339 VDC |
| Rated Input Power | 11 kW |
| Input Frequency | 50/60 Hz |
| Min. Operating Temp. | 0°C |
| Max. Operating Temp. | 55°C |
| Ambient Humidity | 90% RH or less, no condensation |
| Weight | 11.34 kg / 25.00 lbs |
Core Performance Data
- Measurement Range: Voltage and current cover typical industrial servo loads.
- Frequency Response: 0.1–800 Hz supports fast motion cycles.
- Sensitivity: Stable response across low and high frequency bands.
- Linearity: Smooth output control supports precise positioning.
- Resolution: Fine command resolution for complex motion profiles.
- Temperature Range: 0°C to 55°C for factory floors.
- Environmental Resistance: 90% RH max, no condensation.
- Noise Immunity: Built for industrial electrical environments.
Installation Guide
First, mount the A06B-6117-H209 in a clean control cabinet. Then, keep airflow clear around the module. Next, use the correct 283–339 VDC input. After that, connect L-axis and M-axis cables firmly. Also, check grounding before power-up. In addition, set input frequency to 50/60 Hz. Finally, confirm output voltage is 200–240 VAC. Meanwhile, avoid condensation during installation. Furthermore, follow FANUC wiring diagrams for pinouts.
Commissioning and Maintenance
- Verify DC link voltage before first start.
- Check output current on both axes.
- Monitor heatsink temperature during test runs.
- Clean dust from vents at regular intervals.
- Inspect cable shields for noise issues.
- Replace worn fans before overheating occurs.
These steps simplify debugging and extend module life. As a result, the design supports fast fault finding in CNC and robot cells. Therefore, maintenance teams can reduce unexpected downtime.
Compatibility
The A06B-6117-H209 fits FANUC A06B series servo systems. It works with compatible FANUC drives and controls. Also, it supports L-axis and M-axis motor channels. Moreover, it suits legacy and current industrial platforms. However, always confirm part numbers before replacement. Consequently, this reduces mismatch risk during retrofits.
Certification and Quality
Oiltech Controls supplies tested industrial surplus and refurbished options. Each unit undergoes technical verification before shipment. This process checks key parameters and safety points. In addition, it helps confirm reliable operation after installation. Therefore, buyers get consistent quality for critical repairs.
Packing List
- 1 x FANUC A06B-6117-H209 Servo Amplifier Module
- 1 x Protective packing set
- 1 x Test record or condition note
- 1 x Order documentation
Warranty and Shipping
All units include a 12-month warranty. We ship by FedEx, UPS, and DHL. Also, tracking is provided after dispatch. Moreover, packing follows export standards for heavy industrial parts. Therefore, delivery is traceable and secure.
Typical Applications
- CNC machining centers
- Industrial robots
- Automated production lines
- Motion control panels
- Legacy FANUC servo systems
Diagnostic Capability
The module supports fault tracing through drive alarms. For example, technicians can check input voltage, output current, and frequency response. As a result, this helps isolate power, cable, or motor issues. Therefore, it reduces downtime in complex automation cells. In addition, clear alarm codes speed up repair decisions.
Why Buy From Oiltech Controls?
- More than 15 years in industrial automation spare parts.
- Worldwide shipping support for urgent repairs.
- Tested industrial surplus and refurbished options.
- 12-month warranty on eligible products.
- Technical verification before every shipment.
- Support for obsolete control systems.
Inquiries: info@oiltechcontrols.com or +86 158 8020 0923.
FAQ
Q: What is the output voltage?
A: It is 200–240 VAC.
Q: What is the rated output current?
A: It is 19A for L-axis and 19A for M-axis.
Q: What input voltage is required?
A: The input is 283–339 VDC.
Q: What is the operating temperature range?
A: It is 0°C to 55°C.
Q: Does it include a warranty?
A: Yes. It includes a 12-month warranty.
Q: Which couriers do you use?
A: We use FedEx, UPS, and DHL.
Q: Can you support obsolete FANUC systems?
A: Yes. Oiltech Controls supports obsolete control systems.
