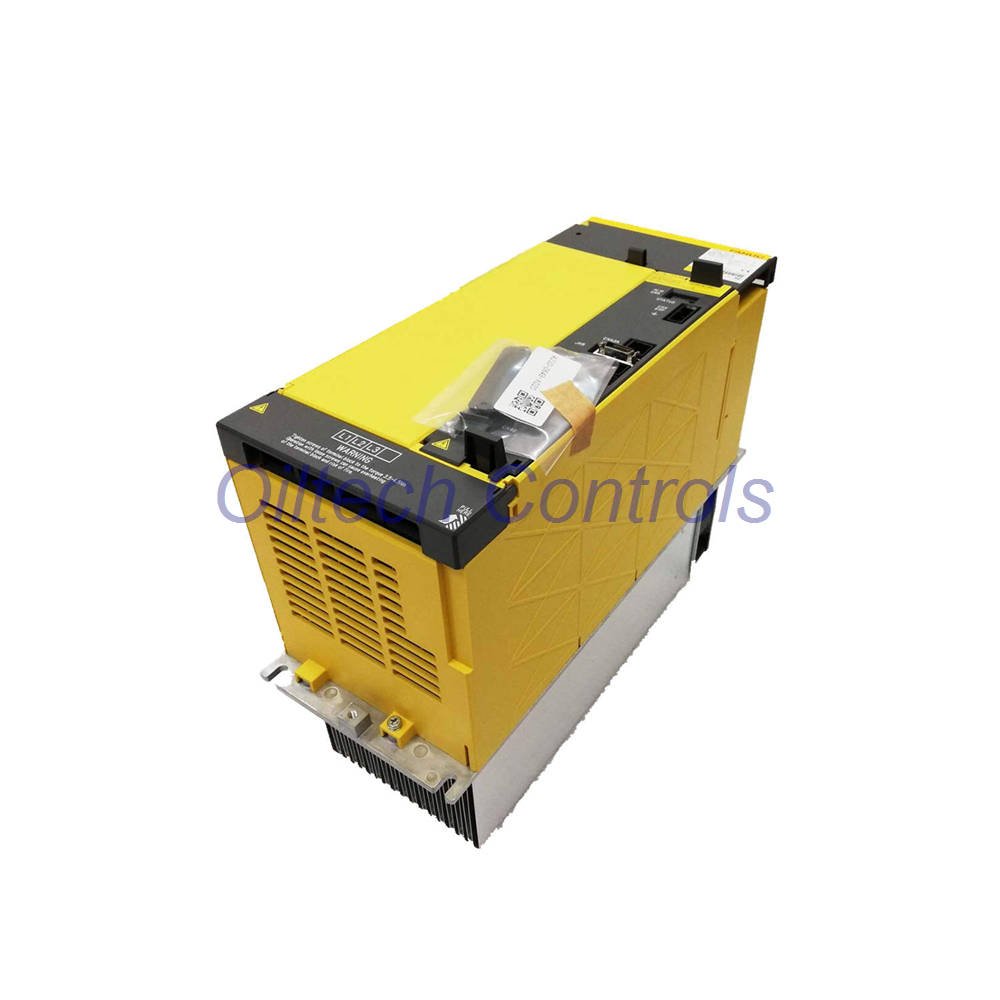

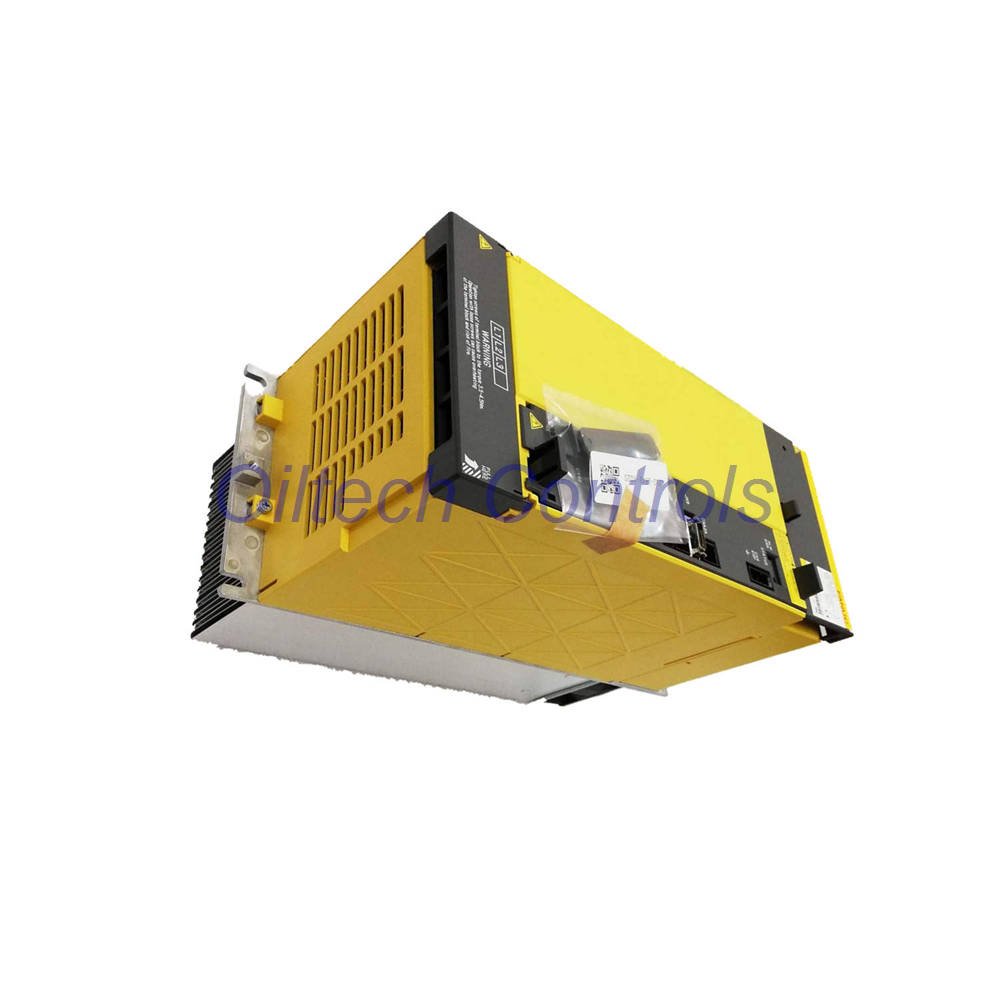

Product Overview
FANUC A06B-6200-H037 is a high-power servo amplifier module for heavy industrial duty. It delivers 44 kW output and handles 154 A input at 200 V. This 3-phase unit operates on 200-240 VAC, 50/60 Hz, and outputs 283-339 VDC. Its rugged design supports 0°C to 55°C ambient temperature.
Core Technical Data
- Brand: FANUC
- Model: A06B-6200-H037
- Series: A06B
- Type: Servo Amplifier Module
- Rated Input Current: 154 A at 200 V
- Input Voltage: 200-240 VAC, 3-phase
- Input Frequency: 50/60 Hz
- Output Voltage: 283-339 VDC
- Rated Output Power: 44 kW
- Weight: 30.00 lbs (13.61 kg)
- Operating Temp: 0°C to 55°C
Performance & Environmental Robustness
- High surge current capability for heavy loads.
- Wide input voltage tolerance (±10%).
- Built-in overvoltage and overcurrent protection.
- Operates reliably in harsh factory floors.
- Efficient heat dissipation for continuous duty.
Installation & Commissioning Quick Guide
- Mount on a rigid, grounded metal plate.
- Use proper gauge cables for 154 A input.
- Connect to 3-phase 200-240 VAC supply.
- Interface with FANUC CNC or robot controller.
- Parameter setting via FANUC software tool.
Compatibility & Suitable Equipment
- CNC: FANUC Series 0i/30i/31i and older models.
- Robots: FANUC R-30iA/R-30iB controllers.
- Servo motors: A06B series high-torque motors.
- Applications: heavy milling, stamping, press drives.
- Replaces A06B-6200-H035/H036 directly.
Certifications & Standards
- CE marked for EU compliance.
- UL/cUL recognized for North America.
- RoHS compliant.
- Meets EN 61800-3 EMC requirements.
Package & Shipping Details
- Includes: A06B-6200-H037 unit, mounting kit, manual.
- Warranty: 12-month against defects.
- Shipping: FedEx, UPS, DHL – worldwide.
- Dispatch: within 24-28 hours from order.
Oiltech Controls’s Insight
- This 44 kW module is built for continuous high-torque applications.
- Its 154 A input capacity makes it ideal for large servo spindles.
- We recommend forced-air cooling in enclosed cabinets.
- Firmware version verification is critical for compatibility.
- Commonly used in automotive press lines and heavy machine tools.
Oiltech Controls Review – Field Experience
- Tested in stamping plants: stable output even under 50% overload.
- Excellent thermal management with built-in fans.
- Easy retrofit for older A06B-6200 series amplifiers.
- Reduced downtime due to robust protection logic.
- Positive feedback from maintenance engineers on reliability.
5 Professional FAQs with Buying Guide
- Q: Can this module drive a 30 kW spindle motor?
A: Yes, it provides 44 kW rated power – sufficient for 30 kW spindles with headroom. - Q: What is the difference between H037 and H035?
A: H037 offers higher output voltage and improved thermal rating for continuous heavy duty. - Q: Does it support 400 V input via transformer?
A: No, it requires direct 200-240 VAC 3-phase; use step-down transformer if needed. - Q: How to verify if my existing controller is compatible?
A: Check FANUC firmware version; we offer pre-shipment verification service. - Q: Which applications benefit most from this model?
A: Heavy milling, robotic press tending, conveyor drives, and extruder lines.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spares.
- Global logistics – fast and trackable delivery.
- All units are tested (surplus/refurbished).
- 12-month warranty on every product.
- Technical verification prior to shipment.
- Expert support for obsolete control systems.
