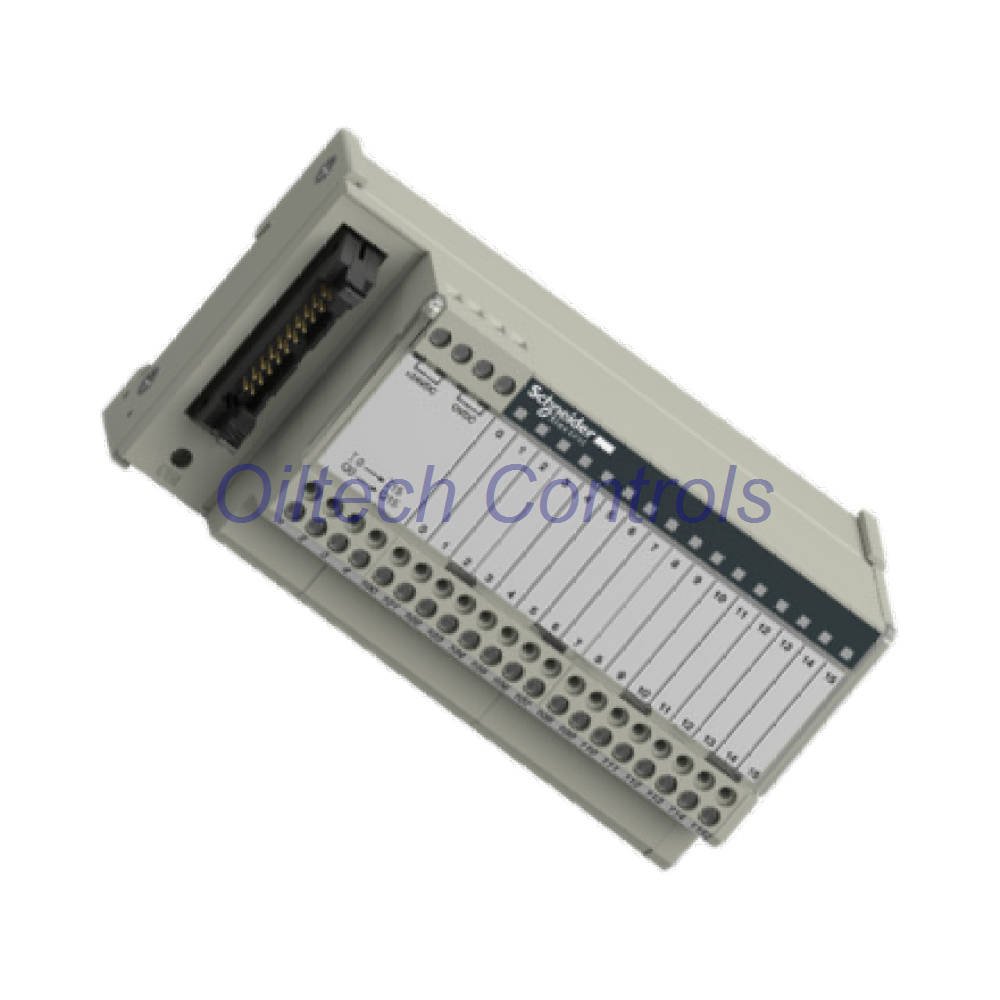

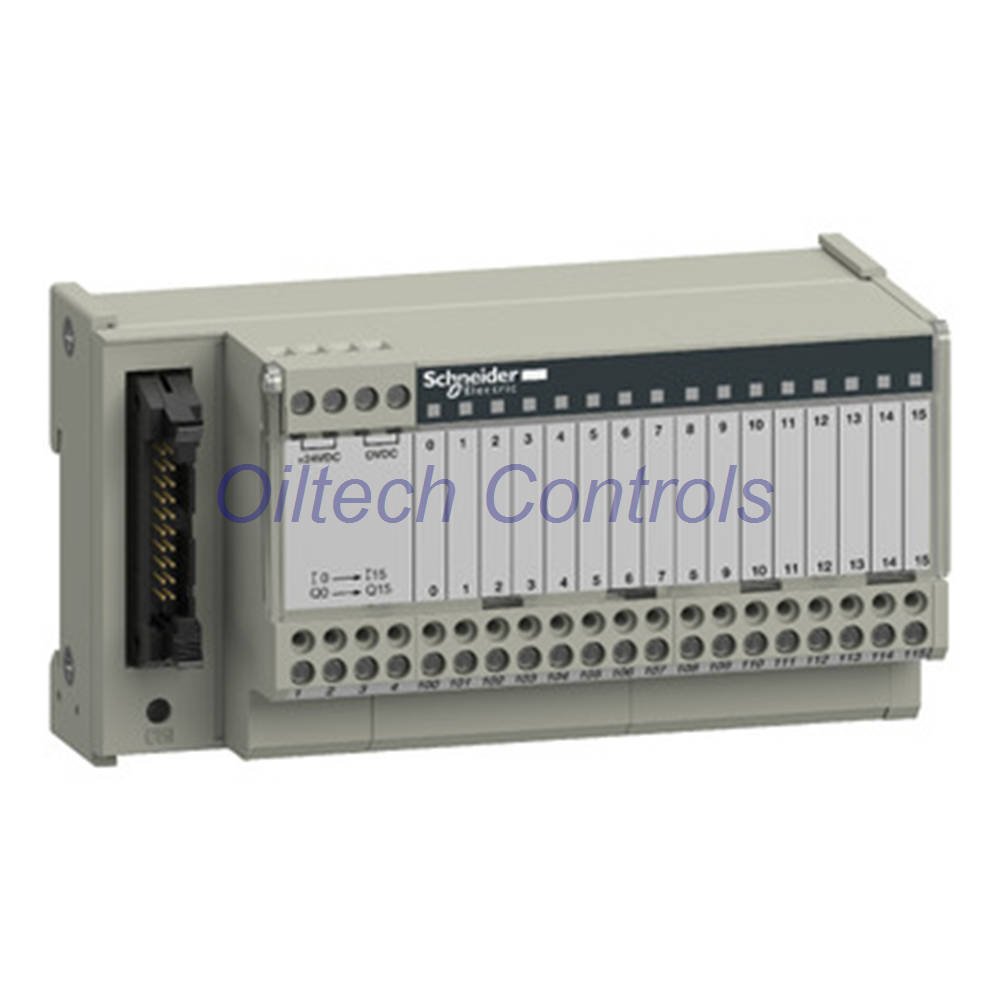

ABE7H16R11 – Schneider Electric Telefast Passive I/O Sub-Base
The ABE7H16R11 from Schneider Electric is a Telefast ABE7 passive discrete I/O connection sub-base. It carries 16 channels with one terminal per channel. This base does not distribute polarity. It suits 19-30V DC discrete signals per IEC 61131-2. The HE-10 20-pin connector links directly to PLC I/O cards. A 2A internal fuse and one LED per channel simplify diagnostics. Engineers use it to convert field wiring into a pluggable interface. The ABE7H16R11 fits 35mm DIN rail or screw mount. It remains active in production as part of the Telefast ABE7 line.
Technical Data
- Brand: Schneider Electric
- Model: ABE7H16R11
- Series: Telefast ABE7
- Channels: 16, one terminal each
- Signal type: Discrete I/O, no polarity distribution
- Supply voltage: 19-30V DC (IEC 61131-2)
- Max supply current: 1.8 A
- Current per channel: 0.5 A
- Connector: HE-10 20-pin
- Protection: 2A internal fuse, LED per channel
- Operating temperature: -5 to 60 °C
- Protection rating: IP2X
- Mounting: 35mm DIN rail clips or screw
- Dimensions (H×W×D): 77 × 206 × 58 mm
- Weight: 0.64 kg
- Wire cross-section: 0.14-2.5 mm² solid, 0.09-1.5 mm² flexible
- Lifecycle: Active (last verified 2026-09)
Suitable Equipment
- Modicon TSX and Premium PLC I/O cards
- Telefast ABE7 pre-wired connection systems
- Discrete sensor and actuator wiring
- Obsolete PLC replacement projects
- Control panels with HE-10 interface needs
Oiltech Controls’s Insight
- The ABE7H16R11 cuts panel wiring time. It replaces terminal blocks with one pluggable base.
- The 2A fuse protects the PLC card. One LED per channel speeds fault finding.
- No polarity distribution means you wire each channel freely. This suits mixed input and output signals.
- Stock is tested before dispatch. It works for legacy Telefast cabinets.
