BMEH586040S Modicon M580 Redundant Hot Standby Safety CPU SIL3

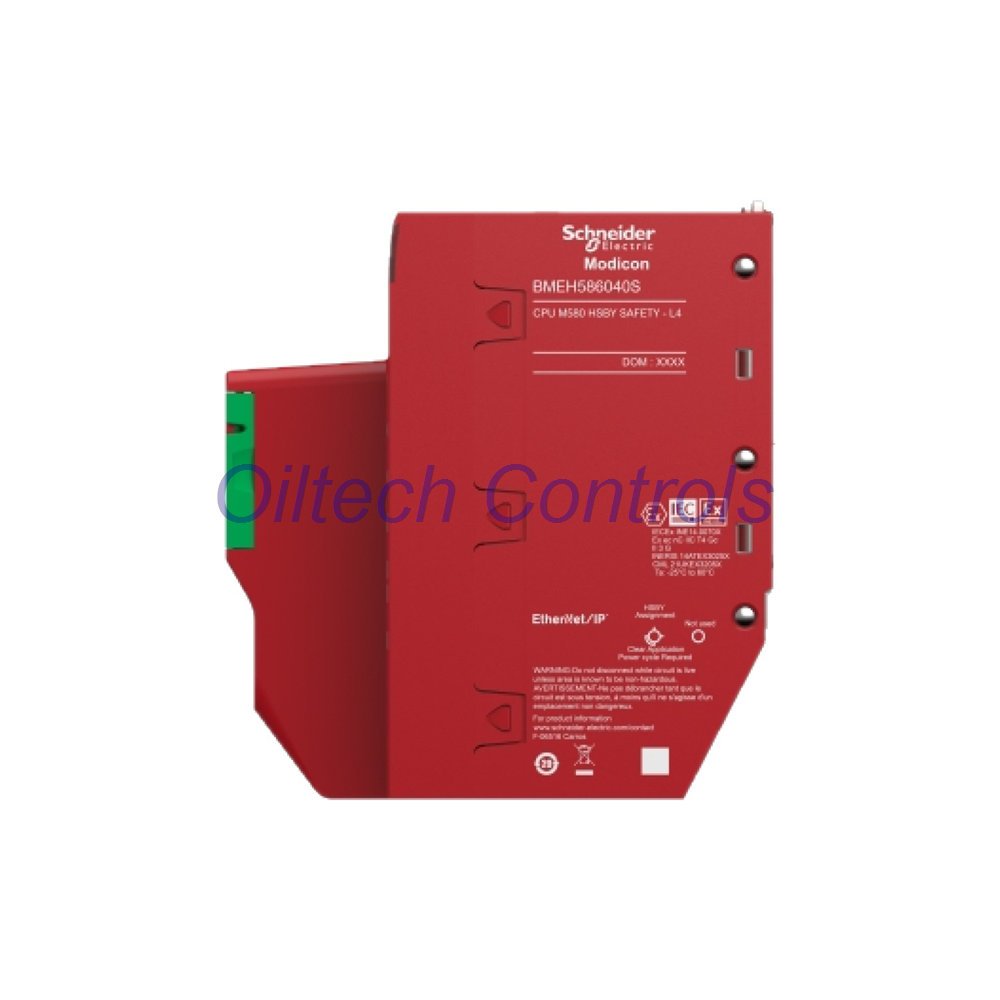

BMEH586040S Modicon M580 Redundant Hot Standby Safety CPU by Schneider Electric

The BMEH586040S is a Level 6 redundant Hot Standby safety CPU for the Schneider Electric Modicon M580 ePAC platform. It runs an ARM dual-core processor at 600 MHz. It carries SIL3 / IEC 61508 safety integrity. The module uses a redundant Hot Standby (HSBY) architecture for high availability. It fits two slots in an X80 Ethernet backplane. Program with EcoStruxure Machine Expert (Unity Pro XL). This CPU suits safety-critical process and hybrid control systems.

Processor and Memory Architecture

• Processor: ARM dual-core, redundant Hot Standby design
• Clock speed: 600 MHz
• Program memory: 64 MB integrated RAM
• Data memory: 1 MB
• Performance level: Level 6
• Safety integrity: SIL3 per IEC 61508
• Programming software: EcoStruxure Machine Expert (Unity Pro XL)

I/O and Rack Capacity

• Remote I/O racks: 31 racks (X80 and Quantum I/O)
• Distributed devices: 61 DIO devices
• Compatible racks: 4, 6, 8, 12 slots on X80 Ethernet backplane
• Slot occupation: 2 slots
• PROFIsafe devices: 128 over PROFINET

Communication Interfaces

• Service port: 1× Ethernet RJ45
• RIO/DIO ports: 2× Ethernet RJ45
• Local port: 1× USB Mini-B
• Protocols: Modbus TCP/IP, EtherNet/IP, PROFIsafe over PROFINET
• Expansion modules: BMENOC03xx, BMENOS0300, BMENOR2200, BMENUA0100

Electrical and Environmental Data

• Supply voltage: 24 V DC (19.2–31.2 V DC via backplane)
• Power consumption: 8.6 W
• Bus current: 360 mA @ 24 V DC
• Operating temperature: 0°C to +60°C
• Storage temperature: -25°C to +70°C
• Humidity: 5% to 95% non-condensing
• Protection: IP20
• Coating: Conformal coated for harsh environments

Physical and Lifecycle Details

• Dimensions (H×W×D): 100 × 56 × 93 mm
• Weight: 0.849 kg
• SD card: 4 GB optional (BMXRMS004GPF)
• Lifecycle: Active, introduced 2014, replaces Quantum and Premium
• Last verified: 2026-09

Suitable Equipment and Platforms

• Modicon M580 ePAC controllers with X80 Ethernet backplane
• Safety-critical process lines requiring SIL3 integrity
• Hot Standby redundant control architectures
• Quantum and Premium system upgrades
• Hybrid and discrete safety applications
• PROFIsafe over PROFINET networks

Oiltech Controls’s Insight

• The BMEH586040S pairs dual-core processing with certified SIL3 safety.
• Hot Standby redundancy cuts downtime in continuous processes.
• 31 RIO racks and 61 DIO devices give strong scalability.
• Conformal coating supports humid or contaminated plant floors.
• Two-slot footprint keeps cabinet space efficient.
• Active lifecycle means long-term spare parts availability.
