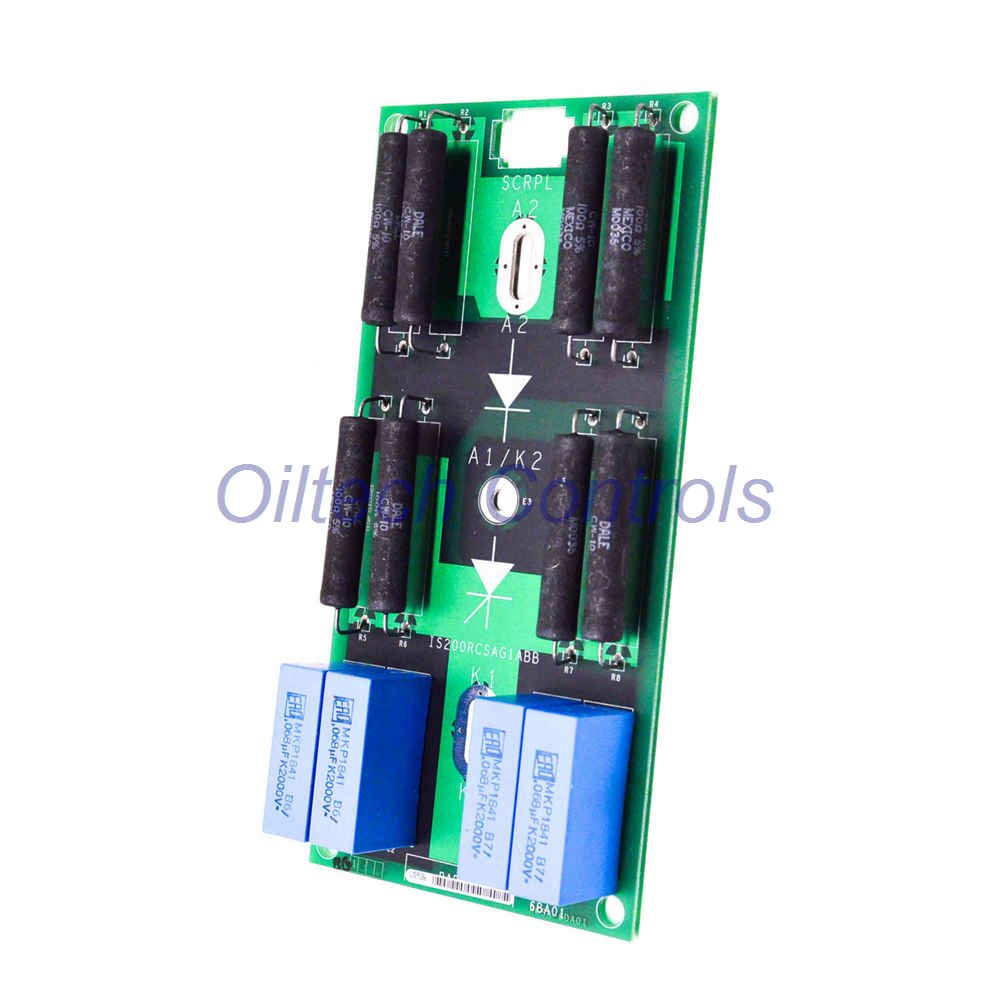

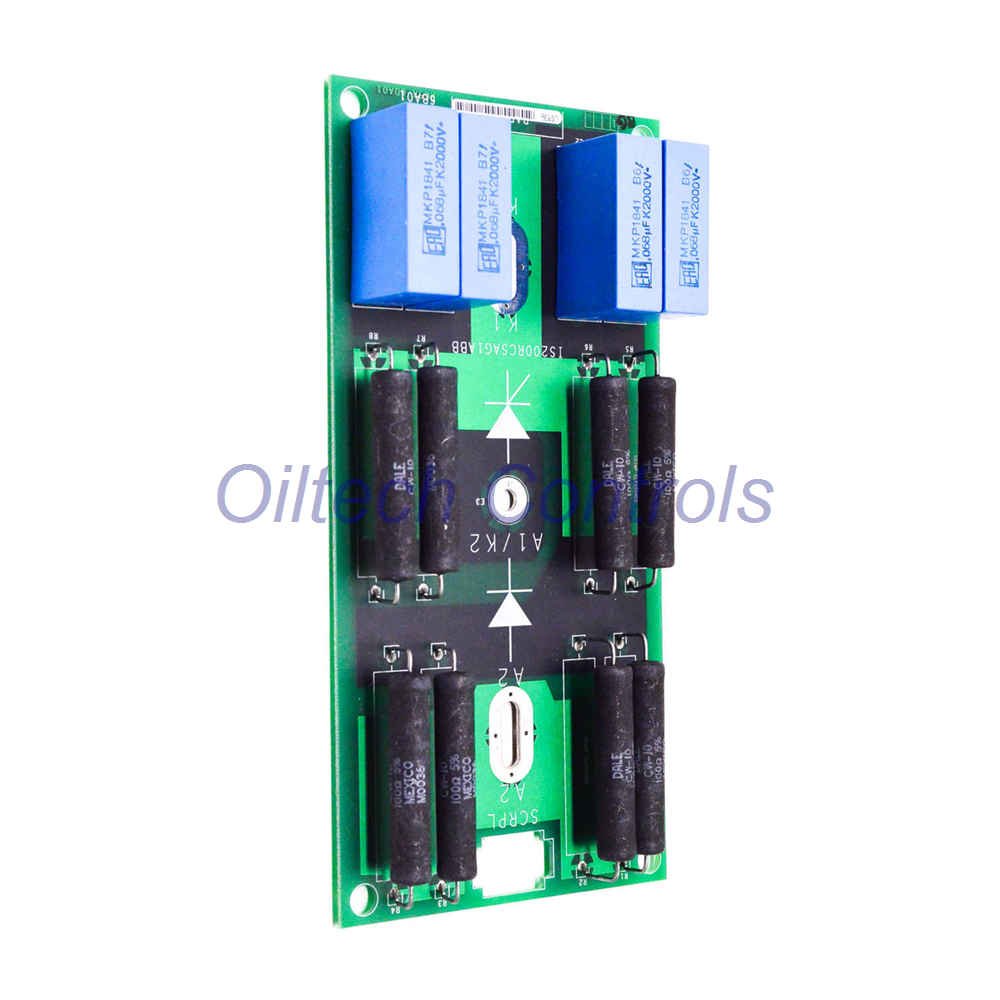

IS200RCSAG1ABB RC Snubber Board – GE EX2100 Series
The IS200RCSAG1ABB is a passive RC snubber board from GE Industrial Systems. It belongs to the EX2100 Excitation Control System. This board protects SCR and diode modules from high-voltage transients. It absorbs excess energy through resistor-capacitor networks. It also reduces EMI and prevents component stress. This board is a modified version of the parent IS200RCSAG1. It carries three revisions: A, B, and B grades. It fits 1800A and 1000A frame Innovation Series nonregenerative drives.
Technical Specifications
| Part Number | IS200RCSAG1ABB |
| Manufacturer | General Electric (GE Industrial Systems) |
| Series | EX2100 / Mark VI Speedtronic |
| Functional Acronym | RCSA |
| Function | 1800/1000 Frame RC Snubber Board |
| Supply Voltage | 25 V dc |
| Operating Temperature | -35°C to +65°C |
| PCB Coating | Normal Coating |
| Dimensions | 23.8 cm (H) x 8.6 cm (W) |
| Weight | 0.45 kg |
| Country of Origin | USA |
| Manual Reference | GEI-100303 |
Key Features & Protection Capability
- Snubber Circuits: Two identical RC networks per board – one for SCR, one for diode.
- Transient Suppression: Limits dv/dt and dampens voltage spikes from inductive loads.
- EMI Reduction: Minimizes electromagnetic interference for system stability.
- Passive Design: No active components, fuses, test points, or LEDs. No user adjustments.
- Mechanical Support: Mounts directly on SCR/diode modules for compact assembly.
- Fixed Configuration: No movable jumpers; factory drilled holes for installation.
Application Data & Typical Use
- Primary Role: Protects power semiconductors in high-power excitation bridges.
- Compatible Frames: 1800A and 1000A Innovation Series nonregenerative sources.
- Noise Isolation: Provides noise isolation for gate drive circuits.
- System Integration: Works within GE EX2100 excitation control systems.
- Passive Support: Dedicated snubber interface, not a diagnostic or control module.
Installation, Maintenance & Compatibility
- Mounting: Four factory-drilled holes for secure installation.
- No Calibration: Fixed parameters – no field adjustments needed.
- Maintenance: Minimal; periodic visual inspection recommended.
- Compatibility: Direct replacement for IS200RCSAG1 variants. Fully compatible with GE EX2100 and Mark VI systems.
Environmental & EMC Performance
- Temperature Range: -35°C to +65°C, suitable for harsh industrial environments.
- Coating: Normal PCB coating protects against dust and moisture.
- EMC Compliance: Minimizes conducted and radiated emissions.
- Reliability: Reduces electrical overstress and extends component life.
Certification & Quality Assurance
- Manufactured under GE Industrial Systems quality standards.
- Tested for transient suppression performance.
- RoHS compliant (information available upon request).
- Original USA made – genuine GE spare part.
Diagnostic Capability & FAQs
- Diagnostic Role: Passive protection; no onboard diagnostics. System level monitoring detects snubber health via transient behavior.
- FAQ: Does it include LEDs? No, it has no indicators.
- FAQ: Can I adjust snubber values? No, fixed RC networks.
- FAQ: Which frame sizes? 1800A and 1000A Innovation Series.
- FAQ: Is it a direct replacement? Yes, for IS200RCSAG1/A/B variants.
Package Contents & Warranty
- 1 x IS200RCSAG1ABB RC Snubber Board.
- No additional cables or hardware included.
- Warranty: 12 months against manufacturing defects.
- Shipping: Packaged in anti-static ESD bag.
