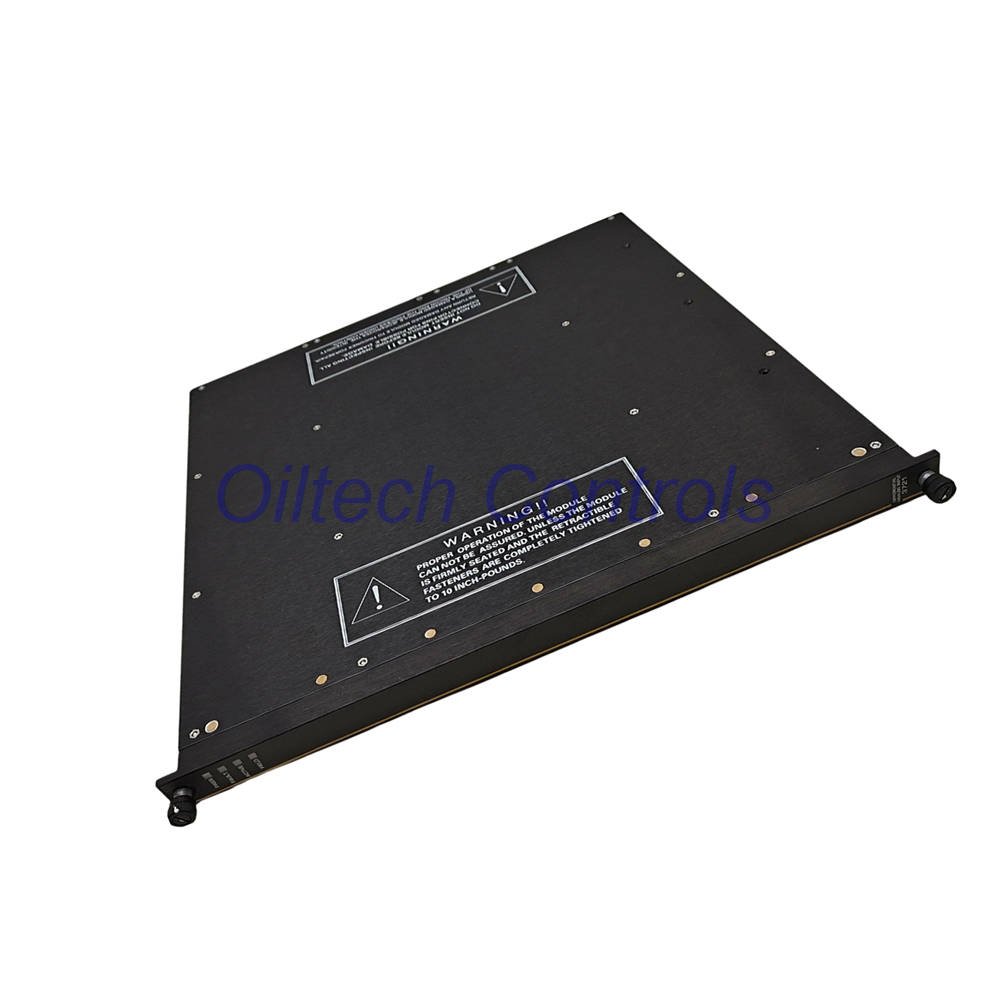

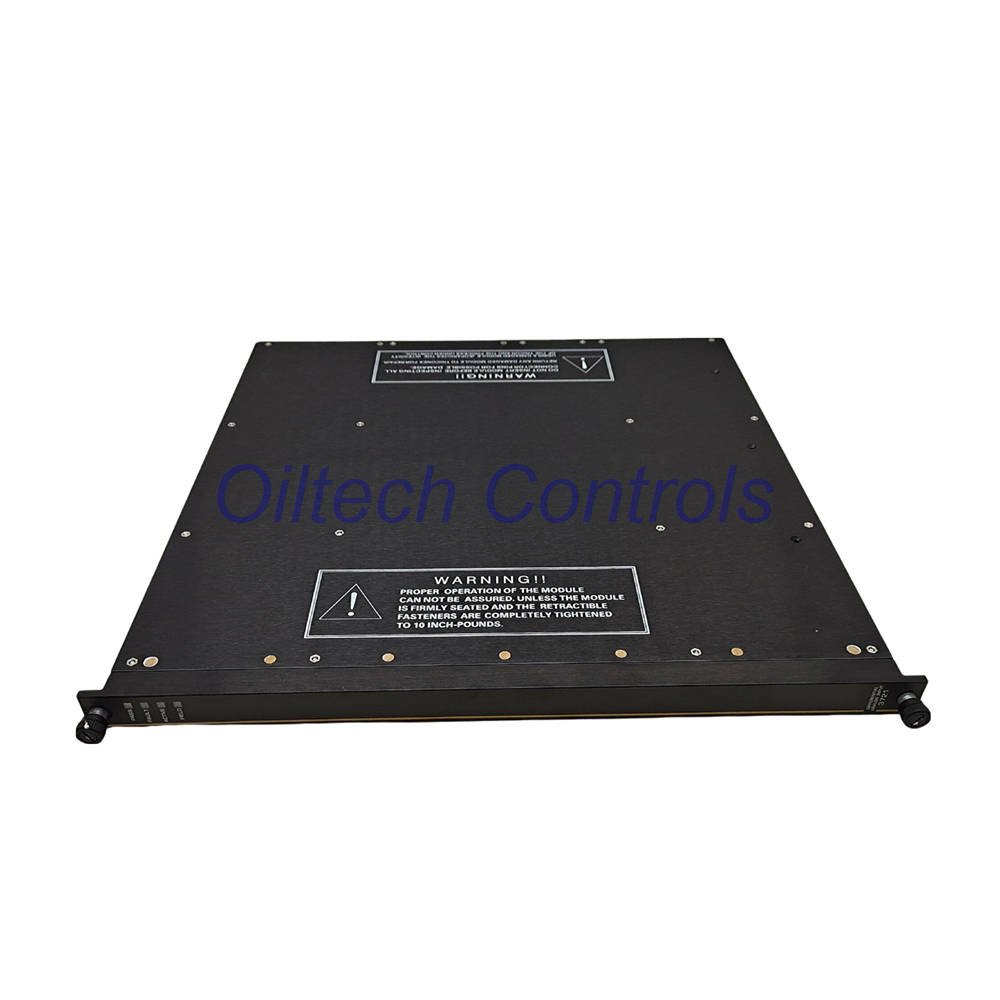

Triconex 3721 High-Performance Analog Input Module Overview
The Triconex 3721 represents a premier solution for demanding industrial automation and safety-critical monitoring applications. This high-density module delivers exceptional precision and reliability in complex control environments where accuracy remains paramount. Engineers choose the Triconex 3721 to ensure seamless integration and robust data acquisition within their existing control architectures. We, at Oiltech Controls, highlight its superior design for modern process automation requirements.
Technical Specifications and Performance
- Manufacturer: Triconex
- Model Number: 3721
- Input Type: 32-point differential, DC-coupled, TMR AI
- Voltage Ranges: 0 to 5 VDC or -5 to +5 VDC (± 6%)
- Resolution: Programmable 12-bit or 14-bit architecture
- Accuracy: Better than 0.15% of FSR (0°C to 60°C)
- Update Speed: 10 ms rapid input update rate
- Input Protection: 150 VDC/115 VAC continuous overrange protection
- Common Mode Rejection: -85 dB (DC to 100 Hz) for signal integrity
- Physical Attributes: Yellow color code, 1.36 Kg total unit weight
Advanced Features and Signal Handling
- Integrated shunt resistors enable flexible 0-20 mA current measurement capabilities.
- High input resistance of 10 MΩ minimizes loading effects on critical field signals.
- Robust isolation technology provides 420 kΩ leg-to-leg isolation for enhanced safety.
- Advanced diagnostic indicators monitor PASS, FAULT, ACTIVE, and FIELD status continuously.
- Normal mode rejection delivers -14 dB at 120 Hz to filter electrical noise.
Installation and Logistics
- Mount the module securely in designated rack slots following standard industrial procedures.
- Verify all field connections before applying power to the analog input circuits.
- Our team ensures fast worldwide delivery via Fedex, UPS, or DHL.
- The package includes the primary module unit and necessary protective packing materials.
- For specific procurement inquiries, email info@oiltechcontrols.com for assistance.
- Contact us directly via +86 158 8020 0923 for urgent support.
Frequently Asked Questions
- Question: Can I program the resolution on this module?
- Answer: Yes, you can program the Triconex 3721 for either 12-bit or 14-bit resolution.
- Question: How does the module handle high common-mode noise?
- Answer: The unit achieves -85 dB rejection between DC and 100 Hz frequencies effectively.
- Question: What is the best way to choose this model for my system?
- Answer: Assess your loop count and voltage requirements to ensure compatibility with 32 differential points.
- Question: Does this module support current inputs?
- Answer: You must utilize a 250 Ω shunt resistor to enable 0-20 mA input functionality.
